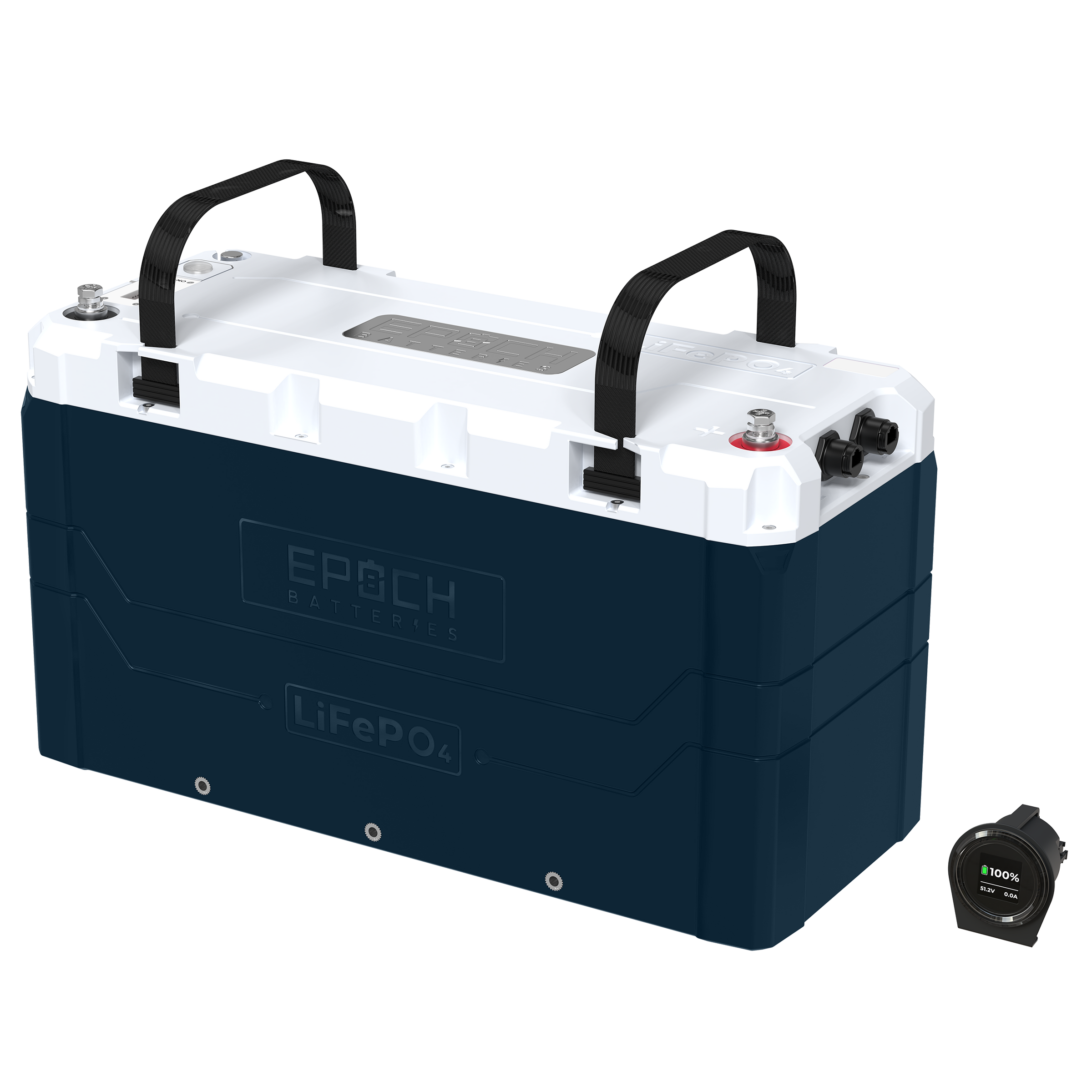

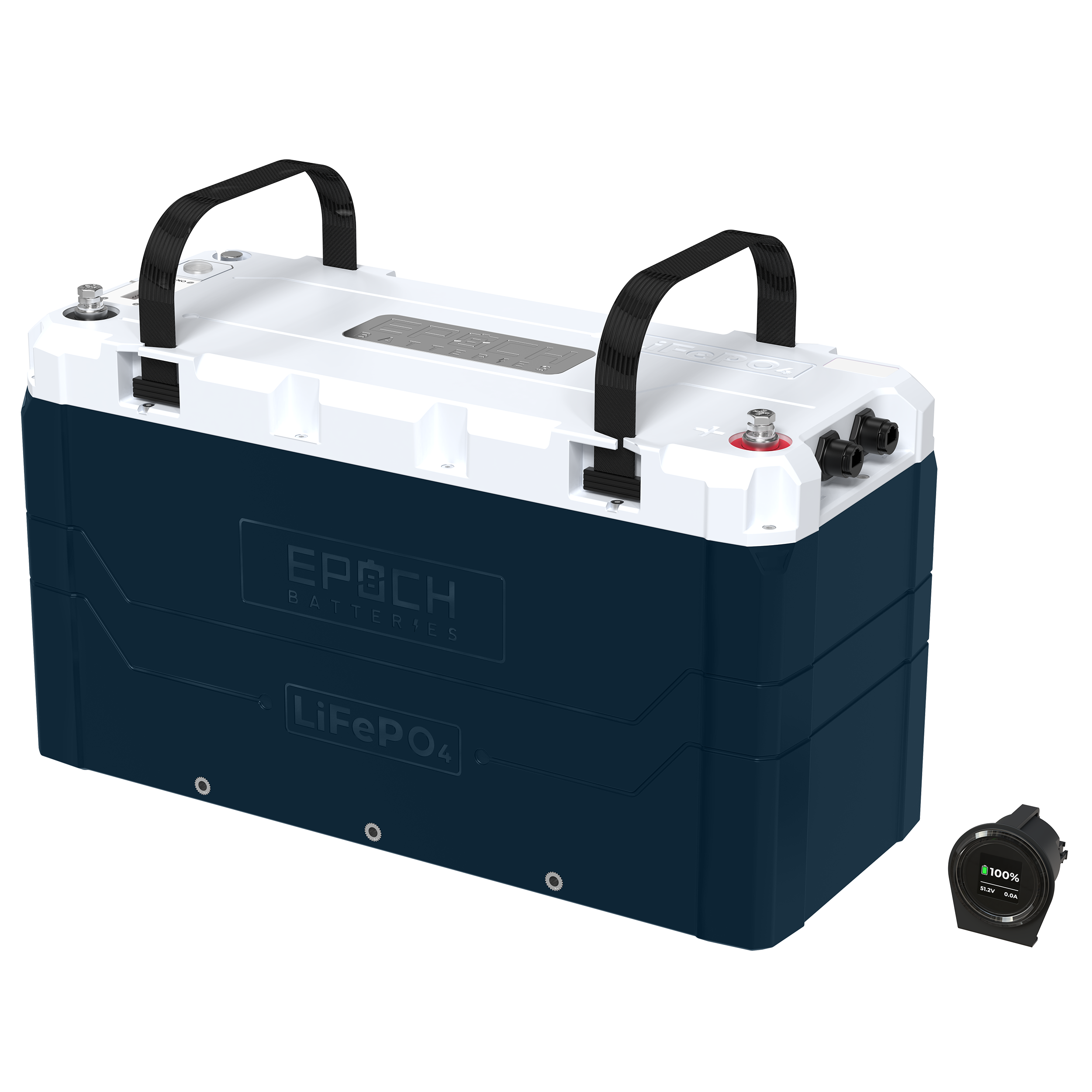

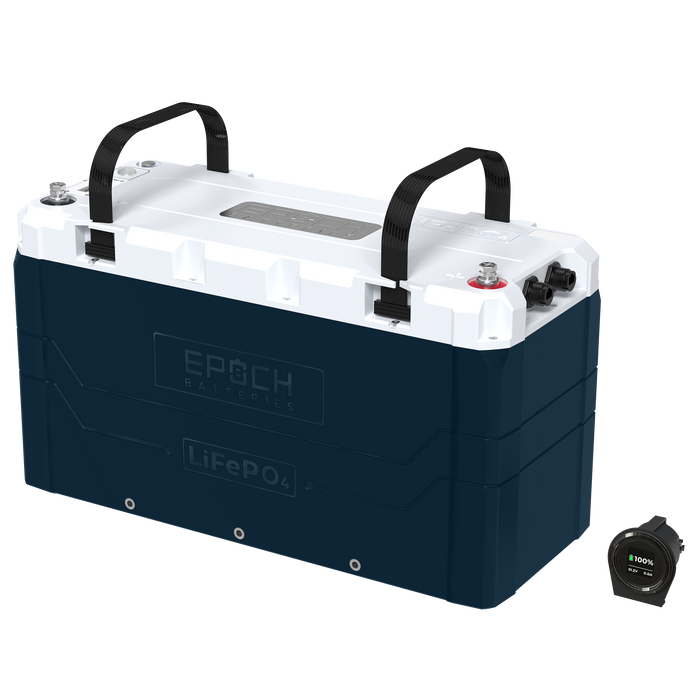

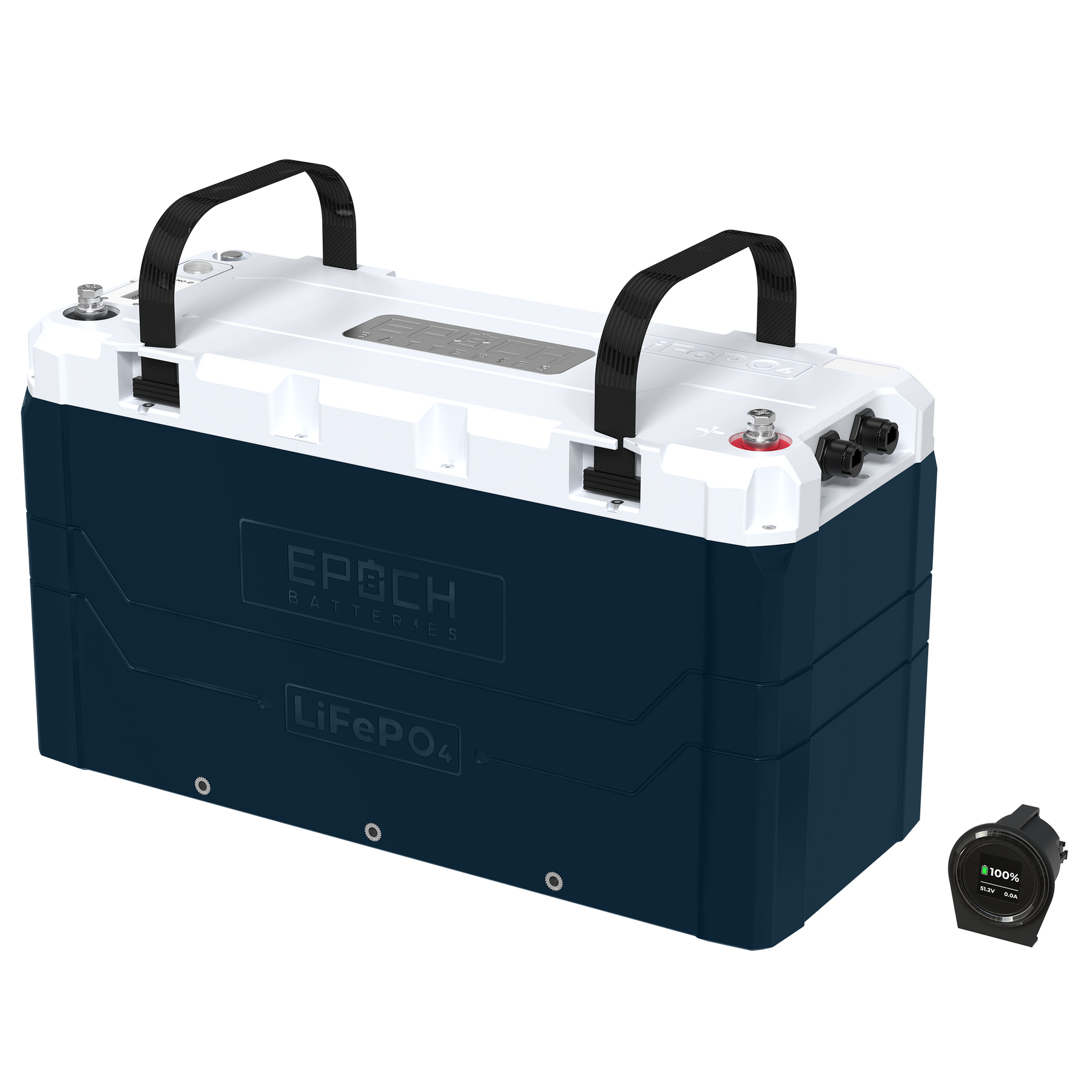

48V 100Ah (5.12kWh) V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
The 48V 100Ah (5.12kWh) V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery helps complete a more capable solar and off-grid power and backup energy storage setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.
Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.
- Product role: Victron System Component
- Best-use applications: solar and off-grid power and backup energy storage
- Notable features: Bluetooth monitoring support, built-in heating for cold-weather charging support, Victron-compatible system communication, and solar and off-grid system integration
- SKU: C48100A
For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.
| 48V 100Ah (5.12kWh) V2 Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery | |
| Model SKU | C48100A |
|---|---|
| MODEL | |
| 48V 100Ah Elite This model | 100Ah |
| Product Type | Battery |
| ELECTRICAL | |
| Series | V2 Elite Series |
| Battery type | Heated Bluetooth LiFePO4 battery with Victron CANbus communication |
| Primary applications | 48V off-grid, RV, marine, solar, industrial, and high-power inverter systems |
| Chemistry | LiFePO4 / lithium iron phosphate |
| Cell configuration | 16S1P |
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Energy capacity | 5.12kWh / 5120Wh |
| Maximum voltage | 58.4V |
| Minimum voltage | 40.0V |
| Operating voltage range | 40.0V – 58.4V |
| Max continuous discharge | 150A |
| Peak discharge | 300A @ 30 seconds |
| Max continuous charge current | 100A |
| Max short-duration charge current | 300A |
| Theoretical continuous DC output | 51.2V × 150A = 7,680W |
| Series connections | No series connections; native 48V battery |
| Parallel connections | Max 16 batteries in parallel |
| Maximum parallel bank | Up to 1,600Ah / 81.9kWh at 48V |
| Absorption voltage | 56.8V |
| Float voltage | 54.0V |
| Internal fuse | UL60691 certified internal fuse |
| Battery Features | Bluetooth monitoring, Self-heating, LiFePO4 chemistry |
| CONNECTIONS | |
| Bluetooth | Yes — Bluetooth 4.0, compatible with the Epoch app |
| Victron communication | Yes — CANbus communication for compatible GX devices |
| Terminals | M8 terminals |
| PHYSICAL | |
| Dimensions | 20.86 in L × 8.65 in W × 12.06 in H |
| Weight | 97 lb / approx. 44 kg |
| Case material | ABS and PC blend |
| Enclosure protection | IP67 waterproof and dustproof |
| OPERATING LIMITS | |
| Cycle life | 3,500+ cycles |
| Charge temperature range | -30°C to 55°C / -22°F to 131°F with self-heating |
| Discharge temperature range | -20°C to 55°C / -4°F to 131°F |
| Recommended long-term storage temperature | 0°C to 35°C / 32°F to 95°F |
| Smart BMS protection | Overcharge, over-discharge, over-current, short circuit, high/low temperature disconnects |
| Cell certifications | UL1642, UL9540A, IEC 62619:2022 |
| Pack certification | UL1973 certified battery pack |
