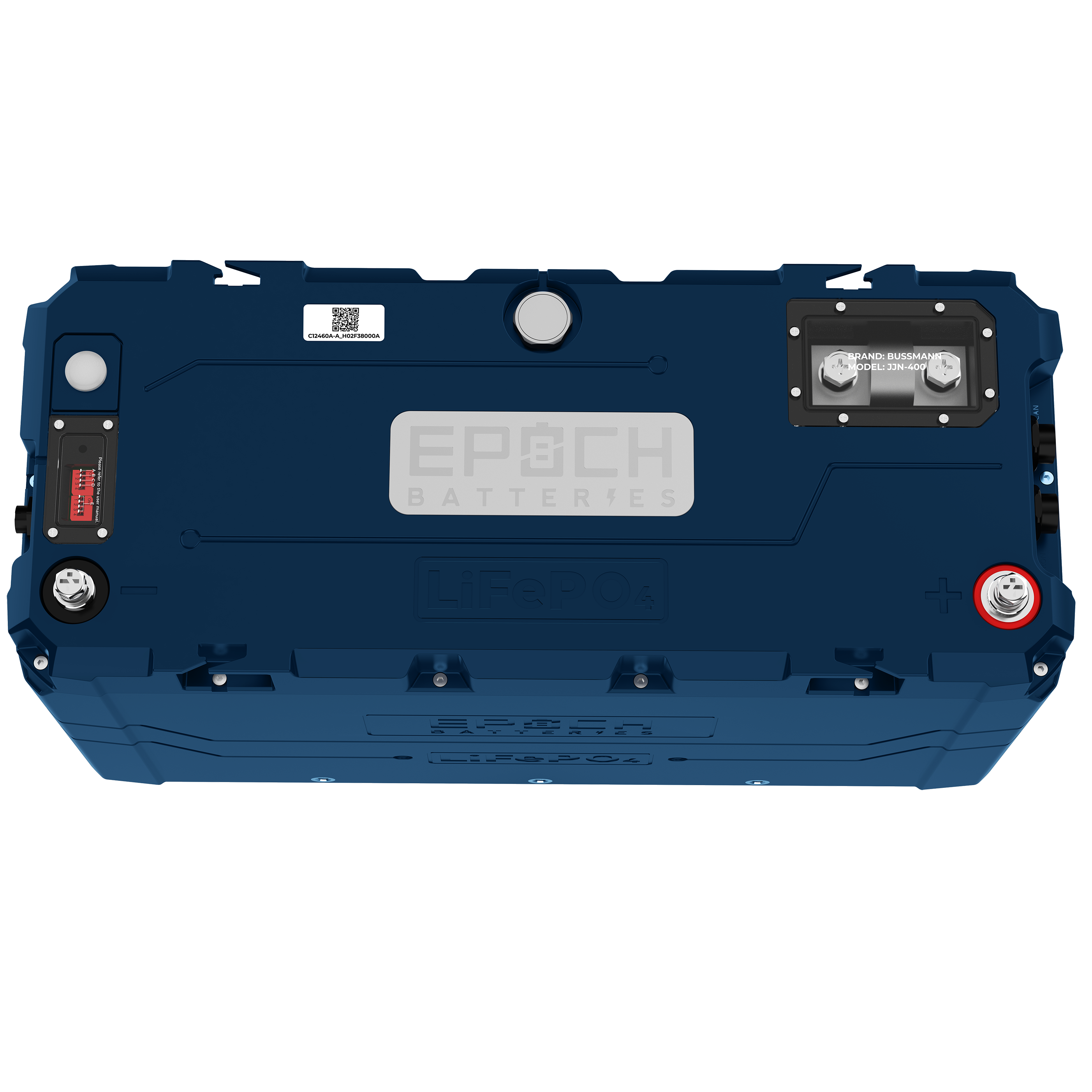

48V 100Ah (5.12kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery
The 48V 100Ah (5.12kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery helps complete a more capable solar and off-grid power and backup energy storage setup with monitoring, charging, control, or DC distribution support. It is intended for builders who want cleaner system integration instead of guessing through mismatched components.
Use it when upgrading an RV, marine, van, solar, or off-grid power system that needs better visibility, safer distribution, or smarter charging control. Always confirm model compatibility, voltage range, current rating, communication requirements, and installation clearances before ordering.
- Product role: Victron System Component
- Best-use applications: solar and off-grid power and backup energy storage
- Notable features: Bluetooth monitoring support, built-in heating for cold-weather charging support, Victron-compatible system communication, and solar and off-grid system integration
- SKU: C48100A-A
For a cleaner install, compare this component against your battery voltage, charging source, inverter needs, monitoring goals, and communication requirements before finalizing your system design.
| 48V 100Ah (5.12kWh) V2-T Elite Series - Heated & Bluetooth & Victron Comms LiFePO4 Battery | |
| Model SKU | C48100A-A |
|---|---|
| MODEL | |
| 48V 100Ah Elite This model | 100Ah |
| Product Type | Battery |
| ELECTRICAL | |
| Series | V2-T Elite Series |
| Battery type | Heated Bluetooth LiFePO4 battery with Victron communication and integrated Class-T fuse |
| Chemistry | LiFePO4 / Lithium iron phosphate |
| Cell configuration | 16S1P |
| Integrated fuse | 250A Eaton Class-T fuse, user-serviceable |
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Stored energy | 5.12kWh / 5,120Wh |
| Maximum voltage | 58.0V |
| Minimum voltage | 41.6V |
| Charge profile | CC/CV LiFePO4 charging; no equalization |
| Max continuous discharge | 150A |
| Peak discharge | 300A for 30 seconds |
| Max continuous charge current | 100A |
| Peak charge current | 300A for 10 seconds |
| Approx. continuous DC output | Up to 7,680W nominal before inverter losses |
| Internal fuse rating | 250A Class-T fuse |
| Series connections | Not supported |
| Parallel connections | Up to 16 batteries in parallel |
| Maximum bank capacity | Up to 1,600Ah / 81.92kWh at 48V nominal with 16 matched batteries |
| Series-parallel configuration | Not supported |
| Battery group / footprint | Group 8D-style footprint |
| Non-Victron absorption voltage | 56.8V |
| Float voltage | 54.0V |
| Battery Features | Bluetooth monitoring, Self-heating, LiFePO4 chemistry |
| CONNECTIONS | |
| Bluetooth | Yes — Epoch app support for iOS and Android |
| Victron communication | CANBus / Victron-ready communication with DVCC support |
| Self-heated charging support | Down to -22°F / -30°C when external charge current is available |
| Terminal type | M8 bolts |
| Terminal torque | 12 N·m / 8.85 lb-ft; follow the product label and manual |
| PHYSICAL | |
| Length | 20.86 in / 529.8 mm |
| Weight | 97 lb / 44 kg |
| Case material | PC + ABS, UL94 V-0 |
| OPERATING LIMITS | |
| Cycle life | 3,500+ cycles |
| Standard charge temperature range | 32°F to 131°F / 0°C to 55°C |
| Discharge temperature range | -4°F to 131°F / -20°C to 55°C |
| Storage temperature, up to 1 month | -4°F to 113°F / -20°C to 45°C |
| Storage temperature, up to 1 year | 32°F to 95°F / 0°C to 35°C |
| Ingress protection | IP67 dust-tight and waterproof for temporary immersion |
| Temperature compensation | Disabled / 0mV per °C |
| BMS protections | Overcharge, over-discharge, over-current, short-circuit, high-temperature, and low-temperature protection |
| Fuse certification | UL60691 certified internal fuse listed on product page |
| Cell certifications | UL1642, UL9540A, IEC 62619:2022 certified cells |
| Pack certification | UL1973 certified pack listed on product page |
