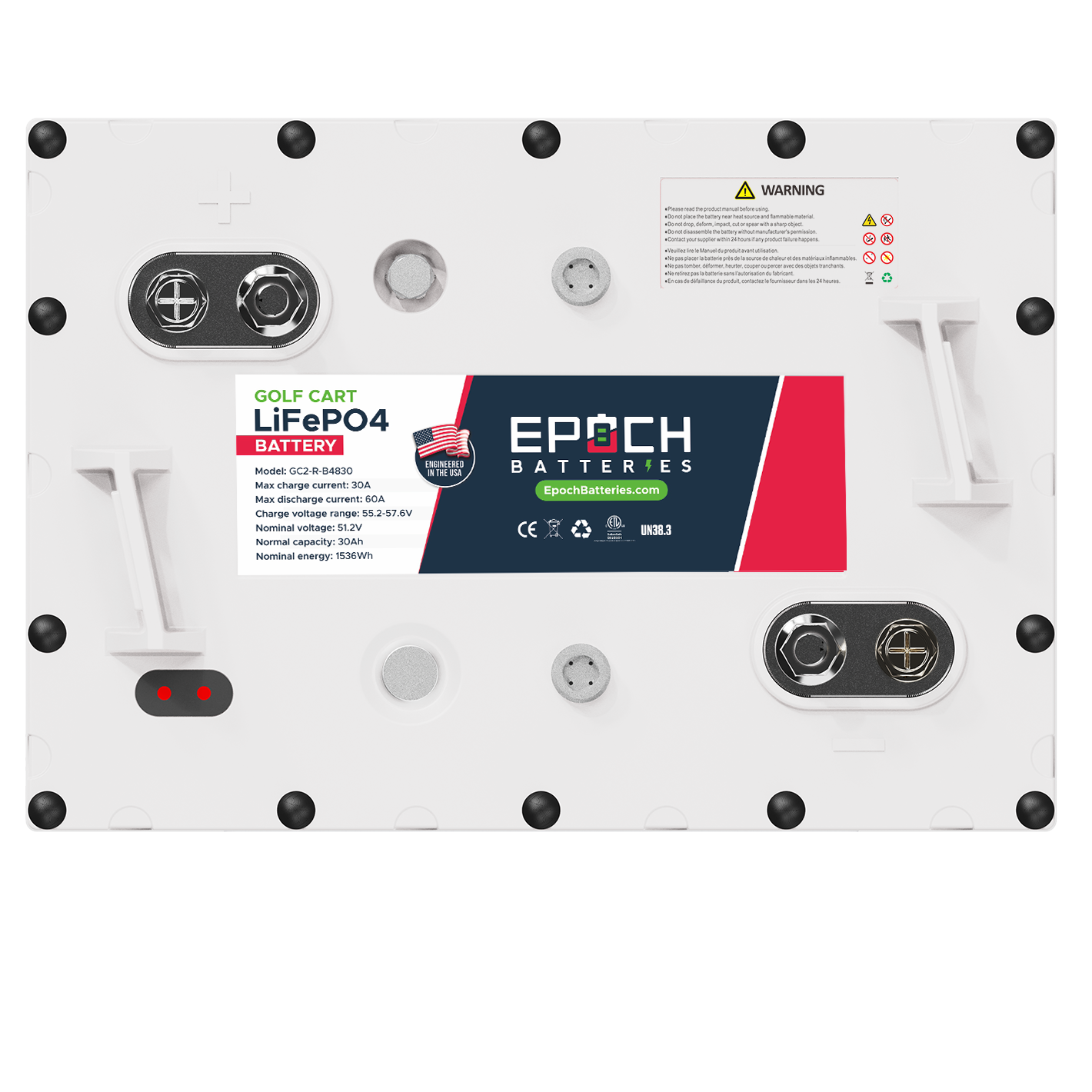

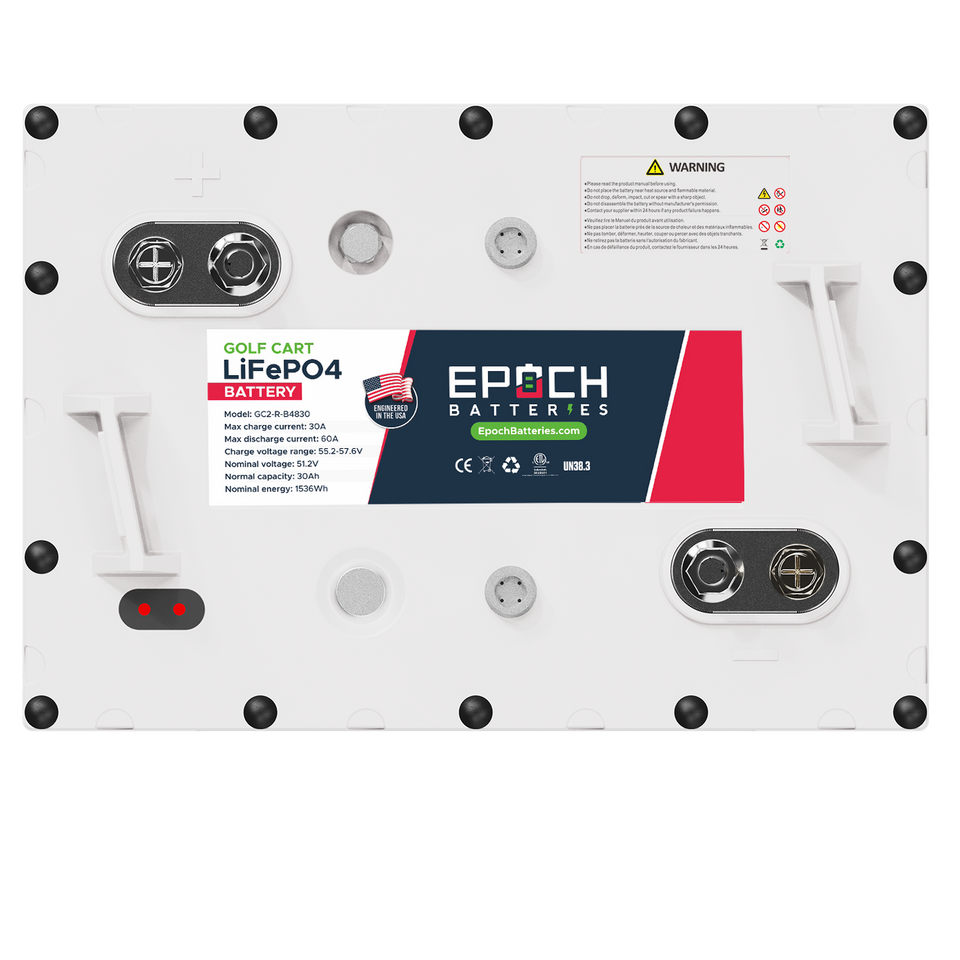

48V 30Ah (1.54kWh) GC2 - Golf Cart LiFePO4 Lithium Battery
The Epoch 48V 30Ah (1.54kWh) GC2 - Golf Cart LiFePO4 Lithium Battery gives customers a lithium iron phosphate power option for golf carts. It is a strong fit for shoppers comparing dependable LiFePO4 batteries for cleaner energy storage, lighter maintenance, and a more modern replacement path than traditional lead-acid battery setups.
Use this model when you need a 48v, 30ah, 1.54kwh, and gc2 that can support mobile, marine, golf cart, backup, or off-grid electrical systems depending on the installation. The description is written for real-world buying decisions: voltage, capacity, fitment, monitoring features, and charging compatibility should all be checked against your existing equipment before purchase.
- Core configuration: 48V, 30Ah, 1.54kWh, and GC2
- Best-use applications: golf carts
- Notable features: golf cart and low-speed vehicle applications
- SKU: 48V-30Ah-GC2 (EPOCH)
For the best long-term setup, pair this battery with the correct charger, cable sizing, fusing, and voltage-compatible equipment. When comparing models, focus on usable capacity, system voltage, communication features, installation space, and how the battery will be charged day to day.
| 48V 30Ah (1.54kWh) GC2 - Golf Cart LiFePO4 Lithium Battery | |
| Model SKU | 48V-30Ah-GC2 (EPOCH) |
|---|---|
| MODEL | |
| SKU | 48V-30Ah-GC2 (EPOCH) |
| Product Type | Battery |
| ELECTRICAL | |
| Battery type | 48V GC2 lithium golf cart battery |
| Chemistry | LiFePO4 / lithium iron phosphate |
| Cell configuration | 16S |
| Battery management | Smart BMS with overcharge, over-discharge, over-current, short-circuit, and temperature protections |
| Nominal voltage | 51.2V |
| Nominal capacity | 30Ah |
| Stored energy | 1,536Wh / 1.54kWh |
| Operating voltage range | 40.0V – 57.6V |
| Maximum charge voltage | 57.6V |
| Discharge cut-off / load cut-off | 40.0V – 44.8V range, depending on BMS condition and manual setting |
| Maximum continuous discharge | 60A |
| Maximum charge current | 30A |
| Recommended charge current | 20A spec-sheet recommendation; compatible 48V 15A charger available |
| Peak discharge | 100A for 10 seconds; 200A for 3 seconds |
| Parallel connections | Up to 10 batteries in parallel |
| Maximum parallel capacity | 300Ah total at 48V nominal |
| Series connections | Not supported |
| GC2 fitment | GC2-style lithium module designed for golf cart battery trays; confirm tray and cable clearance |
| IP rating | IP67 dustproof and waterproof protection |
| Required charger type | Dedicated 48V LiFePO4-compatible charger |
| Standard charging voltage | 55.2V – 57.6V |
| Battery Features | LiFePO4 chemistry |
| CONNECTIONS | |
| Communications | CANBus communication; iOS / Android app support listed by Epoch |
| Terminals | M8 terminals |
| Terminal torque | 8–12 N·m |
| PHYSICAL | |
| Dimensions | 10.25 in L × 7.0 in W × 11.0 in H, approx. |
| Metric dimensions | Approx. 260 mm × 180 mm × 272 mm |
| Weight | 33 lb / approx. 15 kg |
| Case material | ABS + PC, UL94-V0 flame rating |
| OPERATING LIMITS | |
| Cycle life | 4,000+ cycles |
| Short-circuit protection | Yes |
| Charge temperature range | 32°F to 131°F / 0°C to 55°C |
| Discharge temperature range | -4°F to 131°F / -20°C to 55°C |
| Storage temperature | 32°F to 86°F / 0°C to 30°C for storage under 6 months |
| Pack certifications | UL2271, CE, UN38.3 / Class 9 listed in Epoch resources |
| Cell certifications | UL1642, UL2580, UN38.3 |
