Rich Solar 800 Watt Solar Kit | Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications | Expandable Solar Charging - 800W Basic Solar Kit
Frequently Bought Together
Rich Solar Basic 800 Watt Solar Kit
The Rich Solar Basic 800 Watt Solar Kit is an expandable solar charging package built for RVs, vans, trailers, boats, cabins, sheds, and off-grid battery systems. With four 200W monocrystalline solar panels, a BRAVO 60A MPPT charge controller, mounting brackets, fuse protection, cable entry housing, and included solar and battery cables, this kit gives customers a strong foundation for building a 12V or 24V solar charging setup.
Product Overview
The Basic 800W Solar Kit is designed for customers who already have, or plan to add, a compatible battery bank and need a reliable solar charging system to keep it powered. It is a strong fit for RV solar upgrades, camper vans, travel trailers, boats, cabins, sheds, and remote off-grid systems.

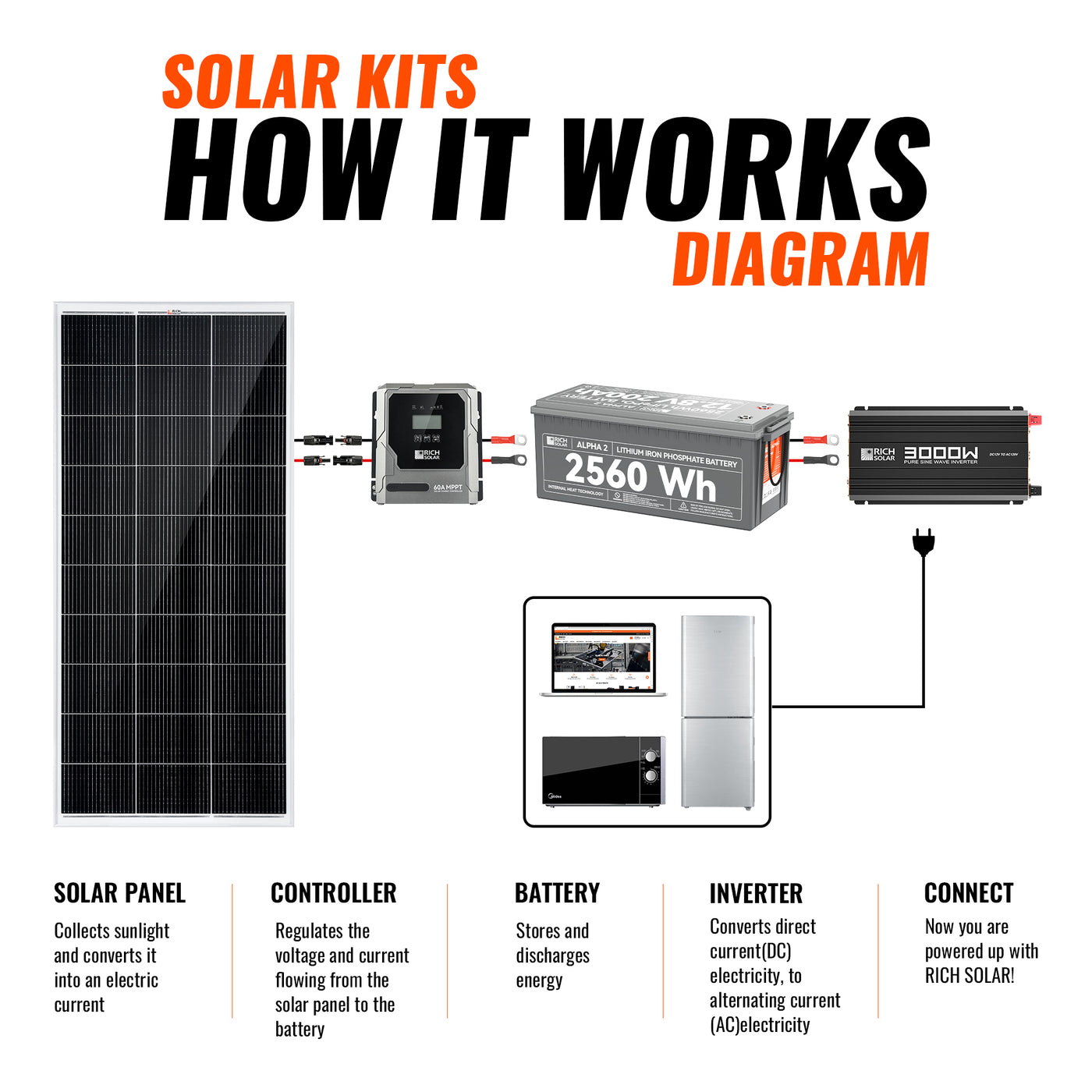

This kit focuses on the solar charging side of the system. The included panels collect solar energy, the MPPT controller regulates charging to your battery bank, and the included mounting, fuse, entry housing, and cable components help simplify the install compared with sourcing every part separately.

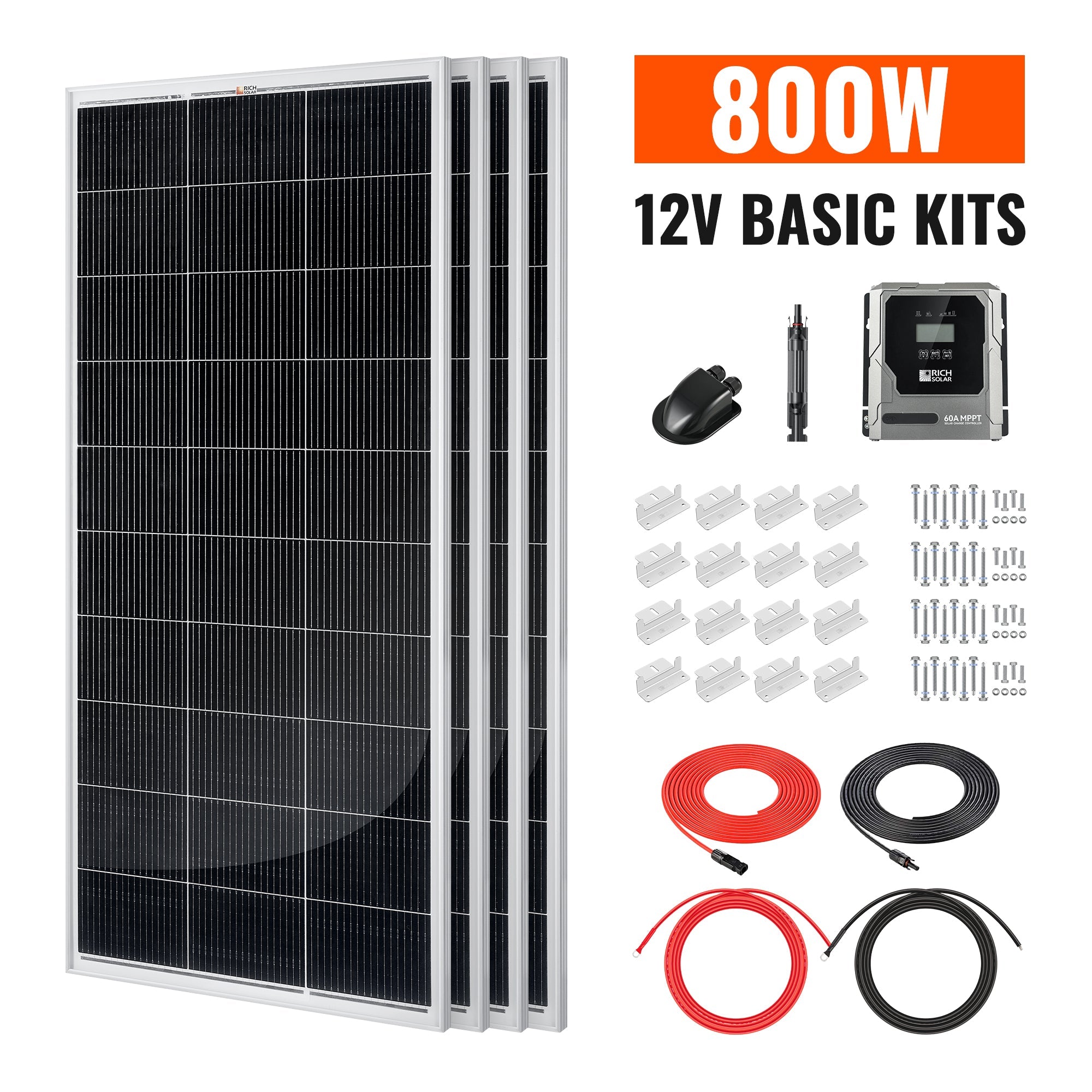

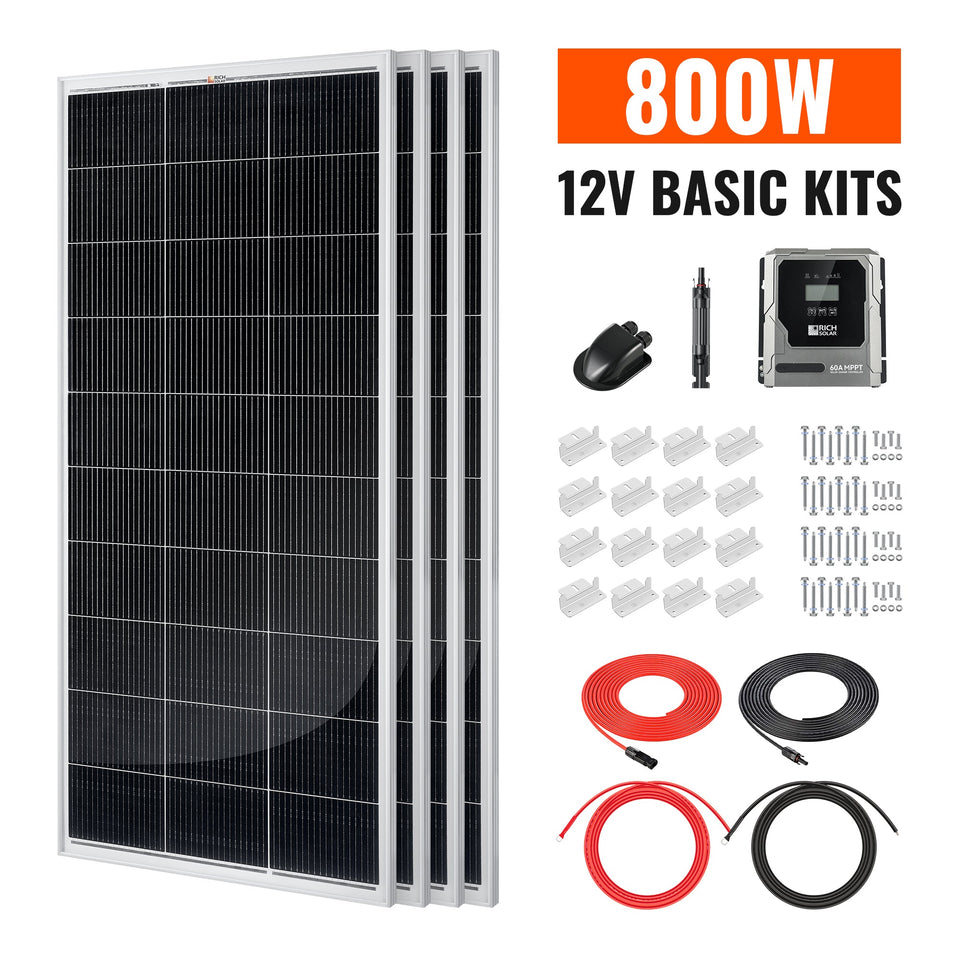

What Comes in the Kit
The RS-K8004 Basic Kit includes the core solar charging components customers need to connect solar panels to a compatible battery bank. It does not include a battery or inverter, which makes it ideal for customers building around their own storage and power-output needs.

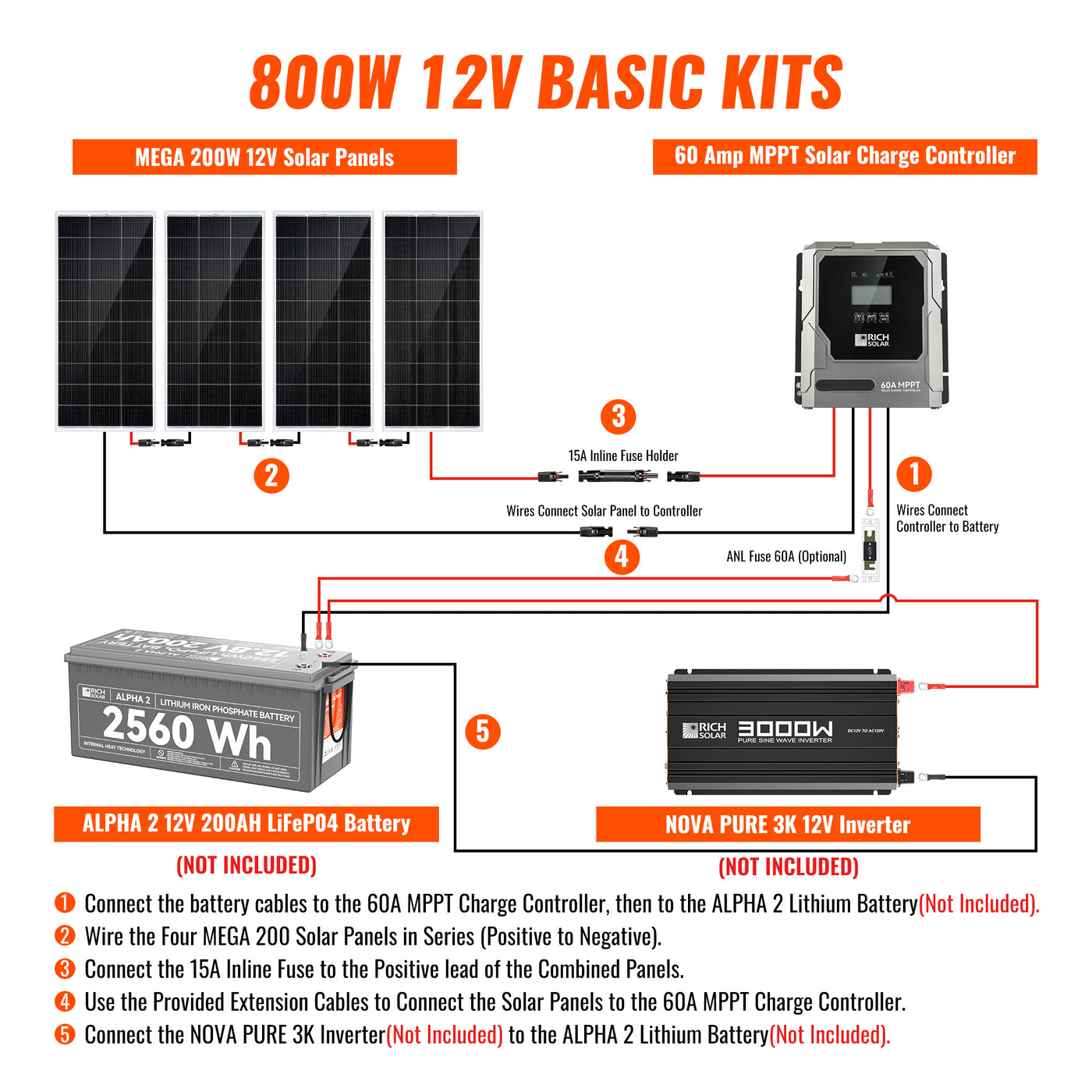

Four 200W monocrystalline panels create an 800W solar array for charging 12V or 24V battery systems. The panels support series or parallel wiring and are designed for RVs, boats, cabins, and off-grid solar applications.

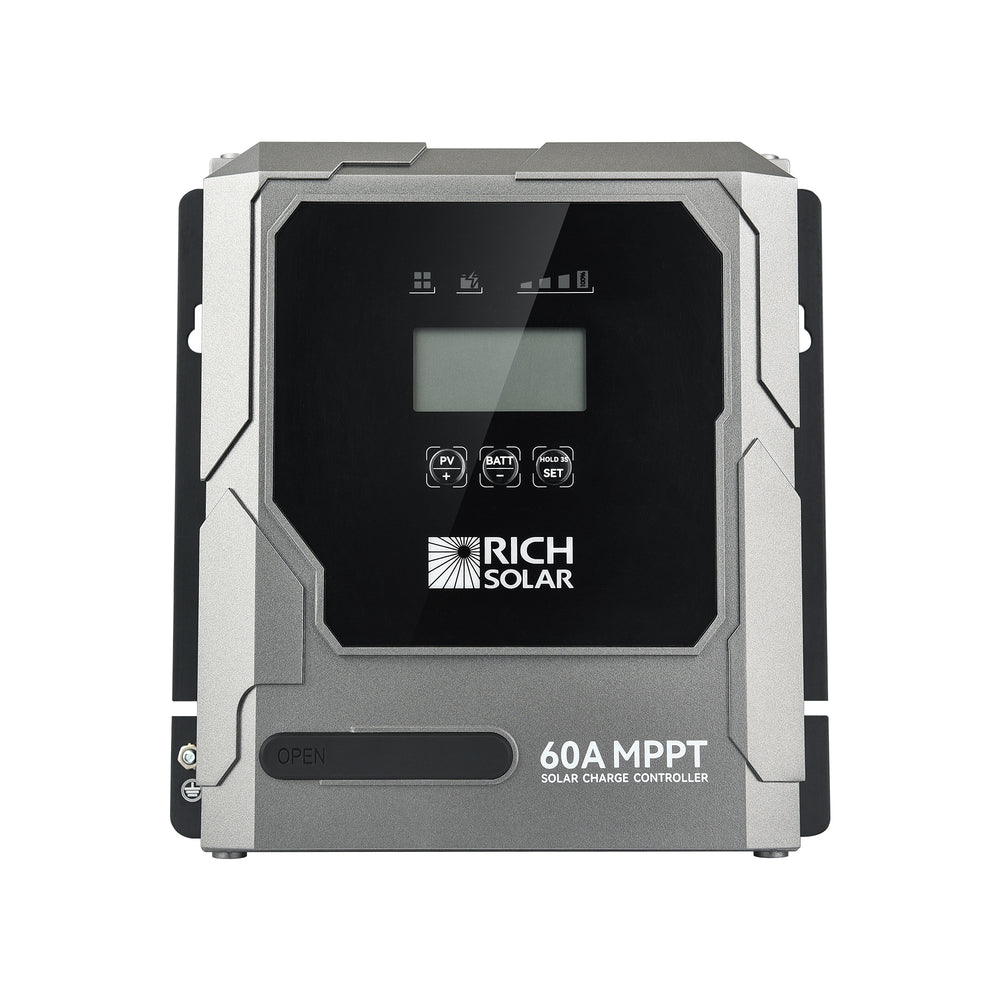

The included BRAVO 60 uses true MPPT charging technology with high tracking efficiency, high charge conversion efficiency, and automatic 12V/24V system adaptation for compatible battery setups.

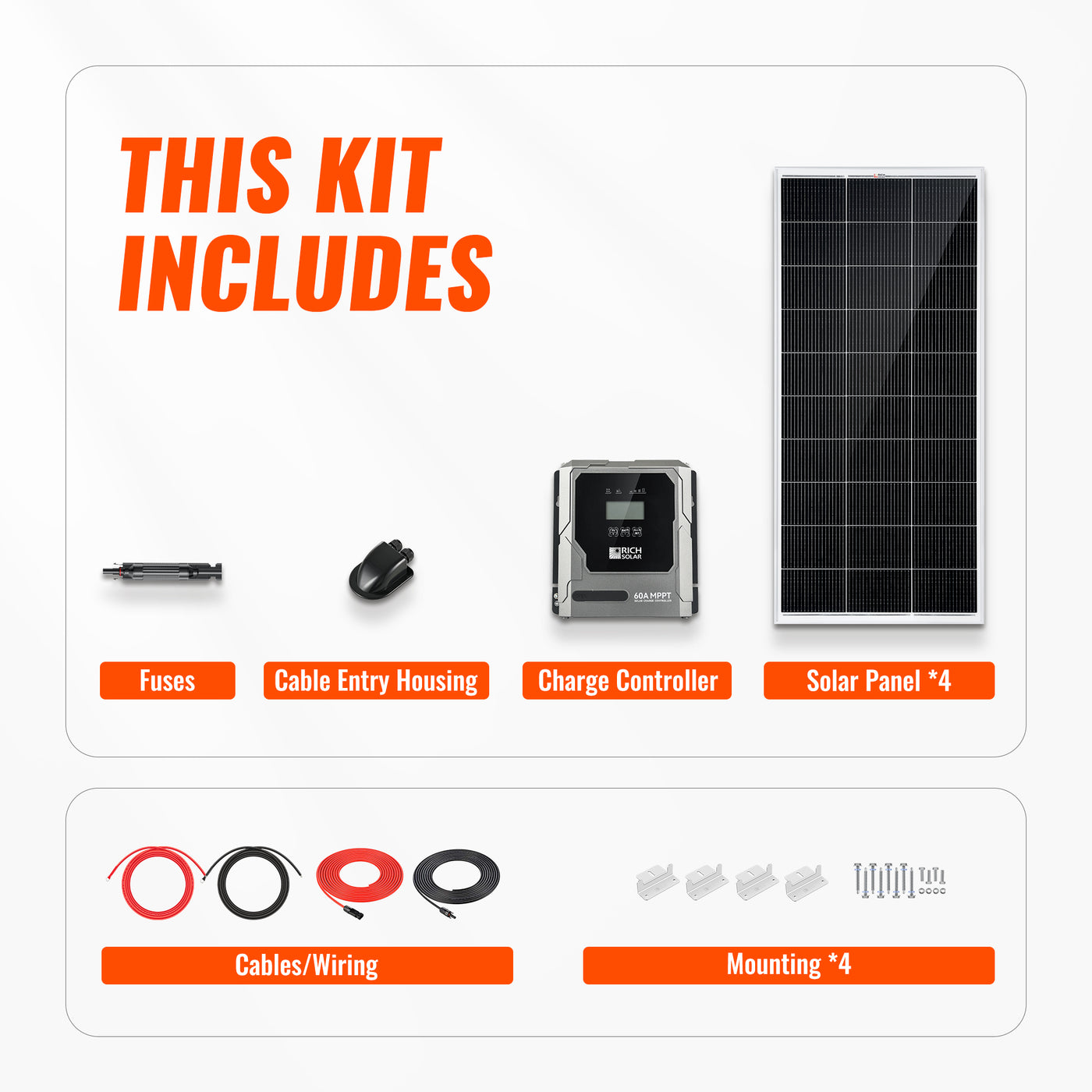

The kit also includes a set of Z brackets, cable entry housing, 15A inline fuse holder with fuse, 30 ft 10 AWG solar cable set, and 10 ft 10 AWG battery cable set to help complete the solar charging connection.
Built for RVs, Vans, Boats, Cabins, and Off-Grid Charging
This kit is best for customers who need reliable solar input for a battery-based system. It can support travel, camping, cabin power, and off-grid energy storage when paired with the right battery bank, inverter, wiring, protection, and installation layout.
Key Features That Matter
This description keeps the focus on the buying decision: solar charging capacity, MPPT controller performance, included installation components, and how the kit fits into a real battery-based power system.
The included MEGA 200 panels are built for strong solar production across RV, marine, cabin, and off-grid applications. They feature anti-reflective tempered glass, anodized aluminum frames, quick-connect cables, and pre-drilled mounting holes for easier installation.
The BRAVO 60A controller helps convert solar input into efficient battery charging. With true MPPT technology, 12V/24V self-adaptation, and built-in charging protections, it is designed for stronger performance than basic PWM controller setups.
The kit is designed to charge a compatible battery bank, making it a flexible choice for customers who want to pair solar panels with their own lithium or lead-acid battery setup and properly sized inverter.
The included brackets, fuse holder, solar cable, battery cable, and cable entry housing help reduce the number of separate parts customers need to source before installation.
Best Uses
- RV solar charging systems
- Camper vans and travel trailers
- Boondocking and camping battery charging
- Cabins, sheds, and remote buildings
- Boat and marine solar charging setups
- Small off-grid battery systems
- Customers who already have or plan to add a compatible battery bank
- DIY solar builds that need panels, controller, mounting, and wiring basics
Key Benefits
- Basic 800W solar charging kit
- 4 x 200W monocrystalline solar panels
- 1 x BRAVO 60A MPPT solar charge controller
- Supports 12V and 24V battery system charging
- True MPPT charging technology
- Panels can work in series or parallel configurations
- Includes mounting Z brackets
- Includes cable entry housing
- Includes inline fuse holder with fuse
- Includes 30 ft 10 AWG solar cable set
- Includes 10 ft 10 AWG battery cable set
- Expandable foundation for RV, van, cabin, marine, and off-grid solar systems
| Rich Solar 800 Watt Solar Kit / Solar Panel & Charge Controller Kit for RVs, Vans & Off-Grid Applications / Expandable Solar Charging | |
| Model SKU | RS-K8004 |
|---|---|
| MODEL | |
| Product Type | Solar Power Kit |
| Available Variants | 800W Basic Solar Kit; 800W Solar & Battery Kit; 800W Complete Solar Kit |
| ELECTRICAL | |
| Package Configuration | Four MEGA 200 (RS-M200) panels, one BRAVO 60 (RS-MPPT60PB) MPPT controller, four Z-bracket sets, one cable-entry housing, one 15 A inline fuse, one 30 ft 10 AWG panel-to-controller cable set, and one 10 ft 10 AWG controller-to-battery cable set |
| Solar Array | 800 W total; four 200 W monocrystalline panels |
| Panel Open-Circuit Voltage (Voc) | 21.8 V |
| Panel Short-Circuit Current (Isc) | 11.6 A |
| Panel Maximum Series Fuse | 15 A |
| Controller System Voltage | 12/24 V automatic detection |
| Controller Maximum PV Open-Circuit Voltage | 100 V DC |
| Controller Maximum PV Charging Current | 60 A |
| Controller Recommended PV Power | 900 W at 12 V or 1,800 W at 24 V |
| Controller Conversion Efficiency | Up to 98% |
| Controller MPPT Tracking Efficiency | Above 99.5% |
| Controller Battery Profiles | Crystal, gel, AGM, wet, calcium, LCO, LiFePO4, and LTO |
| Maximum Series Fuse Rating | 15A |
| MPPT Tracking Efficiency | >99.5% |
| Battery Type | Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO |
| Listed Solar Power | 800W |
| Compatibility | RVs, Vans & Off-Grid Applications |
| PHYSICAL | |
| Panel Dimensions | 58.7 × 26.8 × 1.2 in each |
| Panel Weight | 24 lb each |
| Controller Dimensions | 7.9 × 7.7 × 3.3 in (201 × 195 × 85 mm) |
| Controller Weight | 4.18 lb (1.90 kg) |
| Weight | 24 lb |
| Dimensions | 58.7 x 26.8 x 1.2 in |
| Dimensions (L×W×H) | 201×195×85mm (7.9×7.7×3.3in) |
| OPERATING LIMITS | |
| Panel Temperature Range | -40°F to 185°F |
| Controller Ingress Protection | IP43 PCBA and IP22 connection area |
