Rich Solar ALPHA 2 | 12V 200Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology Rich Solar ALPHA 2 | 12V 200Ah LiFePO4 Battery | Powerful 12V Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology
SKU: RS-B122S
- Rated Capacity 200Ah
- Charging Voltage 14.4V
- Max. Charge Current 100A
Add what you need.
Start with your product. Choose the extras that suit your setup.

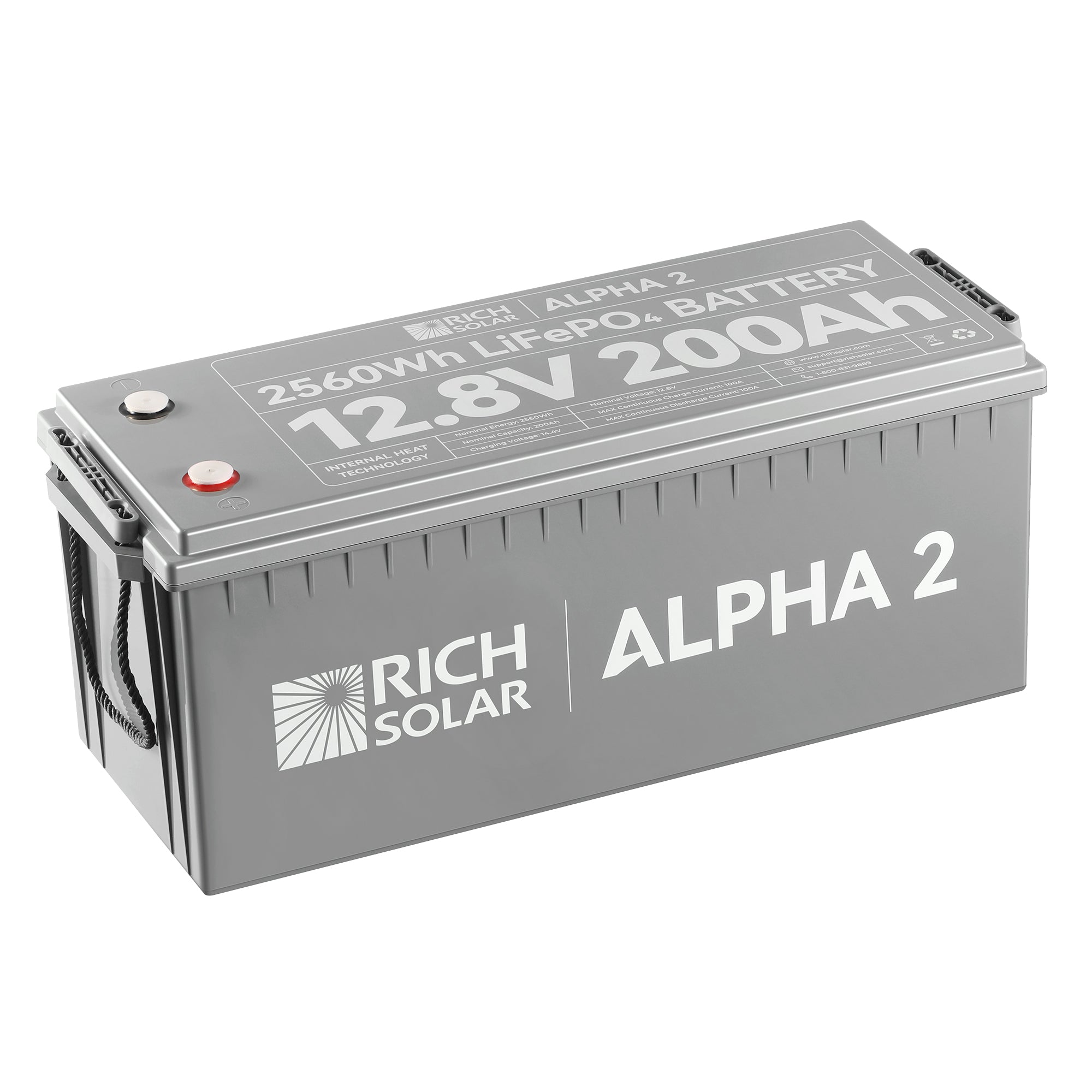

Rich Solar ALPHA 2 12V 200Ah LiFePO4 Battery
The Rich Solar ALPHA 2 is a powerful 12V 200Ah lithium iron phosphate battery built for RVs, trailers, vans, boats, cabins, DIY solar systems, and off-grid power setups. With 2560Wh of storage, internal heat technology, built-in Bluetooth real-time monitoring, and 5,000+ lifetime cycles, it gives mobile and off-grid systems a dependable lithium battery foundation.
Product Overview
The ALPHA 2 is designed for customers who need more usable 12V battery capacity without building a complicated battery bank from multiple smaller batteries. It is a strong fit for RV solar systems, camper vans, travel trailers, boats, cabins, sheds, and off-grid energy storage setups.
Compared with traditional lead-acid batteries, LiFePO4 chemistry delivers longer service life, stronger usable capacity, lower maintenance, and more consistent performance over time. The ALPHA 2 adds internal heating and Bluetooth monitoring, making it a more complete choice for real-world mobile and off-grid power.
Built for RV, Marine, Cabin, and Off-Grid Power
The ALPHA 2 gives 12V power systems a strong lithium storage upgrade with the capacity and features needed for real travel, backup, and off-grid use. It is ideal for customers who want a reliable battery for solar charging, essential appliances, DC loads, lighting, electronics, and inverter-based systems.
Key Features That Matter
The ALPHA 2 includes the features customers actually care about when choosing a 12V lithium battery: cold-weather support, mobile battery monitoring, long cycle life, strong usable capacity, and dependable LiFePO4 performance.
Internal heating helps improve cold-weather usability for RVs, trailers, cabins, marine storage areas, and seasonal off-grid systems where low temperatures can affect battery charging.
The built-in Bluetooth module lets users monitor battery operation status from a mobile device, giving quick visibility into battery condition without needing to guess.
Designed for consistent and durable performance, the ALPHA 2 gives solar, RV, marine, and off-grid users a longer-lasting battery option than traditional lead-acid storage.
Best Uses
- RV solar battery banks
- Camper vans and travel trailers
- Boat and marine electrical systems
- Cabins, sheds, and tiny home power setups
- Off-grid solar energy storage
- Backup power for essential 12V loads
- Lead-acid battery replacement projects
Key Benefits
- 12V 200Ah LiFePO4 lithium battery
- 2560Wh deep cycle energy storage
- Internal heat technology for colder environments
- Built-in Bluetooth real-time monitoring
- 5,000+ lifetime cycles
- 12.8V nominal voltage
- 5-year warranty
- Compact lithium upgrade for RV, van, boat, cabin, and off-grid systems
Plan a lithium battery change
If you are replacing an RV lead-acid battery, our RV lead-acid to lithium guide explains charging, wiring and compatibility checks before changing chemistries.
Compare before you choose
Compare nominal voltage, stored energy, BMS current, temperature protection and communication before sizing a bank.
See the Rich Solar ALPHA 2 LITE | 12V 200Ah LiFePO4 Battery | Best 12V Deep Cycle Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 4,000 Lifetime Cycles | Best Value for another RICH SOLAR battery option.
| Specifications | |
| Selected variant SKU | RS-B122S |
|---|---|
| Battery Type | LFP Battery |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Minimum Capacity | 200Ah |
| Nominal Energy | 2,560Wh |
| Charging Voltage | 14.4V |
| Discharging Cutoff Voltage | 11.2V |
| Standard Charging Current | 50A |
| Maximum Charging Current | 100A |
| Standard Discharge Current | 50A |
| Continuous Discharge Current | 100A |
| Maximum Discharge Current | 100A |
| Shell Material | Plastic Shell |
| Weight | 48.50 lbs |
| Initial AC (1000Hz) Internal Resistance | ≤50mΩ |
| Monthly Self-Discharge Rate | ≤5% |
| Overall Dimensions | 20.9 x 8.1 x 8.5 in |
| Cycle Life (25°C ± 2°C) | ≥5,000 |
| Discharge Temperature | -4°F to 140°F / -20°C to 60°C (Cell Surface Should Not Exceed 60°C) |
| Storage Temperature | -22°F to 131°F / -30°C to 55°C, 90% RH Max (Less than 1 Month); 14°F to 113°F / -10°C to 45°C, 90% RH Max (More than 3 Months) |
| Recommended Storage Temperature | 14°F to 95°F / -10°C to 35°C, 85% RH Max |
| BMS Operation | |
| Typical Charging Current | 50A |
| Maximum Charging Current | 100A |
| Typical Discharge Current | 50A |
| Max Discharge Current | 100A |
| Maximum Charge Voltage (CC/CV) | 14.4V |
| Over Charge Protection Voltage (Cell) | 3.65V ± 0.05V |
| Over Charge Protection Delay Time | 2,000ms ± 1,000ms |
| Over Charge Protection Recovery Voltage (Cell) | 3.55V ± 0.10V |
| Over Discharge Protection Voltage (Cell) | 2.50V ± 0.10V |
| Over Discharge Protection Delay Time | 2,000ms ± 1,000ms |
| Over Discharge Protection Recovery Voltage (Cell) | 3.00V ± 0.10V |
| Over Discharge Protection Release Conditions | Voltage Self-Recovery or Charge Recovery |
| Primary Charge Overcurrent Protection Value | 110A ± 5A |
| First Stage Charge Overcurrent Delay | 10s ± 3s |
| Overcurrent Charge Release Conditions | Automatic Recovery After a Delay of 32s |
| Primary Discharge Overcurrent Protection Value | 110A ± 5A |
| Primary Discharge Overcurrent Protection Delay | 10s ± 3s |
| Secondary Discharge Overcurrent Protection Current Value | 350A ± 90A |
| Secondary Discharge Overcurrent Protection Delay | 300ms ± 200ms |
| Overcurrent Discharge Release | Automatic Recovery After a Delay of 32s |
| Short Circuit Protection Delay Time | 560μs to 960μs |
| Short Circuit Protection Recovery | Recover by Releasing Load After Approximately 5s |
| Discharge High Temperature Protection Value | 149°F ± 9°F / 65°C ± 5°C |
| Discharge High Temperature Protection Release Value | 140°F ± 9°F / 60°C ± 5°C |
| Discharge Low Temperature Protection Value | -4°F ± 9°F / -20°C ± 5°C |
| Discharge Low Temperature Protection Release Value | 14°F ± 9°F / -10°C ± 5°C |
| Charging High Temperature Protection Value | 131°F ± 9°F / 55°C ± 5°C |
| Charging High Temperature Protection Release Value | 122°F ± 9°F / 50°C ± 5°C |
| Charging Low Temperature Protection Value | 41°F ± 9°F / 5°C ± 5°C |
| Charging Low Temperature Protection Release Value | 50°F ± 9°F / 10°C ± 5°C |
| FET (Built-In) High Temperature Protection Value | 203°F to 230°F / 95°C to 110°C |
| FET (Built-In) High Temperature Protection Release Value | 140°F to 194°F / 60°C to 90°C |
| Equalizing Opening Voltage | 3.45V ± 0.05V |
| Equalize the Opening Pressure Difference | 15mV |
| Min Balance Current | 150mA |
| Max Balance Current | 300mA |
| Balance Function | Passive Equalization |
| Heating Power | 100W |
| 5,000+ Cycle Life | Delivers reliable long-term performance and lower ownership costs. |
| 2,560Wh Nominal Energy | Provides dependable energy storage with ≤5% monthly self-discharge. |
| Wide Operating Temperature Range | Charges from 32–131°F and discharges from -4–140°F. |
| Bluetooth Monitoring | View real-time battery status through the RICH SOLAR App. |
| Rated Capacity | 200Ah |
| Cycle Life | 5,000+ |
| Max. Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Parallel Expansion | Up to 4 units (4P) |
| Bluetooth | Yes |
| IP Rating | IP55 |
| Warranty | 5 Years |
| Dimensions (L × W × H) | 20.9 × 8.1 × 8.5 in |
| Certifications | UL 1973, FCC, UN 38.3, MSDS |
| Industry-leading cycle life | LITE 4,000+ (80% DoD); ALPHA 2 5,000+ |
| Long-term warranty | LITE 5-year; ALPHA 2 5-year; PRO 10-year. |
| Max Output Power | 2,560W |
| Charge Temperature | 32°F to 131°F |
