Clean power conversion
Helps turn stored battery energy into usable AC power for everyday loads, backup circuits, and off-grid applications.
1 / 10
SunGoldPower

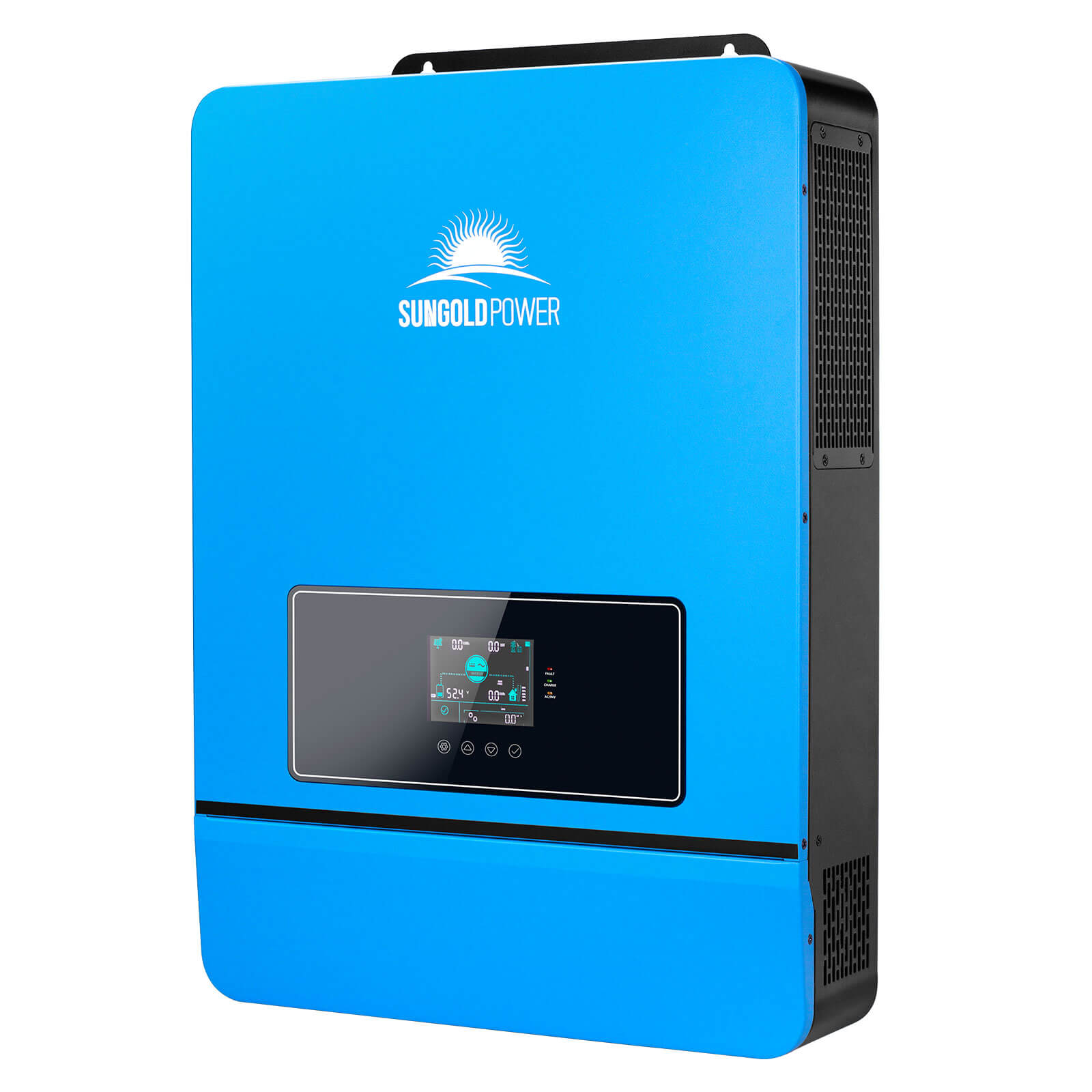

8KW 48V Split Phase Solar Inverter AC input 120V/240V AC output 120V/240V 8KW 48V Split Phase Solar Inverter AC input 120V/240V AC output 120V/240V
SKU: SPH8048P
$1,450.00
$1,813.00
Save $363.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSunGoldPower warranty
Key features
- ★ Four charging / Output modes Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes: Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.
- charge voltage 57.6 Setting range 48 V−58.4 V, with a step of 0.4 V, available for
- charge voltage 55.2 Setting range 48 V−58.4 V, with a step of 0.4 V. This parameter
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
SunGoldPower Solar Inverter
8KW 48V Split Phase Solar Inverter AC input 120V/240V AC output 120V/240V
The 8KW 48V Split Phase Solar Inverter AC input 120V/240V AC output 120V/240V is designed for split-phase backup and off-grid systems that need stable power conversion for larger loads. It helps turn stored battery energy into usable household power while keeping the system practical for residential and remote installations.
8KW48V120V240VSplit PhaseIn StockSKU SPH8048P
Built for battery systems
A practical match for solar storage builds where the inverter needs to work smoothly with a dedicated battery bank.
Split-phase capability
Supports larger home and system layouts that need 120V and 240V power from the same inverter platform.
Built to anchor your power system
A strong inverter is the part of the system that customers notice when the power actually has to work. This model is built for dependable conversion in solar and storage projects where the system needs to support more than basic charging.
- Use it as the core conversion point for a battery-backed power system.
- Supports split-phase system layouts for larger 120V/240V loads.
- A practical fit for backup power, off-grid power, workshops, mobile builds, and residential energy projects.
- Helps keep system design cleaner when you need dependable AC output from stored energy.
Compare before you choose
Compare continuous AC output, battery voltage, surge behavior and PV or charger functions for the intended installation.
See the 10KW 48V Split Phase Solar Inverter AC input 120V/240V AC output 120V/240V for another SunGoldPower inverter option.
Package Includes
1x 8KW 48V Split Phase Solar Inverter AC input 120V/240V AC output 120V/240V
Includes the selected item based on the current package option.
| 8KW 48V Split Phase Solar Inverter AC input 120V/240V AC output 120V/240V | |
| Selected variant SKU | SPH8048P |
|---|---|
| MODEL | |
| Model | SPH8048P |
| Product Type | Inverter |
| ELECTRICAL | |
| Rated Inverter Output | 8,000 W |
| Peak Inverter Output | 16,000 W |
| Battery Voltage | 48 V DC |
| AC Output Voltage | 120 V single phase or 120/240 V split phase |
| Maximum Combined Charging Current | 200 A |
| Solar Charge Controllers | Two integrated MPPT controllers |
| Maximum PV Open-Circuit Voltage | 500 V DC |
| Parallel Capability | Up to 6 units for as much as 48 kW; supports 120 V single phase, 120/240 V split phase, or 208 V three-phase configurations |
| Battery Type | Lithium-ion battery/lead-acid battery/user-defined battery |
| Charge Voltage Setting Range | 48-58.4 V in 0.4 V steps |
| Rated Output Power | 8,000 W |
| Rated Output Voltage | 120/240 VAC (single-phase/split-phase) |
| Rated Frequency | 50/60 Hz |
| Output Wave | Pure sine wave |
| Parallel Number | 6 |
| Rated Battery Voltage | 48 Vdc |
| Voltage Range | 40 Vdc−60 Vdc |
| Max. PV Charge Current | 180 A |
| No. of MPPT Trackers | 2 |
| Max. Input Power | 11,000 W |
| Max. Input Current | 22/22 A |
| Input Voltage Range | 90 VAC−140 VAC |
| Input Frequency Range | 50/60 Hz |
| Bypass Overload Current | 63 A |
| MPPT Tracking Efficiency | 99.9% |
| Maximum Battery-Mode Efficiency | 92% |
| Max Peak Power | 16000W |
| Four charging / Output modes | Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes: Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements. |
| Output Configuration | Split phase |
| CONNECTIONS | |
| Communications | CAN, USB, and RS485 battery communication; Wi-Fi mobile monitoring included |
| BMS Communication | CAN |
| PHYSICAL | |
| Dimension | 620 mm*445 mm*130 mm |
| Weight | 27 kg |
| OPERATING LIMITS | |
| Certification | UL 1741 certified by ETL for off-grid solar systems |
| Ambient temperature | -10°C−55°C (14°F−131°F), to ensure optimal operation |
| Protection level | IP20, for indoor use only |
| ★ Stable AC output and Smart Protection | Rated Output Power:8000W, Max Peak Power:16,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection,Over-load protection and so on. |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
What is the defining use case for the SPH8048P?
It converts a 48V battery system into the AC output stated on the listing. Treat charging, transfer, solar input, monitoring, and grid interaction as separate capabilities unless the exact model documentation explicitly includes them.
How do I prevent voltage-sag trips on the SPH8048P?
The 48V bank must support the inverter's continuous DC demand, startup surge, and conversion loss without exceeding battery or BMS limits. Size parallel batteries, busbars, short copper conductors, lugs, disconnects, and fusing as one high-current circuit.
What must an installer verify before hardwiring the SPH8048P?
This listing is identified as split phase with 120V/240V output. Confirm the manual's leg, neutral, transfer, and imbalance limits before assigning branch circuits; total inverter power is not available independently on every leg.
What solar-input checks come before buying panels for the SPH8048P?
Do not infer a solar input from the word inverter. Confirm the exact listing and manual for MPPT hardware; otherwise use a separate controller matched to the array and 48V battery bank.
What code-sensitive details should be settled before ordering the SPH8048P?
No inverter should be assumed suitable for unrestricted grid export or direct panel connection. Confirm the SPH8048P's listed operating modes, transfer rating, neutral-ground behavior, overcurrent protection, rapid-shutdown or disconnect requirements, permits, and utility rules with a qualified installer.
