Jackery Explorer 1000 v2 + SolarSaga 200W Solar Generator Jackery Explorer 1000 v2 + SolarSaga 200W Solar Generator
SKU: 60-0820-USB1D1-B
JACKERY SOLAR GENERATOR · 60-0820-USB1D1-B
Jackery Explorer 1000 v2 + SolarSaga 200W Solar Generator

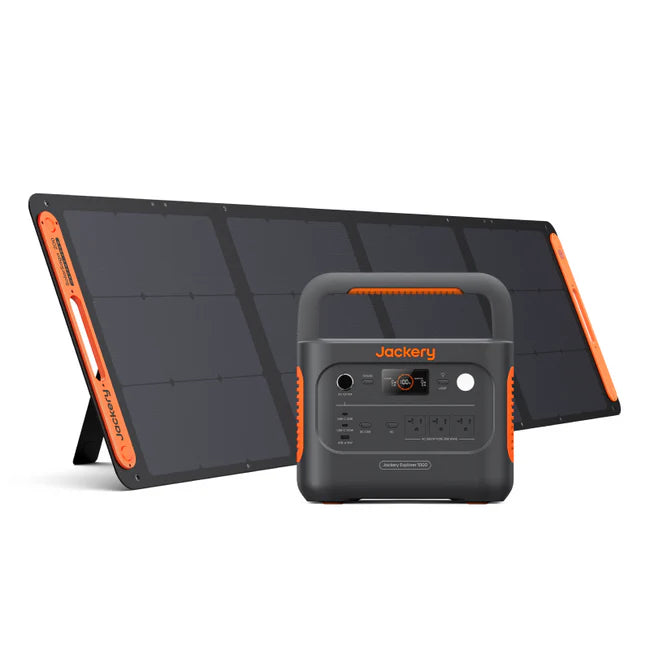

This package combines a 1,070Wh LiFePO4 portable power station with one 200W folding solar panel. The station supplies up to 1,500W continuous AC power to compatible loads; the panel recharges its battery in sunlight. Keep stored energy, output power and solar charging rate separate when planning your setup.
Battery capacity
Continuous AC output
Included solar panel
Station weight
What's in this configuration
One Explorer 1000 v2 station, one SolarSaga 200W folding panel, an AC charging cable and the included manufacturer manuals. Jackery lists a multifunctional solar charging cable and DC8020-to-DC7909 adapter with its SolarSaga 200W panel.
Solar and wall charging
Jackery estimates about 7.5 hours to recharge this station with one SolarSaga 200W in its test conditions. Real time varies with sunlight, panel angle, shade, temperature and any loads running during charging. The station supports up to 400W total across two DC8020 inputs, but this package contains one 200W panel. Additional panels are separate purchases and must follow the model's voltage, current and wiring rules.
Jackery lists about 1.7 hours for normal AC charging. Solar charging and wall charging are different rates; a fast-charge promotion does not describe what one included panel can deliver.
Is this the right size?
This is a useful middle size when a measured camping, RV or outage load fits 1,500W continuous AC and the planned runtime fits a 1,070Wh battery. The single included panel is for charging; it does not turn the station into a 200W AC unit.
The US station has three AC outlets, two USB-C ports, one USB-A port and a 12V car outlet. Measure the running watts and startup demand of what you plan to connect, then estimate energy use over the hours you need. The panel's nameplate rating is not a guarantee of real-time input.
Already have a suitable panel? Compare the station-only listing. Use the power planner for a load estimate, the backup sizing guide to compare station classes, and the charging guide before choosing a solar setup.
| Jackery Explorer 1000 V2 Solar Generator - 1*E1000 V2 + 1*200W Solar Panel | |
| Selected variant SKU | 60-0820-USB1D1-B |
|---|---|
| MODEL | |
| Model / SKU | 60-0820-USB1D1-B |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Explorer 1000 v2 — Battery Capacity | 1070 Wh |
| Explorer 1000 v2 — Battery Chemistry | LiFePO4 |
| Explorer 1000 v2 — AC Output Waveform | Pure sine wave |
| Explorer 1000 v2 — AC Output | 120 V, 15 A; 1,500 W maximum per outlet and 1,500 W total across three outlets |
| Explorer 1000 v2 — Surge Output | 3,000 W |
| Explorer 1000 v2 — AC Output Frequency | 60 Hz |
| Explorer 1000 v2 — USB-A Output | 18 W maximum; one port |
| SolarSaga 200W — Rated Power | 200 W |
| SolarSaga 200W — Rated Voltage | 20.2 V ±5% |
| SolarSaga 200W — Rated Current | 10.3 A ±5% |
| SolarSaga 200W — Open-Circuit Voltage | 25 V ±5% |
| SolarSaga 200W — USB-A Output | 5 V, 2.4 A |
| SolarSaga 200W — USB-C Output | 5 V, 3 A |
| Listed Solar Power | 200W |
| PHYSICAL | |
| SolarSaga 200W — Folded Dimensions | 24.2 × 21.7 × 1.6 in (615 × 552 × 40 mm) |
| PACKAGE | |
| Included Components | 1 × Explorer 1000 v2, 1 × AC Charging Cable, 1 × SolarSaga 200W |
