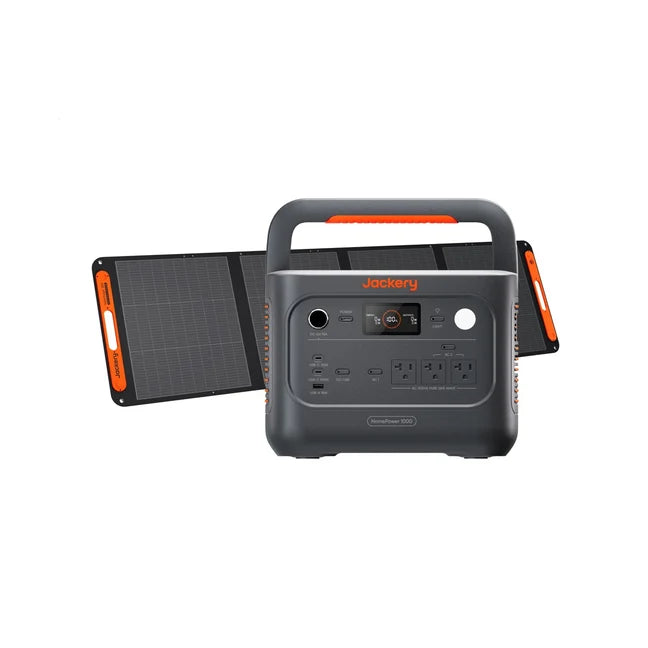

Jackery HomePower 1000 v2 + SolarSaga 200W Solar Panel Jackery HomePower 1000 v2 + SolarSaga 200W Solar Panel
SKU: 60-100020-US00511
- 1,024Wh LiFePO4 battery | Stored energy for your selected essentials
- 1,500W rated AC output | 3,000W surge; three AC outlets share the limit
- 200W solar panel included | Recharge from sunlight or a wall outlet
Jackery · Black solar bundle
Store your power. Recharge in the sunshine.
The black HomePower 1000 v2 and one SolarSaga 200W panel give you two parts of a practical portable power setup: a battery to run compatible devices and a panel to put energy back when sunlight is available. You can also charge from a wall outlet before a trip or an expected outage.
This bundle pairs one black power station with one 200W solar panel. The panel adds a charging option; it does not increase the battery capacity or AC output.
Start with what you want to run.
Make a short list of your essentials: your router and modem, a laptop, lights, or a compatible refrigerator. Check each device’s input rating and add up the loads you expect to use together.
- The combined continuous AC load must stay within 1,500W.
- Motor-driven appliances also need enough startup power; check their surge requirement.
- The three AC outlets share the output limit. They are not three separate 1,500W supplies.
Choose the right size for your day.
This is a 120V portable station for selected appliances. Its battery capacity determines how long a load can run; its output rating determines whether it can power that load in the first place.
High-draw heating and cooking appliances use stored energy quickly. If you want to cover several large loads or a long outage, compare a larger setup before ordering.
What could that battery mean for runtime?
These are planning examples for steady AC loads, using an assumed 85% usable-energy allowance: 1,024Wh × 0.85 ÷ watts. They are calculations, not measured tests or promised appliance runtimes.
Actual runtime depends on conversion losses, the station’s own consumption, temperature, battery condition, and device behavior. Refrigerators cycle on and off, so use measured energy consumption when possible.
Make the most of the included panel.

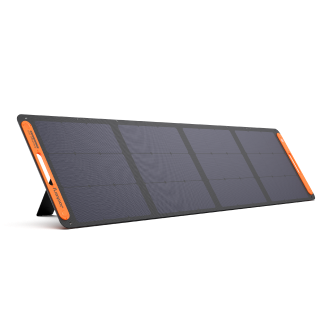

Your included SolarSaga 200W panel gives you a way to replenish the battery during daylight. Put the panel in an open, sunny position and keep the station dry and ventilated. Shade, panel angle, temperature, and clouds change the charging rate; 200W is a rated panel output, not a constant charging promise.
For wall charging, connect the included AC cable to the station and a suitable grounded outlet. Vehicle charging needs a compatible car charging cable, sold separately; follow the manual and avoid draining the vehicle’s starter battery.
The cables to plan for.
For the included single-panel setup, use the panel’s supplied charging cable with the DC8020 connector or supplied matching adapter. Jackery says an extra series connector is not required for a one-panel connection. A longer extension cable is optional if you need more distance between the sunny panel and sheltered station.
If you expand the solar setup, check the full array against the station’s 16–60V solar input range, current limits, and 400W combined maximum. Follow Jackery’s instructions for matching both input ports. An extension cable and a multi-panel connector perform different jobs.
Choose your configuration.
Already have a compatible solar panel, or mainly plan to charge at home? The station-only version may be the better fit. Both colors use the same 1,024Wh capacity and 1,500W rated AC output.
Battery backup for a desk or essential device.
The HomePower 1000 v2 supports automatic battery switchover within 10 milliseconds in its UPS mode. It is not a zero-interruption supply: test compatibility with your equipment before relying on it. The manual specifies a separate 12A maximum AC bypass limit while connected to wall power.
Its LiFePO4 battery is rated by Jackery for 6,000 cycles to at least 70% capacity under the manufacturer’s conditions. Keep the station dry, leave room for ventilation, and follow the manual’s operating and storage instructions.
Open the Specifications, Package Includes, and FAQ tabs above for this configuration. Read the Jackery HomePower 1000 v2 manual (PDF, approximately 40MB) for operating limits, charging instructions, and warranty terms.
Read our home-backup sizing guide · Compare Jackery power stations
Manufacturer manuals
Check the exact station, panel and battery-pack manuals for connection and operating limits.
HomePower 1000 v2 user manual (PDF)SolarSaga 200W user manual (PDF)
| JACKERY HOMEPOWER 1000 V2 | |
| Selected variant SKU | 60-100020-US00511 |
|---|---|
| Product | Jackery HomePower 1000 v2 |
| Station model | JHP-1000A |
| Station color | Black |
| Battery capacity | 1,024Wh (20Ah / 51.2V DC) |
| Battery chemistry | LiFePO4 |
| Rated AC output | 1,500W total |
| Surge AC output | 3,000W peak |
| AC outlets | 3 × 120V, 60Hz; shared output limit |
| USB-C ports | 1 × 100W maximum; 1 × 30W maximum |
| USB-A port | 1 × 18W maximum |
| DC output | 12V, 10A maximum |
| AC input | 100–120V, 60Hz, 15A maximum |
| AC bypass | 100–120V, 60Hz, 12A maximum |
| Solar input | 2 × DC8020; 16–60V, 12A per port; 21A / 400W combined maximum |
| Car input | 11–16V, 8A maximum combined; car charging cable sold separately |
| Battery cycle rating | 6,000 cycles to 70%+ capacity (manufacturer rating) |
| Station weight | Approximately 23.4 lb (10.6 kg) |
| Station dimensions | 12.4 × 7.9 × 9.2 in |
| Charge / discharge temperature | 14°F to 113°F (-10°C to 45°C) |
| UPS switchover | Within 10ms; not 0ms |
| Solar panel included | 1 × SolarSaga 200W |
