Jackery Solar Generator 5000 Plus + Solarsaga 500X x2 | Whole-Home Backup
Jackery Home Backup System

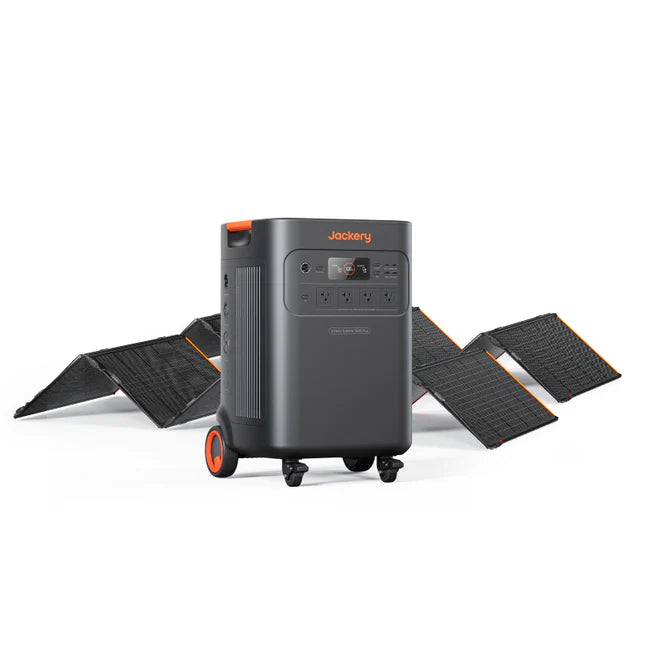

Jackery Solar Generator 5000 Plus + Solarsaga 500X x2 · Whole-Home Backup
Jackery Solar Generator 5000 Plus + Solarsaga 500X x2 · Whole-Home Backup is made for customers planning a more serious backup-power setup for outages, high-demand appliances, essential circuits, and longer runtime needs. It gives shoppers a cleaner Jackery home backup path for emergency power, solar generator planning, and expandable energy storage without the noise and fuel management of traditional gas generators.
Why customers choose it
This Jackery product is best for shoppers who want a practical power solution without overcomplicating the setup. Focus on the way it supports your real use case: backup power at home, cleaner charging on the road, better RV energy planning, or a more reliable camping and off-grid system.
- The stored energy rating helps cover everyday essentials, appliance support, and longer use between recharges.
- 120V/240V dual voltage enhances compatibility, supporting more loads like dryers, water pumps, ovens, ACs, EVs, RVs, etc.
- Fully charges in 1.7 hours, compatible with AC, high-voltage PV (4000W, 135-450V), low-voltage PV (1200W, <60V), and more.
- UPS 0 ms switchover for uninterrupted power to essential devices.
- Long-cycle battery chemistry is a better fit for repeated backup use, frequent recharging, and long-term ownership.
Best-fit use cases
Choose this product when you want a Jackery setup that matches your actual load, runtime, charging, storage, and portability needs. It is especially useful for customers comparing solar generators, portable power stations, home backup equipment, RV power, camping power, and compatible Jackery accessories.
What to check before buying
Before buying, confirm your backup goals, circuit requirements, transfer-switch plan, expansion battery needs, installation requirements, and compatible solar input.
| Jackery Solar Generator 5000 Plus + Solarsaga 500X x2 / Whole-Home Backup | |
| Model SKU | 60-5050-USA1A1 |
|---|---|
| MODEL | |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Explorer 5000 Plus — Battery Capacity | 5040 Wh |
| Explorer 5000 Plus — Battery Chemistry | LiFePO4 |
| Explorer 5000 Plus — AC Output Waveform | Pure sine wave |
| Explorer 5000 Plus — 240 V AC Outputs | NEMA L14-30R and NEMA L14-50R; up to 7,200 W at 240 V, 60 Hz |
| Explorer 5000 Plus — 120 V AC Outputs | Four NEMA 5-20 outlets; 2,400 W per outlet and up to 3,600 W per outlet pair |
| Explorer 5000 Plus — USB-A Outputs | Two ports; 18 W maximum each |
| Explorer 5000 Plus — USB-C Outputs | Two ports; 100 W maximum each |
| SolarSaga 500 X — Maximum Power | 545 W ±5% |
| SolarSaga 500 X — Rated Voltage | 42.5 V ±5% |
| SolarSaga 500 X — Rated Current | 12.84 A ±5% |
| SolarSaga 500 X — Open-Circuit Voltage | 49.2 V ±5% |
| PHYSICAL | |
| SolarSaga 500 X — Folded Dimensions | 39.2 × 20.7 × 3.8 in (996 × 526 × 97 mm) |
| SolarSaga 500 X — Unfolded Dimensions | 98.1 × 39.2 × 11.6 in (2493 × 996 × 294 mm) |
| SolarSaga 500 X — Weight | 23.1 lb ±1.1 lb (10.5 kg ±0.5 kg) |
| PACKAGE | |
| Included Components | 1 × Explorer 5000 Plus, 1 × AC Charging Cable, 1 × MC4 Wrench, 2 × SolarSaga 500 X |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
