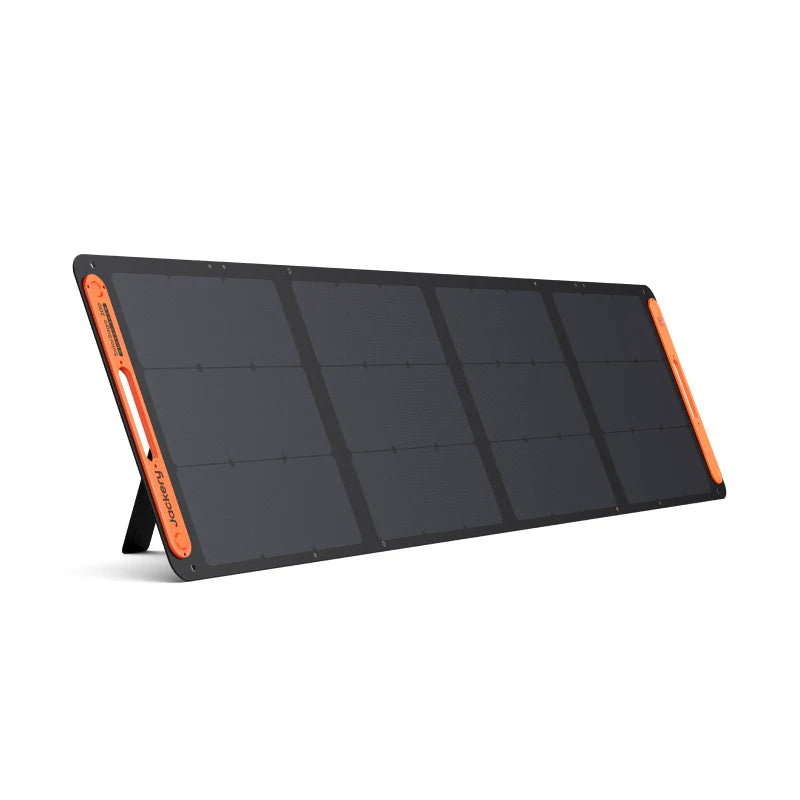

Jackery SolarSaga 200W Solar Panel | IP68 Waterproof 1 / 1
Jackery

Jackery SolarSaga 200W Solar Panel | IP68 Waterproof Jackery SolarSaga 200W Solar Panel | IP68 Waterproof

SKU: 21-0002-000063

Brand Jackery In Stock
$379.00 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerJackery warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Jackery warranty

No sales tax collected at checkout where applicable.

Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Jackery SolarSaga 200W Solar Panel | IP68 Waterproof

In Stock
Jackery SolarSaga 200W Solar Panel | IP68 Waterproof
Quantity$379.00 each
1

Jackery Solar Panel

Jackery SolarSaga 200W Solar Panel · IP68 Waterproof

The Jackery SolarSaga 200W is a four-fold portable panel with a 200W nameplate rating, DC8020 connection and IP68 panel protection. Jackery has sold JS-200D and JS-200E hardware revisions with different electrical values, dimensions and weight. Check the model printed on your panel before matching it to a station or building a multi-panel array.

Product typeSolar Panel
Power rating200W
Best forSolar Charging, Off-Grid Power
SKU21-0002-000063

Why choose the SolarSaga 200W?

Choose it when a folding panel is more useful than a permanently mounted module. Its 200W rating is a laboratory test result; actual charging depends on sunlight and the connected station’s input limits.

  • Four-fold design with rear support feet and a 9.8 ft (3 m) lead.
  • The JS-200D and JS-200E revisions do not share one universal Voc or Vmp; use the revision-specific specification rows below.
  • The panel is IP68 rated; keep live connectors and the station charging port protected from water.

Best-fit use cases

Solar ChargingOff-Grid Power

Useful for portable solar charging during camping, RV travel and backup preparation when the receiving station accepts the actual panel revision’s open-circuit voltage, current and connector. Check the full series or parallel array against the station limits before ordering additional panels.

What to check before buying

Confirm the actual JS-200D or JS-200E model on the panel label, then match its voltage, current, connector and all-panel wiring to the station’s solar input. Do not infer hardware revision from the retail SKU alone.

Compare panel options

Our solar panel selection guide explains panel selection for different setups. The bifacial panel guide compares the relevant panel format; check this product’s electrical ratings before pairing it with other equipment.

Compare another option

Compare the Jackery SolarSaga 100W Air Solar Panel for a different mounting style or output. Check each panel’s connector, electrical ratings and station input before choosing.

Explorer 1000 v2 solar setup

Pairing this panel with Explorer 1000 v2? Read the model-specific solar connection guide for the station’s two-port input limits and supported matching-panel arrangement.

SolarSaga 200W
Package Includes

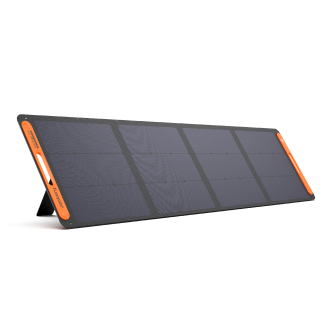

1 SolarSaga 200W
Jackery SolarSaga 200W Solar Panel / IP68 Waterproof
Selected variant SKU 21-0002-000063
MODEL
Retail SKU 21-0002-000063
Manufacturer Revisions JS-200D and JS-200E; confirm actual version on the panel label
Product Type Solar Panel
ELECTRICAL
Rated Power 200 W
Conversion Efficiency 25%
JS-200D Operating Voltage (Vmp) 20.2 V ±5%
JS-200D Operating Current (Imp) 10.3 A ±5%
JS-200D Open-Circuit Voltage (Voc) 25 V ±5%
USB-A Output 5 V, 2.4 A
USB-C Output 5 V, 3 A
Fold Design Four-fold with rear support feet
Listed Solar Power 200W
CONNECTIONS
Main Connector DC8020
PHYSICAL
Cable Length 9.8 ft (3 m)
JS-200D Folded Dimensions 24.2 × 21.7 × 1.6 in (615 × 552 × 40 mm)
JS-200D Unfolded Dimensions 92.1 × 21.7 × 1.0 in (2340 × 552 × 25 mm)
JS-200D Weight 13.7 lb ±0.7 lb (6.2 kg ±0.3 kg)
JS-200E Folded Dimensions 23.62 × 23.50 × 1.57 in (600 × 597 × 40 mm)
JS-200E Unfolded Dimensions 89.76 × 23.50 × 0.98 in (2279 × 597 × 25 mm)
JS-200E Weight 14.33 lb ±0.66 lb (6.5 kg ±0.3 kg)
OPERATING LIMITS
Operating Temperature Range -4°F to 149°F (-20°C to 65°C)
Ingress Protection IP68
USB-A Output 5V⎓2.4A USB-C Output 5V⎓3A
Maximum System Voltage 60V
Maximum Reverse Current 15A
Voltage Temperature Coefficient -(0.27±0.03)%/°C
Power Temperature Coefficient -(0.33±0.02)%/°C
JS-200E Open-Circuit Voltage (Voc) 22 V ±5%
JS-200E Operating Voltage (Vmp) 18 V ±5%
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

What input limits must match before connecting the SolarSaga 200W? Match the panel's open-circuit voltage, operating current, connector, polarity, and array configuration to the exact power-station solar input. Similar-looking Jackery ports and adapters are not interchangeable across every generation. Will the SolarSaga 200W deliver 200W continuously in outdoor use? No. 200W is a test-condition rating. Real output changes with sun angle, cloud cover, cell temperature, shade, dirt, cable loss, panel condition, and the power station's current state of charge and input limit. How should the SolarSaga 200W be aimed and secured at a campsite? Unfold or assemble it fully, face the active surface toward direct sun, use the provided support method, and secure it against wind without shading cells or stressing hinges and cables. Reposition it as the sun moves when practical. Does IP68 mean the SolarSaga 200W can stay outside in every storm? No weather rating makes live connectors, adapters, or charging ports safe for immersion. Keep connections dry and off the ground, avoid severe wind and prolonged exposure beyond the manual, and store the panel clean and dry before folding or transport. What conditions help the SolarSaga 200W's rear side produce additional power? Rear-side gain depends on reflective surroundings, clearance behind the cells, rear obstruction, and shade. Treat it as variable bonus energy rather than assuming the front-side 200W rating will always receive a fixed increase. How do I check whether the Jackery 21-0002-000063 suits my power station or solar charge controller? First check the model printed on the panel label. Jackery publishes different electrical values for JS-200D (25V ±5% Voc; 20.2V ±5% Vmp) and JS-200E (22V ±5% Voc; 18V ±5% Vmp). Match that revision's label, connector, polarity and complete array limits to the receiving device before connecting it; the retail SKU alone does not establish which revision will ship.
