You’re comparing solar panels, and one promises extra power from the back. That sounds like an easy win. The panel takes up roughly the same space, the sun is already shining, and a little more charging could mean a more comfortable night in your RV.
But before I’d spend your money on that promise, I’d want to see where the panel will sit.
A panel resting close to an RV roof has a very different view of the world than one raised above open ground. Both can be bifacial. They won’t necessarily get the same benefit from it.
Bifacial solar panels are worth considering when light can reach their rear surface and your system can use the extra energy. For a close-mounted RV roof, compare the front-side output, size, weight, and installed cost first. Treat rear-side gain as a potential bonus until you have a credible estimate for that installation.
Let’s work through what that means for your roof, your cabin, or the panels you set out beside a portable power station.
What does “bifacial” actually mean?
A conventional monofacial panel generates electricity through its front. A bifacial panel can collect light through both its front and rear.
The back often receives sunlight reflected from the ground or another nearby surface, along with scattered light from the sky. It needs access to that light to contribute useful output.
Think about standing over a bright concrete patio on a sunny day. Some sunlight reaches the patio and bounces upward. A raised bifacial panel can catch some of that light from underneath. Put an opaque surface directly behind the panel, and much of that opportunity disappears.
There’s also a comparison I want to clear up early: bifacial and monocrystalline are not competing panel types. Monocrystalline describes the silicon cell construction; bifacial describes the ability to collect light from both sides. A panel can be both.
Likewise, bifacial doesn’t automatically mean portable, flexible, lightweight, or suitable for your roof. Those are separate choices.

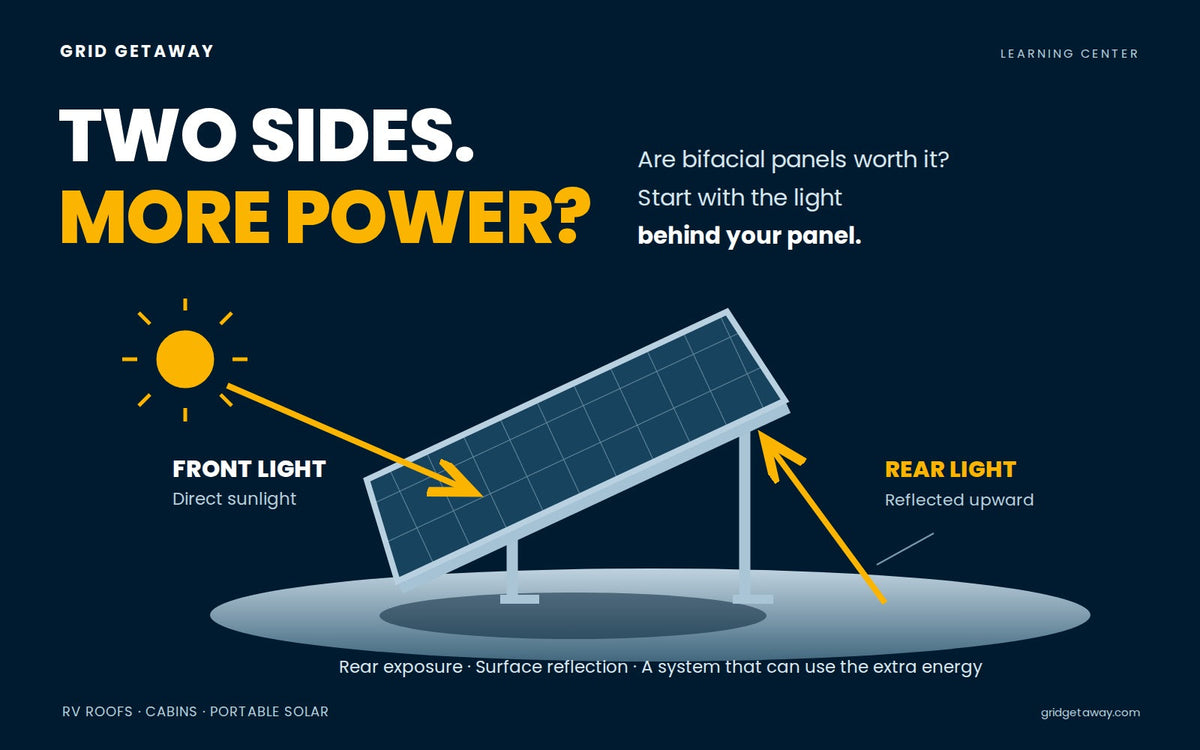

Sunlight → front of panel
A roof or other obstacle limits rear exposure.
Sunlight → front of panel
↗ ↑ ↖ Reflected and scattered light can also reach the back.
The three things I’d look at behind your panel
1. Can light actually reach the back?
Start with the obvious obstacles: the roof itself, mounting rails, a nearby wall, stored equipment, or another row of panels. These can block the light you’re hoping to collect.
The panel also casts its own shadow. A light-colored surface underneath helps less if most of that surface spends the useful part of the day shaded.
That’s why “my RV roof is white” is a good starting point, but not a complete performance estimate. We still need to consider the gap, the panel layout, and which parts of the roof receive sunlight.
2. What is the surrounding surface reflecting?
You may see the word albedo in technical guides. It simply describes how much incoming light a surface reflects.
Bright surfaces generally offer more reflected light than dark ones. Grass, gravel, roof coatings, and snow behave differently, and their condition changes with weather and seasons. The useful question is what your panel will see during the months you actually need it.
NREL and Sandia’s research on bifacial field performance explains why ground reflection, shading, and array geometry matter. A gain measured in one installation should not become a blanket promise for every RV or backyard.
3. Does the mounting arrangement make sense?
More open space behind a panel can improve rear exposure, but there isn’t one magic mounting height that guarantees a certain percentage.
On an RV, raising a panel also changes the physical installation. Wind loads, attachment points, overall height, roof strength, and service access still matter. I wouldn’t improvise taller brackets just to chase a few more watts.
Choose an approved mounting arrangement first. Then evaluate the rear-light opportunity that arrangement provides.
Read the wattage carefully: are the extra watts already included?
This is where two panels can look more different on a sales page than they really are.
STC, or standard test conditions, gives you a controlled reference for a panel’s rating. Manufacturers may also publish a separate rating with light applied to the rear. You need to know which number you’re comparing.
For example, the Jackery SolarSaga 500X manual for model JS-500A lists 500W under STC and 545W under its BNPI rating, a separate bifacial test condition. Both carry the manual’s stated ±5% tolerance.
That is a 45W difference, or 9%, between those nominal test ratings. It is not a promise that your campsite will produce 9% more energy every day. It also isn’t permission to add another advertised bifacial percentage to 545W.
Jackery SolarSaga 500X
JS-500A manual
Separate bifacial test rating
Includes rear illumination
Not a daily-energy guarantee.
The SolarSaga 100 Prime manual for model JS-100E makes the lighting conditions especially clear: its BNPI test uses 1,000W/m² on the front and 135W/m² on the rear. Its nominal ratings are 100W at STC and 108W at BNPI.
You don’t need to memorize those test terms. Just ask: “Is this the front-side rating, or does this number already include rear illumination?”
An 80% bifaciality rating does not mean 80% more daily power
Bifaciality compares the rear’s response with the front’s response under equivalent illumination. Your installed panel’s rear usually receives a different amount of light than its front.
A high bifaciality figure can describe a capable rear surface. It does not tell you how much light your roof will deliver to it, or how much additional energy will reach your battery.
Are bifacial solar panels worth it on an RV roof?
For a typical installation with panels mounted close to the roof, I’d build the buying decision around the front-side rating.
That doesn’t mean you should avoid a good bifacial panel. If it fits the roof, works with your controller, and costs about the same as an otherwise suitable alternative, the extra capability may be welcome even if you rarely get much rear contribution.
Where I’d slow down is paying substantially more, accepting extra weight, or choosing awkward dimensions because a product page advertises a large percentage gain.
Imagine your roof has room for two suitable 200W panels or one awkwardly positioned larger panel. The usable layout, shade from your air conditioner, and mounting clearances may decide the better option before bifacial technology enters the conversation.
I’d work through these questions in order:
- Which panels physically fit with room for mounting, vents, wiring, and maintenance?
- Can your roof and approved mounting system support them?
- How much front-side rated capacity can you install without creating unnecessary shade?
- Are the array voltage and current suitable for your controller?
- Does the back have enough exposure to justify paying extra for bifacial performance?
Our flexible vs. rigid RV panel guide covers the physical tradeoffs. If you’re still deciding whether panels belong on the roof at all, start with portable vs. roof-mounted solar panels.
What about a cabin or ground-mounted array?
A raised ground mount is a stronger reason to investigate bifacial panels because you have more control over the space behind them.
You can evaluate the ground surface, row spacing, tilt, and shading before the system is built. A designer can estimate rear contribution using your actual layout instead of borrowing a percentage from a different project.
I’d still compare the complete installed cost. A panel discount can disappear if it requires more expensive racking, freight delivery, or an arrangement that doesn’t fit your property.
Think about maintenance, too. Will vegetation grow into the rear-light path? Can you inspect connections? Will another row shade the area behind the panels? Can you reach the module surfaces safely?
For a cabin you use mostly in winter, ask for an estimate relevant to winter conditions. A summer annual-average benefit may not address your hardest charging days.
Snow can reflect substantial light, but snow covering the panel can also obstruct collection. I wouldn’t size a winter backup system around the assumption that snow will always help. Our winter solar guide explains the broader seasonal planning problem.
Can a portable bifacial panel help your power station?
Yes, provided you set it up where both the front and rear can receive useful light.
A portable setup gives you something a fixed roof doesn’t: the ability to move. You can choose a sunnier spot, adjust the panel using its approved supports, and keep the rear from being pressed against a wall or covered by storage bags.
But convenience matters. A large panel you leave packed away won’t help you recharge. Compare the deployed footprint, carrying weight, setup effort, and storage space alongside the watts.
For a real example, the Jackery SolarSaga 500X is a folding option whose JS-500A manual lists a nominal weight of 10.5kg, about 23.1lb, with a ±0.5kg tolerance. It also unfolds into a substantial array. Measure where you’ll actually put it.
The receiving power station matters just as much. If its solar input is already operating at its allowed power limit, additional available panel output may be clipped. If the battery is full and there’s no useful load, extra sunlight may not provide additional stored energy.
That doesn’t erase a bifacial panel’s usefulness at other times. It means the benefit depends on both the panel and the equipment receiving its output.
How much extra energy would actually help you?
Let’s use a deliberately simple planning example, so you can see the scale without pretending to predict your campsite.
Suppose a 400W setup has four equivalent peak sun hours and an assumed overall delivery factor of 75%. Peak sun hours express a day’s sunlight as equivalent hours at standard intensity; they are not simply the number of daylight hours.
400W × 4 hours × 0.75 = 1,200Wh of estimated daily delivered energy.
The 75% factor is an illustration, not a measured efficiency for a particular system. Your weather, temperatures, shade, wiring, controller, and charging conditions change the result.
Now compare three hypothetical increases in usable daily energy:
400W × 4 peak sun hours × 0.75
1,260Wh daily total
1,320Wh daily total
1,440Wh daily total
Those percentages are scenarios, not expected gains. If you’re missing several kilowatt-hours of charging each day, another 60Wh would barely move the problem. If you need a modest amount of additional energy and space is tight, a verified improvement could matter.
Compare that possible gain with moving a portable panel out of shade, adding compatible capacity, or reducing unnecessary consumption. Our guide to how many panels you need to charge a solar generator helps connect your daily use to your charging plan.
A simple way to think about the price premium
Imagine two otherwise comparable 400W options. One costs $200 and the bifacial option costs $220. Those are invented prices for this example.
The second costs 10% more. If it provides 10% more usable energy over the same period, their panel-only cost per unit of energy is equal. At 5% more usable energy, the cheaper panel has the advantage on that narrow measure; at 20% more, the bifacial option does.
This isn’t a complete payback calculation. Mounting, shipping, durability, available space, and your actual use still count. It is a useful check against paying a large premium for an unverified benefit.
Five bifacial panel options I’d compare for different setups
I wouldn’t hand you one universal “best” panel here. These five stocked options serve different physical and purchasing needs. They are candidates to compare, not a list of panels that connect interchangeably.
Jackery SolarSaga 100 Prime: a smaller rigid format
The SolarSaga 100 Prime is a rigid, nonfolding 100W panel. Its manual lists dimensions of 986 × 552 × 29mm and a weight of 6kg, about 13.2lb.
I’d consider its smaller format where layout flexibility matters. Multiple small modules can also mean more mounts and connections, so compare the complete layout. The package includes a Z-bracket kit and an Anderson-to-DC8020 adapter; the roof attachment and electrical design still need to suit your installation.
Jackery SolarSaga 500X: portable deployment
The 500X belongs on your shortlist when you want a folding array that you put out when parked. Its manual lists a supplied 5m Anderson-to-DC8020 solar cable.
I’d choose it around your storage space, setup routine, and power station’s actual input specifications. The 500W name alone does not establish compatibility with every Jackery model.
BougeRV 300W rigid bifacial: another footprint to compare
The BougeRV 300W 12BB rigid bifacial panel gives you a different module size to consider between smaller panels and large fixed-array modules.
Compare the exact listed version when you shop. BougeRV has different panel generations, and a manual or specification table for another 300W model should not be used to select your wiring or controller.
Rich Solar MEGA 430 Bifacial: larger fixed-array planning
The Rich Solar MEGA 430 Bifacial is a 430W module. Rich Solar’s RS-M430BF specification sheet lists dimensions of 67.8 × 44.7 × 1.2 inches and a weight of 50.9lb.
That makes roof fit and handling real considerations. Our listing offers pallet quantities, so check the selected panel count and delivered order total before comparing prices with a single-panel listing.
SunGoldPower 450W: a useful example of rear-side electrical changes
The SunGoldPower SGN-450-BDG5 is a 450W bifacial module offered in multipacks. Its manufacturer specification sheet lists 53.35lb and dimensions of 69.37 × 44.65 × 1.38 inches.
It also publishes a separate 499W rating at a rear-to-front irradiance ratio of 13.5%. That is a documented test comparison, not a guaranteed 499W roof output. The same table gives us an important cable-planning example.
Do bifacial panels need different cables?
There isn’t a special cable category you must buy simply because a panel is bifacial. You need the correct connections, polarity, voltage rating, and current capacity for the exact array.
The important difference is that rear illumination can increase current, so using only the front-side current figure may leave your design incomplete.
Here’s why a 30A branch connector is not automatically enough
The SunGoldPower 450W sheet lists short-circuit current, or Isc, of 16.05A at STC. In its table with 13.5% rear-to-front irradiance, Isc rises to 17.78A.
Isc is a design reference, not the current the panel constantly pushes into your battery. In parallel, the corresponding currents add. Two of those modules would total 35.56A under that published two-sided condition, before any further required design factors.
Published short-circuit current (Isc)
One panel at STC
One panel at 13.5% rear-to-front irradiance
Already above a 30A branch connector rating.
That connector pairing is unsuitable.
For comparison, the BougeRV Y-branch connector pair is listed at 30A. I would not specify that connector pair to combine those two SunGoldPower panels. Even their combined STC Isc is 32.1A.
The fact that connectors fit does not establish electrical compatibility. “MC4-compatible” descriptions also don’t establish that two different manufacturers’ connectors are approved to mate with each other. Stäubli’s statement on connector cross-mating explains why a physical fit is insufficient.
Putting panels in series changes the calculation by adding voltage. It isn’t an automatic fix: cold-weather open-circuit voltage can exceed an input limit. Our series vs. parallel guide explains those arrangements.
For a portable power station, check this route
Panel → approved solar cable or adapter → compatible solar input.
For the 500X, start with the supplied cable. If you need more reach, compare the Jackery Anderson extension cable with your exact model’s approved arrangement. An extension adds distance; it does not change voltage compatibility or replace the required input adapter.
Check cold-weather array voltage, permitted operating current, any specified maximum array Isc, permitted solar wattage, polarity, and per-port rules. A power station’s ability to limit charging current does not authorize an array that exceeds its other input limits. See using different solar panels with a power station before mixing equipment.
For an RV house battery or cabin battery, plan the whole route
Panels → required PV wiring and protection → compatible charge controller → protected battery connection.
Your parts plan may include:
- Approved mounts, panel interconnects, and correctly rated PV extension leads.
- Suitable branches or a combiner where the design calls for parallel connections.
- Required PV disconnects, overcurrent protection, and bonding or grounding provisions.
- A weatherproof cable entry, cable supports, and strain relief for the installation.
- A controller matched to the array and the battery’s charging requirements.
- Properly sized controller-to-battery cables, terminal ends, battery-side protection, and disconnects.
You can compare options in our Rich Solar cable collection, but wire size depends on current, distance, installation conditions, and allowable voltage drop. A product link is not a universal wire-size recommendation. Have the final fixed-installation design checked against the equipment instructions and applicable electrical requirements.
A few questions you might still have
Will a bifacial panel work if the rear is shaded?
It can still generate from the illuminated front. However, rear shading reduces the opportunity for extra rear contribution. Don’t size your system around a two-sided rating when the installation largely blocks one side.
Are bifacial panels better on cloudy days?
They can collect available diffuse light, but bifacial construction doesn’t guarantee a particular cloudy-day advantage. Clouds reduce the available solar resource, and the outcome still depends on the panel and its surroundings. Plan essential charging around realistic local conditions.
Should I put mirrors underneath?
I wouldn’t add improvised mirrors or concentrating reflectors. They can create uneven illumination and heating, and they may conflict with the panel’s instructions. Use the manufacturer-approved installation and naturally available rear light.
Can I mix bifacial panels with the panels I already own?
Possibly, but compare the electrical characteristics and controller arrangement first. Matching nominal wattage is not enough, and uneven operating conditions can limit the result. Our guide to mixing solar panels walks through that decision.
How I’d make the final call with you
For a close-mounted RV roof, I’d buy the right fit, dependable mounting, compatible electrical specifications, and good front-side capacity. Bifacial capability can be a welcome addition at a sensible price.
For a raised cabin array, I’d ask for a layout-based production estimate and compare the complete installation cost. That is where a real rear-light opportunity deserves a closer look.
For portable charging, I’d choose a panel you can comfortably deploy, connect correctly, and place in useful sunlight. Then I’d leave its rear exposed within the approved setup.
The decision comes down to three questions: can light reach the back, can your system use the extra output, and is that benefit worth the added cost or compromise?
Answer those, and you can shop with a clear reason for choosing bifacial—without expecting the word on the box to do the work for you.
