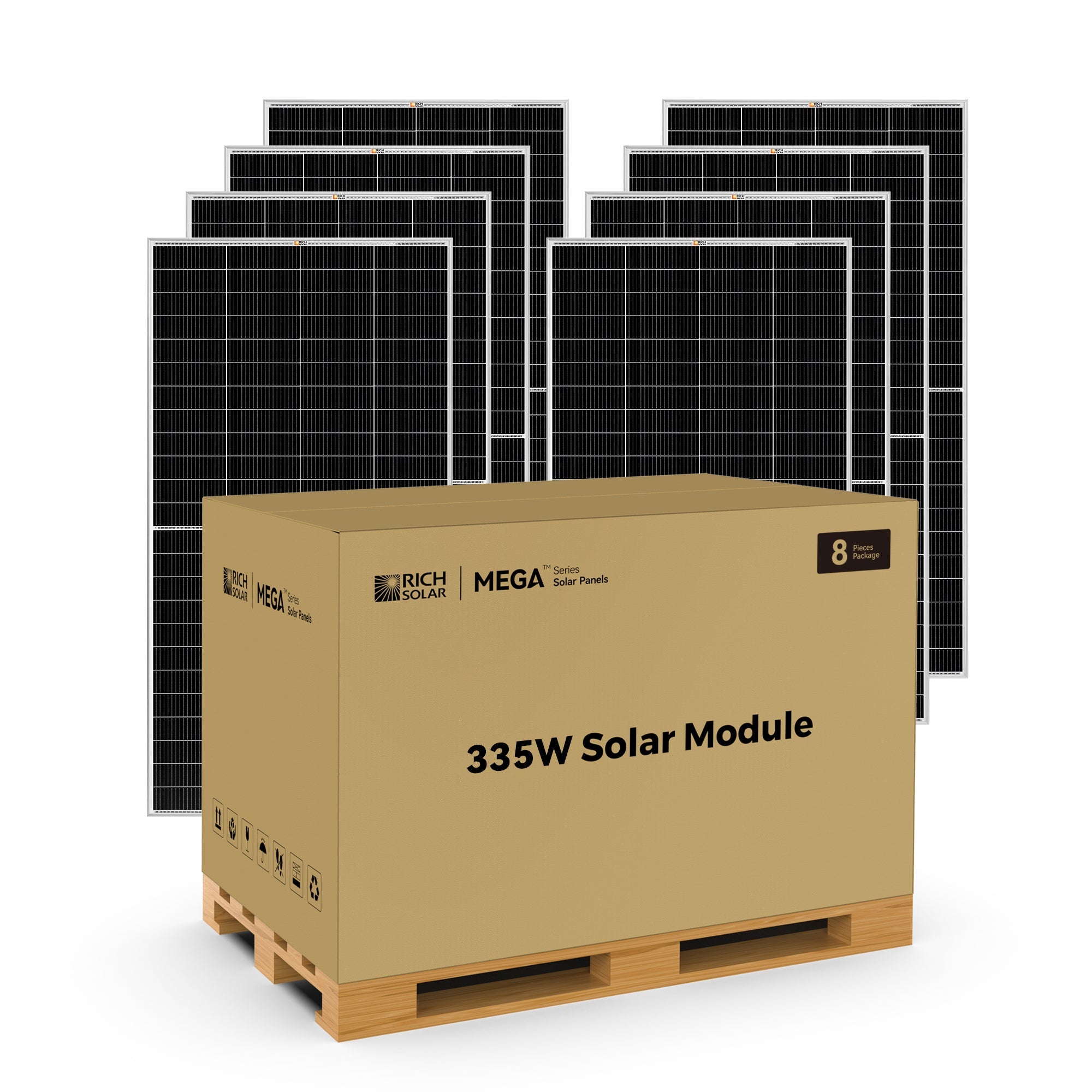

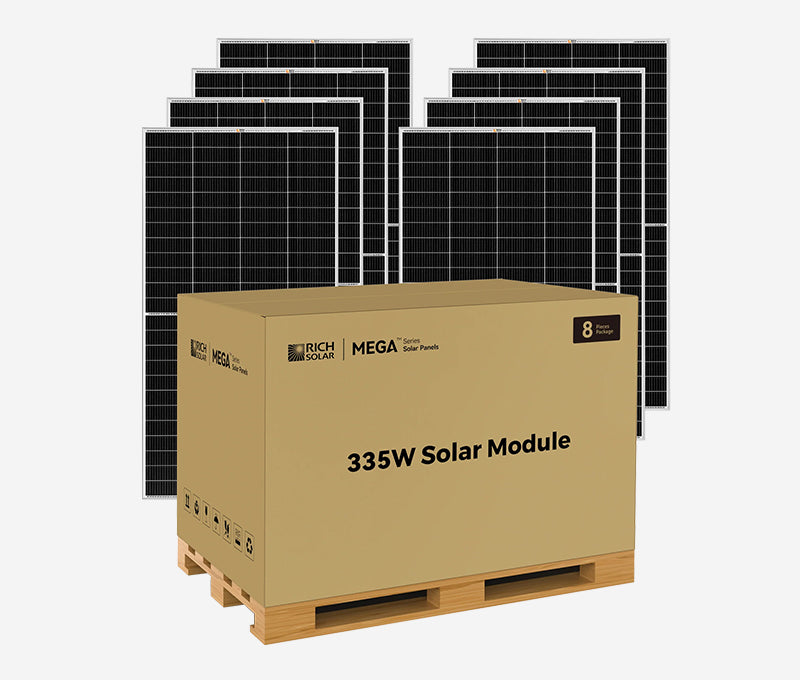

Rich Solar MEGA 335 PRO | 335 Watt Solar Panel - 8 Panels / MEGA 335 PRO (Silver) Rich Solar MEGA 335 PRO | 335 Watt Solar Panel

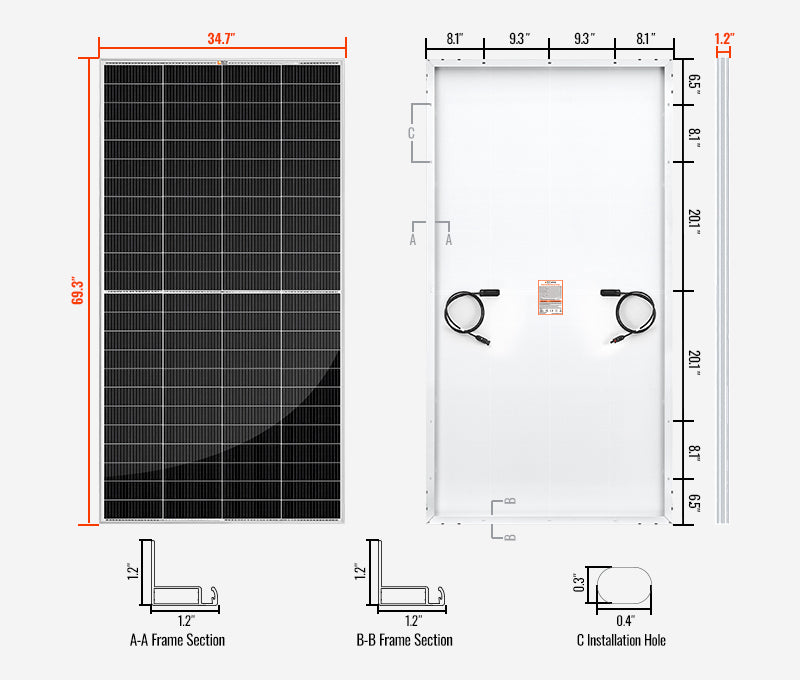

How much mounting space and weight allowance does the MEGA 335 PRO require? The published panel dimensions are 69.3 x 34.7 x 1.2 in, and the listed weight is 35.2 lb. Measure the complete mounting envelope - not only the module face - and leave room for clamps or brackets, cable routing, roof hardware, ventilation, and service access. On a mobile installation, confirm the structure and rack can handle both the panel weight and travel loads. How should I use the MEGA 335 PRO's Voc and Isc when sizing an MPPT controller? At maximum power, the MEGA 335 PRO is listed at 29.2V and 11.5A; its open-circuit voltage is 36.9V and short-circuit current is 11.8A. Use Vmp and Imp to estimate normal array operation, but use the applicable Voc and Isc calculations when checking controller limits, series strings, parallel current, conductor size, and protection. Can the MEGA 335 PRO be connected straight to a nominal-voltage battery bank? No solar module should be approved for direct battery charging from a nominal-voltage label alone. The MEGA 335 PRO's published operating values are 29.2V at maximum power and 36.9V open circuit. A compatible charge controller must accept the final array voltage and current and provide the charging profile required by the battery bank. Is 335W a constant output figure for the MEGA 335 PRO? 335W is the module's published nameplate power under standardized test conditions, not a constant field output. Cell temperature, sun angle, shade, cloud cover, dirt, wiring loss, controller efficiency, and battery state all affect measured production. Estimate the purchase from expected daily energy at the installation site, not by multiplying 335W by every daylight hour. What cable and connector details matter when installing the MEGA 335 PRO? RICH SOLAR lists the following factory connection details: MC4 connectors with 4 ft pre-attached cables for quick and easy installation. Panel Leads (Pair): 12 AWG, 4 ft each. Confirm polarity, lead length, conductor size, and the distance to the combiner or controller before ordering extensions. Factory leads do not automatically include every adapter, branch connector, roof entry, fuse, disconnect, or extension cable required by the final layout. What fuse and system-voltage limits apply when expanding with the MEGA 335 PRO? RICH SOLAR lists a maximum system voltage of 1500VDC and a maximum series-fuse rating of 20A for this module. Those are panel ratings, not permission to use the same string length or fuse in every installation. The controller or inverter input limits, conductor ampacity, parallel-string current, local code, and lowest expected temperature can require lower design limits.
