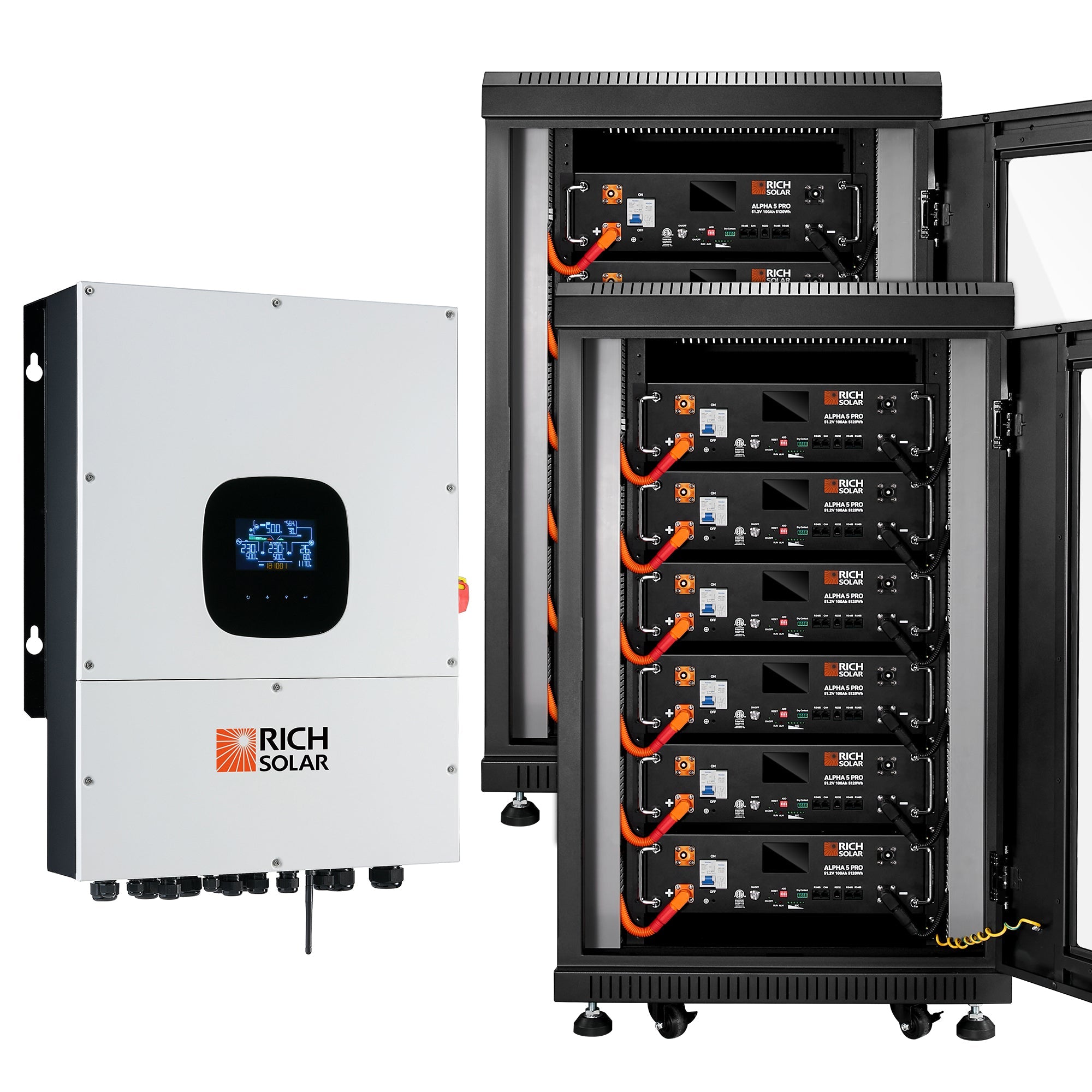

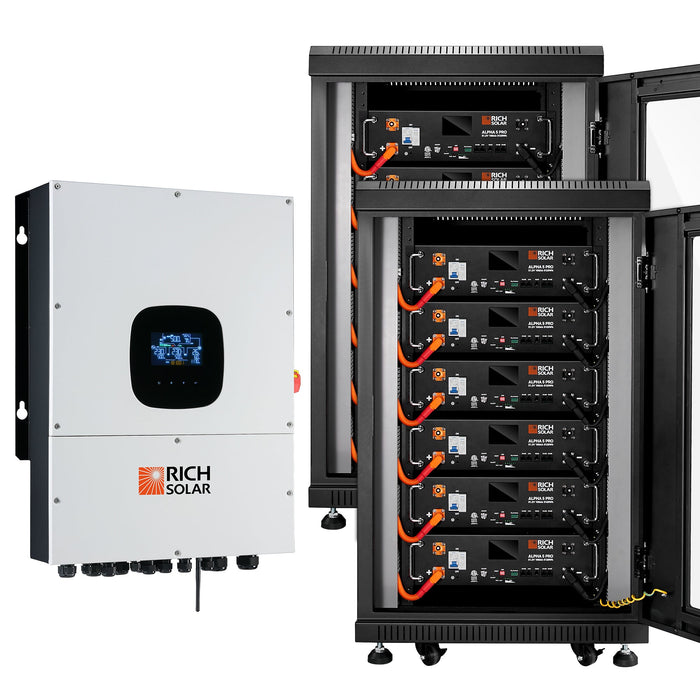

![Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]](http://gridgetaway.com/cdn/shop/files/NOVA_12K_PV_Hybrid_Inverter_Solar_Kit_61.44kWH_Server_Lithium_Battery_KIT-SR0002_92c175eb-46ac-4c1c-b910-67b99bb9102d.jpg?v=1781210335&width=2400)
1 / 6
Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002] Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit | 61.44kWH Server Lithium Battery [KIT-SR0002]
SKU: SRx12-H12Kx1-NO
- Minimum Capacity 99.5Ah
- Charging Voltage 56V
- Discharging Cutoff Voltage 44.8V
Add what you need.
Start with your product. Choose the extras that suit your setup.
Rich Solar SRx12-H12Kx1-NO NOVA 12K Hybrid Inverter & 61.44kWh Battery Kit
The Rich Solar SRx12-H12Kx1-NO is a large 48V solar storage kit built around one NOVA 12K split-phase hybrid inverter and twelve ALPHA 5 PRO server rack LiFePO4 batteries. With 61.44kWh of included battery storage, 120/240V split-phase output support, high PV input capacity, Wi-Fi monitoring, BMS communication, and two included battery racks, this kit is designed for serious home backup, off-grid, and hybrid solar power systems.
Kit Includes
This kit combines the core inverter, battery storage, and rack components needed to build a large 48V hybrid solar and backup power system.
Product Overview
The Rich Solar SRx12-H12Kx1-NO is designed for customers who need a larger solar battery storage system with serious backup power capability. The included NOVA 12K hybrid inverter supports split-phase power, high PV input, generator input, AC coupling, Wi-Fi monitoring, BMS communication, and advanced safety features, making it a strong foundation for residential backup, off-grid buildings, farms, workshops, and hybrid solar installations.
With twelve ALPHA 5 PRO batteries included, this kit provides 61.44kWh of lithium iron phosphate storage from the start. That makes it a much larger storage package than a basic backup system and a strong option for customers who want extended runtime, battery expansion capability, and a more complete 48V energy storage setup.
The ALPHA 5 PRO batteries include built-in BMS protection, long cycle life, low-maintenance operation, inverter compatibility, and RS485, RS232, and CAN communication ports. Each battery provides 5.12kWh of storage, and the included racks help organize the system into a cleaner server-style battery layout.
Best Uses
- Whole-home solar backup systems
- Large 48V battery storage installations
- Off-grid homes, cabins, farms, and workshops
- Hybrid solar systems using grid, battery, and solar power
- Generator-supported backup power systems
- AC-coupled solar and storage projects
- Customers who want large battery capacity from the start
Key Benefits
- Includes one NOVA 12K split-phase hybrid inverter
- Includes twelve ALPHA 5 PRO 5.12kWh LiFePO4 batteries
- 61.44kWh total included battery capacity
- 12000W maximum PV input and 10000W rated output
- Supports 120/240V split-phase and 120/208V split-phase configurations
- Built-in AC coupled function
- Generator input compatible
- Built-in Wi-Fi for mobile monitoring
- RS485 BMS communication support
- User-adjustable charging current and voltage
- Parallel operation up to 6 inverter units
- Includes two battery racks for a cleaner battery setup
NOVA 12K Hybrid Inverter
The included NOVA 12K inverter is designed for large solar and battery systems that need split-phase output, high PV input capacity, and flexible operating modes. It supports 120/240V split-phase and 120/208V split-phase configurations, making it suitable for advanced residential and light commercial backup power designs.
The inverter includes built-in Wi-Fi monitoring, a door-style cable compartment, integrated DC and AC breakers, AC coupling support, generator input compatibility, RS485 BMS communication, arc fault detection, rapid shutdown support, and an external CT sensor for self-consumption-focused system design.
ALPHA 5 PRO Battery Storage
The included ALPHA 5 PRO batteries use lithium iron phosphate chemistry for long cycle life, stable performance, and low-maintenance energy storage. Each battery provides 5.12kWh of capacity, and this kit includes twelve batteries for a total of 61.44kWh of storage.
The batteries include a sophisticated BMS for overcharge, over-discharge, overcurrent, and short-circuit protection. Communication ports include RS485, RS232, and CAN for compatible inverter integration. The ALPHA 5 PRO platform also supports parallel expansion, making it a strong battery foundation for larger solar storage systems.
Installation & Compatibility Note
This is a high-capacity hybrid solar and battery storage system that should be designed and installed carefully. System planning should account for utility interconnection, solar array sizing, battery communication, generator input, AC coupling design, CT sensor placement, wire sizing, overcurrent protection, grounding, ventilation, permitting, and local electrical code requirements.
Plan the solar array
Our solar panel selection guide helps compare panel types and ratings. For installation planning, the series versus parallel wiring guide explains the electrical difference between wiring panels in series and parallel.
| Rich Solar NOVA 12K PV Hybrid Inverter Solar Kit / 61.44kWH Server Lithium Battery [KIT-SR0002] | |
| Selected variant SKU | SRx12-H12Kx1-NO |
|---|---|
| MODEL | |
| Model / SKU | SRx12-H12Kx1-NO |
| Product Type | Solar Power Kit |
| ELECTRICAL | |
| Package Configuration | One NOVA 12K hybrid inverter, twelve 5.12 kWh ALPHA 5 PRO batteries, and two battery racks |
| Total Battery Storage | 61.44 kWh (12 × 5.12 kWh) |
| Inverter PV Input Rating | 12,000 W |
| Inverter Continuous AC Output | 10,000 W |
| AC Output Voltage | 120/240 V AC split phase; also supports 120/208 V configuration |
| Battery System Voltage | 48 V class |
| Maximum Charging Current | 200 A |
| Output Voltage Range | 105.5 - 132 VAC per phase |
| Rated Power | 10000 W |
| Maximum Input Current | 2 x 18 A (MAX 30 A) |
| Output Frequency | Range 47.5 ~ 51.5 Hz or 59.3~ 60.5Hz |
| AC Input | Power 10000VA/10000W |
| Output Waveform | Pure sine wave |
| Efficiency | (DC to AC) 91% |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Minimum Capacity | 99.5Ah |
| Continuous Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Maximum Charge Voltage | (CC/CV): 57.6V |
| Rated Output Power | 10000VA/10000W |
| Included Components | 1 x NOVA 12K PV Hybrid Inverter 12000W PV Input / 10000W Output / 48V 120/240V Split Phase (RS-H12K); 12 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P); 2 x Free Battery Rack |
| CONNECTIONS | |
| Communication | Port RS-232/USB |
| Wi-Fi | module can enable wireless communication between hybrid inverters and the monitoring |
| Connectors | are not connected to the cable, and user can wired according to the actual application |
| Ports | RS485/RS232/CAN |
| Port | RS232 |
| PHYSICAL | |
| 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery — Weight | 100.9 lb |
| OPERATING LIMITS | |
| Operating Temperature | -25 to 60°C (Power derating above 45°C) |
| Ingress Protection | Rating IP65 |
| Operating Temperature Range | -13°F to 140°F(>113°F derating) |
| Certification | UL1973, UL9540A, FCC |
| Warranty | 10 Years Manufacturer Defect |
| Protection Degree | IP65 |
| 12kW Split-Phase Hybrid Inverter | Delivers 12,000W continuous output with 120/240V split-phase AC output, dual MPPT trackers, and support for solar, battery, utility, and generator inputs. |
| 61.44kWh LiFePO₄ Battery Bank | Includes twelve 51.2V 100Ah (5120Wh) ALPHA 5 PRO server rack batteries for high-capacity energy storage and extended backup power. |
| 48V Energy Storage System | Designed around a 48V DC battery system for residential and commercial hybrid energy applications. |
| Charging Voltage | 56V |
| Discharging Cutoff Voltage | 44.8V |
| Battery Dimensions | 17.7"L x 17.8"W x 5.2"H |
| Battery Weight | 99.2 lb |
| Server Rack Dimensions | 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels) |
| Server Rack Weight | 196.2 lb |
| Operation Voltage | 43.2~58.4V |
| Maximum Discharging Current | 100A |
| Maximum Charge Voltage (CC/CV) | 57.6V |
| Overcharge Protection Voltage (Battery) | 58.4V |
| Overcharge Protection Release Voltage (Battery) | 54V |
| Over Discharge Protection Voltage (Battery) | 43.2V |
| Over Discharge Protection Release Voltage (Battery) | 47.2V |
| Over Discharge Primary Charge Overcurrent Protection Value | 110A |
| First Stage Charge Over Current Delay | 1s |
| Primary Discharge Overcurrent Protection Value | 110A |
| Primary Discharge Overcurrent Protection Delay | 1s |
| Secondary Discharge Overcurrent Protection Value | 150A |
| Secondary Discharge Overcurrent Protection Delay | 500ms |
| Charge Temperature | 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉); |
| Discharge Temperature | -4℉~149℉ (The surface temperature of the cell should not exceed 149℉) |
| Storage Temperature | -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months) |
| Recommended Storage Temperature | 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature) |
| Max. Expansion | 15 pcs in parallel |
| Communication Ports | RS485/RS232/CAN |
| Idle Consumption | -150W (±10%) |
| Maximum PV Input Power | 12000W |
| Maximum DC Voltage | 600VDC |
| Start-up Voltage/Initial Feeding Voltage | 125VDC/160VDC |
| MPPT Voltage Range | 120VDC-550VDC |
| Number of MPPT Trackers/Maximum Input Current | 2/18A |
| Nominal Output Voltage | 120VAC(P-N)/208VAC(P-P)/240VAC(P-P) |
| Nominal Output Current | 41.5A per phase |
| Battery DC Voltage Range | 40–62VDC/48VDC |
| Maximum Solar Charging Current | 200A |
| Maximum AC Charging Current | 200A |
| Communication Port | RS232, RS485, Wi-Fi, USB |
| Dimension (LxWxH) | 8.5x20.3x28.1in/215.5x515x715mm |
| Net Weight | 99.2lb/45kg |
| Certificate | UL1741SA, UL1741SB, CSA 22.2.107.1, CEC |
