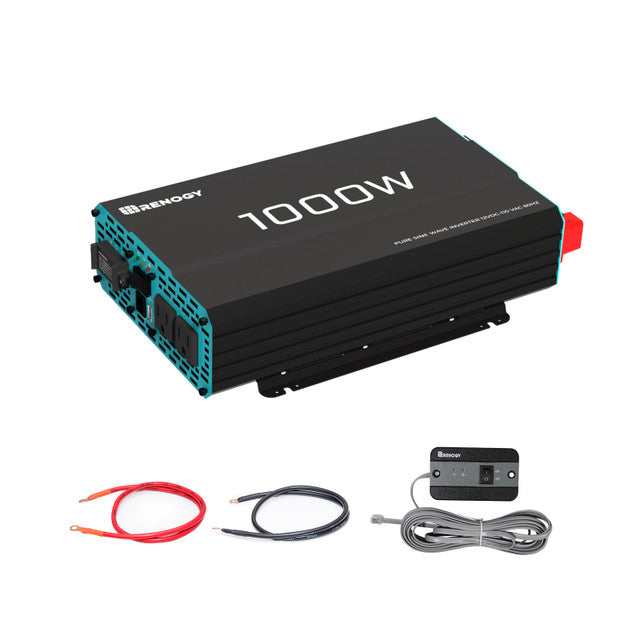

Renogy 1000W 12V Pure Sine Wave Inverter
P2 Series Pure Sine Wave
1000W 12V Pure Sine Wave Inverter
Power compatible off-grid essentials with P2 Series pure sine wave conversion designed for clean AC output, appliance protection and travel-ready installation.
Unlock the Magic of Pure Sine Wave Power
Transform 12V stored energy into compatible AC power for daily electronics and essential appliances.
Efficient Inverters for Optimal Performance
The source Description highlights efficient power conversion for suitable off-grid loads.
Pure Sine Wave Protection for Appliances
Clean AC output helps protect sensitive compatible electronics from irregular power performance.
Efficient and Stable Power
Designed to provide stable compatible inverter output for everyday use.
Why Appliances Can Trip
The source Description identifies appliance startup behaviour as an important factor in inverter sizing.
Cooling Fan Design
Cooling airflow is designed to support stable inverter operation during use.
GFCI and Safety Protection
Safety-focused output protection helps support suitable connected appliances.
Proper Chassis Grounding
Follow the supported grounding approach shown in the source Description for a suitable installation.
Customized Solution Suite
The source Description positions the inverter within compatible Renogy off-grid systems.
Enhancing Your Journey
Clean inverter power supports suitable mobile and off-grid lifestyle applications.
Inverter Under Your Truck Seat
Compact inverter placement supports suitable travel installations where space is limited.
| Renogy 12V 1000W Pure Sine Wave Inverter | |
| Model SKU | RNG-INVT-1000-12V-P2-G3-US |
|---|---|
| Inverter Output Specifications | |
| Continuous Output Power | 1,000W |
| Peak Power Rating | 2,000W |
| Output Voltage | 120V |
| Output Frequency | 60Hz ± 0.1% |
| AC Output Sockets | 2 |
| AC Terminal Block | 1 |
| USB Power Port | 5V / 2.1A |
| Power Output Control | AC On/Off Switch and Remote Control |
| Output Waveform | Pure Sine Wave |
| Nominal Efficiency | >90% |
| Total Harmonic Distortion (THD) | <3% Linear Load; <5% Non-Linear Load |
| Input Specifications | |
| Nominal Input Battery Voltage | 12V |
| Battery Terminal Size | M8 |
| Low Battery Alarm | 10.5V ± 0.5V DC |
| High Voltage Alarm | 16V |
| Battery Low Shutdown | 10.0V ± 0.5V DC |
| Over Voltage Shutdown | 16.5V ± 0.5V DC |
| No Load Current Draw | <1A |
| Mechanical Specifications | |
| Dimensions | 12.9 x 6.8 x 3.3 in |
| Weight | 6.0 lbs |
| Cooling Fan | Thermally Controlled |
| Operating Temperature Range | -4°F to 104°F |
| Accessories | |
| Cable | 4AWG, 3ft |
| Inverter Remote Control | 16.4ft |
| Certifications | |
| ETL Listed to UL 458 and CSA 22.2 No. 107.1-01 | Yes |
| FCC Part 15 Class B | Yes |
| Warranty | |
| Material and Workmanship Warranty | 1 Year |
