1 / 7
Renogy

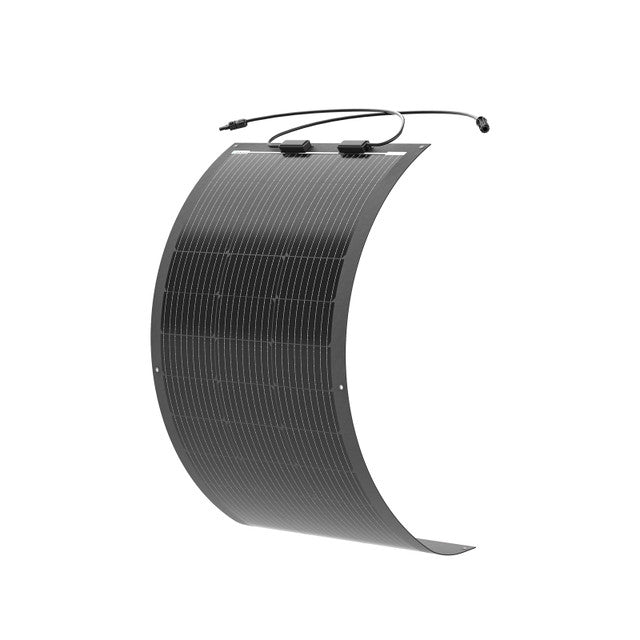

Renogy 100W 12V Black Division Flexible Solar Panel Renogy 100W 12V Black Division Flexible Solar Panel
SKU: RSP100DL-36-G2-US
$139.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Key features
- Black Division 100W Lightweight Monocrystalline Solar Panel Output Cables: 12 AWG (2.3ft per cable)
- Weight: 2.4 kg / 5.3 Lb Dimensions: 1093.0 x 582.0 x 20.5 mm (43 x 22.9 x 0.8 in)
- Material and workmanship warranty: 5 years Performance：5-year output warranty & material and workmanship warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
The Renogy Black Division 100W Lightweight Monocrystalline Solar Panel enhances module efficiency while minimizing its weight. It is the perfect option for any off-grid solar system, especially for transportation applications such as RVs and boats. This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications. This solar panel combines high efficiency (PERC) monocrystalline solar cells with half-cut cell technology to improve electrical performance and power generation efficiency. This panel comes with pre-drilled mounting holes, solar connectors, and a junction box that allows easy and fast installation.
Compare panel options
Our solar panel selection guide explains panel selection for different setups. The flexible versus rigid panel guide compares the relevant panel format; check this product’s electrical ratings before pairing it with other equipment.
Compare this Renogy model
23.5V Voc, 19.4V Vmp and 5.51A Isc per panel. Check the selected variant and charge-controller input limits.
Compare Renogy 100W rigid panel alternative by electrical ratings, dimensions, features and selected pack quantity before ordering.
Package Includes
1x Renogy 100W 12V Black Division Flexible Solar Panel
Includes the selected item based on the current package option.
| Specifications | |
| Selected variant SKU | RSP100DL-36-G2-US |
|---|---|
| Built-In Components | |
| Product | Black Division 100W Lightweight Monocrystalline Solar Panel |
| Output Cables | 12 AWG, 2.3 ft Per Cable |
| Cell Type | PERC Monocrystalline, 6.5 x 3.3 in |
| Number of Cells | 36 Cells, 12 x 3 |
| Junction Box | IP67 |
| Fire Rating | Class A |
| Electrical Parameters | |
| Maximum Power at STC | 100W |
| Module Efficiency | 15.7% |
| Optimum Operating Voltage Vmp | 19.4V |
| Open-Circuit Voltage Voc | 23.5V |
| Optimum Operating Current Imp | 5.20A |
| Short-Circuit Current Isc | 5.51A |
| Maximum Series Fuse Rating | 15A |
| Maximum System Voltage | 600V DC |
| Rated Current | 35A |
| Maximum AWG Size Range | 10 AWG |
| Environmental Data | |
| Operating Temperature | -40℃ to 80℃ / -40℉ to 176℉ |
| Mechanical Specifications | |
| Dimensions | 1093.0 x 582.0 x 20.5 mm / 43 x 22.9 x 0.8 in |
| Weight | 2.4kg / 5.3 lb |
| Certifications | |
| Certifications | CE, ISO |
| Warranty | |
| Material and Workmanship Warranty | 5 Years |
| Performance Warranty | 5-Year Output Warranty & Material and Workmanship Warranty |
| Black Division 100W Lightweight Monocrystalline Solar Panel | Output Cables: 12 AWG (2.3ft per cable) |
| Cell Type: PERC Monocrystalline (6.5 x 3.3 in) | Number of Cells: 36 (12 x 3) |
| Maximum Power at STC: 100W | Module Efficiency: 15.7% |
| Optimum Operating Voltage (Vmp): 19.4V | Open-Circuit Voltage (Voc): 23.5V |
| Optimum Operating Current (Imp): 5.20A | Short-Circuit Current (Isc): 5.51A |
| Maximum System Voltage: 600V DC | Rated Current: 35 A |
| Weight: 2.4 kg / 5.3 Lb | Dimensions: 1093.0 x 582.0 x 20.5 mm (43 x 22.9 x 0.8 in) |
| Material and workmanship warranty: 5 years | Performance：5-year output warranty & material and workmanship warranty |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
1. What do I need to complete my off-grid solar power system?
A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What do off-grid and on-grid mean?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3.Why is my solar panel underproducing?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4. How should I connect solar panels to an electrical circuit (series vs parallel)
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
5. How many solar panels do I need?
The best way to gauge how many solar panels you need is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly, decide how many panels or how much power input is needed.
6. Can I walk on flexible solar panels?
We suggest not. Walking on solar panel will exert excessive pressure on small area, it may cause cracks and damage of the panel.
7. Can this solar panel be adapted to a 12V Marine Battery or 48V Lithium Battery?
Yes, it can. The optimum operating voltage of this 550W solar panel is 41.97V. So it's suitable to use for charging your 12V Marine Battery and 48V Lithium Battery (by connecting at least two solar panels in series). Please note that you need to connect the solar panel(s) to a Charge Controller supporting a 12V or 48V system.
