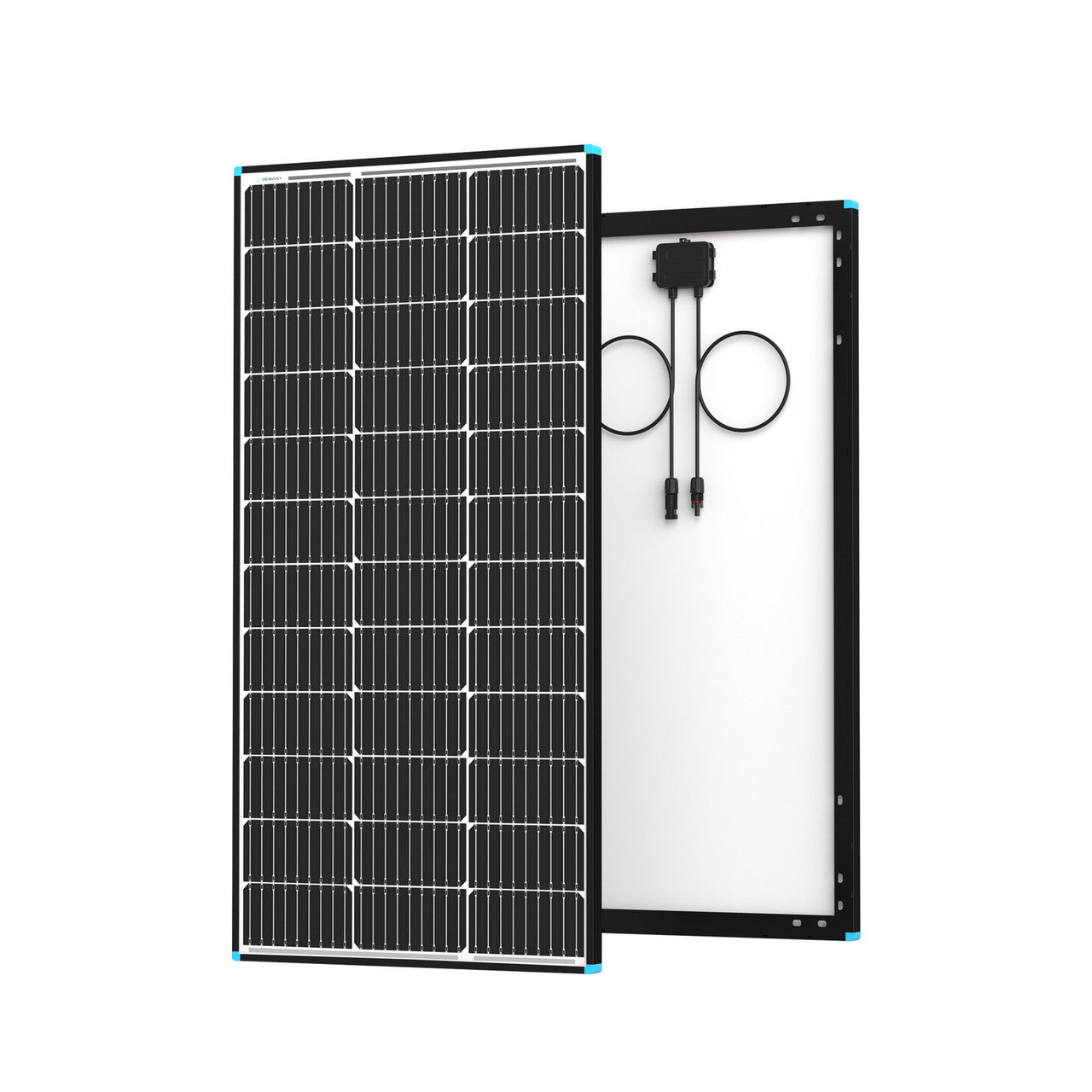

Renogy 100W 12V Monocrystalline Solar Panel Black Frame 1 / 8
Renogy

Renogy 100W 12V Monocrystalline Solar Panel Black Frame Renogy 100W 12V Monocrystalline Solar Panel Black Frame

SKU: RSP100D-BK-G2-US

Brand Renogy In Stock
$85.28 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy 100W 12V Monocrystalline Solar Panel Black Frame

In Stock
Renogy 100W 12V Monocrystalline Solar Panel Black Frame
Quantity$85.28 each
1

RSP100D-BK-G2-US · Buyer decision facts

Renogy 100W 12V Black-Frame Monocrystalline Panel

The Renogy 100W black-frame panel is rated at 100W under standard test conditions, with 24.3V open-circuit voltage and a 20.4V maximum-power operating point.

Its 41.8 × 20.9 × 1.38 in body weighs about 14.1 lb. A “12V panel” still requires a suitable solar charge controller before charging a battery. Check cold-weather series voltage, mounting space, and connector compatibility.

For more watts per module, compare the Renogy 200W rigid panel.

Renogy 100 Watt 12 Volt Monocrystalline Solar Panel is one of the main components for any solar power (PV) system. Whether you plan to use the solar panel for seaside travels to the beach or your cabin in the mountains, this panel can be a great start or addition to any Renogy off-grid system!

Compare panel options

Our solar panel selection guide explains how to compare panel ratings and installation needs; check this product’s electrical ratings before pairing it with other equipment.

Renogy 100W 12V Monocrystalline Solar Panel Black Frame
Package Includes
1x Renogy 100W 12V Monocrystalline Solar Panel Black Frame
Includes the selected item based on the current package option.
Specifications
Selected variant SKU RSP100D-BK-G2-US
Electrical Parameters
Max Power at STC 100W
Open Circuit Voltage 24.3V
Short Circuit Current 5.21A
Optimum Operating Voltage 20.4V
Optimum Operating Current 4.91A
Maximum System Voltage 600 VDC UL
Maximum Series Fuse Rating 15A
Environmental Data
Operating Temperature -40°F to 185°F / -40°C to +85°C
Mechanical Specifications
Output Cable 14 AWG, 1.97 ft / 0.6 m Long
Dimensions 1062 x 530 x 35 mm / 41.8 x 20.9 x 1.38 in
Weight 6.4kg / 14.1 lb
Warranty
Material and Workmanship Warranty 10 Years
Performance Warranty Over 80% Output at 25 Years
Rated Current 30A
Maximum Voltage 1000 VDC
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
🛡️
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
📄
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

Does the black frame change this Renogy panel's electrical output? No special output increase is attributed to the frame color. The black frame is primarily an appearance and integration choice; electrical design should use the published 100W rating and the panel's actual voltage, current, temperature, and fuse limits. Are the mounting and grounding points already prepared on the black-frame module? Yes. Renogy describes pre-drilled mounting and grounding holes in the rigid aluminum frame. Select mounting hardware for the roof or rack structure, preserve ventilation, waterproof every penetration, and follow the grounding method required by the installation. Will the bypass diodes keep the full 100W available when part of the panel is shaded? No. Bypass diodes help limit hot spots and reduce the impact of partial shade, but shaded cells still reduce production. Check the actual roof for antennas, vents, air conditioners, and tree shadows before choosing the panel location. What controller input limits must match the RSP100D-BK panel? Use the published 24.3V open-circuit voltage and 5.21A short-circuit current, then apply the controller manufacturer's cold-weather voltage and design-current margins. The controller must also support the battery voltage and chemistry being charged. Does the black-frame listing provide a complete RV solar kit? No. The official package list contains one 100W panel. A charge controller, roof mounts, entry gland, extension wiring, fuses or breakers, battery cable, and battery are separate unless the selected Grid Getaway package explicitly lists them.
