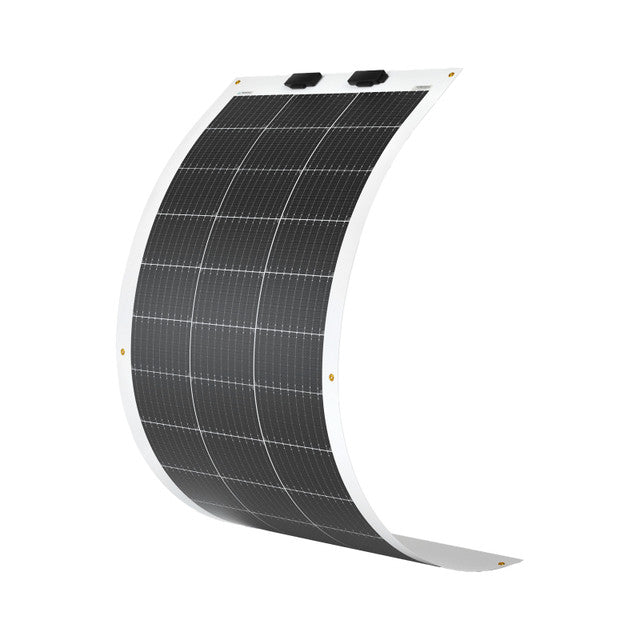

Renogy 100W 12V Lightweight Flexible Monocrystalline Solar Panel
Ultra-Light, Ultra-Thin Flexible Solar Power
Choose lightweight solar for curved or load-sensitive surfaces with a 100W flexible panel made for mobile and uneven-surface installations.
Flexible Up to 240 Degrees
The ultra-flexible design bends to follow curved installation surfaces on compatible RV, marine and off-grid applications.
Stable Output Over Time
Renogy states the flexible panel maintains at least 90% of its output within five years for consistent long-term solar collection.
Lightweight Layered Construction
The thin panel construction uses protective material layers around high-efficiency solar cells for flexible, low-profile mounting.
Ready for Flexible Installation
Reinforced mounting holes, adhesive-compatible installation and quick-connect solar connectors support different mounting approaches.
Designed for Marine, RV and Cabin Use
Deploy lightweight flexible solar generation across travel and off-grid settings where rigid panels may not be the best fit.
| RNG-100DB-H 100W Flexible Monocrystalline Solar Panel | |
| Model SKU | RNG-100DB-H-G4-US |
|---|---|
| Electrical Data | |
| Maximum Power at STC | 100W |
| Optimum Operating Voltage (Vmp) | 20.7V |
| Optimum Operating Current (Imp) | 4.84A |
| Open-Circuit Voltage (Voc) | 24.4V |
| Short-Circuit Current (Isc) | 5.16A |
| Module Efficiency | 15.7% |
| Maximum System Voltage | 600VDC |
| Maximum Series Fuse Rating | 15A |
| Mechanical Data | |
| Solar Cell Type | Monocrystalline (6.5 x 3.3 in) |
| Number of Cells | 36 (3 x 12) |
| Dimensions | 1,093 x 582 x 3mm / 43.0 x 22.9 x 0.1 in |
| Weight | 2.4kg / 5.3 lbs |
| Application Class | Class A |
| Frame | None |
| Connectors | Solar Connectors |
| Fire Performance | Type 1 |
| Thermal Characteristics | |
| Operating Temperature Range | -40°C to 85°C / -40°F to 185°F |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C |
| Temperature Coefficient of Pmax | -0.38% / °C |
| Temperature Coefficient of Voc | -0.29% / °C |
| Temperature Coefficient of Isc | 0.05% / °C |
| Solar Connectors | |
| Rated Current | 30A |
| Maximum Voltage | 1,500V DC |
| Maximum AWG Size Range | 12 AWG |
| Temperature Range | -40°C to 85°C / -40°F to 185°F |
| IP Rating | IP67 |
| Junction Box | |
| IP Rating | IP67 |
| Number of Diodes | 2 |
| Output Cables | 12 AWG, 700mm / 27.6 in |
| Certifications | |
| CE, EN IEC61730, EN IEC61215, ISO 9001 | Yes |
