Renogy 100W 12V N-Type Portable Solar Panel Suitcase Kit w/ 20A PWM Controller Renogy 100W 12V N-Type Portable Solar Panel Suitcase Kit w/ 20A PWM Controller
SKU: RNG-KIT-STCS100DC-VOY20-G1-US
- Weight 17.42 lbs / 7.9kg
- z Battery Compatibility Supports four battery types - GEL, FLD, SLD/AGM, and LI.
- z Charging Current the charging current from solar panels.

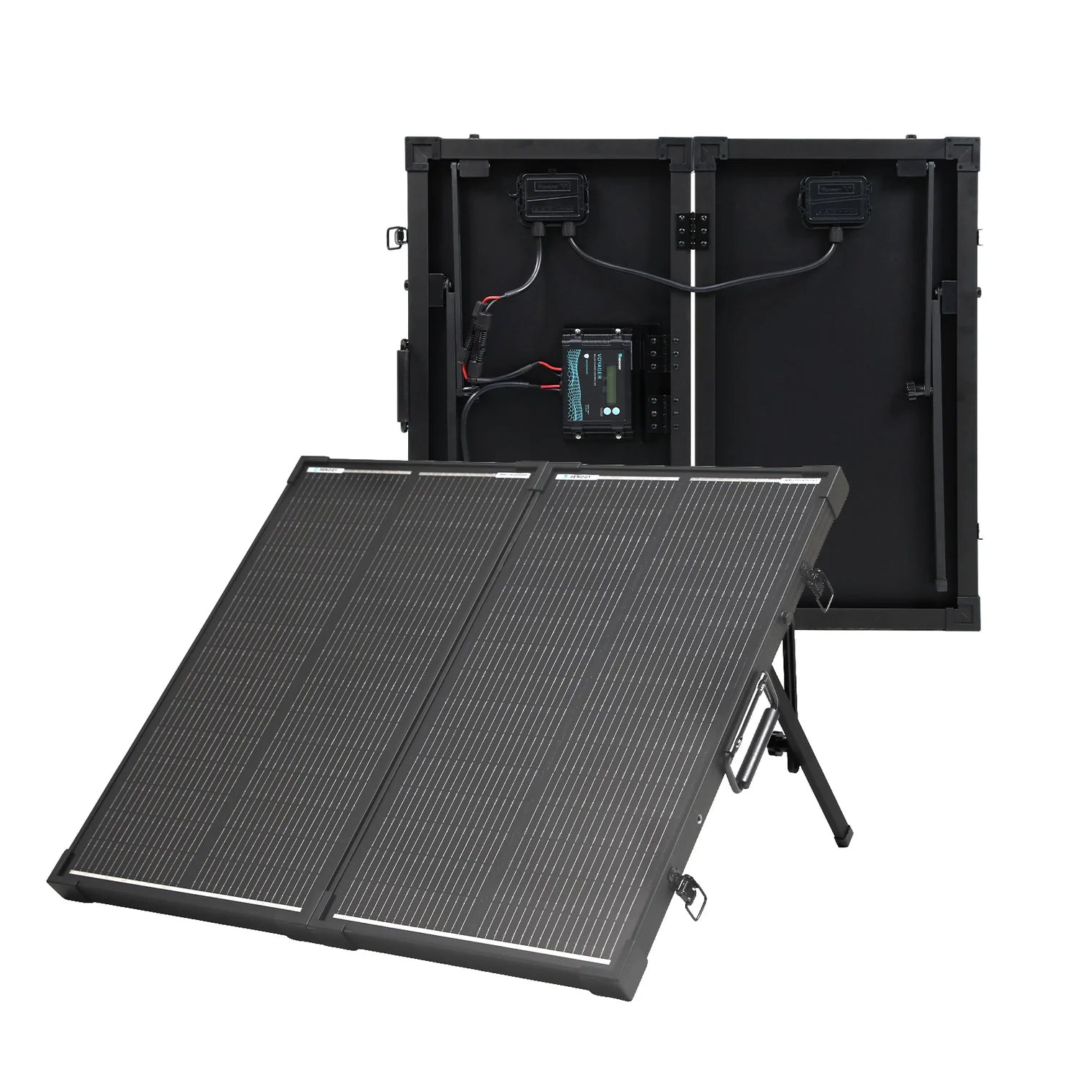

Renogy 100W N-Type Portable Solar Suitcase with 20A Voyager Controller
Set up temporary solar charging for a compatible battery without mounting a fixed panel. This kit pairs a folding 100W N-Type solar suitcase with a pre-installed Voyager 20A PWM charge controller and a solar-connector-to-alligator-clips cable with a 15A fuse. A battery is not listed among the kit contents.
Check the battery and controller fit
The panel is rated at 18.65V operating voltage (Vmp), 5.602A operating current (Imp), 21.47V open-circuit voltage (Voc), and 6.029A short-circuit current (Isc) under standard test conditions. Confirm the battery voltage and chemistry settings, controller input limits, and polarity before connecting. Actual charging power and time vary with sunlight, shade, temperature, and the battery’s charging state.
Plan the space before you travel
The suitcase measures 27.17 × 31.3 × 1.57 inches unfolded and 27.17 × 15.59 × 3.15 inches folded. It weighs 17.42 lb. Use the adjustable support to position the panel toward the sun and allow room for the cable to reach the battery safely.
See the itemized What’s Included section and manufacturer documents below for the controller and cable details. For help checking controller limits, read our solar charge controller sizing guide, or compare Renogy solar panels.
Compare panel options
Our solar panel selection guide explains panel selection for different setups. The portable versus roof-mounted panel guide compares the relevant panel format; check this product’s electrical ratings before pairing it with other equipment.
| 100W 12V N-Type Portable Solar Panel Suitcase Kit with 20A PWM Controller | |
| Selected variant SKU | RNG-KIT-STCS100DC-VOY20-G1-US |
|---|---|
| Specifications | |
| Maximum Power at STC | 100W |
| Optimum Operating Voltage | 18.65V |
| Optimum Operating Current | 5.602A |
| Open-Circuit Voltage | 21.47V |
| Short-Circuit Current | 6.029A |
| Operating Temperature | -40°F to 185°F / -40°C to 85°C |
| Dimensions (Unfolded) | 27.17 x 31.3 x 1.57 in / 690 x 795 x 40mm |
| Dimensions (Folded) | 27.17 x 15.59 x 3.15 in / 690 x 396 x 80mm |
| Weight | 17.42 lbs / 7.9kg |
| Certifications | |
| CE, CA65 | Yes |
| Warranty | |
| Material and Workmanship Warranty | 5 Year |
| Dimensions | Unfolded: 27.17 x 31.3 x 1.57in / 690 x 795 x 40mm Folded: 27.17 x 15.59 x 3.15in / 690 x 396 x 80mm |
| Controller Battery Types | Supports four battery types - GEL, FLD, SLD/AGM, and LI. |
| Dimension tolerance | ±0.2 in (0.5 mm) |
| System Voltage | 12V/24V (Auto detection for non-lithium) |
| Battery Rated Current | 20A |
| Max Battery Voltage | 32V |
| PV Input Voltage Range | 15V to 55V |
| PV Power Input | 12V@260W; 24V@520W |
| Power Consumption | 12V@0.24W; 24V@0.74W |
| Temperature Compensation | -3mV / °C / 2V, excludes LI |
| Storage Temperature | -31°F to 167°F (-35°C to 75°C) |
