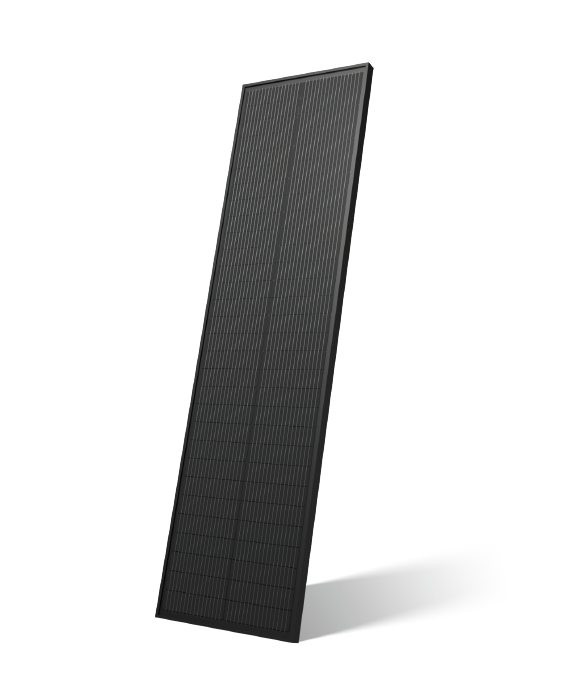

Renogy 100W 12V Slim Monocrystalline PERC Solar Panel Renogy 100W 12V Slim Monocrystalline PERC Solar Panel
SKU: RSP100D-BBLG-G1-US
$157.05
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
100W Slim Solar Panels feature a narrow, elongated form factor that maximizes usable area in space-constrained installations.
The slim geometry supports flexible layouts on RV rooftops, commercial vehicles, and custom mounting surfaces where standard panel formats are not suitable.
Compare panel options
Our solar panel selection guide explains how to compare panel ratings and installation needs; check this product’s electrical ratings before pairing it with other equipment.
Compare this Renogy model
24.66 V Voc, 20.92 V Vmp and 5.17 A Isc per panel. Check the selected variant and charge-controller input limits.
Compare Renogy 100W rigid panel alternative by electrical ratings, dimensions, features and selected pack quantity before ordering.
Package Includes
1x Renogy 100W 12V Slim Monocrystalline PERC Solar Panel
Includes the selected item based on the current package option.
| Renogy 100W 12V Slim Monocrystalline PERC Solar Panel | |
| Selected variant SKU | RSP100D-BBLG-G1-US |
|---|---|
| MODEL | |
| Product Model | RSP100D-BBLG (PERC version) |
| Model / SKU | RSP100D-BBLG-G1-US |
| Product Type | Solar Panel |
| ELECTRICAL | |
| Maximum Power at STC | 100 W |
| Optimum Operating Voltage (Vmp) | 20.92 V |
| Optimum Operating Current (Imp) | 4.78 A |
| Open-Circuit Voltage (Voc) | 24.66 V |
| Short-Circuit Current (Isc) | 5.17 A |
| Module Efficiency | 17.3% |
| Maximum System Voltage | 600 V DC |
| Maximum Series Fuse Rating | 15 A |
| Solar Cell Type | Monocrystalline PERC |
| Number of Cells | 36 (18 × 2) |
| Output Cables | 14 AWG, 39.4 in (1,000 mm) |
| Listed System Voltage | 12V |
| Listed Solar Power | 100W |
| Cell Technology | PERC Monocrystalline |
| CONNECTIONS | |
| Connectors | Solar connectors, 1,000 V DC maximum, 22 A rated, IP67 |
| PHYSICAL | |
| Dimensions | 61.85 × 14.53 × 1.18 in (1,571 × 369 × 30 mm) |
| Weight | 14.55 lb (6.6 kg) |
| Frame | Anodized aluminum alloy |
| Material and Workmanship Warranty | 10 years |
| OPERATING LIMITS | |
| Operating Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Nominal Operating Cell Temperature | 45°C ±2°C |
| Temperature Coefficient of Pmax | -0.38%/°C |
| Temperature Coefficient of Voc | -0.28%/°C |
| Temperature Coefficient of Isc | 0.048%/°C |
| Certification | 25-Year |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Is the Renogy 100W slim PERC panel flexible enough to follow a curved roof?
No. Slim describes its long, narrow footprint; it is still a rigid module with an anodized aluminum frame. It should be mounted to a suitable flat support or rack without bending or twisting the panel.
What roof shape is the 61.85-inch slim panel intended to help with?
Its 61.85 by 14.53 inch footprint can fit narrow lanes beside vents or other rooftop equipment where a wider panel will not. Confirm the complete outline, clamp zones, 1.18 inch thickness, cable exit, and service clearance on the actual roof.
Which electrical values should size a controller for the RSP100D-BBLG?
Base the design on 24.66V open-circuit voltage and 5.17A short-circuit current per panel, not the 12V marketing class. Apply cold-weather voltage correction and the controller manufacturer's required current margin before deciding series or parallel wiring.
Does PERC technology prevent output loss from a narrow shadow across this panel?
No. PERC can improve cell performance, but a roof-rack rail, vent, antenna, or cable shadow can still reduce production. The panel's long shape makes a shade survey across its entire length especially important.
Can the attached 14 AWG leads be extended for a long controller run?
They can transition to a correctly designed PV circuit, but the extension gauge must be chosen from array current, total route length, voltage-drop target, connector ratings, and environmental conditions. The panel's 39.4 inch leads do not determine the correct gauge for the rest of the run.
