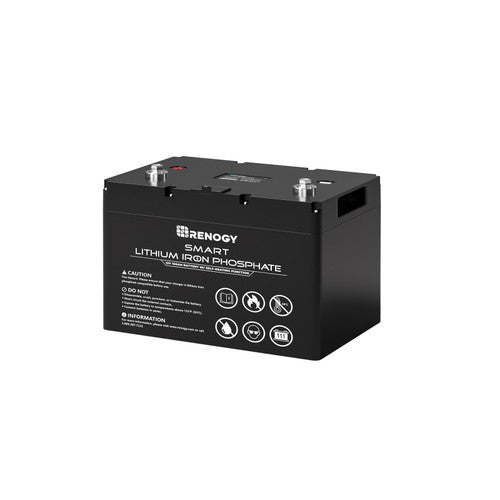

Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery w/ Self Heating Function
$582.34
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
The Renogy Lifepo4 Battery enables auto-balancing between parallel connections and provides more flexibility for the battery bank configuration.
Package Includes
1 12V 100Ah Smart Lithium Iron Phosphate Battery w/ Self Heating Function
Package Includes
1 Activation Switch
Package Includes
2 20mm M8 Bolt
| Renogy 12V 100Ah Smart Lithium Iron Phosphate Battery w/ Self Heating Function | |
| Model SKU | RBT100LFP12SH-G2-US |
|---|---|
| MODEL | |
| Product Model | RBT100LFP12SH |
| Product Type | Battery |
| ELECTRICAL | |
| Battery Chemistry | Lithium iron phosphate (LiFePO4) |
| Rated Capacity | 100 Ah at 0.2C |
| Nominal Voltage | 12.8 V |
| Voltage Range | 10-14.8 V |
| Charge Voltage | 14.4 V |
| Maximum Continuous Charge Current | 50 A |
| Maximum Continuous Discharge Current | 100 A |
| Listed Capacity | 100Ah |
| Battery Features | Self-heating |
| CONNECTIONS | |
| Communication | RJ45 using RS485 protocol |
| Terminal Bolt | M8 × 1 × 15 mm |
| Recommended Terminal Torque | 62.0-70.8 in-lb (7-8 N·m) |
| PHYSICAL | |
| Dimensions | 11.4 × 6.8 × 7.4 in (289 × 172 × 188 mm) |
| Weight | 26.2 lb (11.9 kg) |
| OPERATING LIMITS | |
| Cycle Life | 4,000 cycles at 80% depth of discharge |
| Charge Temperature Range | 32°F to 131°F (0°C to 55°C) |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range | -13°F to 149°F (-25°C to 65°C) |
| Operating Relative Humidity | 5% to 95% |
| Certifications | UN38.3, MSDS, CE, and UL 1642 battery cells |
| PACKAGE | |
| Included Components | 1 × 12V 100Ah Smart Lithium Iron Phosphate Battery w/ Self Heating Function, 1 × Activation Switch, 2 × 20mm M8 Bolt |
