Renogy 16BB N-Type 175W 12V Solar Panel - 1 Panel
A Smart Starting Point for Solar Power
Renogy N-Type rigid panels are designed to deliver strong output in a compact, installation-friendly format for mobile and off-grid solar systems. The submitted live variant is 100W | 2 Pieces.

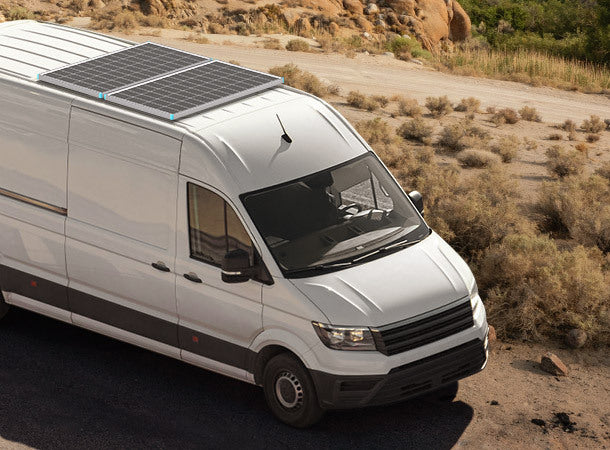

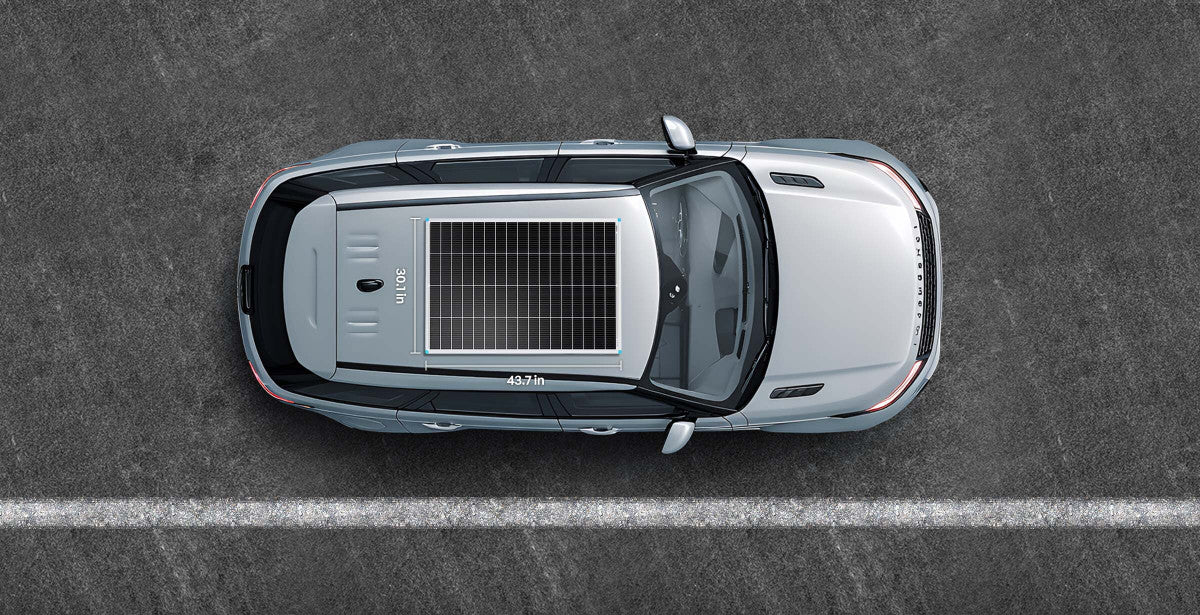

Designed to Fit Vehicle Roof Space
Panel dimensions are matched to common roof layouts for Class B vans, SUVs and minivans, supporting clean coverage with efficient use of available mounting area.

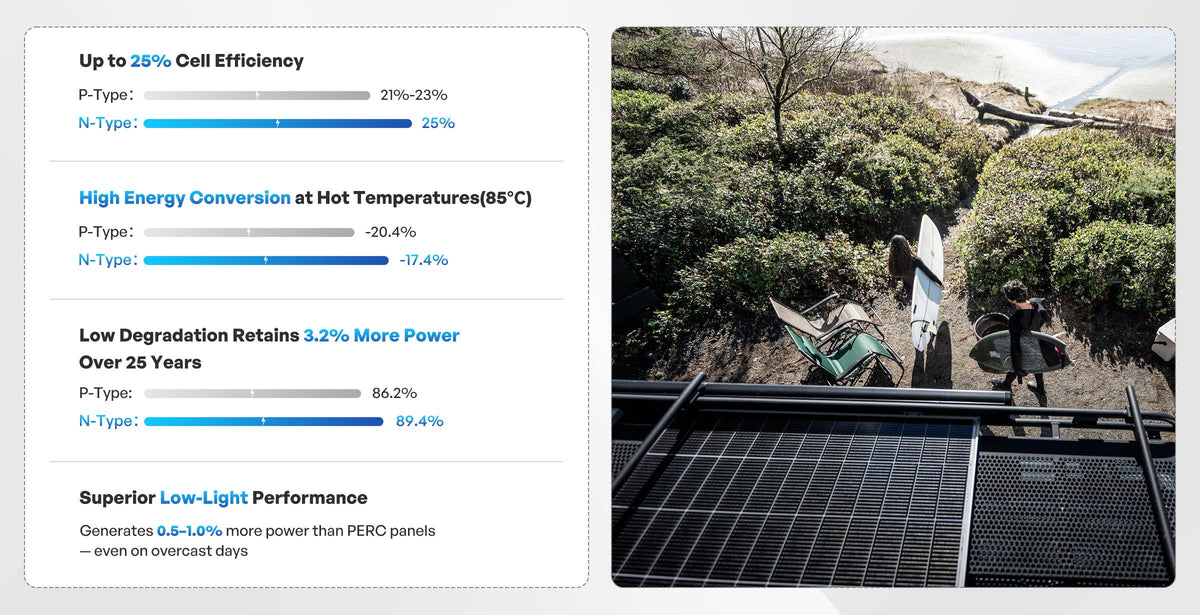

Advanced N-Type Performance with Less Loss
N-Type cells are designed for high conversion efficiency, stronger heat tolerance and more stable output over time than traditional PERC cell technology.

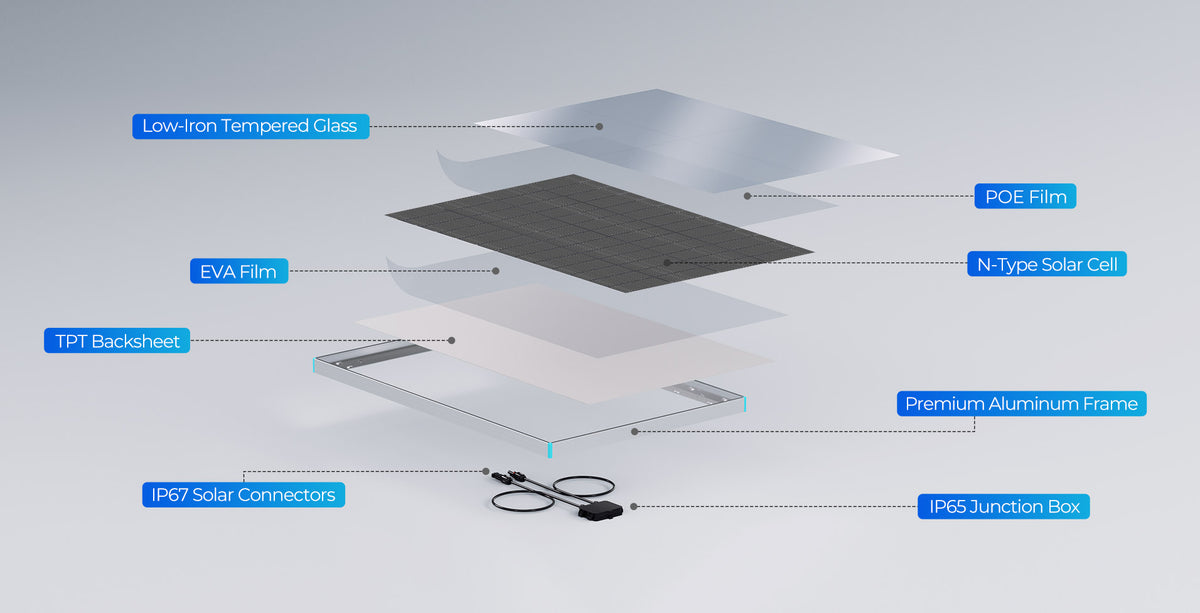

Premium Materials for Long-Term Use
Protective layers, tempered low-iron glass, a rigid aluminum frame and protected electrical components support dependable performance through travel and changing outdoor conditions.
Wind and Snow Resistance
The source description states ratings of 2,400 Pa for wind loads and 5,400 Pa for snow loads for demanding outdoor installations.

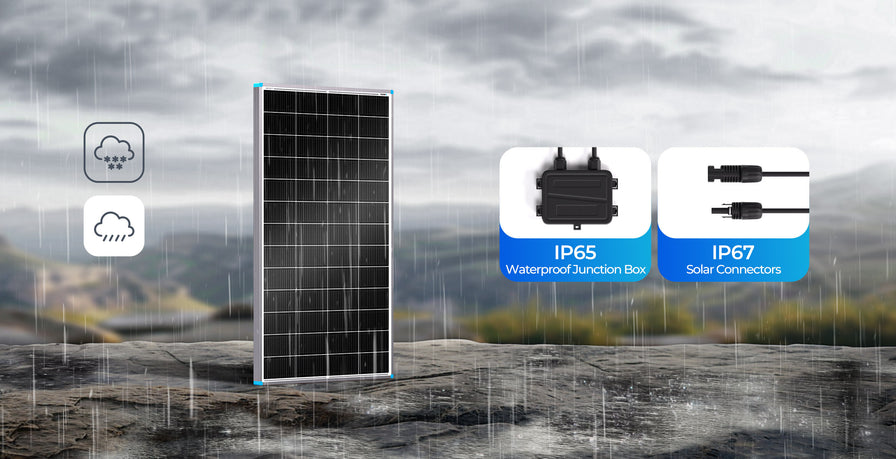

Waterproof Protection for Outdoor Use
An IP65-rated junction box and IP67-rated connectors help protect the solar panel against dust, rain and moisture.
Strong Enough for Rough Roads
A durable aluminum alloy frame supports long-lasting use through vehicle vibration, bumps and demanding travel conditions.

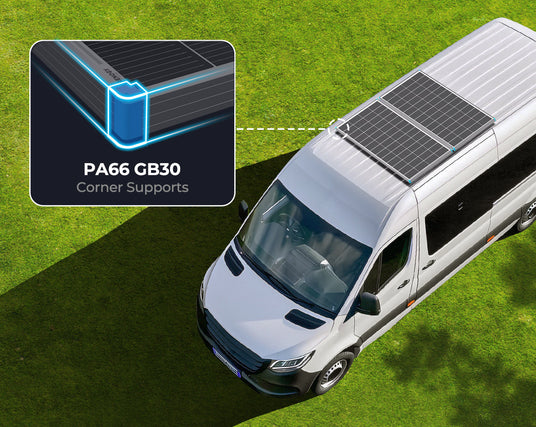

Reinforced for Faster, More Secure Installation
Reinforced frame corners help strengthen high-stress points and reduce impact risk during transport and installation.
Solar Power for Home and Travel

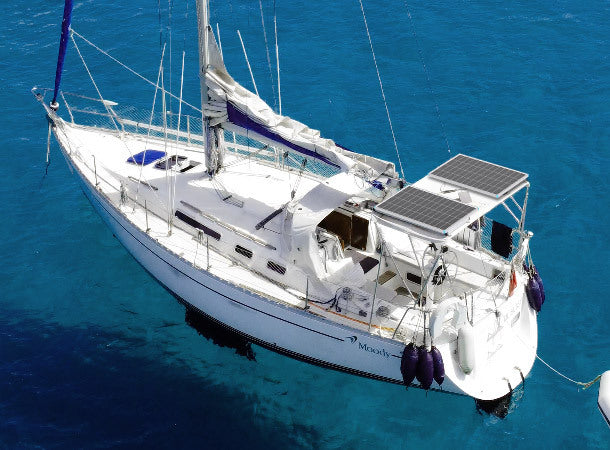

The Description shows N-Type rigid panel applications for RV travel, marine power and home solar installations.
| Renogy 16BB N-Type 175W 12V Solar Panel | |
| Model SKU | RSP175DC-G1-US |
|---|---|
| MODEL | |
| Product Type | Solar Panel |
| Available Variants | 1 Panel; 4 Panels |
| ELECTRICAL | |
| Maximum Power at STC | 175 W |
| Open-Circuit Voltage (Voc) | 24.48 V |
| Short-Circuit Current (Isc) | 8.88 A |
| Optimum Operating Voltage (Vmp) | 20.88 V |
| Optimum Operating Current (Imp) | 8.38 A |
| Maximum System Voltage | 600 V DC |
| Maximum Series Fuse Rating | 15 A |
| Cell Technology | 16-busbar N-type monocrystalline cells |
| Module Efficiency | 20.6% |
| Output Cables | 22A |
| Open Circuit Voltage | 23V |
| Optimum Operating Voltage | 19.2 V |
| Solar Cells | 68 Cells (4*17) |
| Output Cable: 13 AWG 2.6 ft (0.9m) long | Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm |
| Junction Box: IP65 | Connectors: Solar Connectors |
| Listed System Voltage | 12V |
| Listed Solar Power | 175W |
| CONNECTIONS | |
| Solar Connectors | IP67 |
| Connectors | IOT Monitoring Outdoor Appliances |
| PHYSICAL | |
| Dimensions | 43.7 × 30.1 × 1.2 in (1,110 × 764 × 30 mm) |
| Weight | 21.2 lb (9.6 kg) |
| Material and Workmanship Warranty | 10 years |
| Frame | corrosion Drain holes blocked, anodized |
| Weight: 26.46 lb (12 kg) | Solar Cells: 68 Cells (4*17) |
| OPERATING LIMITS | |
| Operating Temperature Range | -40°F to 185°F (-40°C to 85°C) |
| Performance Warranty | 95% output at 5 years, 90% at 10 years, and 80% at 25 years |
| Cycle Life | (0.5C, 25℃) |
| Operating Temperature | -40°F~194°F / -40℃~90℃ |
