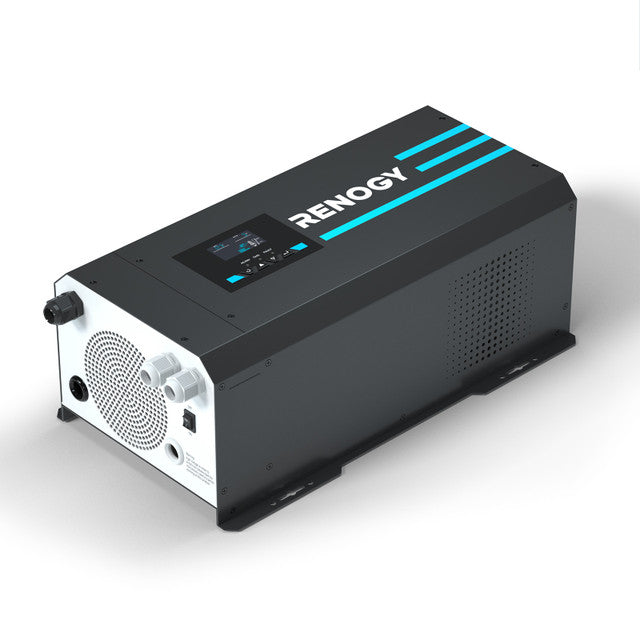

Renogy 2000W 12V Pure Sine Wave Inverter Charger w/ LCD Display
Inverter Charger Power
2000W 12V Pure Sine Wave Inverter Charger with LCD Display
Run compatible AC appliances from a 12V battery system while gaining built-in charging support and LCD monitoring in a single inverter-charger design.
Effortless Surge Handling
Support compatible inductive appliances with strong startup capability designed for demanding loads.
Explicit Side Panel Design
Clearly arranged connection and control points help simplify compatible setup and operation.
Efficient and Express Charging
Integrated charging capability is designed to restore compatible battery power efficiently when shore or generator input is available.
Pure Sine Wave Technology
Clean pure sine wave output helps protect sensitive electronics and supports stable appliance operation.
Performance in Extreme Temperatures
The source Description presents dependable inverter operation through challenging temperature conditions.
Inverter Wired Remote Control and Intelligent LCD Display
Monitor system status and manage supported inverter operation through the wired remote and LCD interface shown in the source Description.
Remote Control and LCD Status Display
View operating information and control supported system functions from a practical remote display panel.
| Renogy PCL Series 2000W Pure Sine Wave Inverter & Charger (R-INVT-PCL1-20111S / R-INVT-PCL1-20123S) | |
| Model SKU | R-INVT-PCL1-20111S-G3-US |
|---|---|
| Inverter Specifications | |
| Rated Output Power | 2,000W |
| Surge Power (1 Second) | 6,000W |
| Surge Power (3 Seconds) | 3,000W |
| Surge Power (10 Seconds) | 2,400W |
| Nominal Output Voltage | 120VAC (100-120VAC, 5V Intervals) |
| Output Frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz |
| Output Waveform | Pure Sine Wave |
| Output Overload | 105% < Load < 120% ± 10%: Fault (Turn Off After 10s); 120% < Load < 150% ± 10%: Fault (Turn Off After 3s); 150% < Load ± 10%: Fault (Turn Off After 1s) |
| Nominal Input Voltage | 12VDC |
| Input Voltage Range | 10 to 16VDC ± 0.3VDC |
| Low DC Warning Voltage | 10.5VDC ± 0.3VDC |
| Low DC Cut-Off Voltage | 10VDC ± 0.3VDC |
| Short Circuit Protection | Software Protection |
| Nominal Efficiency | >90% Peak |
| No Load Power Consumption (Normal) | <20W |
| No Load Power Consumption (Power Saving) | <15W |
| Charger Specifications | |
| Nominal Input Voltage | 120VAC / 230VAC |
| Input Voltage Range | 90-138VAC / 155-275VAC |
| Input Frequency Range | 40Hz to 70Hz |
| Input Waveform | Sine Wave (Utility or Generator) |
| Power Factor | 0.9 to 1 |
| Optimal Efficiency | >85% |
| Output Current | 5-65A (Configurable, 5A Intervals) |
| Short Circuit Protection | Circuit Breaker |
| Output Overload | 120% < Load < 150% ± 10%: Fault (Turn Off After 60s); 150% < Load ± 10%: Fault (Turn Off After 1s) |
| Over Charge Protection Shutdown | 16.0V for 12VDC |
| Transfer Switch Specifications | |
| Transfer Time | ~10ms |
| Line Mode Efficiency | >95% |
| Transfer Relay Rating | 20A Maximum Bypass |
| Wired Remote Control | |
| List Dimensions | 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8mm |
| Wire Length | Approx. 16.4ft |
| General Specifications | |
| Battery Types | GEL, AGM, SLA, FLD, CAL, LI, USER |
| Operating Temperature Range | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -30°C to 70°C / -22°F to 158°F |
| Humidity | 0% to 95% |
| Noise | <50dB |
| Dimensions | 510 x 285 x 193mm / 20.1 x 11.2 x 7.6 in |
| Weight | 51.1 lbs / 23.2kg |
| Certifications | |
| ETL Listed to CSA Standard C22.2 No. 107.1 and UL458 with Marine Supplement | Yes |
