Renogy REGO 3000W 12V Pure Sine Wave Inverter Charger w/ LCD Display Renogy REGO 3000W 12V Pure Sine Wave Inverter Charger w/ LCD Display
SKU: RIV1230RCL-1SS-G2-US
- Surge Power 9000W
- Efficiency > 90%
REGO Inverter Charging

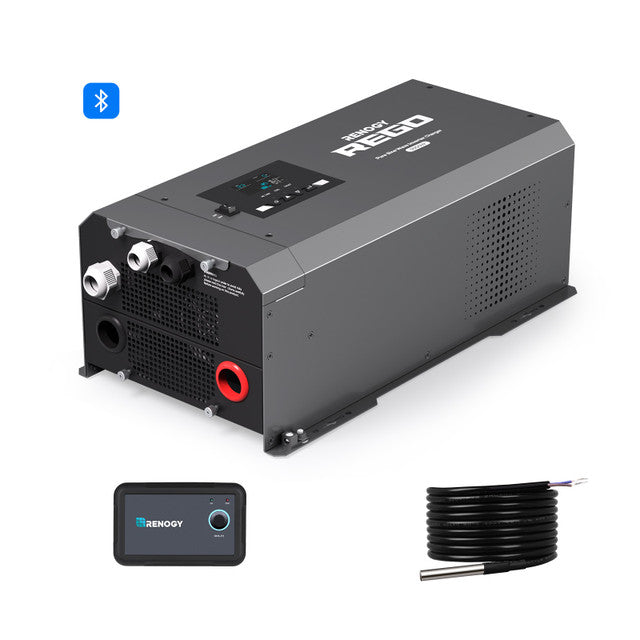

REGO 12V 3000W Pure Sine Wave Inverter Charger with LCD Display
A 12V, 3,000W continuous pure-sine inverter charger with a built-in AC charger, LCD and automatic transfer switch. Check the battery chemistry, charge-current setting and 120V AC load before choosing this model.
Power Your Off-Grid Life
This 12V inverter charger supplies 3,000W continuous pure-sine AC output. Renogy lists a 9,000W short surge rating; size sustained appliances to the continuous rating, not the surge figure.
Manage Your Energy Remotely
Built-in Bluetooth supports Renogy monitoring with a compatible Renogy ONE M1 or ONE Core device; those monitoring products are separate from the base inverter listing.
Easy Installation
Allow for the 20.1 × 11.2 × 7.6 in enclosure and approximately 63.5 lb unit weight. Confirm 12V battery cabling, protection and ventilation against the installation manual.
High-Efficiency Charging and Stability
The integrated AC charger accepts 90–138V AC input and has adjustable 5–75A charging current in 5A steps. Select the charge profile for the connected battery chemistry.
Seamless Power Switch in 10 ms
Renogy specifies an approximately 10ms transfer time and a built-in 30A continuous automatic transfer switch. Check whether that behavior fits the sensitivity of each connected load.
Lithium Battery Activation
Renogy lists lithium activation support for batteries in protection mode. Follow the battery maker’s recovery instructions and confirm the selected charging profile.
Self-Heating Support
This charger can be used with a compatible battery system that manages its own heating. The inverter charger does not add a heater to a battery; confirm the battery’s low-temperature charging limits.
Easy-to-Use LCD Display Panel
The built-in LCD shows inverter and charging information. Renogy also offers optional remote monitoring through compatible ONE devices.
Battery Temperature Sensor
Renogy includes a battery temperature sensor for supported non-lithium batteries; its product page says the sensor is not compatible with lithium batteries.
Tested to High Standards
Renogy lists FCC Class A Part 15 compliance, UL458 including marine supplement, and CSA-C22.2 No. 107.1 certification for this model. Consult the manufacturer manual for installation and protection requirements.
Size the inverter
Our RV inverter sizing guide explains continuous watts, startup loads and battery-side demand before choosing an RV inverter.
Compare the REGO options
Compare this LCD-equipped, low-frequency model with the REGO 3000W high-frequency split-phase inverter charger. Their dimensions, charging behavior and AC configurations differ; check the exact model specifications before choosing.
| Renogy REGO 3000W 12V Pure Sine Wave Inverter Charger w/ LCD Display | |
| Selected variant SKU | RIV1230RCL-1SS-G2-US |
|---|---|
| Electrical | |
| Continuous Power | 3000W |
| Surge Power | 9000W |
| AC Output Voltage Range | 100~120VAC configurable, 5V interval |
| Output Frequency (Nominal) | 50/60 Hz ± 0.1% |
| Output Waveform | Pure Sine Wave |
| Efficiency | > 90% |
| No Load Current Draw | Normal: <30W Power Saving: <15W |
| Charger Specifications | |
| Output Current | 5-75A configurable, 5A intervals |
| Optimal Efficiency | >85% |
| Nominal Input Voltage | 120 VAC |
| Input Voltage Range | 90-138 VAC |
| Input Frequency Range | 40Hz - 70Hz |
| Input Wave Form | Sine Wave (Utility or Generator) |
| Transferswitch Specifications | |
| Transfer Time | ~ 10ms |
| Transfer Rating | 30A Automatic Transfer Switch (30A Continuous, 40A Maximum) |
| General Specification | |
| Battery Types | GEL, AGM, SLA, FLD, CAL, LI, USER |
| Noise | <50dB |
| Operating Temperature | -20-40°C/-4-104°F |
| Dimensions | 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm |
| Storage Temperature | -30 ~ 70°C / -22 ~ 158°F |
| Weight | 63.5 lbs / 28.8 Kg |
| Humidity | 0% ~ 95% |
| Warranty | |
| Material and workmanship warranty | 2 Year |
| Accessories | 1 Year |
| Certifications | |
| FCC Part 15 Class A Compliant | Yes |
| UL458 | Yes |
| CSA-C22.2 No 107.1 | Yes |
| Rated Output Power | 3000W |
| Surge Power (1 second) | 9000W |
| Surge Power (3 seconds) | 4500W |
| Surge Power (10 seconds) | 3600W |
| Nominal Output Voltage RMS | 120V AC (100V to 120V AC, 5V intervals) |
| Output Frequency | 50 Hz (±0.3 Hz) or 60 Hz (±0.3 Hz) |
| Output Wave Form | Pure Sine Wave |
| Low DC Warning Voltage | 11V DC (±0.3V) |
| No Load Power Consumption | Normal: < 30W |
| Input Frequency Range | 40 Hz to 70 Hz |
| Operating Temperature Range | -20°F to 104°F or -20°C to 40°C |
