Renogy 200W 12V Flexible Monocrystalline Solar Panel - 1 Panel
Flexible Monocrystalline Solar Power
Renogy 200 Watt 12 Volt Flexible Monocrystalline Solar Panel
Add lightweight solar collection to curved and space-sensitive installations with a 200W flexible panel designed for RV, marine and off-grid energy applications.
Up to 1,000Wh Per Day
Produces approximately 1,000 watt-hours per day under five to six hours of direct sunlight, as stated by Renogy.
Flexible Up to 240°
A bendable design supports installation on many curved surfaces where rigid panels are not practical.
Stable Long-Term Output
Renogy states the panel maintains more than 90% output efficiency over five years.
Improved Shade Response
Half-cut technology and bypass diodes help limit the impact of shading and hot spots.
ETFE and 9 Bus-Bars
Protective ETFE surface material and 9-busbar cell design support light capture and power conversion.
Empowering Your Off-Grid Life
Use flexible solar energy across mobile and off-grid settings where low weight, slim construction and curved-surface installation flexibility are important.
Half-Cell Technology and Bypass Diodes
Half-cut cell construction and bypass diodes help improve panel response when partial shading affects available sunlight.
PERC Cell Technology
PERC cells are designed to capture more usable sunlight and support efficient power generation in a thin flexible panel format.
ETFE Surface and 9 Bus-Bars
An ETFE surface layer and 9-busbar solar-cell layout support durable outdoor operation and efficient electrical collection.

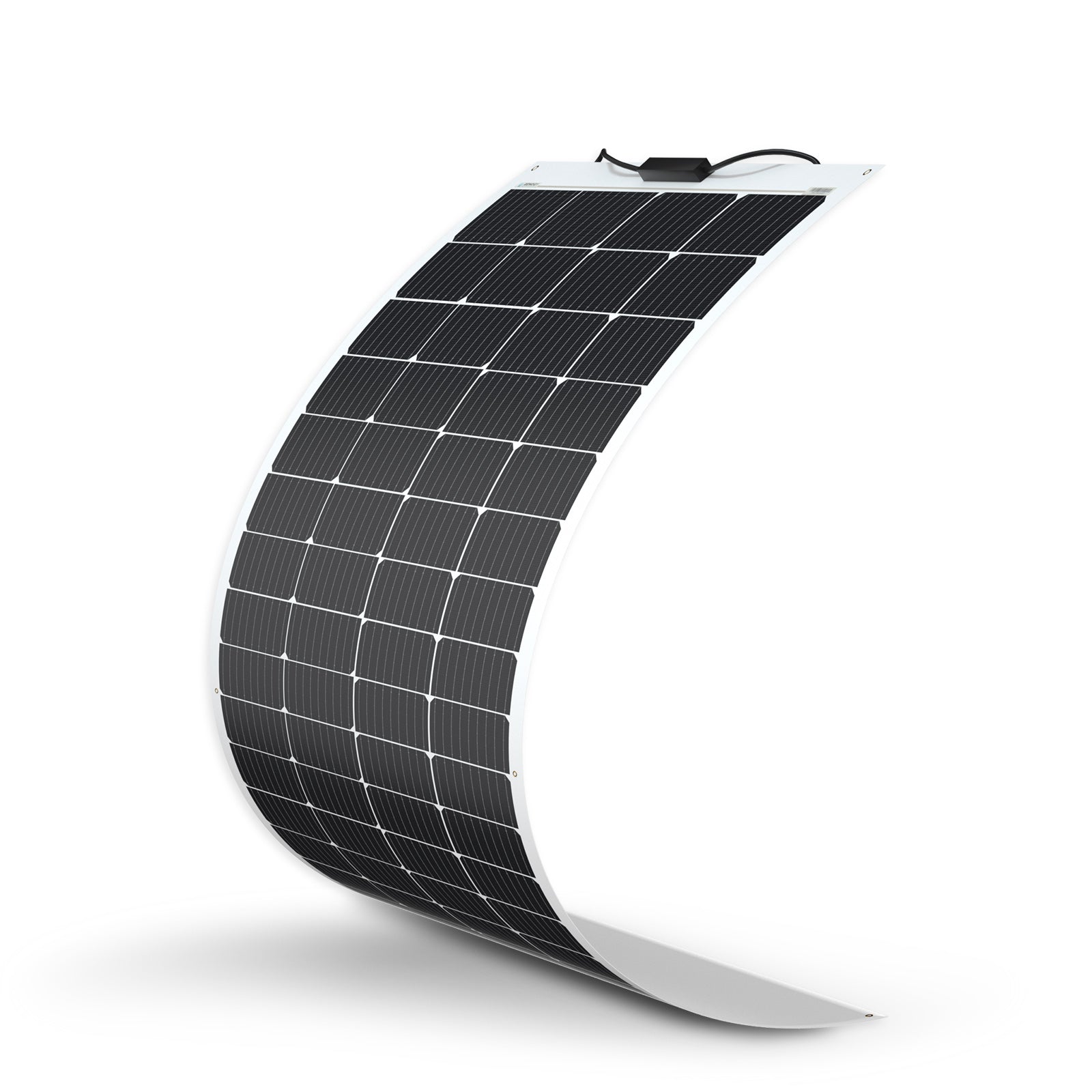

Flexible for Different Surfaces
The source Description shows the flexible panel fitting curved and mobile applications where a lightweight solar profile supports installation versatility.
Built to Endure Harsh Weather
Designed for outdoor exposure, the flexible panel is shown supporting dependable solar use through challenging weather conditions.
| Specifications | |
| Model SKU | RSP200DB-72-G2-US |
|---|---|
| Built-In Components | |
| Output Cables | 12 AWG, 2.3 ft |
| Cell Type | Monocrystalline, 6.5 x 3.3 |
| Number of Cells | 72 Cells, 18 x 4 |
| Junction Box | IP68 |
| Solar Connectors | IP67 |
| Electrical Parameters | |
| Maximum Power at STC | 200W |
| Module Efficiency | 16.7% |
| Optimum Operating Voltage Vmp | 20.1V |
| Open-Circuit Voltage Voc | 23.9V |
| Optimum Operating Current Imp | 10.02A |
| Short Circuit Current | 10.74A |
| Maximum Series Fuse Rating | 15A |
| Maximum System Voltage | 600V DC |
| Environmental Data | |
| Operating Temperature | -40°F to 176°F / -40ºC to +80ºC |
| Mechanical Specifications | |
| Dimensions | 1605 x 748 x 3 mm / 63.2 x 29.4 x 0.1 in |
| Weight | 4.9kg / 10.8 lbs |
| Certifications | |
| Certifications | CE, ISO9001 |
| Warranty | |
| Material and Workmanship Warranty | 5-Year 90% Output Warranty & Material and Workmanship Warranty |
| Performance Warranty | 5-Year 90% Output Warranty |
