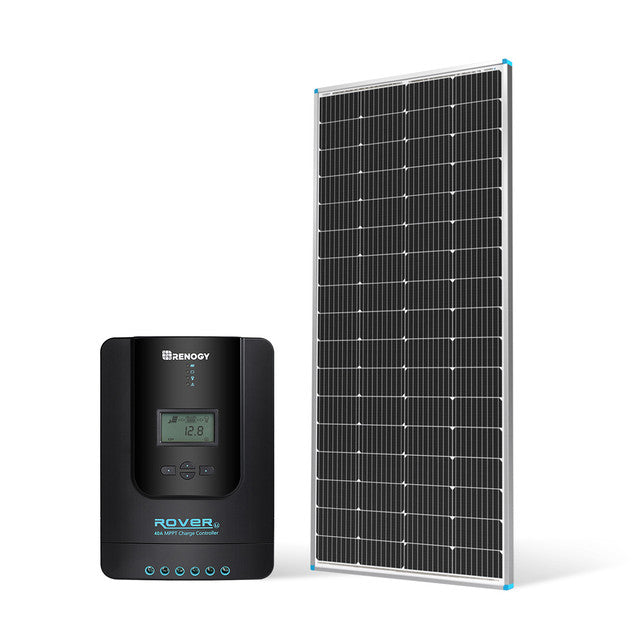

Renogy 200W 12V Monocrystalline Solar Panel w/ 40A MPPT Charge Controller 1 / 7
Renogy

Renogy 200W 12V Monocrystalline Solar Panel w/ 40A MPPT Charge Controller Renogy 200W 12V Monocrystalline Solar Panel w/ 40A MPPT Charge Controller

SKU: RKIT200SP-R40D1-US

Brand Renogy In Stock
$469.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Key features
  • Weight: 26.46 lb (12 kg) Solar Cells: 68 Cells (4*17)
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy 200W 12V Monocrystalline Solar Panel w/ 40A MPPT Charge Controller

In Stock
Renogy 200W 12V Monocrystalline Solar Panel w/ 40A MPPT Charge Controller
Quantity$469.99 each
1

Reliable 200W Solar Generation for Off-Grid Use

Generate approximately 1,000 watt-hours per day under 5 to 6 hours of direct sunlight, with efficient monocrystalline panel performance for mobile and off-grid solar installations.

Renogy 200W monocrystalline panel feature overview

Reliable Daily Power Output

The 200W panel is designed to deliver steady solar collection with Renogy stating a positive output tolerance of 0% to 3%.

Renogy 200W panel producing approximately 1000Wh per day

Advanced Solar Cells for Better Efficiency

Grade A+ solar cells combine 9-busbar conductivity with PERC cell technology to improve usable solar conversion.

Renogy Grade A plus PERC solar cell and 9 busbar performance

Improved Shading Tolerance

Half-cut cells and bypass diodes help the solar panel continue operating when incidental shade affects part of the array.

Renogy half-cut cell and bypass diode shading tolerance

Premium Construction for Outdoor Exposure

Durable panel construction supports long-term use through vehicle vibration, moisture exposure and challenging travel environments.

Renogy solar panel durable weather-resistant construction

Built for Severe Weather Conditions

Plan a secure outdoor installation and check the panel’s documented weather and mounting limits for the conditions at your site.

Renogy solar panel durability in rain wind and snow

Certified Reliability

Tested panel construction supports consistent electricity output for customers building dependable off-grid systems.

Renogy tested solar panel construction and certification features

Pre-Drilled for Faster Mounting

Pre-drilled mounting holes support installation with compatible Renogy Z-bracket, pole-mount and tilt-mount systems.

Renogy solar panel pre-drilled mounting holes

Protected for Delivery

Reinforced packaging with foam corner protection helps safeguard the panel during shipping and handling.

Renogy solar panel shipping protection packaging

Compare a related option

Compare this panel-and-controller package with the panel-only listing; check the selected variant.

Renogy 200W 12V Monocrystalline Solar Panel

200W 12V Monocrystalline Solar Panel
Package Includes
1 200W 12V Monocrystalline Solar Panel
40A MPPT Charge Controller
Package Includes
1 40A MPPT Charge Controller
RSP200D 200W Monocrystalline Solar Panel
Selected variant SKU RKIT200SP-R40D1-US
Electrical Data
Maximum Power at STC 200W
Optimum Operating Voltage (Vmp) 19.2V
Optimum Operating Current (Imp) 10.42A
Open-Circuit Voltage (Voc) 23.0V
Short-Circuit Current (Isc) 11.05A
Module Efficiency 19.2%
Maximum System Voltage 600VDC
Maximum Series Fuse Rating 20A
Mechanical Data
Solar Cell Type Monocrystalline (6.5 x 3.3 in)
Number of Cells 68 (4 x 17)
Dimensions 1,491 x 699 x 35mm / 58.7 x 27.5 x 1.4 in
Weight 12kg / 26.5 lbs
Front Glass Tempered Glass 0.13 in / 3.2mm
Frame Anodized Aluminum Alloy
Connectors MC4 Connectors
Fire Performance Type 1
Thermal Characteristics
Operating Temperature Range -40°C to 85°C / -40°F to 185°F
Nominal Operating Cell Temperature (NOCT) 47 ± 2°C
Temperature Coefficient of Pmax -0.37% / °C
Temperature Coefficient of Voc -0.28% / °C
Temperature Coefficient of Isc 0.05% / °C
MC4 Connectors
Rated Current 30A
Maximum Voltage 1,000VDC
Maximum AWG Size Range 12 AWG
Temperature Range -40°C to 90°C / -40°F to 194°F
IP Rating IP68
Junction Box
IP Rating IP65
Diode Type 20SQ045
Number of Diodes 2
Output Cables 14 AWG, 800mm / 31.5 in
Certifications
CE, EN IEC61730, EN IEC61215, ISO 9001, ETL Yes
Max Power at STC: 200W Open Circuit Voltage: 23V
Short Circuit Current: 11.05A Optimum Operating Voltage: 19.2 V
Optimum Operating Current: 10.42 A Operating Temperature: -40°F~194°F / -40℃~90℃
Maximum System Voltage: 600 VDC UL Maximum Series Fuse Rating: 20A
Output Cable: 13 AWG 2.6 ft (0.9m) long Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight: 26.46 lb (12 kg) Solar Cells: 68 Cells (4*17)
Open Circuit Voltage 23V
Optimum Operating Voltage 19.2 V
Operating Temperature -40°F~194°F / -40℃~90℃
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Specification Sheet
Product documentation and manufacturer terms.
View PDF
📄
Warranty Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

How large a solar array can the 200W 12V solar panel with 40A MPPT Charge Controller accept in a rooftop solar refresh? Renogy publishes these model-specific details: Open Circuit Voltage: 23V. Check cold-weather open-circuit voltage, operating current, total array power, series/parallel layout, and controller derating. Never size only from the controller's advertised charge amperage. Which lead-acid and lithium profiles are actually available on the 200W 12V solar panel with 40A MPPT Charge Controller? The 200W 12V solar panel with 40A MPPT Charge Controller must be configured only for battery systems Renogy expressly supports. Auto-recognition may apply differently to lithium and lead-acid banks, so select the exact profile and confirm voltage setpoints, BMS limits, and temperature requirements. How does the MPPT limit on the 200W 12V solar panel with 40A MPPT Charge Controller translate into real battery-side charge current? Renogy publishes these model-specific details: Renogy 200W 12V Monocrystalline Solar Panel w/ 40A MPPT Charge Controller; 200 Watt 12 Volt Monocrystalline Solar Panel with 40 Amp MPPT Charge Controller. Output is constrained by available PV power, battery voltage and acceptance, temperature, conversion loss, wiring drop, and any programmed current limit. Does the 200W 12V solar panel with 40A MPPT Charge Controller need a separate communication module for remote monitoring? Renogy publishes these model-specific details: Pre-drilled holes for fast mounting and securing: It has pre-drilled holes on the back of the panel, which are also compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.. A Bluetooth module, communication cable, or app account may be required unless built in. Confirm what is included rather than assuming every controller with the same family name has identical monitoring. What conductor, protection, and ventilation details matter when installing the 200W 12V solar panel with 40A MPPT Charge Controller? Renogy publishes these model-specific details: Operating Temperature: -40°F~194°F / -40℃~90℃; Output Cable: 13 AWG 2.6 ft (0.9m) long; Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm. Provide correctly sized PV and battery isolation, overcurrent protection where required, secure torque, polarity checks, grounding, and clearance before energizing the controller.
