Renogy 200W Monocrystalline Solar Panel 1 / 8
Renogy

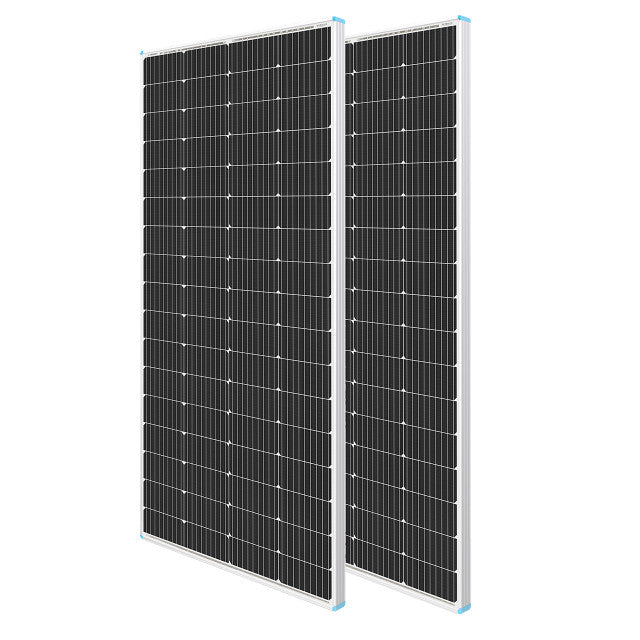

Renogy 200W Monocrystalline Solar Panel - 2 Panels Renogy 200W Monocrystalline Solar Panel

SKU: RSP200Dx2-US

Brand Renogy In Stock
$338.81 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Key features
  • Maximum Power (STC) 200W
  • Open Circuit Voltage (Voc) 23V
  • Short Circuit Current (Isc) 11.05A
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy 200W Monocrystalline Solar Panel

In Stock
Quantity$338.81 each
1

Renogy 200W Monocrystalline Solar Panel

The Renogy 200W Monocrystalline Solar Panel is a rigid solar module for building a solar array around your available space and system requirements. Grid Getaway offers this product in two-panel and four-panel options, with the 200W rating applying to each individual panel.

Output and Mounting Considerations

With a maximum power rating of 200W under standard test conditions, the module has a 19.2V optimum operating voltage, 10.42A optimum operating current, and 19.2% module efficiency. Its 68-cell design and 58.7 x 27.5 x 1.38-inch dimensions help buyers compare the panel’s electrical output and required mounting area before planning an installation.

Choose Two or Four Panels

Choose the package size based on the array capacity and mounting area you need: the two-panel SKU provides a nominal 400W combined nameplate rating, while the four-panel SKU provides 800W. These are combined module ratings under test conditions, not guaranteed battery-side output in every installation.

Plan the Array Configuration

Before combining multiple modules, check the charge controller’s voltage and current limits, the panel label, cable distance, shading conditions, and the battery system. Series wiring raises array voltage, while parallel wiring raises current; the correct layout depends on the complete system design rather than panel count alone.

Compare panel options

Our solar panel selection guide explains how to compare panel ratings and installation needs; check this product’s electrical ratings before pairing it with other equipment.

Compare this Renogy model

23V Voc, 19.2V Vmp and 11.05A Isc per panel. Check the selected variant and charge-controller input limits.

Compare Renogy 200W rigid panel alternative by electrical ratings, dimensions, features and selected pack quantity before ordering.

Renogy 200W Monocrystalline Solar Panel - 2 Panels
Package Includes
1x Renogy 200W Monocrystalline Solar Panel - 2 Panels
Includes the selected item based on the current package option.
Specifications
Selected variant SKU RSP200Dx2-US
Maximum Power (STC) 200W
Open Circuit Voltage (Voc) 23V
Short Circuit Current (Isc) 11.05A
Optimum Operating Voltage (Vmp) 19.2V
Optimum Operating Current (Imp) 10.42A
Operating Temperature Range -40°F to 194°F (-40°C to 90°C)
Maximum System Voltage 600 VDC (UL)
Maximum Series Fuse Rating 20A
Output Cable 13 AWG, 2.6 ft (0.8m) long
Dimensions 58.7 x 27.5 x 1.38 in (1491 x 699 x 35mm)
Weight 26.46 lbs (12 kg)
Solar Cells 68 Cells ((2+2)*17)
Junction Box IP65-rated
Connectors Solar Connectors
Module Efficiency 19.2%
Cell Dimensions 158.75 x 158.75 mm (6.25 x 6.25 in) x 40 cells
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Specification Sheet
Product documentation and manufacturer terms.
View PDF
📄
Warranty Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

Does the selected RSP200D package contain two panels or four panels? Grid Getaway lists separate two-panel and four-panel SKUs for this product. Confirm the selected option before checkout; the 200W rating is per module, so the nominal array total is 400W for two panels or 800W for four panels. Should a multi-panel RSP200D array be wired in series or parallel? That depends on the charge controller window, cold-weather voltage, array current, cable distance, shading pattern, and battery system. Series raises voltage; parallel raises current. Design from the exact panel label and controller manual rather than choosing one layout universally. Will a four-panel package deliver 800W to the battery throughout a sunny day? No. 800W is the combined nameplate rating of four 200W modules under test conditions. Battery-side power varies with irradiance, heat, angle, shade, mismatch, controller conversion, cable loss, and the battery's present charge acceptance. What should I check before connecting the Renogy 200W panel to a charge controller? Check the controller manual against the panel’s electrical ratings and the final array design. Each panel is rated at 23V open-circuit voltage and 11.05A short-circuit current; also observe the system’s voltage limits and the panel’s 20A maximum series fuse rating. For multiple panels, confirm the complete series or parallel configuration rather than relying on the 200W rating alone. How long will a Renogy 200W solar panel take to charge a 100Ah battery? There is no fixed charge time from the panel rating alone. The result depends on the battery’s voltage and present state of charge, available sunlight, panel angle and shading, charge-controller conversion, cable losses, and the battery’s charge acceptance. The panel’s 200W maximum-power rating is measured under STC rather than guaranteed battery-side output throughout the day.
