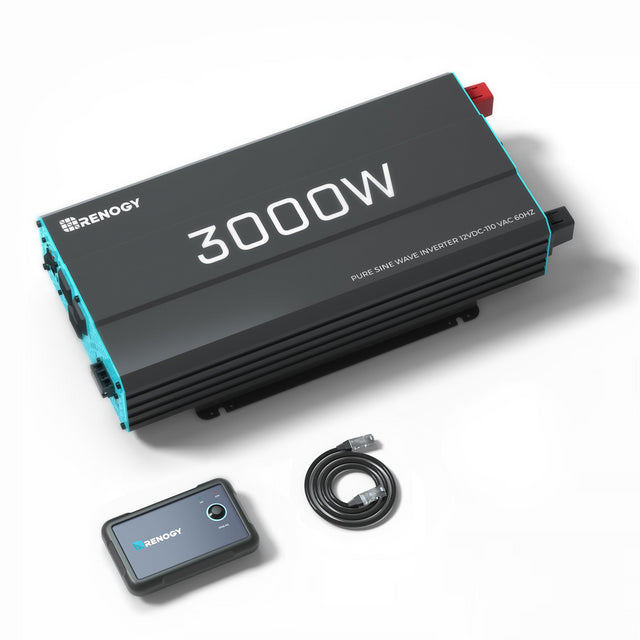

Renogy 3000W 12V Pure Sine Wave Inverter
P2 Series Pure Sine Wave
P2 Series 12V Pure Sine Wave Inverter — 3000W | Inverter Only
This live Renogy option is selected as 3000W | Inverter Only. The page uses shared P2 Series Description content to present clean AC conversion, appliance protection and mobile power applications.
P2 Series Inverter Overview
The shared Description introduces P2 Series inverter power for compatible off-grid and travel systems.
Unlock the Magic of Pure Sine Wave Power
Convert compatible 12V battery energy into stable AC power for electronics and appliances.
Efficient Inverters for Optimal Performance
The source Description highlights stable inverter conversion in eligible system applications.
Pure Sine Wave Protection for Appliances
Clean output helps support sensitive compatible electrical equipment.
Efficient and Stable Power
The shared Description presents dependable AC output for suitable off-grid loads.
Why Appliances Can Trip
Appliance startup demand should be considered when planning a compatible inverter system.
Cooling Fan Design
Cooling airflow supports inverter temperature management during operation.
GFCI and Safety Protection
Safety-focused output protection supports suitable connected equipment.
Proper Chassis Grounding
Follow the grounding approach shown in the source Description for compatible installation.
Customized Solution Suite
Use eligible Renogy system components together in a compatible energy setup.
Enhancing Your Journey
Bring clean AC inverter power to appropriate travel and mobile applications.
The Safe and Comfortable Choice
The shared Description presents additional compatible travel-power use cases.
Travel Application Visual
The source Description includes an additional application image in this series presentation.
Mobile Application Visual
The source Description includes a further mobile-power application image.
Essential Inverter for a Smooth Boat Trip
Pure sine wave output supports suitable marine electrical equipment.
| Renogy 3000W 12VDC-120VAC Pure Sine Wave Inverter | |
| Model SKU | RNG-INVT-3000-12V-P2-G3-US |
|---|---|
| Inverter Output Specifications | |
| Continuous Output Power | 3,000W |
| Peak Power Rating | 6,000W |
| Output Voltage | 120V |
| Output Frequency | 60Hz ± 0.1% |
| AC Output Sockets | 3 |
| AC Terminal Block | 1 |
| USB Power Port | 5V / 2.1A |
| Power Output Control | AC On/Off Switch and Remote Control |
| Output Waveform | Pure Sine Wave |
| Nominal Efficiency | >90% |
| Total Harmonic Distortion (THD) | <3% Linear Load; <5% Non-Linear Load |
| Input Specifications | |
| Nominal Input Battery Voltage | 12V |
| Battery Terminal Size | M8 |
| Low Battery Alarm | 11.0V ± 0.3V DC |
| High Voltage Alarm | 16V |
| Battery Low Shutdown | 10.0V ± 0.3V DC |
| Over Voltage Shutdown | 16.5V ± 0.5V DC |
| No Load Current Draw | <2.5A |
| Mechanical Specifications | |
| Dimensions | 18.9 x 9.0 x 4.0 in |
| Weight | 12.5 lbs |
| Cooling Fan | Thermally Controlled |
| Operating Temperature Range | -4°F to 104°F |
| Accessories | |
| Inverter Remote Control | 16.4ft |
| Certifications | |
| ETL Listed to UL 458 and CSA 22.2 No. 107.1-01 | Yes |
| Warranty | |
| Material and Workmanship Warranty | 1 Year |
