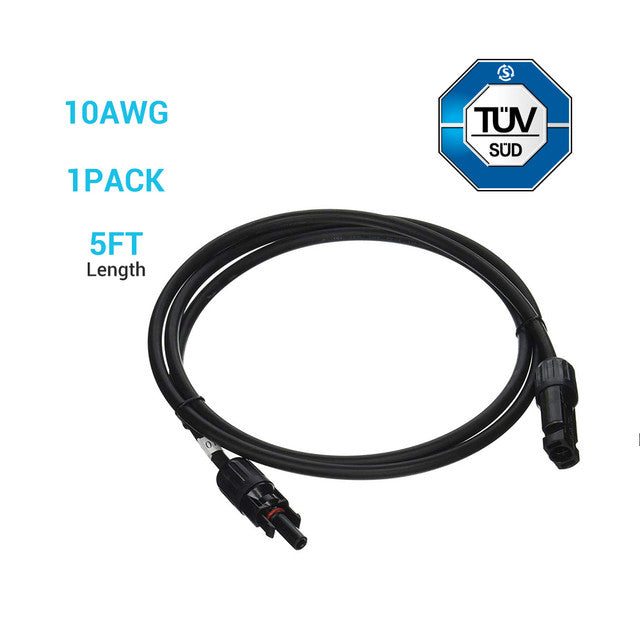

Renogy 5FT 10 AWG MC4 Solar Panel Extension Cable w/ Male to Female Solar Connector Renogy 5FT 10 AWG MC4 Solar Panel Extension Cable w/ Male to Female Solar Connector
SKU: RNG-EXTCB-5FT-10-G1-US
$19.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
Solar Panel Extension Cable with Male to Female Solar Connectors — 5 FT / 10 AWG
Create more flexible spacing in a compatible solar power system with this Renogy solar panel extension cable. Installed between a solar panel and charge controller or between two solar panels, it helps extend the layout of the system for easier positioning and customization.
Check the solar connection
Connector fit alone does not establish electrical compatibility. Our solar panel compatibility guide explains the checks to make before connecting panels to a power station.
Package Includes
1 Renogy Extension Cable For Solar Power System
| Renogy 5ft 10AWG Extension Cables For Solar Power System | |
| Selected variant SKU | RNG-EXTCB-5FT-10-G1-US |
|---|---|
| Specifications | |
| Length | 5ft |
| AWG | 10 |
| Wire Color | Black |
| Voltage Rating | 600/1000V |
| Protection Rating | IP67 |
| Temperature Range | -40°F to 185°F |
| Connectors | Female and Male |
| Features | Extends and Locks Built-In Cables |
| Length: 1.5ft | AWG: 12 |
| Black wire | Rating Voltage: 600/1000V |
| IP 67 Protection | Temperature: -40°F to +185°F |
| Accessories | 1-year material warranty |
Specification Sheet
Technical specifications, dimensions, electrical ratings, and certifications.
View PDF
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
No documentation files have been added for this product yet.
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Why choose the 5-foot 10 AWG Renogy solar extension instead of a longer cable?
The 5-foot 10 AWG cable provides that much additional one-way reach. Calculate voltage drop using the entire circuit path and the array's operating current, then choose the shortest length that permits supported routing without tension or sharp bends.
Will the factory connectors mate safely with every similar-looking solar connector for a compact camper roof?
Renogy identifies this as a male-to-female solar extension that can run between a panel and charge controller or between panels. Verify connector compatibility, polarity, array voltage, and current; matching shapes alone do not prove mixed-brand connectors are approved to mate.
What installation details can defeat the cable's outdoor protection on a compact camper roof?
The official page identifies the cable as UV resistant and waterproof and publishes IP67 protection. That protection depends on fully assembled, undamaged connections; cap unused ends and protect roof penetrations, unsupported spans, and abrasion points separately.
Does the 5-foot 10 AWG conductor control voltage loss across a compact camper roof?
No cable eliminates loss. Conductor gauge, length, array current, connector resistance, temperature, and every additional adapter affect delivered voltage. Confirm the charge controller still receives suitable voltage under expected operating conditions.
How should I isolate the panels before unplugging this extension from a compact camper roof?
Treat panel wiring as energized whenever the modules are illuminated. Isolate the array using the system's approved shutdown procedure before separating connectors; opening a loaded DC connection can arc and damage the contacts.
