Renogy 700W 12V Pure Sine Wave Inverter 1 / 10
Renogy

Renogy 700W 12V Pure Sine Wave Inverter Renogy 700W 12V Pure Sine Wave Inverter

SKU: RNG-INVT-700-12V-P2-G2-US

Brand Renogy In Stock
$149.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Key features
  • Continuous output 700W
  • Surge rating 1400W for 1 second
  • Battery input 12V DC
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy 700W 12V Pure Sine Wave Inverter

In Stock
Renogy 700W 12V Pure Sine Wave Inverter
Quantity$149.99 each
1

P2 Series Pure Sine Wave

P2 Series 12V Pure Sine Wave Inverter — 700W | Inverter Only

The 700W P2 inverter converts 12V battery power to pure sine wave AC. Renogy rates this model for 700W continuous output and 1400W peak power; this listing is for the inverter-only package.

P2 Series Inverter Overview

Use the 700W continuous rating when adding up appliances that run together, and check startup wattage against the 1400W peak rating.

P2 Series Inverter Overview

Unlock the Magic of Pure Sine Wave Power

Convert compatible 12V battery energy into stable AC power for electronics and appliances.

Unlock the Magic of Pure Sine Wave Power

Efficient Inverters for Optimal Performance

Two AC sockets and a 5V/2.1A USB port are listed for this 700W model. Check the battery, wiring and connected load before use.

Efficient Inverters for Optimal Performance

Pure Sine Wave Protection for Appliances

Clean output helps support sensitive compatible electrical equipment.

Pure Sine Wave Protection for Appliances

Efficient and Stable Power

Renogy lists 120V AC at 60Hz and a nominal 12V battery input for this model. Match the output to the connected devices.

Efficient and Stable Power

Why Appliances Can Trip

Appliance startup demand should be considered when planning a compatible inverter system.

Why Appliances Can Trip

Cooling Fan Design

Cooling airflow supports inverter temperature management during operation.

Cooling Fan Design

GFCI and Safety Protection

Safety-focused output protection supports suitable connected equipment.

GFCI and Safety Protection

Proper Chassis Grounding

Follow the Renogy manual for chassis grounding, wiring, ventilation and protective devices.

Proper Chassis Grounding

Customized Solution Suite

Use eligible Renogy system components together in a compatible energy setup.

Customized Solution Suite

Enhancing Your Journey

Bring clean AC inverter power to appropriate travel and mobile applications.

Enhancing Your Journey

The Safe and Comfortable Choice

A correctly sized 12V battery system can supply suitable AC loads in an RV, cabin or other off-grid installation.

The Safe and Comfortable Choice

Travel Application Visual

Before installation, account for the combined running load and the startup surge of connected appliances.

Travel Application Visual

Mobile Application Visual

Keep the inverter ventilated and within the battery-voltage range specified in its manual.

Mobile Application Visual

Essential Inverter for a Smooth Boat Trip

Pure sine wave output supports suitable marine electrical equipment.

Essential Inverter for a Smooth Boat Trip

Size the inverter

Our RV inverter sizing guide explains continuous watts, startup loads and battery-side demand before choosing an RV inverter.

Compare a related option

Compare continuous output, surge rating and input current before sizing an inverter.

Renogy 1000W 12V Pure Sine Wave Inverter

700W 12V Pure Sine Wave Inverter

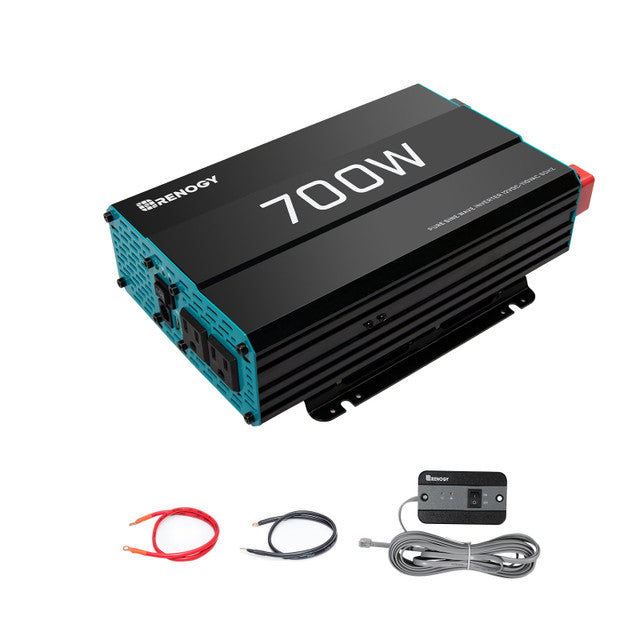

Package Includes
1 700W 12V Pure Sine Wave Inverter
User Manual
Package Includes
1 User Manual
Wired Remote Control
Package Includes
1 Wired Remote Control
RJ11 Network Cable (5 m)
Package Includes
1 RJ11 Network Cable (5 m)
6 AWG Battery Cable (3 ft)
Package Includes
2 6 AWG Battery Cable (3 ft)
Package Includes
1 6AWG 3ft Inverter Cables
Renogy 700W 12VDC-120VAC Pure Sine Wave Inverter
Selected variant SKU RNG-INVT-700-12V-P2-G2-US
Inverter Output Specifications
Continuous Output Power 700W
Peak Power Rating 1,400W
Output Voltage 120V
Output Frequency 60Hz ± 0.1%
AC Output Sockets 2
USB Power Port 5V / 2.1A
Power Output Control AC On/Off Switch and Remote Control
Output Waveform Pure Sine Wave
Nominal Efficiency >90%
Total Harmonic Distortion (THD) <3% Linear Load; <5% Non-Linear Load
Input Specifications
Nominal Input Battery Voltage 12V
Battery Terminal Size M8
Low Battery Alarm 10.5V ± 0.5V DC
High Voltage Alarm 16V
Battery Low Shutdown 10.0V ± 0.5V DC
Over Voltage Shutdown 16.5V ± 0.5V DC
No Load Current Draw <0.8A
Mechanical Specifications
Dimensions 12.2 x 7.4 x 3.3 in
Weight 5.6 lbs
Cooling Fan Thermally Controlled
Operating Temperature Range -4°F to 104°F
Accessories
Cable 6AWG, 3ft
Inverter Remote Control 19.8ft
Certifications
ETL Listed to UL 458 and CSA 22.2 No. 107.1-01 Yes
FCC Part 15 Class B Yes
Warranty
Material and Workmanship Warranty 1 Year
Continuous Output Power: 700W Peak Power Rating: 1400W
Output Voltage: 120V Output Frequency: 60 Hz ± 0.1%
AC Output Sockets: 2 USB Power Port: 5V/2.1A
Power Output Control: AC On/Off Switch, and Remote Control Output Waveform: Pure Sine Wave
Nominal Efficiency: > 90% Total Harmonic Distortion (THD): < 3% Linear Load < 5% Non-linear Load
Dimensions: 12.2 x 7.4 x 3.3 in Weight: 5.6 lb
Cooling Fan: Thermally controlled Operating Temperature Range: -4°F - 104°F
Nominal Input Battery Voltage: 12V Battery Terminal Size: M8
Low Battery Alarm: 10.5V ± 0.5V DC High Voltage Alarm: 16V
Battery Low Shutdown: 10.0V ± 0.5V DC Over Voltage Shutdown: 16.5V ± 0.5V DC
Cable: 6AWG 3ft Inverter Remote Control: 19.8 Ft
ETL Listed to UL 458 and CSA 22.2 NO 107.1-01: YES FCC Part 15 class B: YES
Dimension Tolerance ±0.2 in (0.5 mm)
Storage Temperature -40°F to 158°F / -40℃ to 70℃
Battery Input Voltage Range 10V to 16V DC
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Specification Sheet
Product documentation and manufacturer terms.
View PDF
📄
Warranty Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

Can the 700W 12V sine-wave Inverter start the largest motor or compressor planned for a backup-power retrofit? Renogy publishes these model-specific details: Continuous Output Power: 700W; Peak Power Rating: 1400W; Output Voltage: 120V; Output Frequency: 60 Hz ± 0.1%. Add all simultaneous running watts and compare the appliance's actual startup demand with the inverter's surge duration. Motor inrush, power factor, and ambient derating can cause shutdown below a simple nameplate total. What battery voltage, current capability, and DC cabling does the 700W 12V sine-wave Inverter require? Renogy publishes these model-specific details: 1 x 6AWG 3ft Inverter Cables; Nominal Input Battery Voltage: 12V; Cable: 6AWG 3ft; When connecting the inverter to the battery always use the thickest wire available, in the shortest length practical. One 6AWG 3ft cable with battery terminals is included in the pacakge.. Size the bank, BMS, positive and negative conductors, source-side protection, disconnect, busbars, and terminals for both continuous demand and surge voltage drop. Is the 700W 12V sine-wave Inverter an inverter-only unit, or can its AC connection recharge the battery? No. This is a 12V DC-to-120V AC inverter, not an inverter charger. Its published connections provide AC output and remote control but no AC charging input, so the battery still needs a separate solar controller, shore charger, or DC-DC charger. What standby draw should be included when estimating overnight runtime with the 700W 12V sine-wave Inverter? Renogy publishes these model-specific details: Nominal Efficiency: greater than 90%; Dimensions: 12.2 x 7.4 x 3.3 in; Weight: 5.6 lb; Operating Temperature Range: -4°F - 104°F. Actual draw changes with load, DC voltage, temperature, and operating mode. Include inverter self-consumption when estimating overnight runtime from the battery bank. What controls, cables, and protection must be planned with the 700W 12V sine-wave Inverter? Renogy publishes these model-specific details: 1 x 700W 12V Pure Sine Wave Inverter; 1 x 6AWG 3ft Inverter Cables; Dimensions: 12.2 x 7.4 x 3.3 in; Cable: 6AWG 3ft; Can I use the Bluetooth Module to monitor this inverter charger from my phone? Which Bluetooth Module should I buy?. Treat battery fusing, disconnects, grounding hardware, AC protection, site-specific conductors, and mounting fasteners as separate unless the listing explicitly includes them. Hardwired AC work should follow the manual and local requirements.
