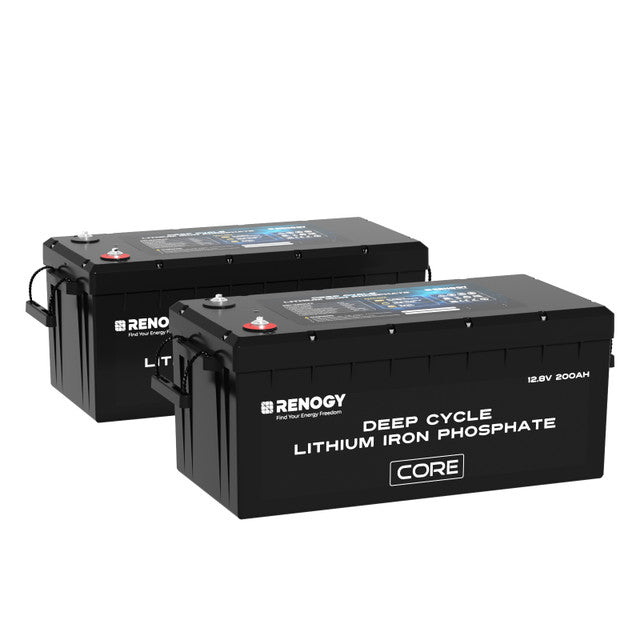

Renogy Core 12V 200Ah Deep Cycle Lithium Iron Phosphate Battery - 2 Batteries

Brand Renogy Out of Stock

$1,384.13 Out of Stock

No sales tax collected at checkout where applicable.

Bundle Option Choose your bundle

Quantity

Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty

Need help choosing? Not sure if this is the right setup for you? Chat with our team, call support or check your expected loads before ordering. Call 1-844-747-6767 Open Power Planner

With EV-grade cells and a built-in 200A BMS for year-round reliability, this rugged battery delivers consistent power 10 times longer than lead-acid batteries, enduring extreme temperatures and bumpy rides with ease.

Package Includes

1x Renogy Core 12V 200Ah Deep Cycle Lithium Iron Phosphate Battery - 2 Batteries

Includes the selected item based on the current package option.

Renogy Core 12V 200Ah Deep Cycle Lithium Iron Phosphate Battery
Model SKU	RBT12200LFPx2-US
Battery Cell Type	Lithium Iron Phosphate
Rated Capacity (0.5C, 25°C)	200Ah
Nominal Voltage	12.8V
Voltage Range	10V to 14.8V
Cycle Life (0.5C/1C, 25°C)	5,000 Cycles (80% EOL, 80% DOD)
Dimensions	20.55 x 9.45 x 8.62 in / 522 x 240 x 219mm
Weight	47.3 lbs / 21.45kg
Connection Method	Series & Parallel (4S4P)
Terminal Bolt Size	M8 x 1.25 x 15mm
Recommended Terminal Torque	88.5 to 106.2 in-lb / 10 to 12 N·m
Protection Rating	IP65
Operation Parameters
Charge Voltage	14.4V
Maximum Continuous Charge Current	100A
Maximum Continuous Discharge Current	200A
Peak Discharge Current	400A @ 10s
Charge Temperature Range	32°F to 131°F / 0°C to 55°C
Discharge Temperature Range	-4°F to 140°F / -20°C to 60°C
Storage Temperature Range	-13°F to 149°F / -25°C to 65°C
Operation Relative Humidity	10% to 95%
Certifications
MSDS, UN38.3, FCC, CE, PSE, UKCA	Yes
