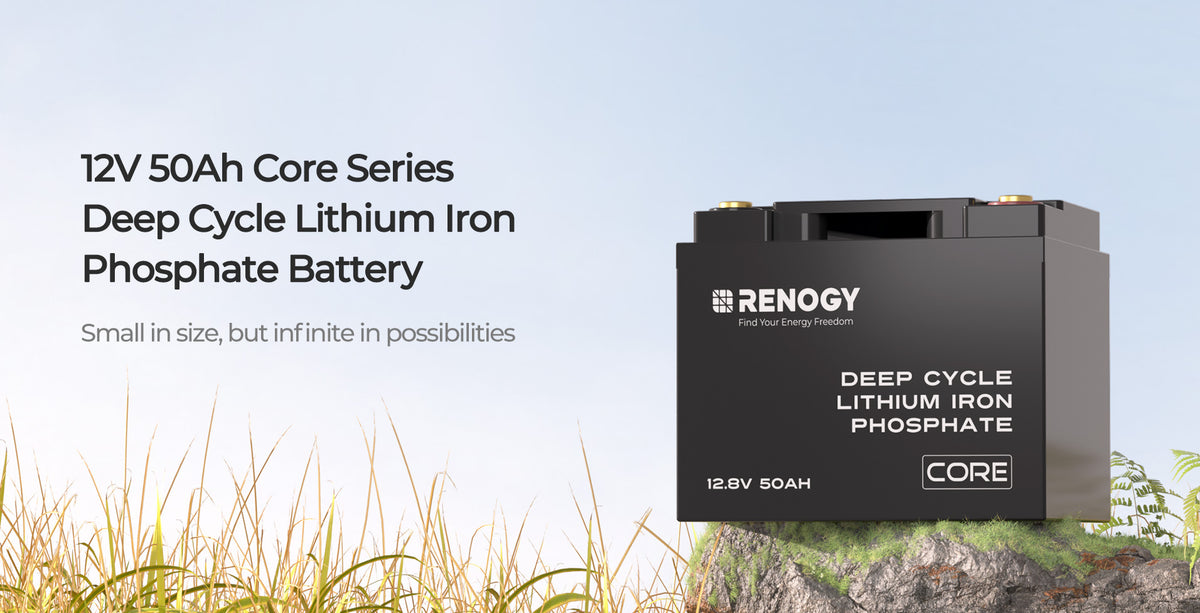

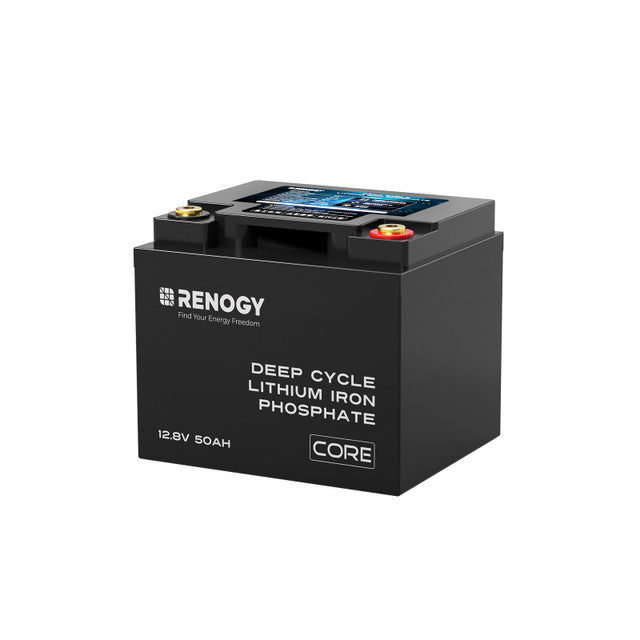

Renogy Core 12V 50Ah Deep Cycle Lithium Iron Phosphate Battery Renogy Core 12V 50Ah Deep Cycle Lithium Iron Phosphate Battery

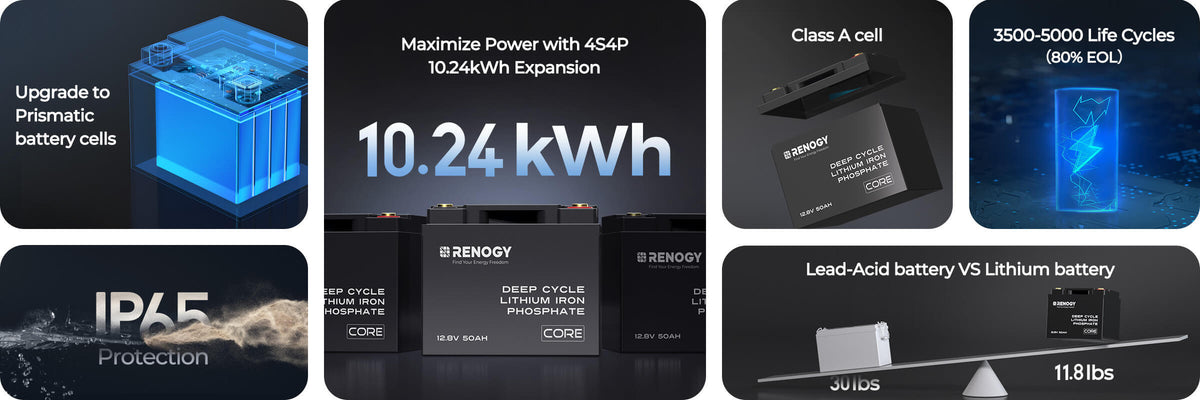

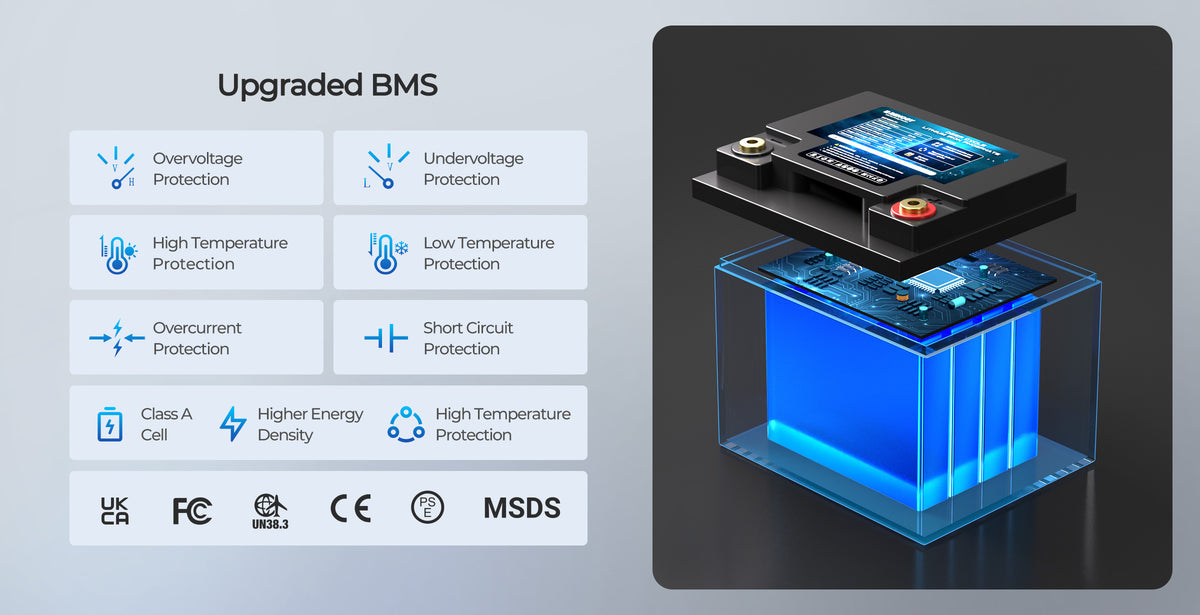

What size load is realistic for one Renogy Core 50Ah battery? One battery stores 640Wh and is rated for 50A continuous discharge. That makes it well suited to compact 12V loads and modest inverter systems, but runtime and inverter size must be calculated from actual watts, inverter efficiency, and the battery's current limit. Do not select an inverter from the 640Wh energy figure alone; its DC current and surge demand must also stay within the battery and BMS limits. How large can I build a bank with the 12V 50Ah Core battery? Renogy recommends a maximum 4-series by 4-parallel configuration for this model. Series connections raise bank voltage, while parallel connections raise capacity, and every battery should be the identical model at a similar state of charge. Equal-length cabling, balanced busbar connections, and bank-level protection matter as the number of parallel strings increases. Which charging settings and temperature limits should I use for the Core 50Ah? The manual specifies a 14.4V charge target, up to 50A continuous charge current, and a charging range of 32°F to 131°F (0°C to 55°C). The BMS blocks charging at or below 32°F and recovers after the battery warms to 41°F. Use a LiFePO4-compatible charger and do not mistake low-temperature protection for self-heating. What should I do if the battery measures 0V after the BMS shuts it down? Disconnect parasitic loads and inspect the system before attempting recovery. Renogy says a protected battery showing 0V may require an external charger with a lithium-activation function to wake the BMS. Recovery is not a reason to bypass the fuse or repeatedly reconnect a faulted load; correct the over-discharge, short-circuit, temperature, or wiring cause first. What does the Core 50Ah battery's cycle-life rating assume? Renogy publishes at least 3,500 cycles under test conditions of 25°C, a 0.5C rate, 80% depth of discharge, and 80% end-of-life capacity. Real service life changes with temperature, charge voltage, discharge depth, storage state, and current. The rating is useful for comparing duty cycles, but it is not a promise that every installation will reach the same count. Is the IP65 Core battery safe to leave exposed on a boat or trailer? IP65 provides splash and dust resistance, not permission for submersion or unprotected terminal exposure. Install the battery in a secured, dry location with protected terminals and cables, and follow the manual's temperature and mounting guidance. The enclosure rating does not replace marine or vehicle restraints, overcurrent protection, strain relief, or corrosion control. How should the Core 50Ah battery be stored between trips? Renogy recommends storing it at roughly 30-50% state of charge in a clean, dry, ventilated location near 77°F (25°C), then recharging at least once every 3 months to prevent over-discharge. Disconnect loads that could continue drawing current in storage. Before returning it to service, inspect the case and terminals and fully charge it with a compatible LiFePO4 charger.
