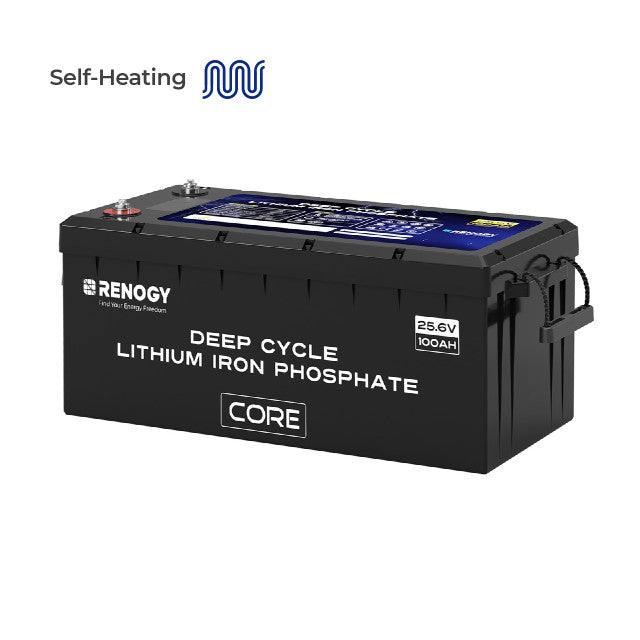

Renogy Core 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating 1 / 6
Renogy

Renogy Core 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating Renogy Core 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating

SKU: RBT24100LFPSH-G1-US

Brand Renogy In Stock
$815.87 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Key features
  • Maximum Continuous Charge Current 100A
  • Maximum Continuous Discharge Current 100A
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy Core 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating

In Stock
Renogy Core 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating
Quantity$815.87 each
1

RBT24100LFPSH-G1-US · Buyer decision facts

Renogy Core 24V 100Ah Heated LiFePO4 Battery

The Core LT 24V 100Ah battery stores 2.56kWh nominal at 25.6V. Its 100A continuous discharge limit is the number to check against inverter-side DC demand.

The battery includes self-heating and low-temperature protection. Renogy lists a 29.0V charge setting and up to 100A continuous charging; follow the exact manual for temperatures, series/parallel limits, and required conductors.

Need more capacity per battery? Compare the 24V 200Ah heated Core.

This 24V 100Ah LiFePO4 battery uses automotive-grade, Grade A battery cells for a lighter, more efficient cruising experience.

Its 200W heating elements ensure it heats up twice as fast as competitors.

With low-temperature protection, the battery safely prevents damage during cold weather by cutting off power when temperatures drop.

Core 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating
Package Includes
1 Core 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating
User Manual
Package Includes
1 User Manual
Long Terminal Bolt
Package Includes
2 Long Terminal Bolt
Insulating Sleeve
Package Includes
2 Insulating Sleeve
Renogy Core 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating
Selected variant SKU RBT24100LFPSH-G1-US
Battery Cell Type Lithium Iron Phosphate / Prismatic Cell
Rated Capacity (0.5C, 25°C) 100Ah
Nominal Voltage 25.6V
Voltage Range 20.0V to 29.2V
Cycle Life (0.5C, 25°C) 5,000 Cycles (80% DOD)
Dimensions 20.55 x 9.45 x 8.62 in / 522 x 240 x 219mm
Weight 45.2 lbs / 20.5kg
Connection Method Series & Parallel (2S8P)
Terminal Bolt Size M8 x 1.25 x 15mm
Recommended Terminal Torque 88.5 to 106.2 in-lb / 10 to 12 N·m
Protection Rating IP65
Operation Parameters
Charge Voltage 29.0V
Maximum Continuous Charge Current 100A
Maximum Continuous Discharge Current 100A
Peak Discharge Current 300A @ 5s
Charge Temperature Range -4°F to 131°F / -20°C to 55°C
Discharge Temperature Range -4°F to 140°F / -20°C to 60°C
Storage Temperature Range -13°F to 149°F / -25°C to 65°C
Operation Relative Humidity 10% to 95%
Certifications
MSDS, UN38.3, FCC, CE, PSE, UKCA Yes
Dimension tolerance ±0.2 in (0.5 mm)
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Warranty Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

Can the 24V 100Ah Core battery replace a 12V house battery without other changes? No. This is a 25.6V-class battery system. The inverter, chargers, DC loads, converters, fuses, disconnects, and monitoring equipment must all support 24V operation; connecting it to 12V-only equipment can damage the system. How does the 200W self-heating system help with winter charging? When a compatible charging source is available, the 200W heating system warms the cells so charging can begin within the permitted temperature range. It does not make every charger suitable or provide heat indefinitely with no incoming power. Can this 24V Renogy battery be expanded for a higher-voltage propulsion system? Renogy permits documented same-model series, parallel, and series-parallel arrangements. Confirm the exact manual limit and the propulsion controller's voltage and surge requirements, then size equal-length cables, busbars, fuses, and disconnects for the completed bank. Does a 100Ah rating provide the same runtime at 24V as a 100Ah 12V battery? No. Amp-hours alone omit voltage. A 24V-class 100Ah battery stores roughly twice the energy of a 12V-class 100Ah battery before losses, but actual runtime still depends on load power, conversion efficiency, temperature, and reserve limits. Which Grid Getaway option should I choose if I also need a 24V charger? Use the specifically labeled charger bundle only if its included charger matches the installation and power source. The one-, two-, and four-battery options do not imply a charger; confirm the selected Package Includes list before checkout.
