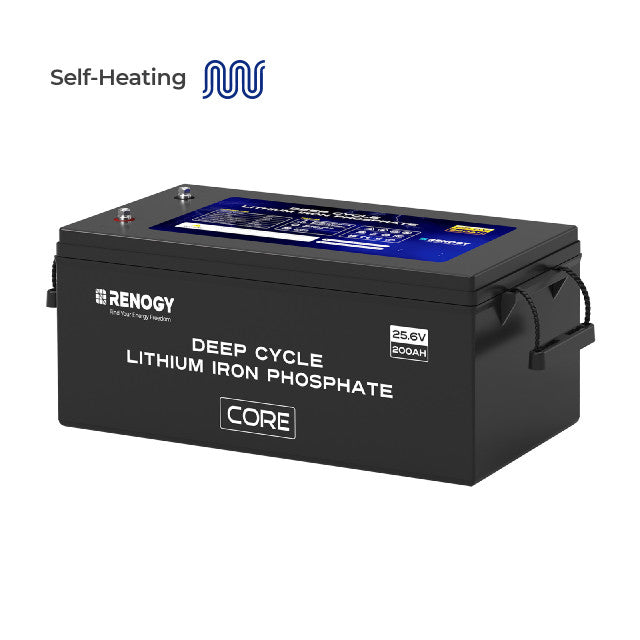

Renogy Core 24V 200Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating - 1 Battery + Battery Charger Renogy Core 24V 200Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating
SKU: RBT24200LFPSH-RBC-US
$1,765.27
Out of Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Find the right setup for you.
Talk it through with our team, or size your system with the Power Planner.
Call 1-844-747-6767
Open Power Planner
RBT24200LFPSH-RBC-US · Buyer decision facts
Renogy Core 24V 200Ah Self-Heating LiFePO4 Battery
One 25.6V, 200Ah Core LT battery stores 5.12kWh nominal. The selected option may contain one, two or four batteries; these ratings and the 200A continuous discharge limit are per battery.
Self-heating supports cold-weather charging within Renogy’s published limits. Check heating consumption, charging current, battery temperature, and wiring before relying on winter performance.
For a smaller 24V battery, compare the Core 24V 100Ah heated model. Read the selected pack quantity before checkout.
Renogy's lightweight 24V 200Ah LiFePO4 battery offers high-performance power for extended trolling, ensuring you can stay on the water all day.
Engineered for reliability and sustainability, it provides dependable energy at an affordable price, keeping you powered year-round without compromise.
Package Includes
1x Renogy Core 24V 200Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating - 1 Battery + Battery Charger
Includes the selected item based on the current package option.
| Renogy Core 24V 200Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating | |
| Selected variant SKU | RBT24200LFPSH-RBC-US |
|---|---|
| Battery Cell Type | Lithium Iron Phosphate / Prismatic Cell |
| Rated Capacity (0.5C, 25°C) | 200Ah |
| Nominal Voltage | 25.6V |
| Voltage Range | 20.0V to 29.2V |
| Cycle Life (0.5C/1C, 25°C) | 5,000 Cycles (80% EOL, 80% DOD) |
| Dimensions | 20.55 x 10.55 x 8.62 in / 522 x 268 x 219mm |
| Weight | 88.6 lbs / 40.2kg |
| Connection Method | Series & Parallel (2S4P) |
| Terminal Bolt Size | M8 x 1.25 x 15mm |
| Recommended Terminal Torque | 88.5 to 106.2 in-lb / 10 to 12 N·m |
| Protection Rating | IP65 |
| Operation Parameters | |
| Charge Voltage | 29.0V |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 390A @ 5s |
| Charge Temperature Range | -4°F to 131°F / -20°C to 55°C |
| Discharge Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Storage Temperature Range | -13°F to 149°F / -25°C to 65°C |
| Operation Relative Humidity | 10% to 95% |
| Certifications | |
| MSDS, UN38.3, FCC, CE, PSE, UKCA | Yes |
Product reference specifications
Specifications for the selected option are shown above. These product reference details describe the listing and its available configurations.
| Renogy Core 24V 200Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating | |
| MODEL | |
| Product Model | RBT24200LFPSH |
|---|---|
| Model / SKU | RBT24200LFPSH-RBC-US, RBT24200LFPSHx2-US, RBT24200LFPSHx4-US |
| Product Type | Battery |
| Available Variants | 1 Battery + Battery Charger; 2 Batteries; 4 Batteries |
| ELECTRICAL | |
| Battery Chemistry | Lithium iron phosphate prismatic cells |
| Nominal Voltage | 25.6 V |
| Rated Capacity | 200 Ah at 0.5C |
| Stored Energy | 5,120 Wh |
| Voltage Range | 20.0-29.2 V |
| Charge Voltage | 29.0 V |
| Maximum Continuous Charge Current | 200 A |
| Maximum Continuous Discharge Current | 200 A |
| Peak Discharge Current | 390 A for 5 seconds |
| Listed Capacity | 200Ah |
| Battery Features | Self-heating |
| CONNECTIONS | |
| Terminal Bolt | M8 × 1.25 × 15 mm |
| Recommended Terminal Torque | 88.5-106.2 in-lb (10-12 N·m) |
| PHYSICAL | |
| Housing Material | ABS |
| Dimensions | 20.55 × 10.55 × 8.62 in (522 × 268 × 219 mm) |
| Weight | 88.6 lb (40.2 kg) |
| Material and Workmanship Warranty | 5 years |
| OPERATING LIMITS | |
| Cycle Life | 5,000 cycles at 80% depth of discharge |
| Charge Temperature Range | -4°F to 131°F (-20°C to 55°C) |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range | -13°F to 149°F (-25°C to 65°C) |
| Operating Relative Humidity | 10% to 95% |
| Protection Rating | IP65 |
| Certifications | MSDS, UN38.3, FCC, CE, PSE, and UKCA |
| PACKAGE | |
| Included Components | 1 × Core 24V 200Ah Deep Cycle Lithium Iron Phosphate Battery w/ Self Heating, 1 × User Manual, 2 × Long Terminal Bolt, 2 × Insulating Sleeve, 1 × Battery Charger |
Frequently Asked Questions
Clear answers to common questions about this product, setup, compatibility, and use.
Can one 24V 200Ah Renogy battery start a large inverter load?
Renogy publishes 200A continuous discharge and a 390A peak for 5 seconds. Compare those limits with the inverter's battery-side current and surge duration, then verify voltage sag, cable size, fuse, disconnect, busbars, and terminal ratings.
What does the RBT24200LFPSH 2S4P connection limit allow?
The published limit permits up to two matching batteries in series and four parallel paths in a supported arrangement. Do not exceed the manual, mix different models, or connect batteries at unequal state of charge; the final 48V-class bank also requires compatible equipment.
How much runtime should I plan from the 5120Wh nameplate energy?
Start with the connected load's measured watt-hours, then account for inverter or converter loss, wiring loss, temperature, reserve margin, and other simultaneous loads. The full 5120Wh nameplate should not be treated as guaranteed usable AC energy.
What physical planning matters for an 88.6 lb self-heating battery?
Provide a structure and restraint rated for the 88.6 lb battery plus vibration and impact loads. Its 20.55 by 10.55 by 8.62 inch case also needs terminal, cable-bend, ventilation, service, and removal clearance.
Does every 24V 200Ah package include the AC battery charger?
No. Grid Getaway lists a specific battery-plus-charger selection and separate two- and four-battery packages. Confirm the chosen variant's Package Includes section; do not assume a charger is supplied with multi-battery options.
