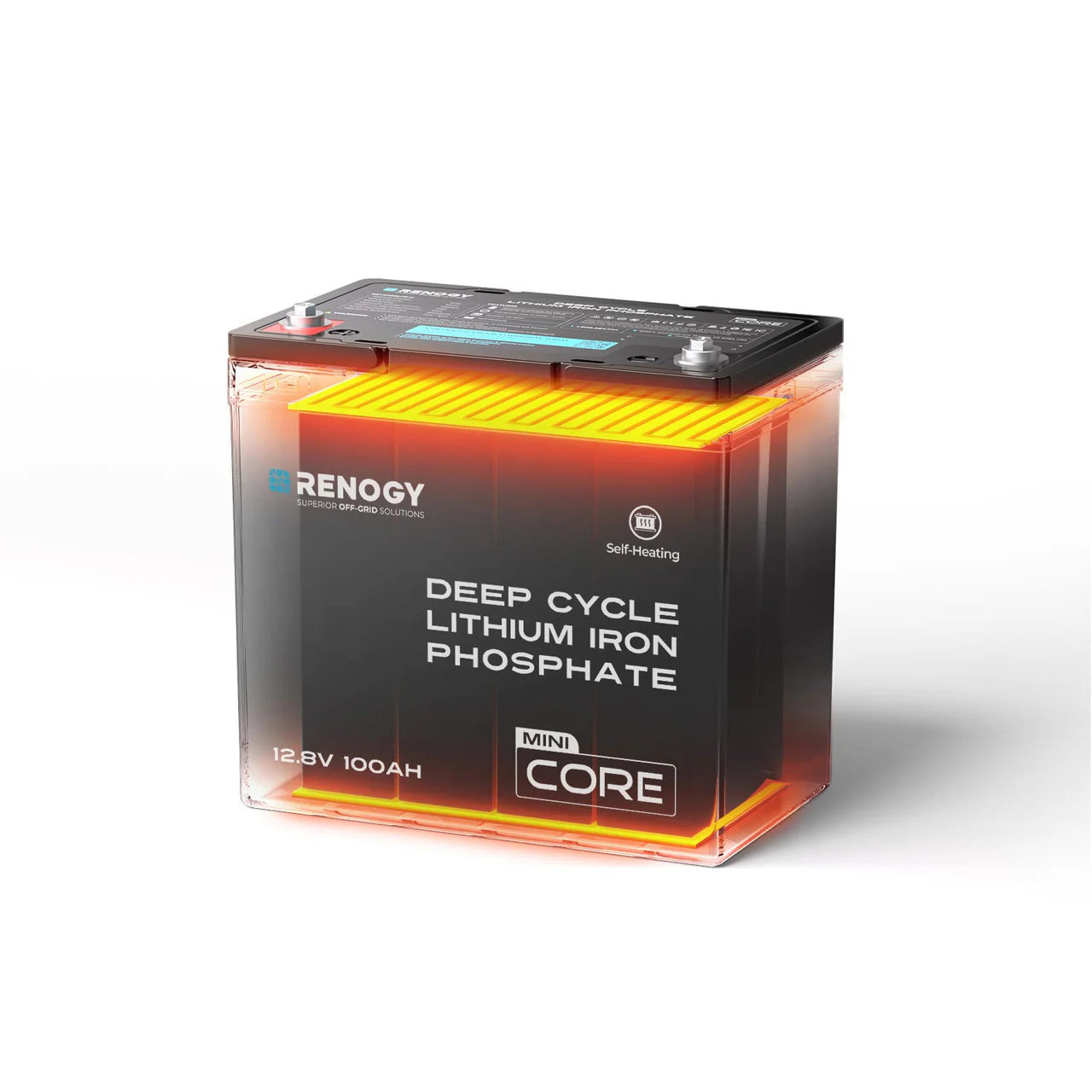

Renogy Core Mini 12V 100Ah DuoHeat Tech Lithium Iron Phosphate Battery - 1 Battery Renogy Core Mini 12V 100Ah DuoHeat Tech Lithium Iron Phosphate Battery
SKU: RBT12100LFP-H-G1-US
- Capacity 100Ah
- Battery Chemistry Lithium Iron Phosphate
Compact Heated Lithium Power
Mini Size 12V 100Ah DuoHeat Tech Lithium Iron Phosphate Battery
The Renogy Core Mini is a 12V 100Ah lithium iron phosphate battery with DuoHeat technology for compatible off-grid, RV, and backup-power systems. Its compact 21.38-pound design provides 1,280Wh of nominal energy based on the rated voltage and capacity.
Smart Heating
DuoHeat heating starts at 41°F (5°C) and stops at 50°F (10°C), helping prepare the battery for charging within the stated operating conditions. Charging and discharging have separate temperature limits, so review both before winter use.
Compact Installation Footprint
The housing measures 9.02 x 5.43 x 8.39 inches and weighs 21.38 pounds. Confirm mounting restraint, terminal clearance, cable routing, and service access before installation.
Series and Parallel Expansion
Compatible battery banks can use series and parallel connections up to 4S4P. The available options include one battery and four batteries; confirm system design, balancing, cabling, and protection requirements before connecting multiple units.
Top Reasons to Choose the 100Ah DuoHeat Battery
DuoHeat prepares the battery for charging in cold conditions; check the heating trigger, operating-temperature range, and required charging source in the manual.
Smart Heating for Cold-Weather Charging
DuoHeat technology is designed to prepare the battery for charging in colder outdoor conditions.
Efficient Performance in the Cold
The battery begins heating when temperature reaches 41°F (5°C) and stops heating at 50°F (10°C), as described by Renogy.
Uniform Cell Heating
Dual heating pads are designed to warm battery cells more evenly for improved cold-weather charging preparation.
Battery Management and Protection
Renogy describes more than 25 intelligent safety protections in the battery-management system. The battery is also rated IP65 for dust-tight and splash-resistant protection; use the published temperature limits when planning outdoor installation.
Ready for Cold Adventures
Renogy identifies 110W dual heating, faster heating performance and readiness from -22°F in approximately 60 minutes in the illustrated scenario.
More Capacity in Less Space
The compact form factor can help when space is limited, while the listed 21.38-pound weight supports planning for handling and mounting. Verify that the enclosure and terminals fit the intended compartment before ordering.
Integrated Safety Protection
Renogy describes more than 25 intelligent safety protections built into the battery-management system.
Long-Life LiFePO4 Cell Design
Renogy rates the battery for 5,000 cycles at 80% depth of discharge under the stated 0.5C and 25°C test conditions. Actual service life depends on operating conditions, charge settings, temperature, and usage.
Tested to Global Safety Standards
Review the battery’s listed certifications and product documentation when checking it for a specific installation.
Reliable Power for RV Travel
Use compact heated lithium storage to support compatible RV and mobile off-grid power systems.
Cold-Weather Power for Outdoor Trips
For cold-season trips, confirm that the charging source can support the battery’s heating and charging requirements.
Expandable Energy Storage
Renogy presents configurations of up to four batteries in series and parallel for compatible systems reaching up to 20.48kWh.
Plan a lithium battery change
If you are replacing an RV lead-acid battery, our RV lead-acid to lithium guide explains charging, wiring and compatibility checks before changing chemistries.
Compare before choosing
Compare the Renogy Core Mini 12.8V 100Ah Lithium Iron Phosphate Battery by model rating, dimensions and charging or connection limits. Use each product’s exact specifications for your system.
| Renogy Core Mini 12V 100Ah DuoHeat Tech Lithium Iron Phosphate Battery | |
| Selected variant SKU | RBT12100LFP-H-G1-US |
|---|---|
| General | |
| Battery Type | Lithium Iron Phosphate |
| Voltage | 12V |
| Rated Capacity | 100Ah (0.5C, 25℃) |
| Voltage Range | 10V to 14.6V |
| Cycle Life (0.5C, 25℃) | 5,000 Cycles (80% DOD) |
| Connection Method | Series & Parallel (up to 4S4P) |
| Terminal Bolt Size | M8 x 1.25 x 12mm |
| Recommended Terminal Torque | 53.1 to 70.8 in-lb / 6 to 8 N·m |
| Protection Rating | IP65 (Dust-Tight & Splash-Resistant) |
| Dimensions | 9.02 x 5.43 x 8.39 in / 229 x 138 x 213mm |
| Weight | 21.38 lbs / 9.7kg |
| Operation Parameters | |
| Charge Voltage | 14.6V |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Discharge Current | 300A @ 10s |
| Charge Temperature Range | -22°F to 131°F / -30°C to 55°C |
| Discharge Temperature Range | -4°F to 140°F / -20°C to 60°C |
| Storage Temperature Range | -4°F to 113°F / -20°C to 45°C |
| Operation Relative Humidity | 10% to 95% |
| Certifications | |
| MSDS, UN38.3, FCC, CE, PSE, IC, RoHS, UKCA | Yes |
| Warranty | |
| Material and Workmanship Warranty | 5-Year Prorated |
