Renogy Core Mini 12V 200Ah LiFePO4 Battery w/ Low Temperature Protection 1 / 2
Renogy

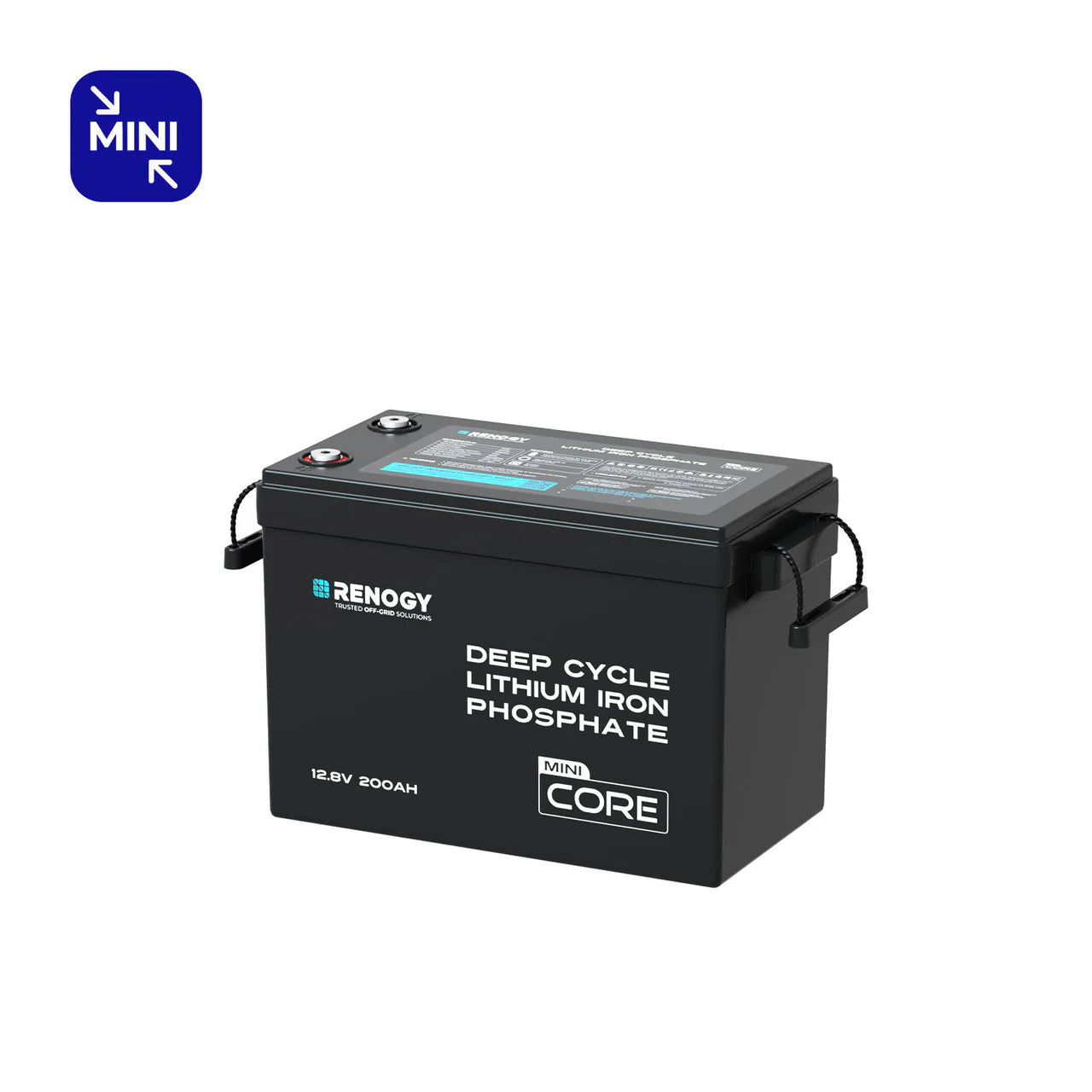

Renogy Core Mini 12V 200Ah LiFePO4 Battery w/ Low Temperature Protection - 1 Battery Renogy Core Mini 12V 200Ah LiFePO4 Battery w/ Low Temperature Protection

SKU: RBT12200LFP-M-G1-US

Brand Renogy In Stock
$653.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy Core Mini 12V 200Ah LiFePO4 Battery w/ Low Temperature Protection

In Stock
Quantity$653.99 each
1

Compact 200Ah Lithium Storage

Mini Size 12V 200Ah LiFePO4 Battery with Low-Temperature Protection

Fit higher-capacity lithium energy storage into smaller installation spaces with a 200Ah Core Mini battery designed for RV and marine power systems.

Compact Footprint

Renogy identifies a housing design that is 21% smaller than comparable alternatives.

Low-Temperature Cut-Off

Charging protection supports cold-weather battery care.

Peak Output

The battery has a stated 380A peak output for up to ten seconds; size continuous loads to the separate continuous-current rating.

Smaller, Sleeker, Still Renogy Strong

The Core Mini 200Ah battery combines a compact design with low-temperature cut-off, IP65 protection and certification support.

Smaller, Sleeker, Still Renogy Strong

Designed to Save Installation Space

Renogy presents the housing as 21% smaller than its comparison products to simplify placement in common RV battery storage spaces.

Designed to Save Installation Space

Cold-Weather Charging Protection

Low-temperature cut-off is designed to stop charging when conditions are too cold for safe lithium charging.

Cold-Weather Charging Protection

Peak Power Output

Its 380A, ten-second peak rating can support brief startup demand from compatible loads; it is not the continuous-output rating.

Peak Power Output

Vibration-Resistant Design

The battery is designed to withstand mobile-use vibrations and bumps in travel environments.

Vibration-Resistant Design

Tested and Trusted Power

Certification imagery in the Description highlights the product's testing and compliance focus.

Tested and Trusted Power

Power for RV Adventures

Renogy illustrates the Core Mini battery supporting compatible appliance use in an RV energy system.

Power for RV Adventures

Power for Marine Adventures

For marine systems, check battery mounting, charging, and load limits before selecting connected equipment.

Power for Marine Adventures

Plan a lithium battery change

If you are replacing an RV lead-acid battery, our RV lead-acid to lithium guide explains charging, wiring and compatibility checks before changing chemistries.

Compare a related option

Compare capacity, case size and cold-weather features within the Core Mini range.

Renogy Core Mini 12V 300Ah Deep Cycle LiFePO4 Battery w/ Low-Temperature Protection

Renogy Core Mini 12V 200Ah LiFePO4 Battery w/ Low Temperature Protection - 1 Battery
Package Includes
1x Renogy Core Mini 12V 200Ah LiFePO4 Battery w/ Low Temperature Protection - 1 Battery
Includes the selected item based on the current package option.
Renogy Core Mini 12V 200Ah LiFePO4 Battery w/ Low Temperature Protection
Selected variant SKU RBT12200LFP-M-G1-US
Electrical Specifications
Rated Capacity 200Ah (0.5C, 25℃)
Voltage 12V
Energy 2,560Wh
Cycle Life (0.5C/1C, 25℃) 5,000 Cycles (80% DOD, 80% EOL)
Charging Parameters
Voltage Range 10V to 14.6V
Maximum Continuous Charge Current 100A
Discharging Parameters
Maximum Continuous Discharge Current 200A
Peak Discharge Current 380A @ 10s
Temperature Parameters
Operation Temperature Range Charge: 32°F to 131°F / 0°C to 55°C; Discharge: -4°F to 149°F / -20°C to 65°C
Storage Temperature Range -4°F to 140°F / -20°C to 60°C
Operation Relative Humidity 5% to 95%
Mechanical Specifications
Dimensions (L x W x H) 15.12 x 7.64 x 9.96 in / 384 x 194 x 253mm
Weight 42.44 lbs / 19.25kg
Terminal Bolt Size M8 x 1.25 x 12mm & M8 x 1.25 x 16mm
Protection Rating IP65
Certifications
MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, UKCA Yes
Warranty
Material and Workmanship Warranty 5-Year Prorated
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
🛡️
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

What is the practical advantage of the Core Mini 200Ah case? Renogy describes it as 21 percent smaller than comparable 200Ah batteries, which can help in a compact RV or marine compartment. Measure the actual tray, hold-down, terminal height, cable bend, and service path; smaller volume does not eliminate clearance needs. Does low-temperature protection on the Core Mini actively heat the cells? No. It stops unsafe charging when the battery is too cold but does not warm the battery. If charging must resume automatically in freezing weather, use a heated enclosure or choose a model specifically equipped with self-heating. Can I monitor this compact 200Ah battery with a BT-2 module? This Core Mini is not identified as the Bluetooth model. Plan a separate shunt-based battery monitor if you need whole-bank current and state-of-charge information, and do not connect a communication accessory unless the exact battery manual approves it. Is a 200A BMS enough for the inverter I want to install? Calculate the inverter's maximum battery-side current, startup surge and duration, efficiency, low-voltage cutoff, and concurrent DC loads. Keep the entire circuit within the 200A BMS and use appropriately rated cables, fuse, disconnect, busbars, and terminals. What should be matched before using the four-pack Core Mini option? All batteries should be the same exact model, age, capacity, firmware where applicable, and state of charge. Use balanced conductors and protection sized for the bank, and remain within Renogy's documented series and parallel connection limits.
