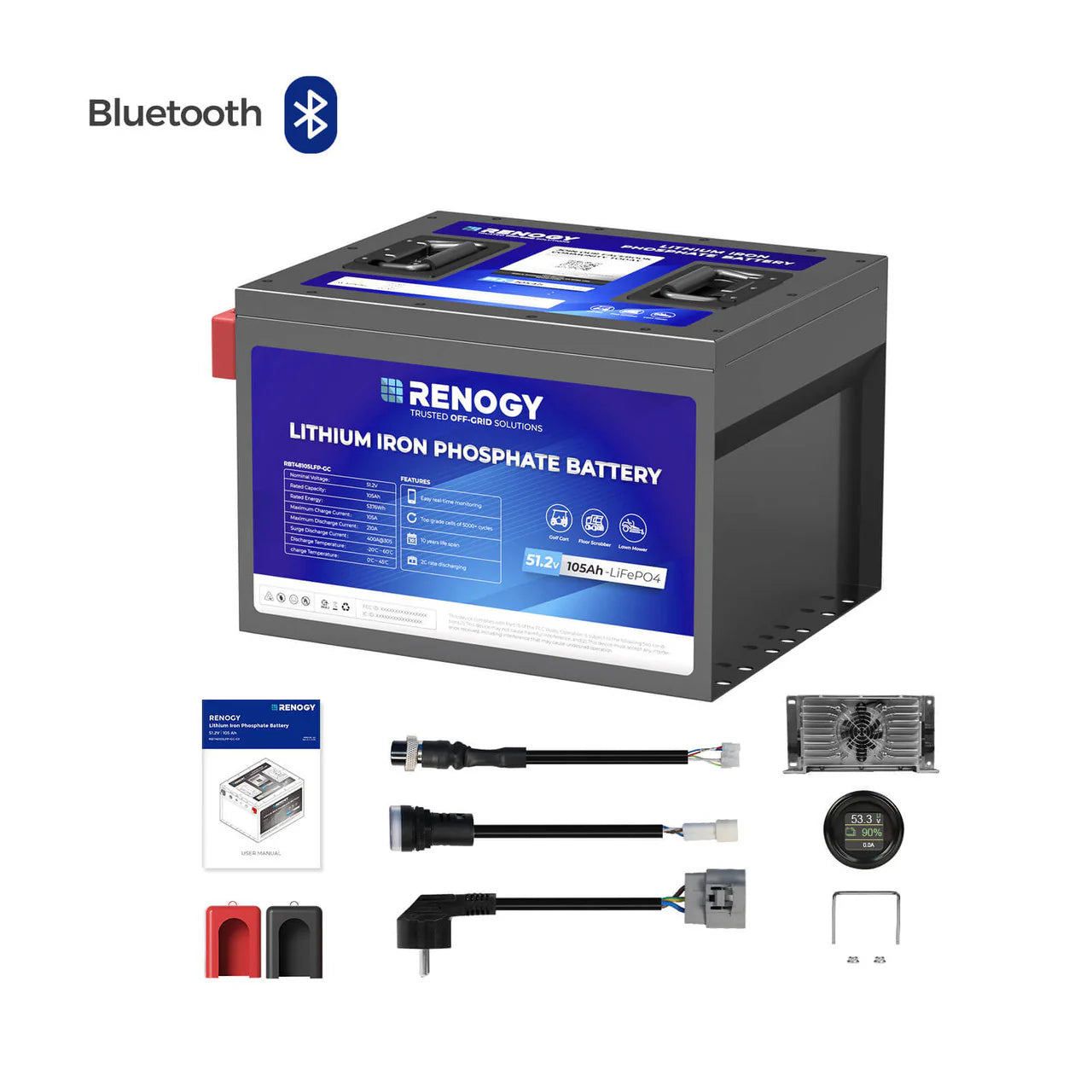

Renogy Golf Cart 48V 105Ah Lithium Iron Phosphate Battery 1 / 6
Renogy

Renogy Golf Cart 48V 105Ah Lithium Iron Phosphate Battery Renogy Golf Cart 48V 105Ah Lithium Iron Phosphate Battery

SKU: RBT48105LFP-GC-G1-US

Brand Renogy In Stock
$1,583.99 In Stock
No sales tax collected at checkout where applicable.
5% off Save 5% on eligible items Copy this code and apply it at checkout when eligible. Code: GET5
Extra 5% offUse GET5 at checkout

Applies to eligible items.

Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRenogy warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · Renogy warranty

No sales tax collected at checkout where applicable.

Key features
  • Rated Capacity 105Ah (0.5C, 25°C)
  • Maximum Continuous Discharge Current 210A
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

Renogy Golf Cart 48V 105Ah Lithium Iron Phosphate Battery

In Stock
Renogy Golf Cart 48V 105Ah Lithium Iron Phosphate Battery
Quantity$1,583.99 each
1

Golf Cart 48V 105Ah Lithium Iron Phosphate Battery

High-capacity lithium power designed for compatible 48V golf cart systems, with extended driving support, automatic shutoff protection and safety-focused battery construction.

Renogy 48V 105Ah lithium golf cart battery overview
Take a Closer Look
Renogy 48V 105Ah golf cart battery key features

Feel the Lithium Difference

Replace significantly heavier lead-acid battery banks with a lighter lithium battery design created for smoother compatible golf cart handling and longer time on the course.

Weight comparison for lithium golf cart battery replacement

Save Energy for Your Next Round

The built-in Auto-Off feature activates after five days of inactivity, helping reduce unnecessary discharge while your compatible golf cart is stored between trips.

Five-day automatic shutoff feature for golf cart battery storage

Integrated FireFade Safety Support

The built-in FireFade system is designed to activate when internal temperatures reach 338°F / 170°C, adding an additional layer of safety support inside the battery.

FireFade automatic fire suppression feature inside the lithium battery

Automatic Pressure Release Design

A smart valve is designed to release accumulated internal pressure during demanding operation, supporting battery safety and long-term performance.

Automatic pressure release valve feature for lithium golf cart battery

Designed for Straightforward Installation

Included installation-focused accessories shown in the live description help support a secure compatible golf cart upgrade and convenient charging-status visibility after installation.

Golf cart lithium battery installation feature overview

Performance from the Inside Out

A corrosion-resistant metal casing, IP65-rated construction and integrated 220A BMS work together to help protect compatible golf cart operation from demanding outdoor conditions and electrical risks.

Golf cart lithium battery construction and BMS protection features

```

Compare a related option

A golf-cart battery and a rack battery have different intended installations. Compare form factor, connectors and protection before choosing.

RUiXU RX-LFP48100 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery

51.2V 105Ah Lithium Iron Phosphate Battery
Package Includes
1 51.2V 105Ah Lithium Iron Phosphate Battery
User Manual
Package Includes
1 User Manual
Insulation Sleeve
Package Includes
2 Insulation Sleeve
Terminal Bolt
Package Includes
2 Terminal Bolt
Battery Fixing Bolt with Nut
Package Includes
4 Battery Fixing Bolt with Nut
Battery Indicator with Support Bracket and Fixing Nuts
Package Includes
1 Battery Indicator with Support Bracket and Fixing Nuts
Battery Indicator Communication Cable (3 m)
Package Includes
1 Battery Indicator Communication Cable (3 m)
Battery Extension Cable (0.72 m)
Package Includes
2 Battery Extension Cable (0.72 m)
Battery Charger
Package Includes
1 Battery Charger
AC Input Cable (3 m)
Package Includes
1 AC Input Cable (3 m)
Additional Charger Indicator with 1.45 m Cable
Package Includes
1 Additional Charger Indicator with 1.45 m Cable
Renogy 48V 105Ah Deep Cycle Lithium Iron Phosphate Battery
Selected variant SKU RBT48105LFP-GC-G1-US
Electrical Specifications
Rated Capacity 105Ah (0.5C, 25°C)
Voltage 51.2V
Energy 5,376Wh
Cycle Life (0.5C/1C, 25℃) 5,000 Cycles (80% DOD, 80% EOL)
Charging Parameters
Voltage Range 40V to 58.4V
Recommended Charge Current 15A to 105A
Discharging Parameters
Maximum Continuous Discharge Current 210A
Peak Discharge Current 400A @ 30s
Temperature Parameters
Operation Temperature Range Charge: 32°F to 113°F / 0°C to 45°C; Discharge: -4°F to 140°F / -20°C to 60°C
Storage Temperature Range 41°F to 113°F / -5°C to 45°C
Operation Relative Humidity 10% to 95%
Mechanical Specifications
Dimensions (L x W x H) 15.55 x 12.99 x 10.63 in / 395 x 330 x 270mm
Weight 106.92 lbs / 48.5kg
Terminal Bolt Size M8 x 15mm
Protection Rating IP65
Battery Charger Specifications
Nominal Charge Voltage 51.2V
Maximum Charge Voltage 58.4V
Maximum Continuous Charge Current 20A
AC Input Voltage Range 90V to 264V
Operating Temperature -40°F to 122°F / -40°C to 50°C
IP Rating IP66
Operation Relative Humidity 10% to 95%
Dimensions (L x W x H) 11.1 x 5.75 x 3.24 in / 282 x 146 x 82.4mm
Certifications
UN38.3, MSDS, FCC ID, IC ID Yes
Warranty
Material and Workmanship Warranty 5-Year Prorated
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
🛡️
Warranty Sheet
Warranty coverage, product protection details, and manufacturer terms.
View PDF
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

How much usable runtime can the Golf Cart 48V 105Ah LiFePO4 Battery provide in a weekend cabin system? Renogy publishes these model-specific details: Save Energy for Your Next Play: The last thing you want is a fully drained battery waiting in your golf cart when you leave for days or months. The smart Auto-Off feature kicks in after 5 days of inactivity, ensuring your battery stays healthy and ready even if you forget to turn it off manually.; Rated Capacity: 105Ah (0.5C, 25°C); Voltage: 51.2V; Energy: 5376Wh. Runtime depends on the connected load, permitted depth of discharge, inverter or conversion loss, temperature, and the battery's shutdown reserve. Size from watt-hours and the real continuous load rather than amp-hours alone. Will the Golf Cart 48V 105Ah LiFePO4 Battery match my golf cart's motor controller, peak current, and original pack voltage? Renogy publishes these model-specific details: Performance from the Inside Out: The corrosion-resistant metal casing keeps dirt and water out, while the 220A BMS is always on duty: balancing cells, preventing overloads, monitoring temperatures, and keeping your cart rolling smoothly.. Compare both running and startup current with the BMS, terminals, cables, fuse, disconnect, and any parallel-bank rules. Voltage compatibility alone does not prove the load will start. Does the Renogy 48V 105Ah golf-cart battery package include its own AC charger and status indicator? Yes. Renogy lists the 48V 105Ah battery, an AC charger, the AC input cable, an additional charger indicator with its cable, and a user manual. Verify the cart receptacle and installation wiring against the supplied charger rather than reusing an incompatible lead-acid charger. What cold-weather charging limits apply to the Golf Cart 48V 105Ah LiFePO4 Battery? Renogy publishes these model-specific details: Burn Risks? Not in This Battery: When temperatures spike to 338°F / 170°C, the FireFade™ fire suppression system activates– like a built-in firefighter that smothers flames in seconds. Game on, worry off.. Low-temperature discharge and low-temperature charging are different limits. Heating or cutoff protection does not make the surrounding charger, cables, or enclosure suitable for every winter condition. Will the Golf Cart 48V 105Ah LiFePO4 Battery physically fit, ventilate, and connect correctly in a weekend cabin system? Renogy publishes these model-specific details: Renogy Golf Cart 48V 105Ah Lithium Iron Phosphate Battery; Golf Cart 48V 105Ah Lithium Iron Phosphate Battery; Feel the Lithium Difference: Drop the weight, not your score. 200+ pounds lighter means effortless glides, precise maneuvers, and lasting power in your buggies to enjoy every round longer.. Allow clearance for cables, terminal covers, ventilation, restraint, and service access; also verify the charger profile and any app or communication requirement before ordering.
