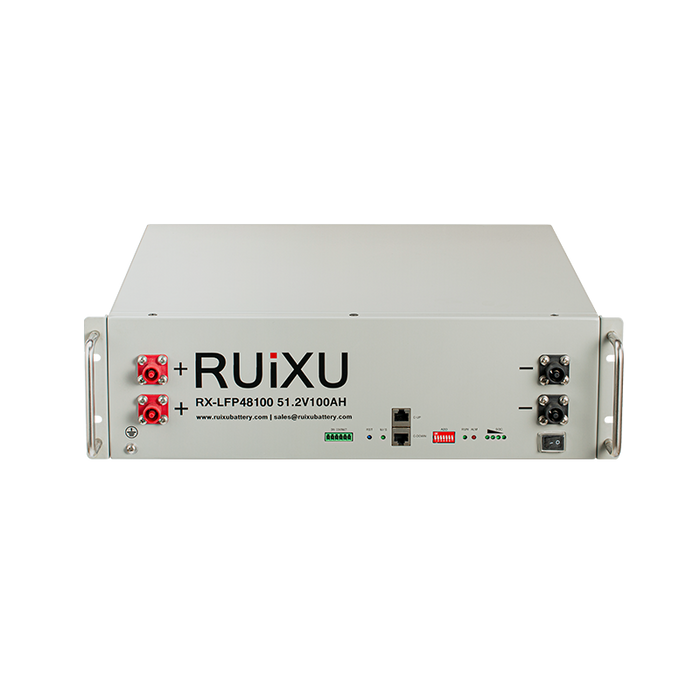

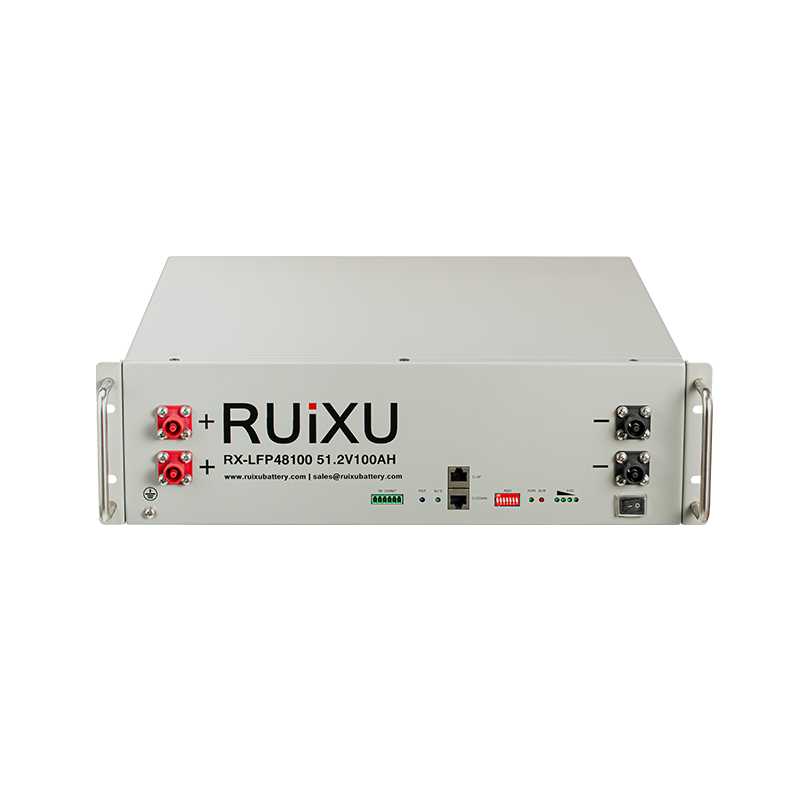

RUiXU RX-LFP48100 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery 1 / 1
RUiXU Battery

RUiXU RX-LFP48100 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery RUiXU RX-LFP48100 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery

SKU: RX-LFP48100

Brand RUiXU Battery In Stock
$1,059.00 In Stock
No sales tax collected at checkout where applicable.
Estimated delivery Calculating current delivery window…
Secure checkoutProtected payment Free shippingView shipping policy Eligible returnsView return policy Authorized dealerRUiXU Battery warranty
Free shippingAuthorized dealer

Will this run what you need?

Check your setup with our team.

Call our teamOpen Power Planner
Shipping & returnsDelivery details, return eligibility & fees

Shipping
Free shipping. Check the availability and delivery information above for your selected option.

Returns

Approval is required. The 30-day window covers eligible products that have not been used or installed, with their original packaging and supplied contents retained.

For non-defective returns, you pay return shipping and may incur restocking charges of up to 20%. Processing fees of 3–4% are not refundable. The full policy explains exceptions and how to request a return.

Shipping policy ↗Return policy ↗

Secure checkout · Protected payment
Authorized dealer · RUiXU Battery warranty

No sales tax collected at checkout where applicable.

Key features
  • Peak discharge current 101~119A@5mins 120~200A@5S
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

RUiXU RX-LFP48100 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery

In Stock
RUiXU RX-LFP48100 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery
Quantity$1,059.00 each
1

RUiXU RX-LFP48100 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery

Build a scalable 48V battery bank for home backup, off-grid solar, and energy storage with the RUiXU RX-LFP48100 5.12kWh server rack battery.

Key Features

  • 5.12kWh LiFePO4 storage for 48V systems
  • Rack-mounted 3U design for compact battery banks
  • Supports up to 32 units in parallel for large storage systems
  • Designed for inverter communication through CAN/RS485 protocols
  • UL1973 and UL9540A certified battery platform

Specifications

Brand RUiXU
Model RX-LFP48100
Product Type Server Rack LiFePO4 Battery
Nominal Voltage 51.2V
Capacity 100Ah
Energy 5.12kWh / 5120Wh
Dimensions 19 x 18.1 x 5.23 in
Weight 103.6 lb
Parallel Support Up to 32 units
Warranty 10 years
Certifications UL1973, UL9540A, CEC, SGIP

RX-LFP48100 · Buyer decision facts

RUiXU RX-LFP48100 | 5.12kWh Rack LiFePO4

The RX-LFP48100 stores 5.12kWh nominal at 51.2V and 100Ah in a 3U rack module. Its 100A maximum discharge and 70A maximum charge ratings affect inverter and charger sizing for a single module.

RUiXU describes up to 32 matching modules in parallel under its system rules. Check cabinet fit, communication cable, inverter BMS protocol and required battery quantity; a 48V-class match alone is not proof of compatibility.

For built-in heating, compare the RX-LFP48100-H.

What comes with the RX-LFP48100

  • RX-LFP48100 server-rack battery
  • RJ45/CAT5e patch cable
  • Ground cable
  • Set of parallel 4 AWG cables per battery

Plan the battery bank

Each module stores 5.12kWh nominal. Confirm the inverter’s supported BMS protocol, rack or cabinet fit, and cable arrangement before buying multiples. The RX-LFP48100-H is the version with self-heating for cold-weather charging.

Manufacturer documents

Manufacturer specification sheet (PDF) · Manufacturer user manual (PDF)

Common questions

Is this the heated version? No. This is the standard RX-LFP48100; choose RX-LFP48100-H when the self-heating feature is required.

Does a 48V inverter automatically communicate with it? No. Confirm the exact inverter protocol and wiring in the battery and inverter manuals.

RX-LFP48100 51.2V 100Ah Server Rack Battery
Package Includes
1 RX-LFP48100 51.2V 100Ah Server Rack Battery
Package Includes
1 RJ45/CAT5e Patch Cable
Package Includes
1 Ground Cable
Package Includes
1 Parallel 4AWG Battery Cable Set
RUiXU RX-LFP48100 51.2V 100Ah 5.12kWh Server Rack LiFePO4 Battery
Selected variant SKU RX-LFP48100
MODEL
Model / SKU RX-LFP48100
Product Type Battery
ELECTRICAL
Nominal Voltage 51.2 V
Nominal Energy 5.12 kWh
Battery Chemistry Lithium iron phosphate (LiFePO4)
Nominal Capacity 100 Ah
Usable Energy 4.92 kWh under the manufacturer data-sheet test basis
Operating Voltage Range 44.8-56.0 V
Charge Voltage 56.0 V
Float Voltage 54.6 V
Recommended Charge Current 50 A
Maximum Charge Current 70 A
Recommended Discharge Current 50 A
Maximum Discharge Current 100 A
Peak Discharge Current 101-119 A for 5 minutes; 120-149 A for 15 seconds
Design Life 15 years
Parallel Expansion Up to 32 matched units, scaling from 5 kWh to 160 kWh without an external controller
Cell Chemistry LiFePO₄
Maximum Parallel Units 32
Battery Features LiFePO4 chemistry
CONNECTIONS
Communications RS485 and CAN with DIP-switch inverter protocol selection
PHYSICAL
Dimensions 18.9 × 5.2 × 18.1 in (482 × 133.5 × 460 mm), 3U
Weight Approximately 47 kg (103.6 lb)
OPERATING LIMITS
Certifications UL 9540A, CE, IEC 62619, UL 1973, and UN 38.3
Cycle Life At least 6,000 cycles at 90% depth of discharge
BMS Protections Over-discharge, over-charge, over-current, and cell-balancing protection
Ingress Protection IP20
Operating Temperature Range 14°F to 122°F (-10°C to 50°C), with derating near the limits
Storage Temperature Range 14°F to 113°F (-10°C to 45°C)
Warranty 10 years
PACKAGE
Included Components 1 × RX-LFP48100 51.2V 100Ah Server Rack Battery, 1 × RJ45/CAT5e Patch Cable, 1 × Ground Cable, 1 × Parallel 4AWG Battery Cable Set
Peak discharge current 101~119A@5mins 120~200A@5S
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

How much energy does the RUiXU RX-LFP48100 store? It is rated at 51.2V, 100Ah, and 5.12kWh of nominal energy. Actual usable energy depends on BMS limits, system reserve, temperature, discharge rate, and inverter settings. How many RX-LFP48100 batteries can be connected together? RUiXU lists up to 32 matching units in parallel. Follow the manufacturer's communication, cable, overcurrent-protection, firmware, state-of-charge, and commissioning procedure. Can the RX-LFP48100 communicate with an inverter? It supports CAN and RS485 communication for compatible inverters. Confirm the exact inverter protocol, cable pinout, firmware, and battery settings before commissioning. How large and heavy is the RX-LFP48100? It measures 19 × 18.1 × 5.23 in / 3U and weighs 103.6 lb. Plan the floor or rack loading, handling equipment, clearances, ventilation, and service access before delivery. What warranty applies to the RX-LFP48100? RUiXU lists a 10-year warranty. Coverage depends on the current warranty terms and correct system design, installation, charging, operation, temperature, and storage. Can it communicate with every 48V inverter? No. Nominal voltage alone does not guarantee closed-loop compatibility. Verify the exact inverter model, supported protocol, cable, firmware, battery quantity, and configuration.
