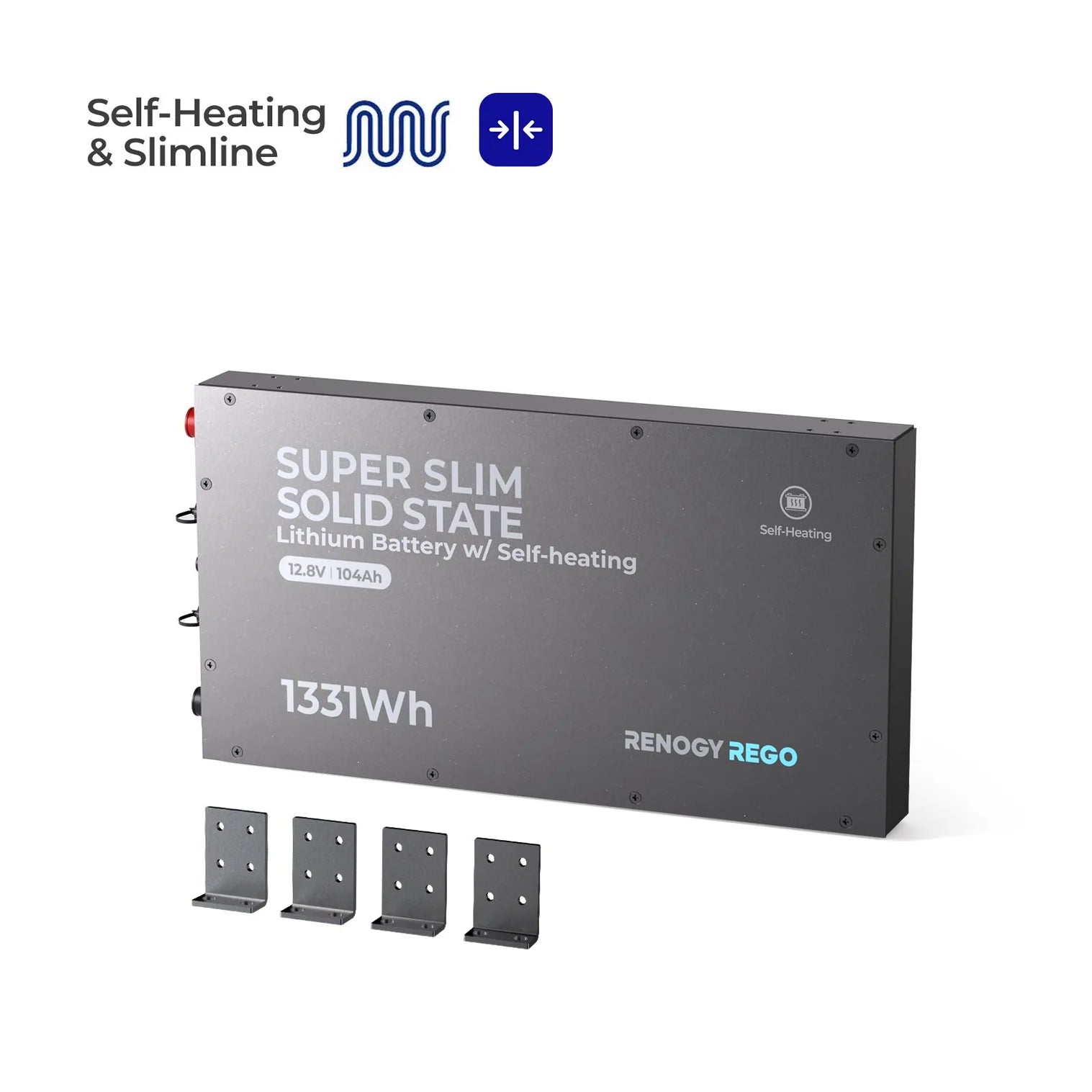

Renogy REGO 12V 104Ah Super Slim Lithium Iron Phosphate Battery w/ Self Heating
$799.00
$1,088.99
Save $289.99
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerRenogy warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
Ultra-thin (2.4in) for canopies, behind seats, and more tight spaces
9x slower temperature rise enhances safety & reduces thermal runaway
Versatile mounting with vibration-resistant bracket kits
Optional self-heating for reliable charging in freezing conditions
Powering a 2000W inverter with a single battery at 200A high output
Package Includes
1 REGO 12V 104Ah Super Slim Lithium Iron Phosphate Battery w/ Self Heating
Package Includes
1 User Manual
Package Includes
2 Long Terminal Bolt
Package Includes
2 Terminal Bolt
Package Includes
2 Insulating Sleeve
| REGO 12.8V 104Ah Super Slim Lithium Iron Phosphate Battery with Self-Heating | |
| Model SKU | RBT12104LFP-SSBH-G1-US |
|---|---|
| Battery Specifications | |
| Battery Cell Type | Pouch |
| Cell Chemistry | LiFePO4 |
| Rated Voltage | 12.8V |
| Rated Capacity (0.5C, 25°C) | 104Ah |
| Voltage Range | 10 to 14.8V |
| Cycle Life (0.5C, 25°C) | 6,000 Cycles (80% DOD, 80% EOL) |
| Electrical Parameters | |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 200A |
| Peak Discharge Current | 290A @ 30s |
| BMS Discharge Voltage Cut-Off | 8.8V |
| Reconnect Voltage/Current | 0.5A |
| Short Circuit Protection | Yes |
| Resistance | 5mΩ |
| Self Discharge | <3%/month |
| Connection Method | 4S/16P/4S4P |
| Environmental Data | |
| Charge Temperature | -4℉ to 131℉ / -20℃ to 55℃ |
| Discharge Temperature | -4℉ to 140℉ / -20℃ to 60℃ |
| Storage Temperature | -4℉ to 140℉ / -20℃ to 60℃ |
| Operation Relative Humidity | 5% to 95% |
| Mechanical Specifications | |
| Weight | 29.5 lbs / 13.38kg |
| Dimensions (L x W x H) | 22.8 x 11.4 x 2.4 in / 579 x 290 x 61mm |
| Housing Material | Aluminum Alloy |
| Protection Rating | IP67 |
| Connectivity | |
| Communication Protocol | CAN and Bluetooth |
| Terminal Bolt Size | M8 Terminal |
| Recommended Terminal Torque | 70.8 in-lb / 8 N·m |
| Self-Heating | |
| Self-Heating | Yes |
| Heating Temperature | 40°F / 5°C On, 50°F / 10°C Off |
| Self-Heating Power | 150W |
| Safety | |
| Flame Retardant | Yes |
| Shipping Class | UN3480, Class 9 |
| Certifications | |
| UN38.3 In Progress | CE, FCC, IC |
| Warranty | |
| Material and Workmanship Warranty | 8 Year |
