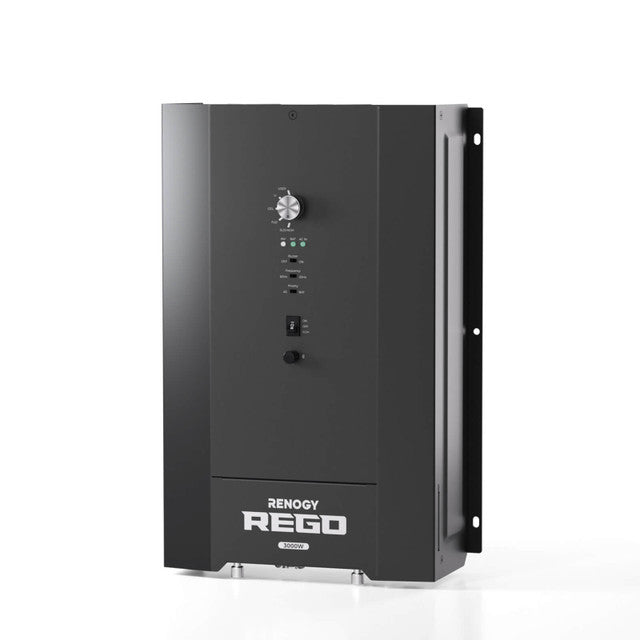

Renogy REGO 3000W 12V Pure Sine Wave HF Split-Phase Inverter Charger
Split-Phase Inverter Charging
REGO 3000W 12V Pure Sine Wave High Frequency Inverter Charger
Combine high-frequency pure sine wave conversion with inverter charging support for compatible off-grid and mobile systems. The source Description notes that 240VAC output is available only when supplied by a split-phase 120/240VAC source.
Low Noise Operation
High-frequency inverter design is presented for quieter compatible off-grid power use.
Space-Saving Design
Compact form supports installation planning where equipment space is limited.
High Environmental Adaptability
The source Description presents operation for varied off-grid environmental conditions.
Enhanced Lithium Battery Activation and Heating Capability
Support compatible lithium battery charging workflows that include activation and heating features where applicable.
Battery Temperature Sensor
Battery temperature sensing supports eligible charging management; follow Renogy battery compatibility guidance.
Swift Adaptation to Load Changes
The inverter charger is designed to respond quickly as supported AC load demand changes.
Superior Safety
Safety protections support dependable operation in compatible installed power systems.
Clearer Signals with Higher Frequency
High-frequency architecture supports clean pure sine wave AC output for suitable equipment.
System Design Overview
The source Description closes with an additional system-focused product visual.
| REGO 3000W 12V HF Pure Sine Wave Inverter Charger | |
| Model SKU | RIV1230RCH-SPS-G2-US |
|---|---|
| Inverter | |
| Continuous Power | 3000W |
| Surge Power(100ms) | 9000VA |
| Surge Power(5 seconds) | 4500VA |
| Surge Power (10 seconds) | 3600W |
| AC Output Voltage Range | 120V± 3% |
| Output Frequency (Nominal) | 50/60 Hz ± 0.1% |
| Output Waveform | Pure Sine Wave |
| Efficiency | ＞92% |
| THD | ＜3% |
| DC Input Voltage | DC12V |
| DC Input Voltage Range | 9~17Vdc(Full load 11V to 15.8V DC) |
| No Load Current Draw | Normal: <20W; Power Saving: <10W |
| Charger Specifications | |
| Output Current | 150A @25°C, 5A to 150A adjustable, 5A intervals, default 150A |
| Optimal Efficiency | >90% |
| Nominal Input Voltage | Split phase: 180-280 VAC; Single phase: 90-140 VAC |
| Input Frenquency Range | 50/60Hz，±5Hz |
| Input Wave Form | Sine Wave (Utility or Generator) |
| Transferswitch Specifications | |
| Transfer Time | ~10ms |
| Transfer Rating | 50A Maximum Bypass @120V AC |
| General Specification | |
| Battery Types | GEL, AGM, SLA, FLD, CAL, LI, USER |
| Noise | <47dB |
| Operating Temperature | Full load: -4°F to 113°F / -20°C to 45°C; Down load: 113°F to 140°F / 45°C to 60°C |
| Dimensions | 19.37 x 13.11 x 5.31 in / 492 x 333 x 135 mm |
| Storage Temperature | -40 ~ 70°C / -40 ~ 158°F |
| Weight | 22.7lbs/10.3Kg |
| Humidity | 0% ~ 95% |
| Wired Remote Control | |
| Dimensions | 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm |
| Wire length | Approx 16.4ft |
| Warranty | |
| Material and workmanship warranty | 5 Years |
| Accessories | 1 Year |
| Certifications | |
| EMC certification | FCC Prat15 Class B |
| Safety | UL 458 and CSA C22.2 No 107.1 |
