Key features
  • Peak discharge current 220A@15S 360A@1S
Need help choosing? Find the right setup for you. Talk it through with our team, or size your system with the Power Planner. Call 1-844-747-6767 Open Power Planner

Quantity

Your selection

RUiXU Lithi2-16 51.2V 314Ah 16kWh LiFePO4 Battery

In Stock
RUiXU Lithi2-16 51.2V 314Ah 16kWh LiFePO4 Battery
Quantity$3,299.00 each
1

RUiXU Lithi2-16 51.2V 314Ah 16kWh LiFePO4 Battery

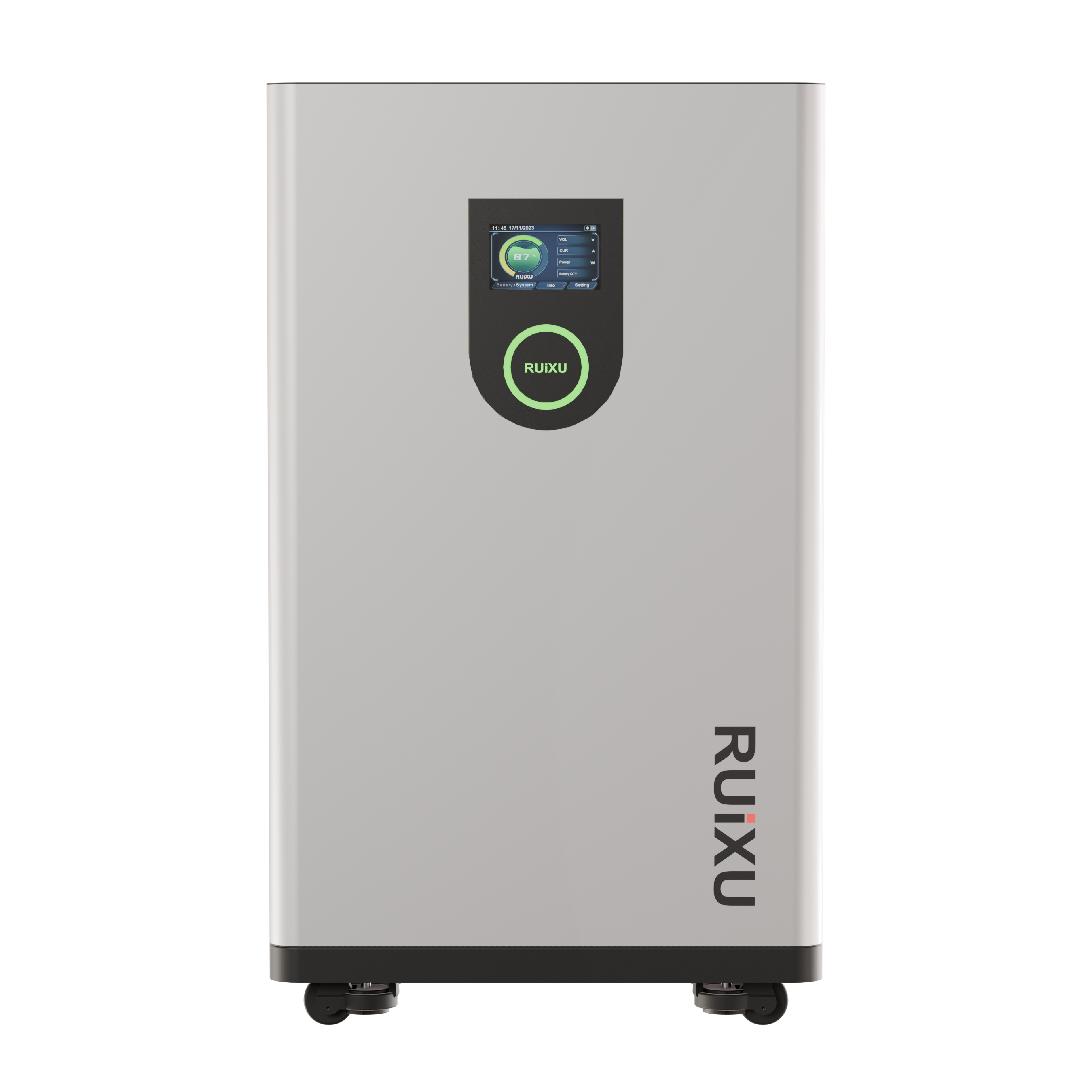

The RUiXU Lithi2-16 delivers high-capacity 16kWh 48V LiFePO4 storage for residential backup, off-grid solar, and commercial energy systems.

Key Features

  • 16kWh class LiFePO4 battery for 48V systems
  • Expandable up to 32 units in parallel
  • On-board LCD touchscreen for battery information
  • Quick plugs for easier battery connection
  • Outdoor-ready IP55 enclosure design

Specifications

Brand RUiXU
Model Lithi2-16
Product Type LiFePO4 Battery
Nominal Voltage 51.2V
Capacity 314Ah
Energy 16.07kWh / 16kWh class
Dimensions 36.3 x 21.3 x 10 in with wheels
Weight 302 lb
Parallel Support Up to 32 units
Ingress Protection IP55
Cycle Life ≥9500 cycles at 80% DOD
Warranty 10 years
Certifications UL1973, UL9540, UL9540A, CEC, SGIP

Compare a related option

See the busbar listed for Lithi2-16 and verify the full wiring and protection plan before installation.

RUiXU RX9MP 800A Quick-Connect Busbar for Lithi2-16 - One Pair

What comes with the Lithi2-16

  • Lithi2-16 battery bank
  • RJ45/CAT5e patch cable
  • Ground cable
  • Set of parallel 1/0 AWG OP140 or PP140 cables, as specified by RUiXU for the supplied configuration

Size and connect the system

The Lithi2-16 stores 16.07kWh nominal at 51.2V and 314Ah. Check the correct busbar, cable type, inverter protocol and installation clearances for the actual system. RUiXU lists the RX9MP busbar as an accessory; confirm the selected cable configuration before ordering.

Manufacturer documents

Manufacturer specification sheet (PDF) · Manufacturer user manual (PDF)

Common questions

Is this a 16kWh-class battery? Yes. Its published nominal energy is 16.07kWh, while usable runtime depends on the system settings and loads.

Can I add another battery later? RUiXU describes parallel expansion, but consult the manual and confirm the number of units supported by your battery revision and connected equipment.

Can Lithi2-16 connect to RUiXU RX-12K?

RUiXU explicitly lists its RX-CB-US conduit box for a Lithi2-16 battery paired with an RX-12K inverter. Its published battery communication guidance includes RX-12K setup. See the RX-12K inverter and manufacturer conduit-box listing for the exact model relationship.

That is a documented pairing, not a universal 48V-battery approval. Confirm current firmware, communication cable and protocol, battery count, current protection and installation instructions for the units being installed. RUiXU asks buyers to consult its technical support about other battery brands before treating them as compatible.

RUiXU Lithi2-16 51.2V 314Ah Battery
Package Includes
1 RUiXU Lithi2-16 51.2V 314Ah Battery
Package Includes
1 RJ45/CAT5e Patch Cable
Package Includes
1 Ground Cable
Package Includes
1 Parallel 1/0 AWG Battery Cable Set (OP140 or PP140)
RUiXU Lithi2-16 51.2V 314Ah 16kWh LiFePO4 Battery
Selected variant SKU Lithi2-16
MODEL
Model / SKU Lithi2-16
Product Type Battery
ELECTRICAL
Nominal Voltage 51.2 V
Nominal Energy 16 kWh
Battery Chemistry Lithium iron phosphate (LiFePO4)
Cell Configuration 16S1P
Nominal Capacity 314 Ah
Usable Energy 16 kWh at 100% depth of discharge
Operating Voltage Range 43.2-58.4 V
Charge Voltage 56.8 V
Maximum Charge Voltage 58.4 V
Low-Voltage Cutoff 43.2 V
Recommended Charge Current 140 A
Maximum Charge Current 200 A
Recommended Discharge Current 140 A
Maximum Discharge Current 200 A
Peak Discharge Current 240 A for 15 seconds; 360 A for 1 second
Rated DC Power 7 kW
Maximum Discharge Power 10 kW
Design Life 15 years
Parallel Expansion Up to 32 matched units
Safety Features Gas-aerosol fire-protection module, dual-pole fuse and breaker protection, intelligent cell balancing, and anti-tip wall fixation
Cell Chemistry LiFePO₄
Maximum Parallel Units 32
Battery Features LiFePO4 chemistry
CONNECTIONS
Communications RS485 and CAN
PHYSICAL
Dimensions 36.3 × 21.3 × 9.8 in with wheels (924 × 543 × 250 mm)
Weight 145 kg
OPERATING LIMITS
Cycle Life At least 9,500 cycles at 80% depth of discharge
Ingress Protection IP55
Certifications CE, IEC 62619, UN 38.3, UL 1973, and UL 9540
Charge Temperature Range -13°F to 131°F (-25°C to 55°C)
Discharge Temperature Range -4°F to 131°F (-20°C to 55°C)
Storage Temperature Range -4°F to 113°F (-20°C to 45°C)
Warranty 10 years
PACKAGE
Included Components 1 × RUiXU Lithi2-16 51.2V 314Ah Battery, 1 × RJ45/CAT5e Patch Cable, 1 × Ground Cable, 1 × Parallel 1/0 AWG Battery Cable Set (OP140 or PP140)
• Damage due to improper installation loose terminal connections, under-sized cabling, incorrect
Product appearance and dimensions（unit mm）
Peak discharge current 220A@15S 360A@1S
Battery fixation diagram（Installation torque 9N）
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

How much energy does the RUiXU Lithi2-16 store? It is rated at 51.2V, 314Ah, and 16.07kWh of nominal energy. Actual usable energy depends on BMS limits, system reserve, temperature, discharge rate, and inverter settings. How many Lithi2-16 batteries can be connected together? RUiXU lists up to 32 matching units in parallel. Follow the manufacturer's communication, cable, overcurrent-protection, firmware, state-of-charge, and commissioning procedure. Does the Lithi2-16 have a local display? Yes. It includes an onboard LCD touchscreen for battery information and quick-plug connections for supported system wiring. How large and heavy is the Lithi2-16? It measures 36.3 × 21.3 × 10 in with wheels and weighs 302 lb. Plan the floor or rack loading, handling equipment, clearances, ventilation, and service access before delivery. What warranty applies to the Lithi2-16? RUiXU lists a 10-year warranty. Coverage depends on the current warranty terms and correct system design, installation, charging, operation, temperature, and storage. Can it communicate with every 48V inverter? No. Nominal voltage alone does not guarantee closed-loop compatibility. Verify the exact inverter model, supported protocol, cable, firmware, battery quantity, and configuration. Is the Lithi2-16 documented for the RUiXU RX-12K inverter? Yes. RUiXU lists an RX-CB-US conduit box for the Lithi2-16/RX-12K pairing and publishes communication setup guidance. Confirm current firmware, cable and protocol settings, permitted battery quantity and installation details before commissioning. Do not assume the same settings apply to other inverter models.
