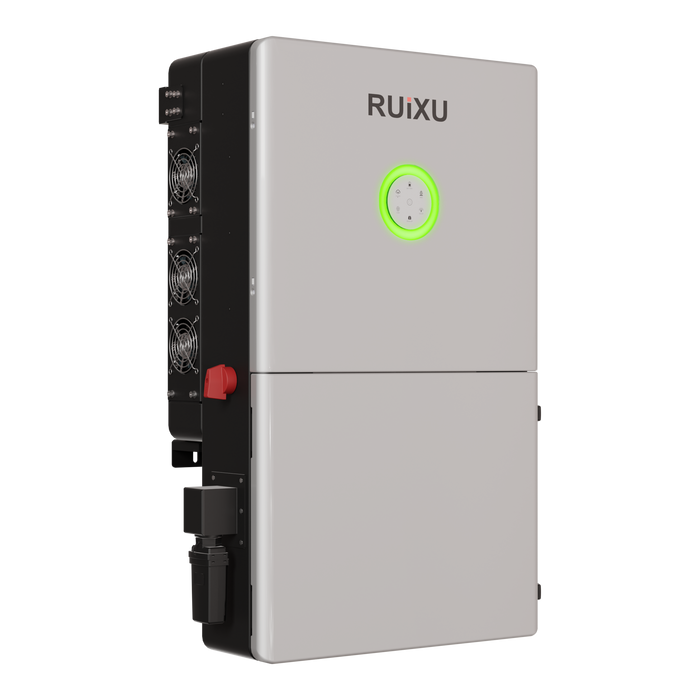

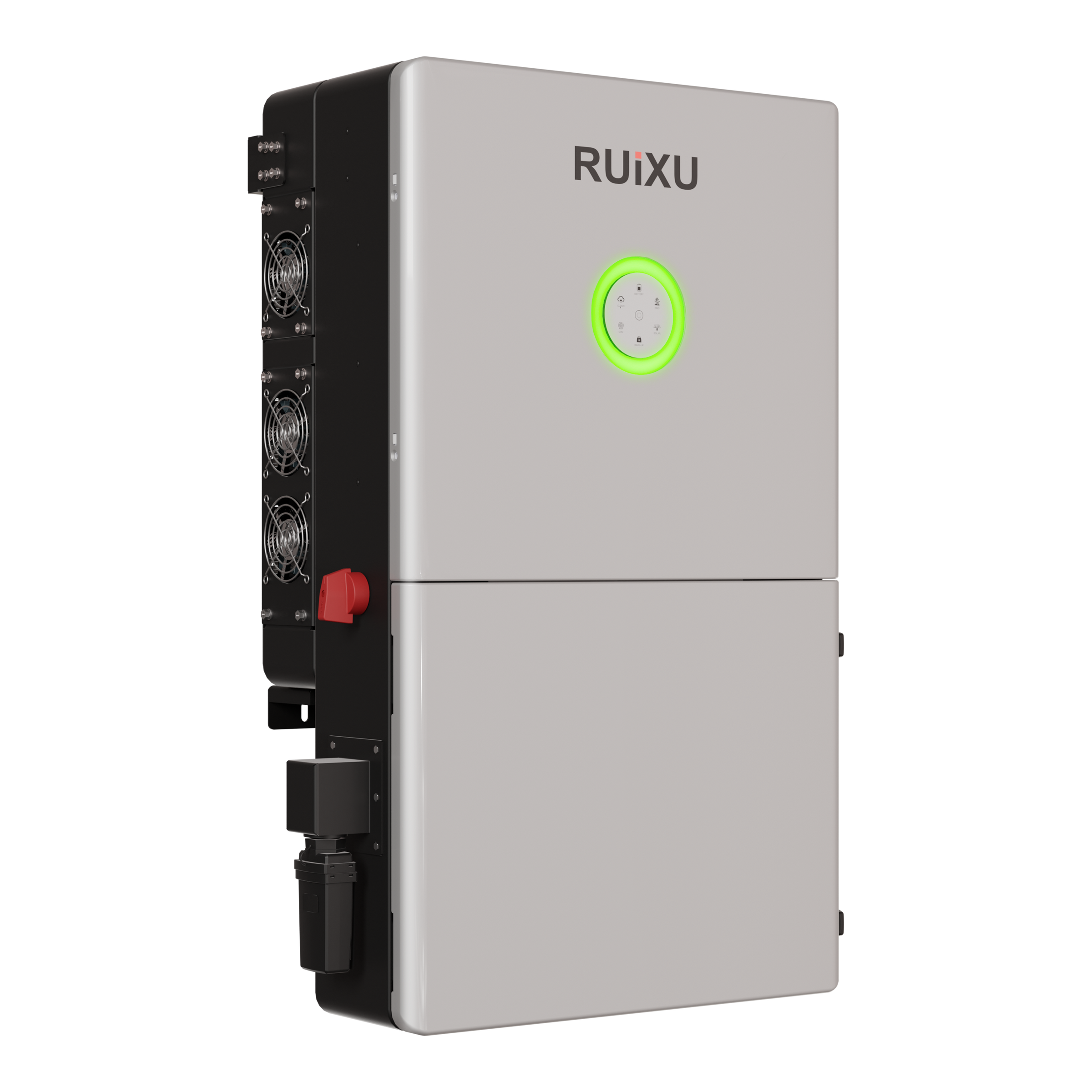

RUiXU RX-12K Split Phase Hybrid Inverter 11.4kW Output RUiXU RX-12K Split Phase Hybrid Inverter 11.4kW Output
SKU: RX-12K
RUiXU RX-12K Split Phase Hybrid Inverter 11.4kW Output
The RUiXU RX-12K is a split-phase hybrid inverter built for 48V battery systems, whole-home backup, and solar energy storage applications.
Key Features
- Split-phase 120/240V hybrid inverter platform
- Supports PV input for solar energy storage systems
- Integrated 200A transfer relay for backup applications
- Compatible with 48V battery configurations
- UL1741 certified
Specifications
| Brand | RUiXU |
| Model | RX-12K |
| Product Type | Split Phase Hybrid Inverter |
| PV Input | 90-550V |
| Battery Voltage | 40-60V |
| Output | 11.4kW |
| Transfer Relay | 200A integrated |
| MPPT | Up to 4 MPPTs |
| Protection | IP65 |
| Certification | UL1741, UL9540 |
What the 12K name means for system sizing
The RX-12K is rated for 11.4kW AC at 240V, with a 17.1kW maximum PV array at STC and four independent MPPT inputs. It uses a nominal 48V battery system (40–60V operating range) and includes a 200A transfer relay. Verify each string’s cold Voc, MPPT current, the selected battery’s BMS current, and utility/interconnection requirements in the manufacturer manual.
Explore the RUiXU 5.12kWh rack battery and RUiXU Lithi2-16 as battery options; confirm the exact inverter/BMS communication protocol and approved quantity before pairing.
RX-12K: hybrid inverter details
The RX-12K is a grid-interactive hybrid model with 11.4kW rated AC output at 240V, 120/240V backup output, up to 17.1kW STC PV array power, four MPPTs and a 600V maximum PV open-circuit voltage. Its 48V-class battery input operates over 40–60V. The SUNON12 is the separate off-grid model, so choose based on the actual grid and backup design.
What RUiXU lists in the standard package
- RX-12K inverter
- 200 cm CAT6 battery communication cable
- Operation manual
- Wi-Fi dongle
Manufacturer documents
Manufacturer specification sheet (PDF) · Manufacturer user manual (PDF)
Common questions
Is 17.1kW the AC output? No. It is the rated maximum PV array power at STC; rated AC output is 11.4kW at 240V.
Does any 48V battery work? No. RUiXU asks buyers using other battery brands to confirm the exact model with its technical support before installation.
Does RX-12K work with RUiXU Lithi2-16?
RUiXU explicitly lists its RX-CB-US conduit box for a Lithi2-16 battery paired with an RX-12K inverter. Its published battery communication guidance includes RX-12K setup. See the Lithi2-16 battery and manufacturer conduit-box listing for the exact model relationship.
That is a documented pairing, not a universal 48V-battery approval. Confirm current firmware, communication cable and protocol, battery count, current protection and installation instructions for the units being installed. RUiXU asks buyers to consult its technical support about other battery brands before treating them as compatible.
| RUiXU RX-12K Split Phase Hybrid Inverter 11.4kW Output | |
| Selected variant SKU | RX-12K |
|---|---|
| MODEL | |
| Model | RX-12K |
| Product Type | Split-phase hybrid inverter |
| ELECTRICAL | |
| Inverter Type | Low-voltage split-phase hybrid inverter |
| Maximum PV Array Power | 17,100 W at STC |
| Maximum PV DC Voltage | 600 V |
| PV MPPT Voltage Range | 90-550 V |
| Nominal PV DC Voltage | 380 V |
| PV Start / Minimum Input Voltage | 100 V |
| Maximum PV Input Current | 16 A per MPPT |
| Number of MPPTs | 4 |
| Strings per MPPT | 1 / 1 / 1 / 1 |
| Battery Chemistry Compatibility | Lead-acid or LiFePO4 |
| Battery Voltage Range | 40-60 V |
| Maximum Battery Charge / Discharge Current | 240 A |
| Rated On-Grid AC Power at 208 V | 9,880 W |
| Rated On-Grid AC Power at 240 V | 11,400 W |
| Rated AC Current at 208 V | 47.5 A |
| Maximum AC Current at 240 V | 52.3 A |
| Rated AC Voltage / Range | L1/L2/N/PE, 208/240 V; 183-229 V / 211-264 V |
| Rated Grid Frequency / Range | 60 Hz / 54-65 Hz |
| Backup Rated Output | 11,400 W at 240 V |
| Backup Overload Capacity | 17,100 W for 10 seconds |
| Backup Output Voltage | 120/240 V |
| Backup Output Frequency | 60 Hz |
| Maximum Efficiency | 97.6% |
| CEC Efficiency | 97% at 600 V DC |
| Battery-to-AC Maximum Efficiency | 93% |
| Integrated Transfer Relay | 200 A |
| UPS Transfer Time | 20 ms or less |
| Standby Power Consumption | Less than 10 W |
| AC Output | 11.4kW, 120/240V |
| Battery Compatibility | 40–60V DC / nominal 48V system |
| PV / MPPT | 90–550V DC, up to 4 MPPTs |
| Transfer Relay | 200A integrated transfer relay |
| Output Configuration | Split phase |
| CONNECTIONS | |
| Communication Ports | RS232, RS485 (RJ45), and DRM (RJ45) |
| Wireless Communication | Wi-Fi / 4G |
| PHYSICAL | |
| Mounting | Wall mounting |
| Dimensions | 30.7 × 18.5 × 10.2 in |
| Weight | 110 lb (50 kg) |
| OPERATING LIMITS | |
| Ingress Protection | NEMA 4X / IP65 |
| Integrated Protections | Overvoltage, Type II AC surge, Type II DC surge, overtemperature, anti-islanding, arc-fault protection, and rapid shutdown |
| Operating Temperature Range | -40°C to 60°C; power derating above 45°C |
| Warranty | 10 years |
| Certification | UL 1741 and UL 9540 |
| PACKAGE | |
| Included Components | 1 × RX-12K 12kW Inverter, 1 × CAT6 Battery Communication Cable (200cm), 1 × Operation Manual, 1 × Wi-Fi Dongle |
