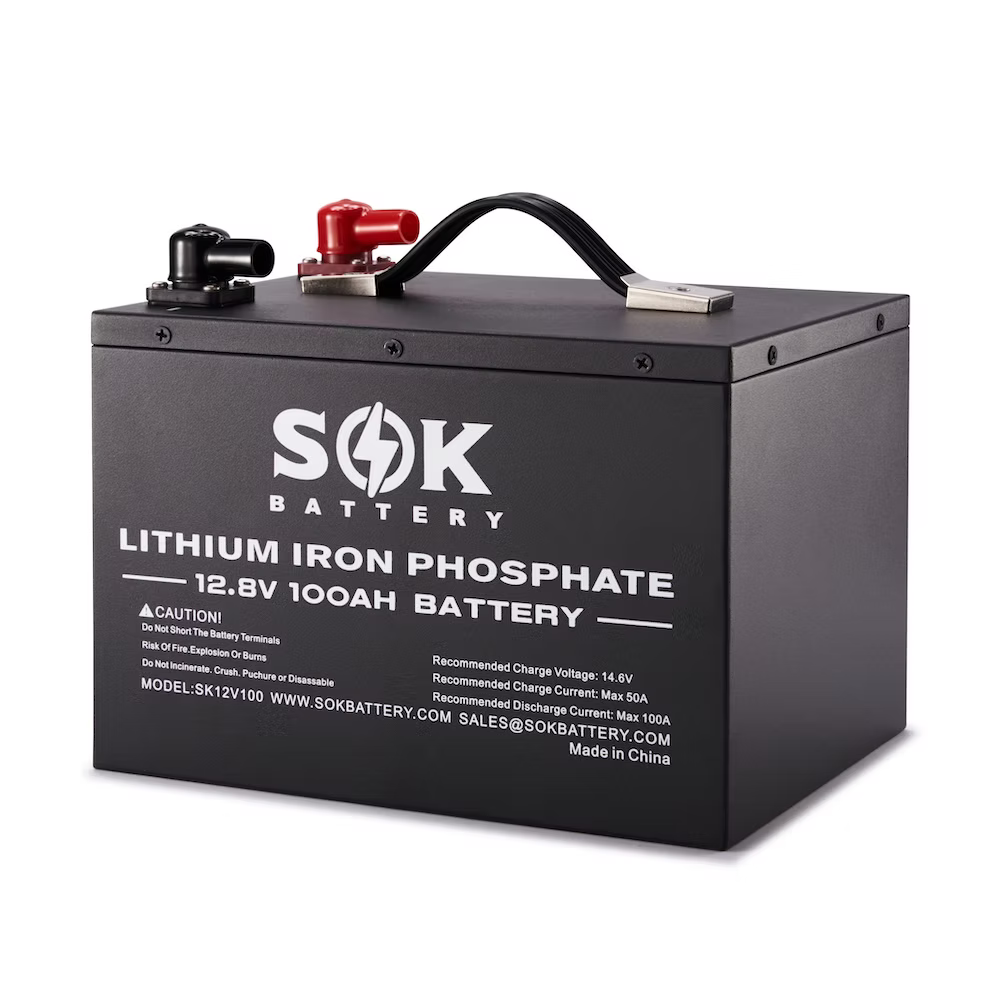

SK12V100H | SOK 12V100Ah LiFePO4 Battery Bluetooth & Built-In Heater
SK12V100H | SOK 12V100Ah LiFePO4 Battery Bluetooth & Built-In Heater
Download the app to connect and monitor your SOK Battery.
Search ABC-BMS on google or apple store, download and install.
Please note: SOC is initially incorrect, it takes 2 full charge / discharge cycles to reach proper calibration.
7 year warranty and maintenance free with a 4000-8000 cycles life span.
Detachable cover with replaceable BMS and cells.
Built-in heater pad for using in down to -4°F.
Bluetooth4.0 , supprot IPhone or Android smartphone.
Support connect in parallel for larger capacity.
Built-in smart Battery Management System (BMS).
Low temperature charging cut-off.
High temperature charging or discharging cut-off.
Over charging and discharging protection.
Over current and short circuit protection.
Battery cells auto balance.
Please note for connecting in series: NOT OVER 4 Batteries IN SERIES, and make sure add the battery voltage balancer.
| CHARGE INFORMATION | |
| Model SKU | SK12V100H |
|---|---|
| Recommended Charge Current | 20A |
| Maximum Charge Current | 70A |
| Recommended Charge Voltage | 14.6V |
| DISCHARGE INFORMATION | |
| Maximum Continuous Discharge Current | 170A |
| Peak Discharge Current | 200A (3s) |
| Recommended Low Voltage Disconnect | 10.4V |
| SIZE INFORMATION | |
| Terminal Type | M8, 5/16 lugs |
| Weight | 27 lbs |
| TEMPERATURE INFORMATION | |
| Discharge Temperature | -4°F to 140°F |
| Charge Temperature | -4°F to 113°F |
| Storage Temperature | 23°F to 95°F |
| CERTIFICATIONS INFORMATION | |
| Certifications | UL1973 & IEC62619 for battery cells |
