SOK

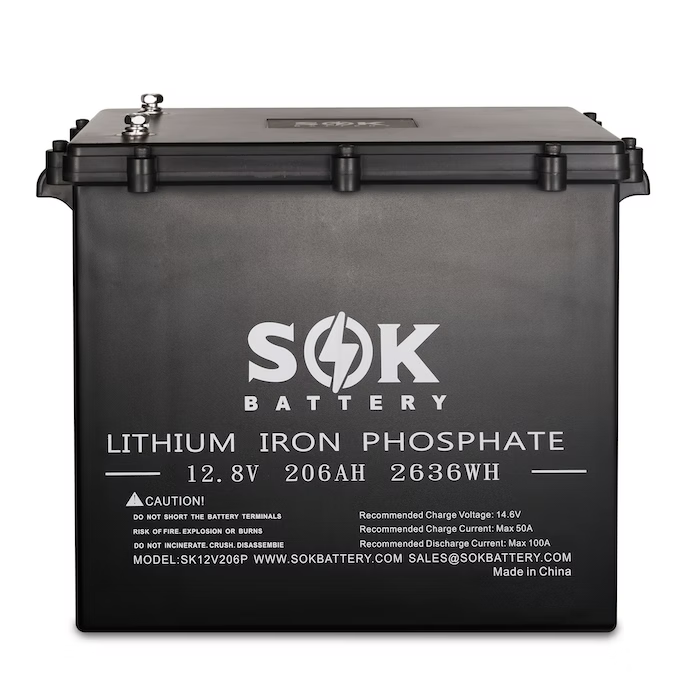

SK12V206PH | Marine Grade 12V 206Ah LiFePO4 Battery, Sealed Plastic Box
$750.00
In Stock
No sales tax collected at checkout where applicable.
Estimated delivery
Calculating current delivery window…
Secure checkoutProtected payment
Free shippingView shipping policy
Eligible returnsView return policy
Authorized dealerSOK warranty
Need help choosing?
Not sure if this is the right setup for you?
Chat with our team, call support or check your expected loads before ordering.
Call 1-844-747-6767
Open Power Planner
7 Years Warranty,3000~8000 Cycles Life Span,Free Maintenance.
Detachable Cover,Replaceable BMS or Cells.
Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity.
Built-in Smart Battery Management System.
Built-in heater pad for using in down to -4°F
Low Temperature Charging Cut-off.
High Temperature Charging or Discharging Cut-off.
Over Charging or Discharging Protection.
Over Current & Short Circuit Protection.
Battery Cells Auto Balance.
Notice for connect in series: If you need connect batteries in series, they should be at the same state-of-charge (SOC)before they are connected.
Package Includes
1x SK12V206PH | Marine Grade 12V 206Ah LiFePO4 Battery, Sealed Plastic Box
Includes the selected item based on the current package option.
| CHARGE INFORMATION | |
| Model SKU | SK12V206PH |
|---|---|
| Recommended Charge Current | 40A |
| Maximum Charge Current | 70A |
| Recommended Charge Voltage | 14.4V-14.6V |
| Maximum Batteries in Series | 4 batteries |
| DISCHARGE INFORMATION | |
| Maximum Continuous Discharge Current | 170A |
| Peak Discharge Current | 200A (3s) |
| Recommended Low Voltage Disconnect | 11.2V |
| BMS Discharge Cut-off Voltage | Around 10.4V |
| Reconnect Voltage | >11.6V |
| SIZE INFORMATION | |
| Terminal Type | M8, 5/16 lugs |
| Weight | 48 lbs |
| TEMPERATURE INFORMATION | |
| Discharge Temperature | -4°F to 140°F |
| Charge Temperature | 32°F to 113°F |
| Recommended Storage Temperature | 23°F to 95°F |
| CERTIFICATIONS INFORMATION | |
| Certifications | UL1973 & IEC62619 for battery cells |
