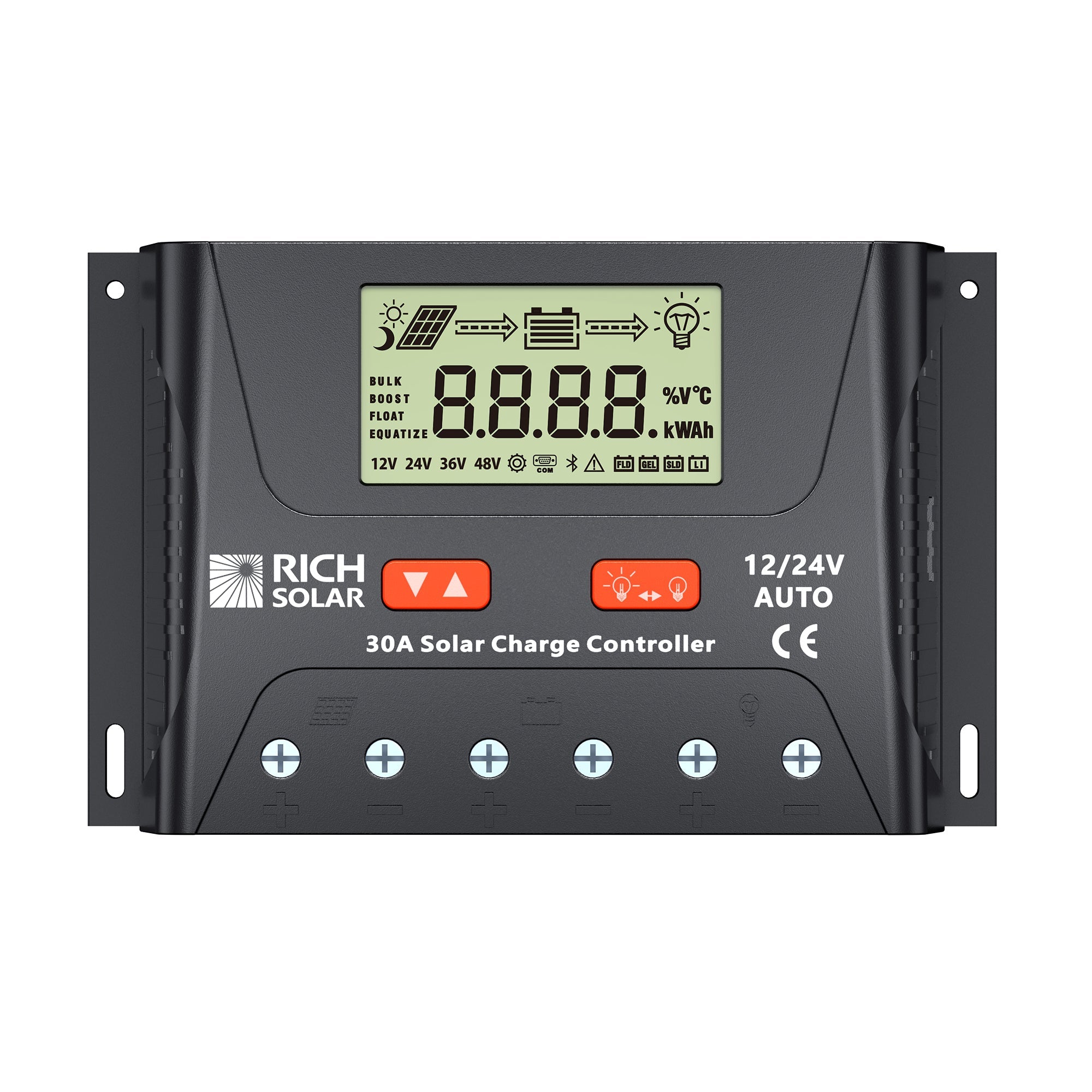

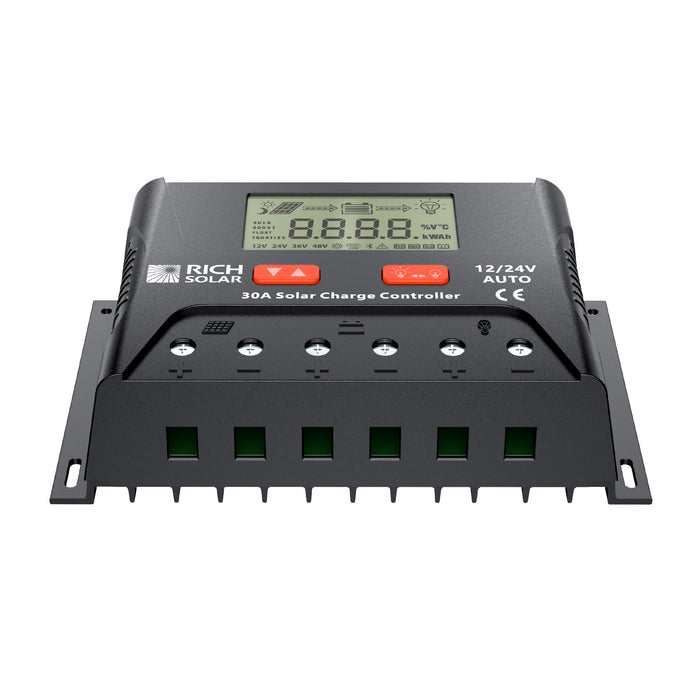

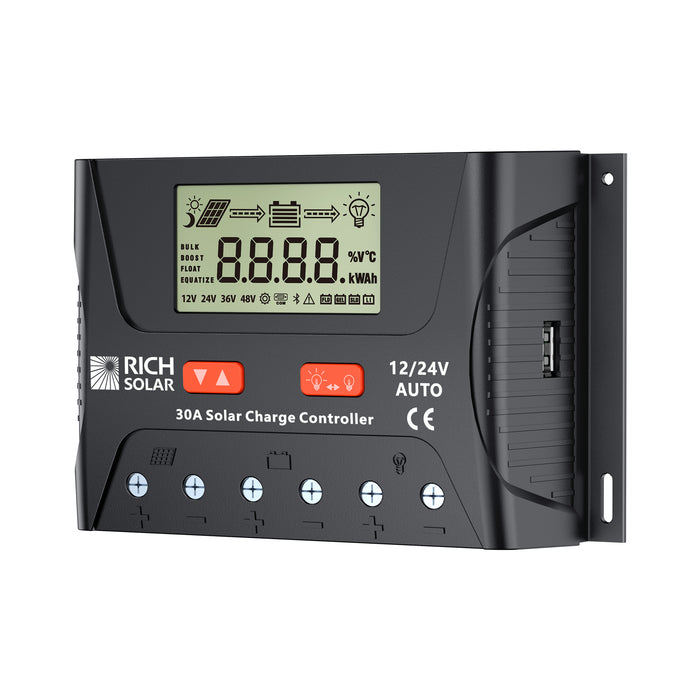

Rich Solar BRAVO LEGEND 30 | 30 Amp PWM Solar Charge Controller | 12V/24V Auto 30A PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid Rich Solar BRAVO LEGEND 30 | 30 Amp PWM Solar Charge Controller | 12V/24V Auto 30A PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid
SKU: RS-PWM30P
- Advanced 3-Stage PWM Charging Boost, Float, and Equalization charging; Equalization helps prevent sulfation in lead-acid batteries (excluding GEL and lithium).
- Battery Compatibility Lithium/Sealed/GEL/Flooded
- Net Weight 0.39kg (0.86lb)
Add what you need.
Start with your product. Choose the extras that suit your setup.
BRAVO LEGEND 30 — 30 Amp PWM Solar Charge Controller
The BRAVO LEGEND 30 is a 30-amp PWM charge controller with automatic 12V/24V system recognition, advanced 3-stage charging (Boost, Float, and Equalization), and five configurable load control modes for flexible load output management. A clear dot-matrix LCD with simple 2-button control gives you direct, real-time monitoring, while a rugged IP30 enclosure and comprehensive electrical protection make it a solid, full-featured PWM option for mid-size 12V or 24V off-grid systems and applications like solar street lighting.
30A PWM With Auto Voltage Detection
Automatically recognizes whether your system is 12V or 24V (manual setup is also available), supporting a rated power of 450W at 12V or 900W at 24V — a solid mid-size capacity for off-grid systems beyond a single small panel.

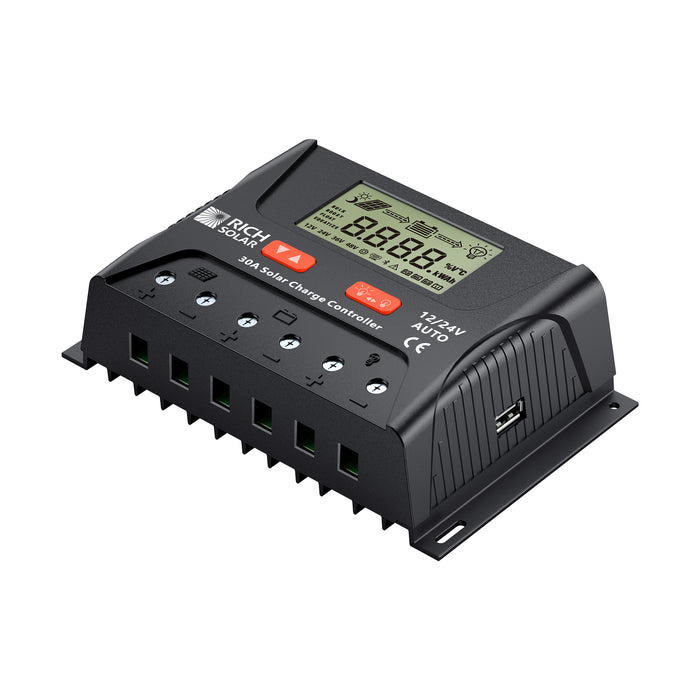

3-Stage Charging Across Multiple Battery Types
Boost, Float, and Equalization charging helps prevent sulfation in lead-acid batteries, with optimized profiles for Sealed, GEL, Flooded, and Lithium battery types — equalization and temperature compensation are specifically excluded for GEL and Lithium, where they aren't appropriate for the chemistry.

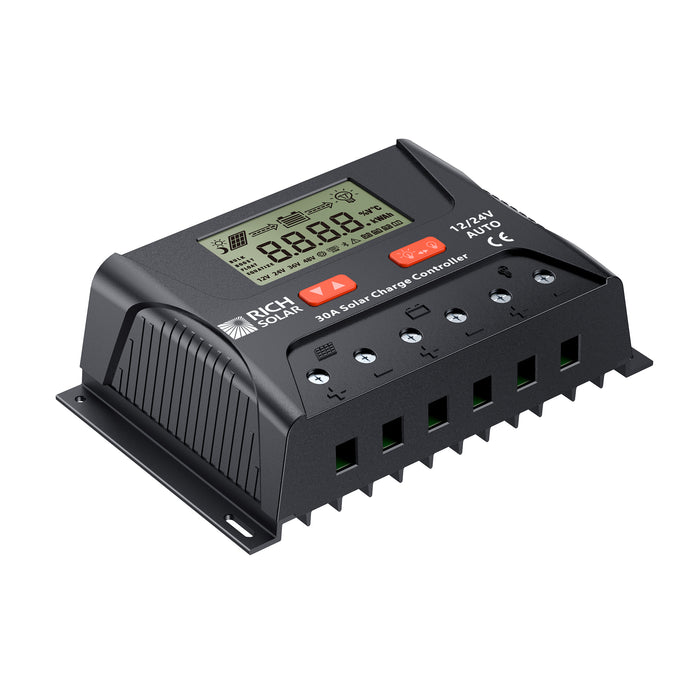

5 Configurable Load Control Modes
Choose from Light Control (with a 10-minute delay), Timer Control (1–14 hours), Manual, Debug, and Always ON modes — flexible load output management across a wide range of off-grid and lighting applications.
Product Overview
The BRAVO LEGEND 30 is a 30-amp PWM solar charge controller built for off-grid 12V or 24V systems that want a feature-rich, configurable PWM controller without the cost or complexity of stepping up to MPPT. Automatic 12V/24V recognition simplifies installation, with a rated power of 450W at 12V or 900W at 24V — sized for a meaningful mid-size array, including common applications like solar street lighting.
Charging runs through an advanced 3-stage process — Boost, Float, and Equalization — which helps prevent sulfation in lead-acid batteries over time. The controller supports optimized charging profiles across Sealed, GEL, Flooded, and Lithium battery types, though equalization charging and automatic temperature compensation (-3.0mV/°C/2V) are specifically excluded for GEL and Lithium batteries, where those processes aren't appropriate for the chemistry.
Load control offers five selectable operating modes: Light Control with a 10-minute delay, Timer Control selectable from 1 to 14 hours, Manual mode, Debug mode, and Always ON — covering everything from dusk-to-dawn lighting control to continuous load output. A clear dot-matrix LCD display with simple 2-button control and a memory function lets you adjust and retain settings directly at the controller. The enclosure carries an IP30 rating for dust and splash resistance, best suited to a sheltered or semi-protected mounting location rather than direct outdoor exposure, and operates from -13°F to 131°F. At 6.46 × 4.07 × 1.85 in and 0.86 lb, it shares the same compact footprint as the larger BRAVO LEGEND 40, with optional Bluetooth connectivity available.
Smart Charging That Matches Your System and Battery
- Auto 12V/24V Recognition: Detects your system voltage automatically, with manual setup also available if you prefer to configure it directly.
- Multi-Battery Support: Optimized charging profiles for Sealed, GEL, Flooded, and Lithium battery types.
- 3-Stage PWM Charging: Boost, Float, and Equalization stages help prevent sulfation in lead-acid batteries (equalization excludes GEL and Lithium).
- Temperature Compensation: Automatic voltage adjustment of -3.0mV/°C/2V based on ambient temperature, applied to all supported chemistries except Lithium.
- 450W (12V) / 900W (24V) Rated Power: A solid mid-size capacity for off-grid systems and solar lighting applications.
Flexible Load Control for Off-Grid and Lighting Use
- Light Control Mode: Activates connected loads based on ambient light, with a 10-minute delay built in.
- Timer Control: A selectable 1–14 hour run timer for load output.
- Manual Mode: Direct control over load output without automated triggers.
- Debug Mode: Useful for installation testing and troubleshooting load behavior.
- Always ON Mode: Keeps the load output continuously active.
Durable Build, Direct On-Unit Control

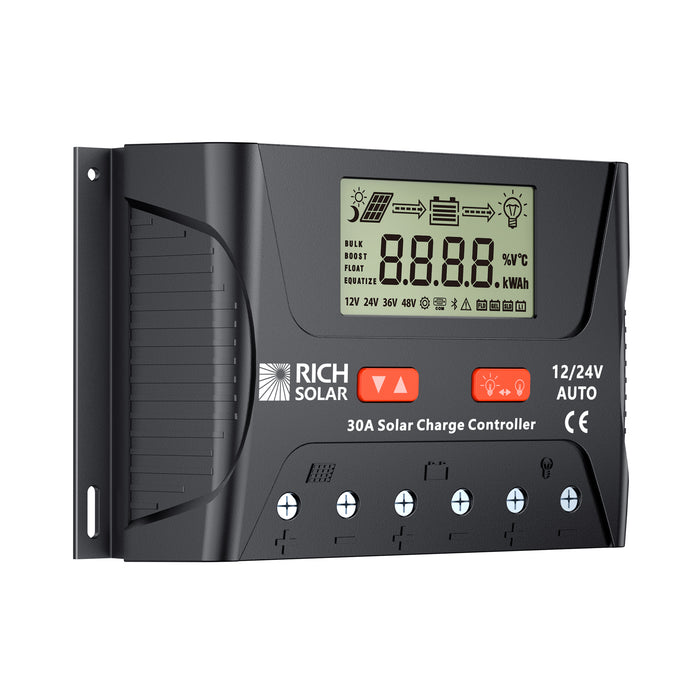

- Dot-Matrix LCD: Real-time system monitoring with a clear, detailed display format.
- Simple 2-Button Control with Memory: Adjust parameters directly at the controller, with settings retained through power cycles.
- Comprehensive Electrical Protection: Overcharge, over-discharge, overload, short-circuit, and reverse polarity protection.
- IP30 Rated Enclosure: Dust and splash resistant, best suited to a sheltered mounting location rather than direct outdoor exposure.
- Wide Operating Range: -13°F to 131°F covers most climate conditions for a sheltered installation.
Full Specifications
| SKU | RS-PWM30P |
| Rated Current | 30A |
| System Voltage | Auto 12V/24V (Manual Optional) |
| Rated Power | 450W @ 12V / 900W @ 24V |
| Max Solar Input Voltage | < 55V |
| Max Battery Voltage | < 34V |
| No-Load Loss | <13mA @ 12V / <15mA @ 24V |
| Battery Compatibility | Lithium, Sealed, GEL, Flooded |
| Operating Temperature | -13°F to 131°F |
| Protection Rating | IP30 (Dust/Splash Resistant) |
| Dimensions | 164 × 103 × 47 mm (6.46 × 4.07 × 1.85 in) |
| Net Weight | 0.39 kg (0.86 lb) |
Best Uses
- Mid-size 12V or 24V off-grid systems wanting full-featured PWM
- Solar street lighting and other light/timer-controlled load applications
- Sheltered RV, van, or cabin electrical compartments
- Systems with mixed battery chemistries (Sealed/GEL/Flooded/Lithium)
- Builders wanting direct on-unit LCD configuration
- Installations open to adding optional Bluetooth monitoring
Key Benefits
- 30A PWM with auto 12V/24V detection
- 3-stage charging: Boost, Float, Equalization
- 5 selectable load control modes including light and timer control
- Dot-matrix LCD with memory-retaining 2-button control
- 450W(12V) / 900W(24V) rated power capacity
- Optional Bluetooth connectivity available
Size the charging system
Use our solar charge controller sizing guide to compare controller current and voltage limits. The MPPT versus PWM guide explains how MPPT and PWM designs differ.
Compare before you choose
Compare charge current, cold-corrected PV voltage and array-current limits against the battery system.
See the Rich Solar 30 Amp PWM Solar Charge Controller | 12V 30A PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated for another RICH SOLAR charge controller option.
| Specifications | |
| Selected variant SKU | RS-PWM30P |
|---|---|
| Rated Current | 30A |
| System Voltage | Auto recognition: 12V / 24V (Manual setup optional) |
| Rated Power | 450W @12V / 900W @24V |
| Max. Solar Input Voltage | < 55V |
| Max. Battery Voltage | < 34V |
| No-load Loss | <13mA @12V / <15mA @24V |
| Battery Compatibility | Lithium/Sealed/GEL/Flooded |
| Operating Temperature | –13°F to +131°F (–25°C to +55°C) |
| Protection Rating | IP30 (Dust/Splash Resistant) |
| Dimensions | 164×103×47mm (6.46×4.07×1.85in) |
| Net Weight | 0.39kg (0.86lb) |
| Advanced 3-Stage PWM Charging | Boost, Float, and Equalization charging; Equalization helps prevent sulfation in lead-acid batteries (excluding GEL and lithium). |
| Automatic Temperature Compensation | Automatically adjusts charging voltage based on ambient temperature (-3.0 mV/°C/2V; excludes lithium). |
| 12V/24V Auto Detection | Automatically detects 12V or 24V battery systems. |
| Supports Multiple Battery Types | Compatible with Sealed, GEL, Flooded, and lithium batteries. |
| 55V Max Solar Input Voltage | Supports solar panel configurations with up to 55V PV input. |
| Five Operating Modes | Light Control (10-min Delay), Light Control + Timer Control (1–14 h), Manual, Debug, and Normal On. |
| UL 1741 Certified | Certified for trusted safety and reliable performance. |
| Grounding | Positive Ground |
| Package Dimensions | 8 × 6 × 4 in |
| Gross Weight | 2 lb |
| Battery Type Compatibility | Sealed, Gel, Flooded, and Lithium |
| 2. Installation hole diameter | 3.2mm/0.125in |
| Nominal System Voltage | 12V/24V (Auto-Detection) |
| Max PV Input Voltage | <55VDC |
| Equalizing charging time | USB function |
