You’ve found the solar panels you want. You know where they’ll go, and you’re already picturing a few quieter days away from electrical hookups. Then you reach the charge controller section and suddenly you’re choosing between MPPT, PWM, 20 amps, 40 amps, and a collection of cables that look almost identical.
I’d slow down right here. This is where a little planning can save you from buying a controller that limits your panels—or discovering that the cable in your cart doesn’t fit its terminals.
The choice gets much easier when we start with your battery, look at the panels feeding it, and follow the connections between them. Let me walk you through it that way.
MPPT or PWM: which would I choose?
For a new RV or cabin battery system that you expect to use regularly or expand, I would usually start with MPPT. It gives you more flexibility in matching the solar array to the battery and can capture more of the power available from the panels.
PWM can still make sense for a small, simple setup with appropriately matched panel and battery voltages. If your existing system already replaces the energy you use, you don’t automatically need to replace a working controller.
The important question is whether the complete system works for you. Buying the more sophisticated controller won’t solve inadequate sunlight, an undersized array, or the wrong charging settings.
If you’re still deciding where your panels belong, start with our portable versus roof-mounted RV solar panel guide. This article picks up at the next decision: how that solar energy reaches your battery.
First, are you charging a house battery or a power station?
By “house battery,” I mean the separate battery bank that runs the living-area equipment in an RV, van, or cabin. A solar charge controller manages charging between the panels and that battery. It needs the right voltage settings and charging behavior for the battery you actually own.
A portable power station is different. Models with a built-in solar charge controller already manage their solar input internally. You generally connect compatible panels to the station’s designated input using the approved cable arrangement.
You don’t buy an external MPPT controller just because the panels are going to a power station. Nor should you assume the battery output from a suitcase panel’s external controller belongs in a station’s solar socket. Check the particular station and panel instructions. Our solar panel compatibility guide walks through that separate decision.
For the rest of this guide, picture a solar array charging a separate house battery. That keeps us focused on the situation where choosing an external controller matters.

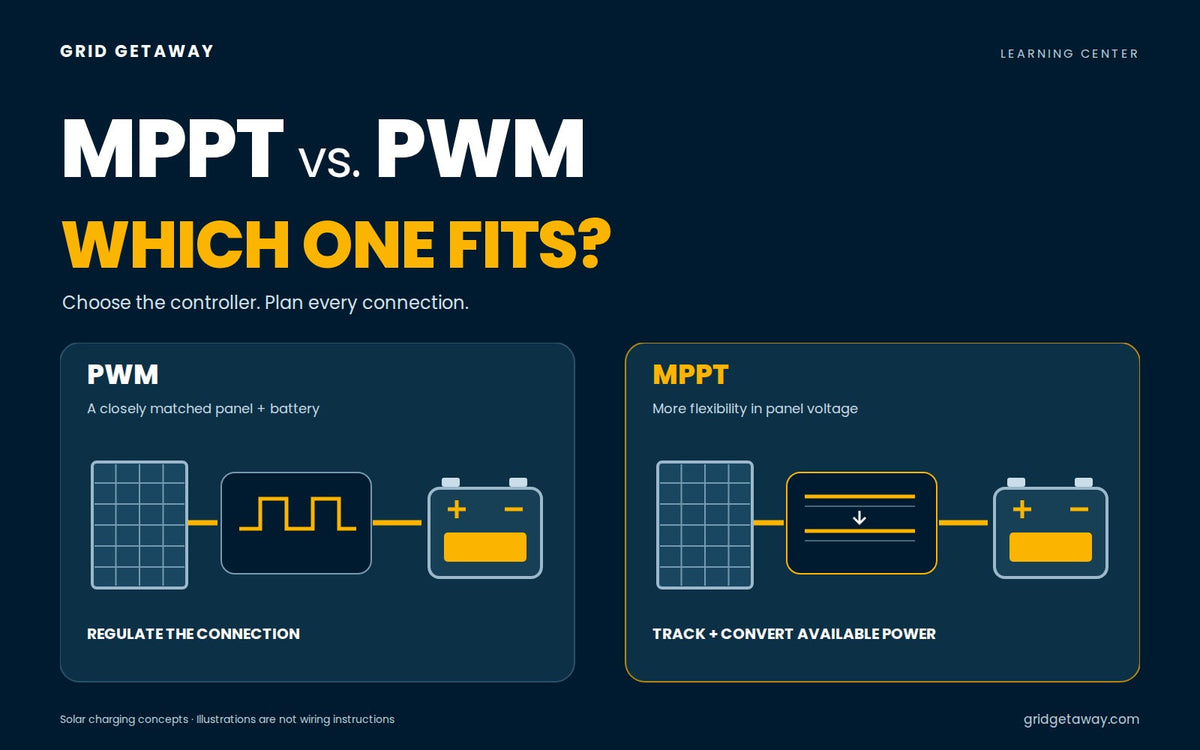

What PWM does, without the engineering lecture
PWM stands for pulse width modulation. Think of it as a controlled connection between the panel and battery. As the battery approaches its charging target, the controller adjusts that connection to regulate charging.
While connected, the panel operates near the battery’s voltage, allowing for losses in the controller and wiring. That matters because a panel’s best operating voltage may be higher than the voltage the battery needs at that moment.
A PWM controller does not convert that extra voltage into additional battery-charging current in the way an MPPT controller can. This is why panel-to-battery matching matters so much.
For example, a panel marketed for a nominal 12V system can have an operating voltage well above 12V. That is expected. But the “12V” label alone doesn’t establish compatibility: you still need the panel’s actual specifications and the controller’s limits.
Where I’d consider PWM is a modest charging job with short wiring, a suitable panel, and little reason to expand. Its simpler design can be enough. I would be less comfortable buying it for an array whose higher voltage you hope to convert efficiently into charging a lower-voltage battery.
What MPPT changes
MPPT means maximum power point tracking. The controller adjusts the panel’s operating point to seek available power, then converts that input into the voltage and current needed for battery charging.
Here’s the part I find most useful: the panels and battery don’t have to operate at nearly the same voltage. Within the controller’s limits, you can use a higher-voltage array to charge a lower-voltage battery.
Suppose an illustrative array supplies 200W at 40V and 5A. If a controller converts that with an assumed 95% efficiency, 190W remains. At a 14V charging output, that is about 13.6A.
The controller hasn’t created energy. It has traded higher voltage for higher current, with some energy lost during conversion. These are teaching numbers, not a performance claim for a product.
10W conversion loss
That also explains why you must size the panel cables and battery cables separately. In this example, the panel side carries 5A while the battery side carries around 13.6A. They do different jobs.
Victron’s technical comparison of PWM and MPPT explains this conversion and how temperature changes the comparison. It also shows why there isn’t one universal percentage advantage you can apply to every installation.
When is MPPT worth the extra money?
I would lean toward MPPT when at least one of these describes your plans:
- You rely on solar between hookups. Getting more usable energy from limited panel space matters when your next recharge opportunity is several days away.
- Your array voltage is substantially above battery voltage. You need a controller designed to convert that difference, within its specified input range.
- You have a longer panel cable run. A permitted higher-voltage series arrangement can reduce current on that run and help control wire losses.
- You expect to add panels. You can select a controller with an actual expansion plan in mind, checking voltage, current, and wattage limits together.
There are tradeoffs. MPPT typically costs more, and you still have startup-voltage requirements, temperature limits, configuration settings, and installation details to understand. “MPPT” on the label is not permission to connect any panel arrangement.
If I were helping you compare costs, I’d include the controller, cables, protection, monitoring accessories, and installation. A lower controller price can be misleading if the proposed wiring requires more hardware or doesn’t suit the layout.
And if your battery is already full by lunchtime, extra potential collection may not improve your camping experience. I would first ask what problem you want the upgrade to solve.
Before choosing a model, check these five things
1. Your battery voltage and charging requirements
Start with the battery bank: 12V, 24V, or another supported system voltage. Then check its chemistry, recommended charging settings, and permitted charging current.
Both PWM and MPPT models can support lithium batteries when their settings are suitable. MPPT alone does not make a controller lithium-compatible. Follow the battery manufacturer’s requirements for charging voltage, temperature protection, and whether float charging should be used. Never select a lead-acid equalization routine for a lithium battery.
If another charger can operate at the same time, its contribution also matters. A solar controller’s current rating is only one part of the battery’s total possible charging current.
2. The array’s cold-weather open-circuit voltage
Find Voc on the panel datasheet. It is the open-circuit voltage: the voltage available when the panel isn’t supplying current to a load. In a series string, add the panels’ Voc values.
Then account for cold conditions. Panel voltage rises as cell temperature falls, so a string that appears to fit at the standard test temperature can exceed the controller’s limit on a cold morning.
You also need the controller’s minimum operating and startup requirements. Passing the maximum-voltage check doesn’t guarantee that the array will provide enough voltage to charge the battery in all expected conditions.
3. Input current and battery-side charging current
A controller described as “20A” usually draws your attention to its charging-output rating. That number is not a substitute for checking the permitted solar input current and the array’s short-circuit current, labeled Isc.
With parallel panel strings, the currents add. With series-connected matching panels, the voltage adds while string current stays approximately that of one panel. Our series versus parallel wiring guide explains the arrangements in more detail.
4. The permitted panel wattage at your battery voltage
Many controllers support more panel watts when charging a 24V bank than when charging a 12V bank. Read the line for your system.
For an initial sense of scale, 400W divided by 12V is about 33A. That suggests a 20A controller deserves a closer look before purchase; it does not finish the sizing calculation. Charging voltage, conversion losses, the manufacturer’s wattage limits, and any expressly permitted oversizing determine the final choice.
Some controllers can limit excess available power. Others have stricter array restrictions. Never assume that power limiting also protects the controller from excessive voltage or an unacceptable array current.
5. The installation and connection details
Check maximum wire size, mounting clearances, environmental protection, monitoring requirements, and the battery connection sequence. A controller mounted inside a dry compartment and one exposed to rain are different buying decisions.
I’d write these five checks beside the product name before ordering. That simple habit is more useful than choosing whichever amp rating looks largest.
Five controller options I would put on the shortlist
These cover different needs across four brands in our catalog. They are candidates to match to your system, not interchangeable replacements.
| Controller | Where I would consider it | A detail to check |
|---|---|---|
| Renogy Wanderer 10A PWM | A small, appropriately matched 12V or 24V charging setup. | The manual specifies a maximum 12 AWG terminal size. Larger 10 AWG wire will not meet that terminal specification. |
| RICH SOLAR BRAVO LEGEND 30 PWM | A matched-panel PWM system needing more current capacity than the Wanderer. | Use the RS-PWM30P specifications; its 30A rating does not give it MPPT voltage conversion. |
| Renogy Rover Li 20A MPPT | A modest MPPT array, including the 200W planning example below. | The manual lists 260W at 12V, 520W at 24V, and a 100V maximum solar Voc. |
| BougeRV Sunflow MPPT, 40A version | A system where a display and built-in Bluetooth monitoring are useful. | Select the 40A variant deliberately. The product family includes other current ratings with different limits. |
| Victron SmartSolar MPPT 100/50 | A larger or planned-to-expand 12V/24V array. | “100/50” means a 100V maximum PV Voc and 50A rated charging output. Its published nominal PV power is 700W at 12V and 1,400W at 24V. |
The Wanderer manual and Victron’s model specifications illustrate why the details matter. Similar-looking terminals and similar product names can conceal very different limits.
The cables you actually need
This is the part I wouldn’t leave until the controller arrives. Follow the electrical path and account for both the positive and negative conductors at every connection.
Two labels will help while you shop: PV means photovoltaic, so a PV cable is a solar cable. AWG describes wire thickness. A lower number means thicker wire: 8 AWG is thicker than 10 AWG, which is thicker than 12 AWG. Thickness still needs to suit the circuit and fit the terminals.
Panel-to-controller cables
For panels with locking solar connectors and a controller with screw terminals, you typically need a positive/negative cable pair with compatible solar connectors at the panel end and properly prepared wire ends at the controller.
That is the purpose of the RICH SOLAR 10 AWG panel-to-controller cable pair. Select the length for the actual route, allowing for secure routing and strain relief. Don’t confuse it with an extension cable that has solar connectors at both ends.
For a controller limited to 12 AWG, such as the Wanderer 10A, a 12 AWG panel-to-controller pair is the appropriate size category to evaluate instead. Never trim strands off a thicker conductor to force it into a terminal.
Connector shape alone doesn’t establish compatibility. Verify the connector family and manufacturer-approved mating combination, electrical ratings, and polarity. “Solar connector” and “MC4-compatible” should not be treated as universal permission to mix connectors. Stäubli’s connector guidance specifically explains why mixing connector brands is a problem.
Controller-to-battery cables
These need to carry the controller’s battery-side current. Typically, the controller end is prepared for its screw terminal, while the other end uses a ring terminal sized for the battery, busbar, or fuse-holder stud.
Our RICH SOLAR controller-to-battery cable pairs are available in 8 AWG and 10 AWG. Those are options to size for a particular circuit; neither is automatically right for every controller.
Measure the entire route. Voltage-drop calculations include the outgoing and return conductors. Keep the controller reasonably close to the battery while meeting ventilation and mounting requirements.
The fuse connection people forget
A separate battery fuse holder creates another connection. You may need a short positive jumper with a ring terminal at each end: one for the battery positive stud and one for the fuse holder.
The main positive controller cable then connects to the other side of the holder. Check both stud sizes, cable ampacity, and the holder’s ratings. A package containing two main battery leads does not necessarily contain that extra jumper.
The battery fuse belongs close to the battery positive connection, protecting the outgoing cable. Select a DC-rated fuse and holder with suitable current, voltage, and fault-interruption ratings for the battery bank. A solar connector fuse is a different product; don’t substitute it just because the amp number matches.
Branch connectors, disconnects, and roof-entry hardware
Parallel branches combine panel currents. Series connections normally join one panel’s positive lead to the next panel’s negative lead. They need different hardware.
If your approved design uses parallel branches, consider the appropriate RICH SOLAR two-to-one branch connectors after checking connector compatibility, current, and string protection. You don’t add these to a simple series string.
Also account for a properly rated PV disconnect, any required string fuses, cable clips, strain relief, and a suitable weatherproof cable entry for roof installations. Solar plug connectors are not switches to unplug under load.
A 200W MPPT example—with the connection list
Let’s make this concrete. Imagine you have a 12V house battery that permits up to 20A of solar charging, suitable charging settings, and a protected indoor mounting location for the controller. Your final battery model and installation still determine terminal sizes and protection details.
For the solar side, we’ll use two matching RICH SOLAR MEGA 100 panels in series with a Renogy Rover Li 20A MPPT. This is a charging-circuit planning example; appliances and an inverter would have their own separately designed circuits.
The MEGA 100 datasheet lists each panel at 100W, 18.6V operating voltage, 5.38A operating current, 22.8V Voc, and 5.78A Isc. It gives a maximum series-fuse rating of 10A.
Two in series therefore give 200W of rated panel capacity, 37.2V operating voltage, and 45.6V Voc at standard test conditions. String current remains approximately that of one panel.
Using the published Voc temperature coefficient of −0.28% per degree Celsius, an illustrative −10°C cell temperature raises calculated string Voc to about 50.1V. That is below this Rover’s 100V maximum. Use your site’s actual design minimum temperature, panel tolerances, and applicable sizing requirements for the final check.
The 200W array also fits within the Rover 20A’s published 260W limit for a 12V battery system. Its model-family manual covers the voltage limits, accepted cable sizes, connection sequence, and recommended fuses.
Here is the connection list I’d use to keep the shopping and installation plan organized:
- Two matching panels: select two MEGA 100 panels of the same electrical version. Their attached leads provide the panel connections. Secure the panels with mounting hardware suitable for the location.
- One series connection: connect the approved mating lead pair between the panels. If the attached leads cannot reach safely, add a correctly matched PV extension for that link. This layout needs no parallel Y branches.
- PV cable pairs: the RICH SOLAR 10 AWG pair, SKU RS-10101, provides 10-foot positive and negative leads from the array toward a screw-terminal PV disconnect. Add a short positive/negative 10 AWG pair, with prepared wire ends, from that disconnect to the controller. Keep the total one-way PV route within approximately 12 feet for this example. The Rover 20A accepts 10 AWG; the disconnect must also accept the selected conductors and their terminations.
- PV protection and isolation: a 10A RICH SOLAR inline PV fuse is the value to evaluate for this single string. Applying the Rover manual’s 1.56 factor to 5.78A gives about 9.02A; 10A also respects the panel’s maximum series-fuse rating. Verify mating connectors and add a suitable DC PV disconnect. A larger battery fuse does not replace this PV-side check.
- One Rover Li 20A controller: set the system voltage and charging profile to the actual battery. Battery wiring is established before solar input in the manufacturer’s installation sequence.
- One positive/negative battery cable pair: the RICH SOLAR 8 AWG pair, SKU RS-810, provides prepared controller ends and ring terminals. The Rover 20A accepts 8 AWG. Plan a short route, verify the cable’s current rating for its installed conditions, and confirm the ring holes fit the actual battery and fuse-holder studs.
- Battery fuse, holder, and short positive jumper: the Rover 20A manual recommends a 25–30A battery fuse. A 30A value is an option only with suitable cable protection and battery fault ratings. The RICH SOLAR ANL fuse-holder range includes a 30A version; confirm its complete ratings for the chosen battery. Add a short 8 AWG ring-to-ring positive jumper with matching studs. A matching short jumper may need to be sourced or professionally made separately.
- Installation hardware: include insulated terminal covers, secure cable supports, any roof gland and sealant approved for that roof, and the bonding hardware required by the equipment instructions and installation. Put the controller in its specified dry, ventilated location.
What is included? The panels have attached leads, and the linked cable products are sold as pairs. The Rover manual lists a temperature sensor and controller mounting brackets in its package; use the sensor according to the instructions for your battery chemistry. Treat the main cable pairs, short disconnect-to-controller pair, external protection, disconnect, extra battery jumper, and panel mounting hardware as separate purchases unless your chosen bundle explicitly lists them.
This list makes the remaining decisions visible. Before ordering, settle the battery model, ring sizes, exact cable route, connector mating, and protection ratings. Those details are what turn a sensible example into a complete installation for your RV.
What changes if you choose PWM instead?
I wouldn’t take that two-panel series example and simply swap in a PWM controller. The reason for choosing series there was to let MPPT convert a higher array voltage into 12V-battery charging.
For a typical matched 12V PWM arrangement using multiple nominal-12V panels, you would instead evaluate parallel wiring. That changes the branch hardware, combined current, fuse assessment, and cable sizing. Check the particular controller’s permitted configuration before buying anything.
A small PWM setup still needs properly sized panel cables, battery cables, protection, and any fuse jumper. The fact that the controller costs less doesn’t remove those parts.
That’s why I would choose the panel arrangement and controller together. It is much easier than buying one first and trying to make the rest fit around it.
A few questions I’d expect before you order
Is MPPT worth it with only a 100W panel?
It can be, particularly if every bit of available charging matters or you plan to expand. But a well-matched PWM system can also meet a small energy need. Consider the panel’s voltage, climate, cable route, battery charging needs, and complete installed cost. Wattage alone doesn’t settle it.
Can PWM charge a lithium battery?
Yes, if that controller supports the battery’s required settings and protections. Check the exact battery and controller manuals. A lithium menu option is a starting point, not proof that every preset suits every lithium battery.
Can I use an MPPT controller and a PWM controller together?
Separate controllers can sometimes charge the same battery bank from separate arrays. Their charging settings, combined current, wiring, and protection must suit that bank. Don’t connect their outputs together casually, share an array between them, or place one controller behind the other as an assumed upgrade.
Does MPPT solve shade?
No controller replaces missing sunlight. MPPT can improve how available panel power is used, but shading and array design still matter. Before replacing equipment, check panel placement and obstructions. That may solve more than changing the controller.
Can I run an inverter from the controller’s load terminals?
Do not assume those terminals are an inverter connection. They have model-specific current and operating limits. An inverter normally needs its own correctly sized battery or busbar circuit and protection, following its manual.
How I’d make the final decision with you
If you’re building a regularly used RV or cabin system, I’d usually begin with MPPT, choose the panel arrangement, and size the complete charging circuit around your battery.
If you have a small, suitably matched system and PWM already meets your needs, I wouldn’t replace it just to tick a technology box. I’d spend where the system actually needs improvement.
Either way, I’d want you to leave with more than a controller name. You should know which panels it accepts, which battery settings it needs, what connects at each terminal, and which pieces still need to go in your cart. That’s how we get from confusing specifications to solar charging you can actually plan around.
