Rich Solar ALPHA 2 LITE | 12V 200Ah LiFePO4 Battery | Best 12V Deep Cycle Lithium Battery for RVs, Trailers, Vans, Boats, Off-Grid | 4,000 Lifetime Cycles | Best Value
Frequently Bought Together

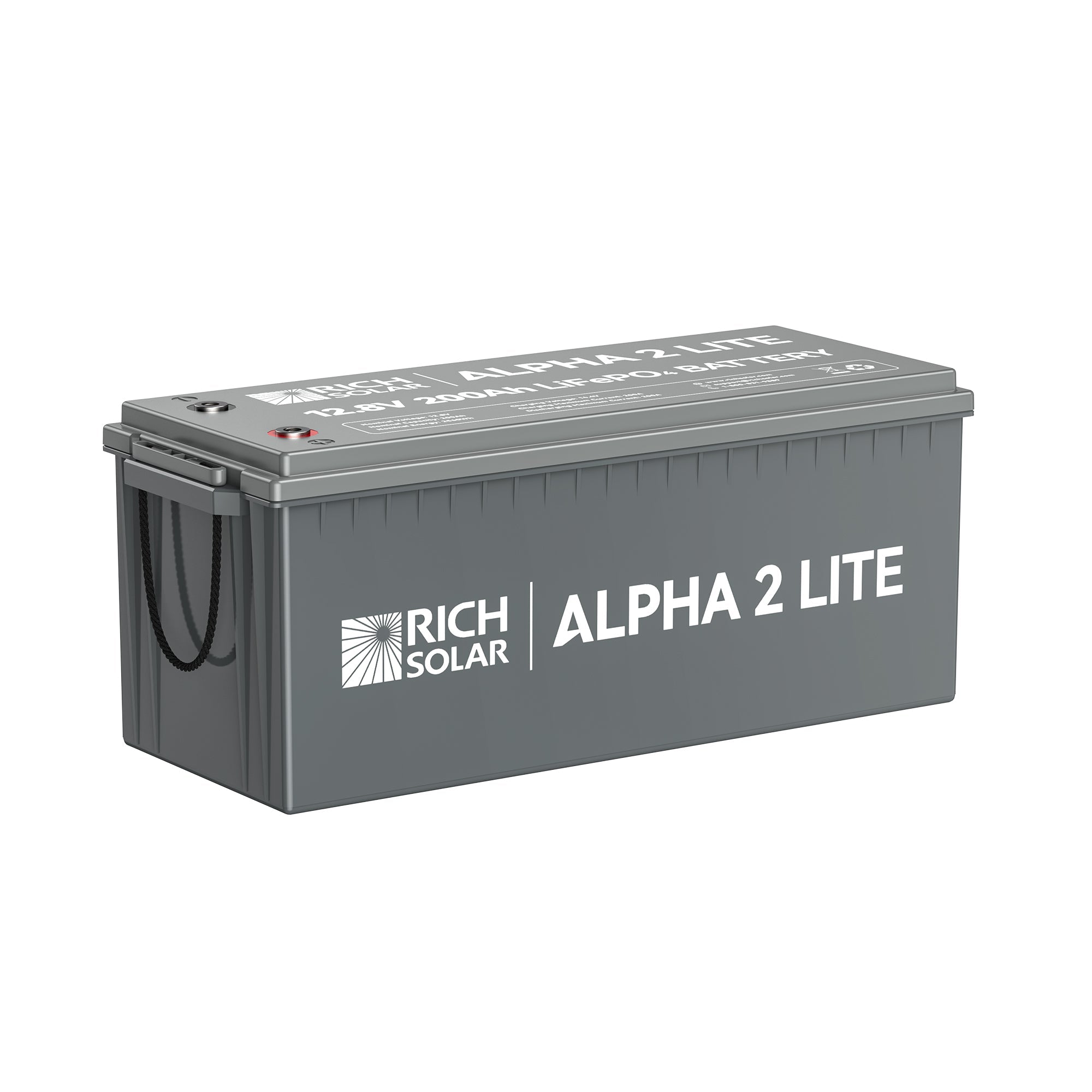

Rich Solar ALPHA 2 LITE 12V 200Ah LiFePO4 Battery
The Rich Solar ALPHA 2 LITE is a value-focused 12V 200Ah lithium iron phosphate battery built for RVs, trailers, vans, boats, cabins, camping setups, and off-grid solar systems. With 2560Wh of usable energy, 4,000 lifetime cycles, durable LiFePO4 cell construction, BMS protection, and a compact 52.9 lb design, it gives 12V power systems a dependable lithium upgrade without overcomplicating the build.
Product Overview
The ALPHA 2 LITE is designed for customers who want a practical 12V lithium battery with strong storage capacity and dependable protection, without paying for extra premium features they may not need. It is a strong fit for RV solar battery banks, camper vans, travel trailers, boats, small cabins, sheds, and backup energy storage setups.
Compared with traditional lead-acid batteries, LiFePO4 chemistry offers longer service life, more usable energy, lower maintenance, and a lighter footprint. The ALPHA 2 LITE keeps the setup simple while delivering enough storage for serious mobile, marine, and off-grid power needs.
Built for RV, Marine, Cabin, and Off-Grid Power
The ALPHA 2 LITE gives 12V power systems a strong lithium storage upgrade with the capacity and protection needed for real travel, backup, and off-grid use. It works well for customers who want reliable battery storage for solar charging, lighting, electronics, DC loads, and inverter-supported essentials.
Key Features That Matter
The ALPHA 2 LITE keeps the focus on the features customers actually care about when choosing a 12V lithium battery: longer battery life, safer operation, usable capacity, compact sizing, and dependable LiFePO4 performance.
Built for 4,000 lifetime cycles, the ALPHA 2 LITE is designed to maintain consistent performance through years of regular use. That makes it a smart upgrade for customers who want longer-lasting storage than traditional lead-acid batteries.
The ALPHA 2 LITE is designed for real-world mobile and off-grid conditions. Low-temperature and overheat safety support helps make it practical for RV compartments, trailers, cabins, and seasonal power systems.
The built-in battery management system helps protect against overcharge, over-discharge, over-current, short-circuit conditions, and high or low temperature issues. That added protection is important for solar, mobile, marine, and backup power systems.
At 52.9 lb with a compact 20.9 x 8.1 x 8.5 in footprint, the ALPHA 2 LITE is easier to place in RV compartments, trailers, boats, and small off-grid setups while still delivering 2560Wh of lithium storage.
Best Uses
- RV solar battery banks
- Camper vans and travel trailers
- Boat and marine electrical systems
- Cabins, sheds, and tiny home power setups
- Camping, boondocking, and mobile power systems
- Off-grid solar energy storage
- Backup power for essential 12V loads
- Lead-acid battery replacement projects
Key Benefits
- 12V 200Ah LiFePO4 lithium battery
- 2560Wh deep cycle energy storage
- 4,000 lifetime cycles
- Individually fused LiFePO4 cells
- Excessive heat protection
- Short-circuit protection
- Individual cell failure protection
- Reliable BMS system protection
- Compact 20.9 x 8.1 x 8.5 in footprint
- Lightweight 52.9 lb design
- Strong value lithium upgrade for RV, van, boat, cabin, and off-grid systems
| Specifications | |
| Model SKU | RS-B12200 |
|---|---|
| Battery Type | LFP Battery |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah |
| Minimum Capacity | 199Ah |
| Nominal Energy | 2,560Wh |
| Charging Voltage | 14.4V |
| Discharging Cutoff Voltage | 11.2V |
| Standard Charging Current | 100A |
| Maximum Charging Current | 200A |
| Standard Discharge Current | 100A |
| Continuous Discharge Current | 200A |
| Maximum Discharge Current | 200A |
| Shell Material | Plastic Shell |
| Weight | About 52.9 lbs / 24.0kg |
| Initial AC (1000Hz) Internal Resistance | ≤50mΩ (New Battery within 3 Months) |
| Monthly Self-Discharge Rate | ≤5% |
| Overall Dimensions | 20.9 x 8.1 x 8.5 in |
| Cycle Life (25°C ± 2°C) | ≥4,000 |
| Discharge Temperature | -4°F to 140°F / -20°C to 60°C (Cell Surface Should Not Exceed 60°C) |
| Storage Temperature | -22°F to 131°F / -30°C to 55°C, 90% RH Max (Less than 1 Month); 14°F to 113°F / -10°C to 45°C, 90% RH Max (More than 3 Months) |
| Recommended Storage Temperature | 14°F to 95°F / -10°C to 35°C, 85% RH Max |
| BMS Operation | |
| Typical Charging Current | 100A |
| Maximum Charging Current | 200A |
| Typical Discharge Current | 100A |
| Maximum Discharge Current | 200A |
| Maximum Charge Voltage (CC/CV) | 14.4V |
| Over Charge Protection Voltage (Cell) | 3.75V ± 0.03V |
| Over Charge Protection Delay Time | 1,000ms ± 500ms |
| Over Charge Protection Recovery Voltage (Cell) | 3.55V (Min 3.40V, Max 3.60V) |
| Over Discharge Protection Voltage (Cell) | 2.20V ± 0.08V |
| Over Discharge Protection Delay Time | 1,000ms ± 500ms |
| Over Discharge Protection Recovery Voltage (Cell) | 2.70V ± 0.10V |
| Over Discharge Protection Release Conditions | Disconnect Load or Charge Release |
| Primary Charge Overcurrent Protection Value | 560A ± 160A |
| First Stage Charge Overcurrent Delay | 1,000ms ± 500ms |
| Overcurrent Charge Release Conditions | Disconnect the Charger |
| Primary Discharge Overcurrent Protection Value | 2,800A ± 500A |
| Primary Discharge Overcurrent Protection Delay | 10ms ± 5ms |
| Secondary Discharge Overcurrent Protection Current Value | 5,600A ± 1,000A |
| Secondary Discharge Overcurrent Protection Delay | 1,000μs ± 500μs |
| Overcurrent Discharge Release | Disconnect Load or Charge Release |
| Short Circuit Protection Value | 11,200A ± 2,000A |
| Short Circuit Protection Delay Time | 200μs to 800μs |
| Short Circuit Protection Recovery | Disconnect Load or Charge Release |
| Discharge High Temperature Protection Value | 167°F ± 9°F / 75°C ± 5°C |
| Discharge High Temperature Protection Release Value | 136.4°F ± 9°F / 58°C ± 5°C |
| Charging High Temperature Protection Value | 129.2°F ± 9°F / 54°C ± 5°C |
| Charging High Temperature Protection Release Value | 120.2°F ± 9°F / 49°C ± 5°C |
| Charging Low Temperature Protection Value | 28.4°F ± 9°F / -2°C ± 5°C |
| Charging Low Temperature Protection Release Value | 37.4°F ± 9°F / 3°C ± 5°C |
| FET (Built-In) High Temperature Protection Value | 179.6°F to 208.4°F / 82°C to 98°C |
| FET (Built-In) High Temperature Protection Release Value | 122°F to 176°F / 50°C to 80°C |
| Equalizing Opening Voltage | 3.50V ± 0.05V |
| Min Balance Current | 150mA |
| Max Balance Current | 250mA |
| Operation Temperature | -4°F to 167°F / -20°C to 75°C |
| Storage Temperature | 23°F to 104°F / -5°C to 40°C (Humidity Below 70%, Time ≤ 1 Year) |
