Rich Solar • 30A MPPT • Auto 12V/24V • Bluetooth

BRAVO 30 — 30 Amp MPPT Solar Charge Controller

The BRAVO 30 is an MPPT solar charge controller with up to 99.5% tracking efficiency and 98% conversion efficiency. It auto-detects 12V/24V systems, supports 8 + 1 battery types, and includes an LCD + LED display with built-in Bluetooth for app monitoring via the Rich Solar App.

30A MPPT, Auto 12V/24V 8V–100V Solar Input Range Up to 99.5% MPPT Tracking Efficiency Built-In Bluetooth LCD + LED Display ETL / FCC / CE / RoHS Certified
Rich Solar BRAVO 30 amp MPPT solar charge controller
GEL
AGM
WET
Crystal
Calcium
LiFePO4
LTO
LCO
Custom
⚡

Advanced MPPT Technology

Up to 99.5% tracking efficiency and 98% conversion efficiency, with stable operation under low-light or partial shading conditions.

🔋

Flexible Battery Compatibility

Auto-detects 12V/24V systems and supports 8 + 1 battery types, including GEL, AGM, WET, Crystal, Calcium, LiFePO4, LTO, LCO, and Custom, with a multi-stage charging algorithm and customizable parameters.

📱

Intelligent Monitoring

LCD + LED display for real-time solar input, battery status, and customizable parameters, plus built-in Bluetooth for app monitoring via the Rich Solar App.

Product Overview

The BRAVO 30 is a 30A MPPT solar charge controller using an advanced MPPT algorithm rated up to 99.5% tracking efficiency and 98% conversion efficiency, with stable operation under low-light or partial shading conditions. Maximum solar input current and maximum charging current are both 30A, with a recommended solar power of 500W at 12V or 1000W at 24V. The solar input voltage range is 8V–100V, with an MPPT voltage range of 15V–72V.

The controller auto-detects 12V/24V systems and supports 8 + 1 battery types: GEL, AGM, WET, Crystal, Calcium, LiFePO4, LTO, LCO, and Custom. A multi-stage charging algorithm with customizable parameters is included. Protection covers over-voltage, reverse polarity, short-circuit, and over-temperature conditions. The build is rated IP43 for the PCBA and IP22 for the connectors, and is certified to ETL, FCC, CE, and RoHS.

Monitoring is handled through an LCD + LED display showing real-time solar input, battery status, and customizable parameters, alongside built-in Bluetooth for app monitoring through the Rich Solar App. An optional remote meter and temperature sensor are available for enhanced control. Net weight is 1.8 lb, with dimensions of 7.0 × 5.5 × 2.9 in.

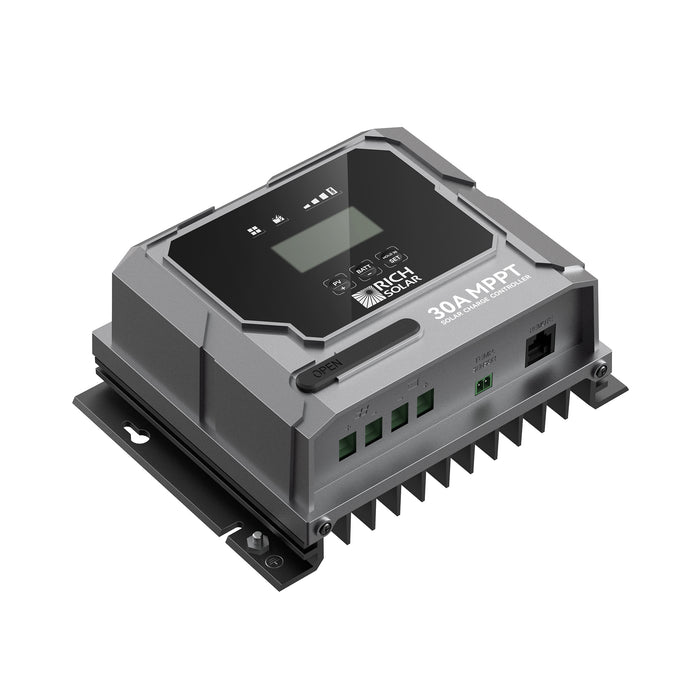

Rich Solar BRAVO 30 MPPT tracking efficiency

Advanced MPPT Technology

  • Up to 99.5% Tracking Efficiency.
  • 98% Conversion Efficiency.
  • Stable Operation Under Low-Light or Partial Shading Conditions.

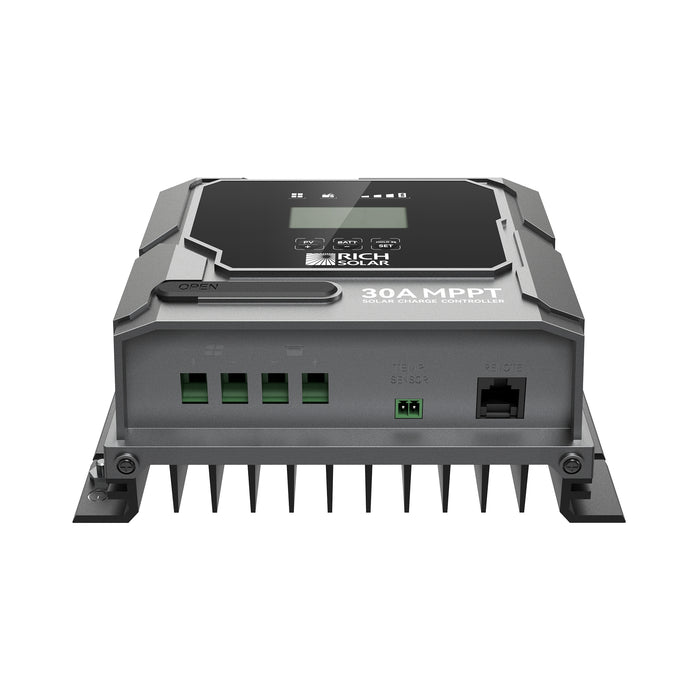

Rich Solar BRAVO 30 flexible battery compatibility

Flexible Battery Compatibility

  • Auto-Detects 12V/24V Systems.
  • 8 + 1 Battery Types: GEL, AGM, WET, Crystal, Calcium, LiFePO4, LTO, LCO, Custom.
  • Multi-Stage Charging Algorithm: Customizable parameters to help extend battery lifespan.

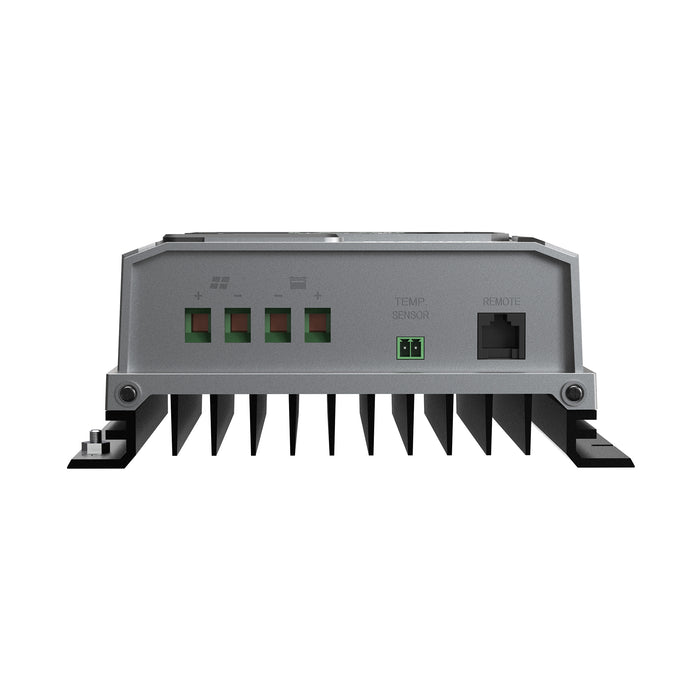

Rich Solar BRAVO 30 advanced protection system

Advanced Protection System

  • Multiple Safety Protections: Over-voltage, reverse polarity, short-circuit, over-temperature.
  • Weather-Resistant Build: IP43-rated PCBA and IP22 connectors.
  • Certified to ETL, FCC, CE, RoHS.

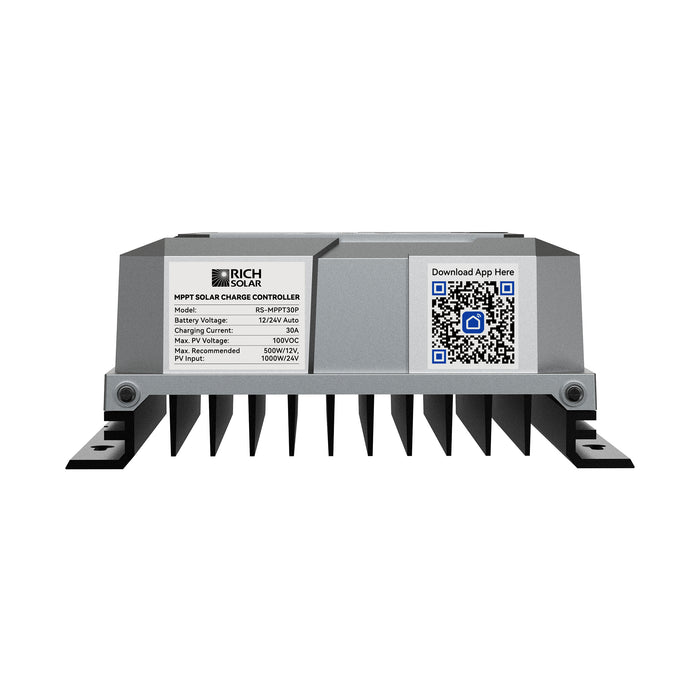

Rich Solar BRAVO 30 intelligent monitoring LCD LED Bluetooth

Intelligent Monitoring System

  • LCD + LED Display: Real-time solar input, battery status, customizable parameters.
  • Built-In Bluetooth: App monitoring via the Rich Solar App.
  • Optional Remote Meter and Temperature Sensor.

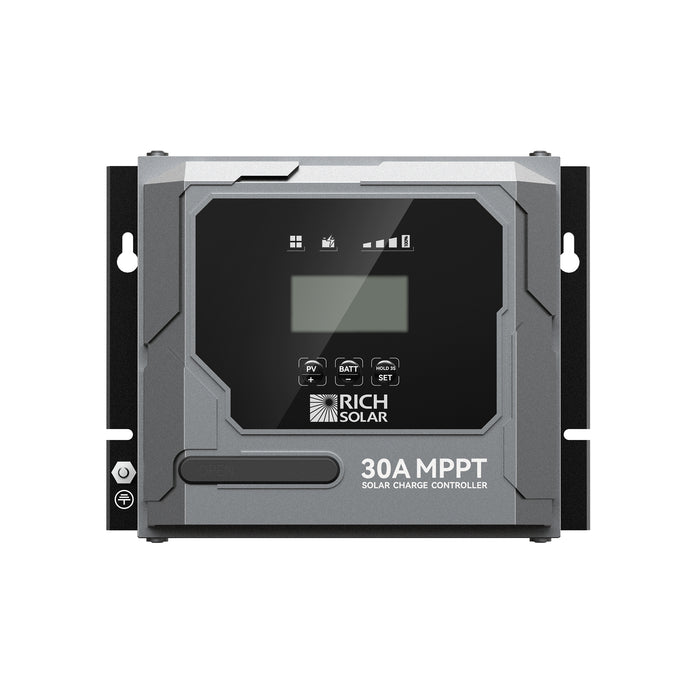

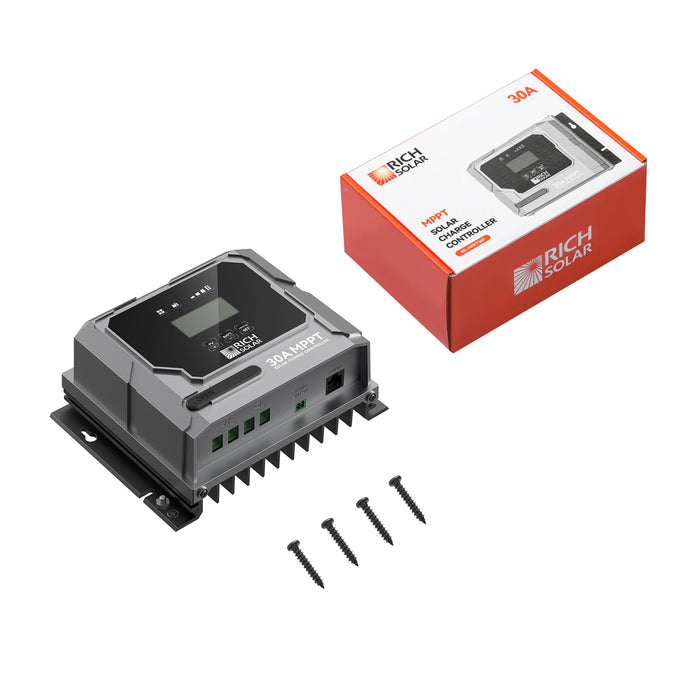

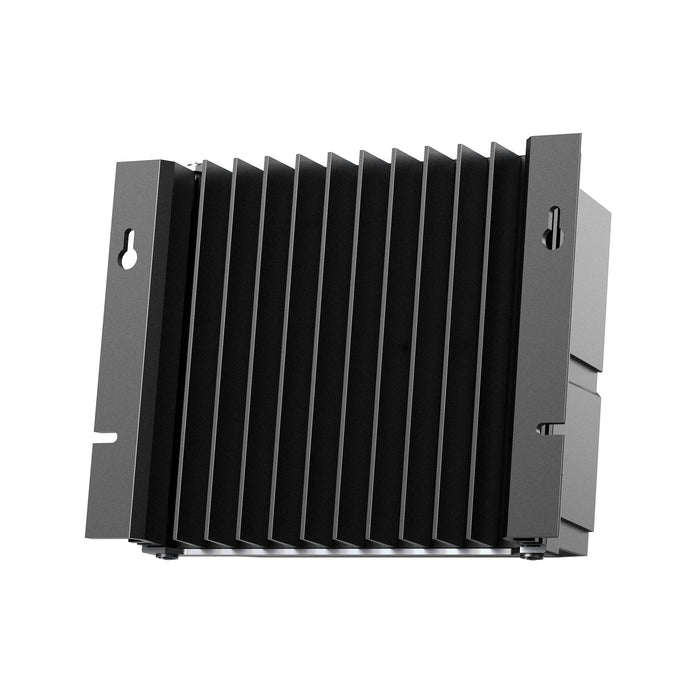

Rich Solar BRAVO 30 front panel detail Rich Solar BRAVO 30 terminal block detail Rich Solar BRAVO 30 full unit view

Full Specifications

SKU RS-MPPT30PB
Maximum Solar Input Current 30A
Maximum Charging Current 30A
Recommended Solar Power 500W (12V) / 1000W (24V)
Nominal System Voltage 12V/24V Auto-Detect
Solar Input Voltage Range 8V–100V
MPPT Voltage Range 15V–72V
Maximum Conversion Efficiency 98%
Maximum MPPT Tracking Efficiency 99.5%
Battery Compatibility GEL, AGM, WET, Crystal, Calcium, LiFePO4, LTO, LCO, Custom
Connectivity Built-In Bluetooth (Optional Remote Meter & Temperature Sensor)
Protection Rating IP43 PCBA, IP22 Connection
Net Weight 1.8 lb
Dimensions (L×W×H) 7.0 × 5.5 × 2.9 in
Certifications ETL, FCC, CE, RoHS

Best Uses

  • RVs, trailers, campers, vans, and boats
  • Off-grid 12V or 24V systems
  • Setups using LiFePO4, LTO, or other lithium battery chemistries
  • Installations wanting app-based monitoring via Bluetooth

Key Benefits

  • 30A MPPT with up to 99.5% tracking and 98% conversion efficiency
  • 8V–100V solar input range
  • 9 battery type presets including Custom
  • Built-in Bluetooth with LCD + LED display
  • ETL, FCC, CE, RoHS certified
Compatibility note: Size your panel array to the recommended 500W (12V) or 1000W (24V) solar power. The protection rating is IP43 for the PCBA and IP22 for the connection area. An external remote meter and temperature sensor are available separately as optional accessories.

Size the charging system

Use our solar charge controller sizing guide to compare controller current and voltage limits. The MPPT versus PWM guide explains how MPPT and PWM designs differ.

Compare before you choose

Compare charge current, cold-corrected PV voltage and array-current limits against the battery system.

See the Rich Solar 30 Amp MPPT Solar Charge Controller for another RICH SOLAR charge controller option.

Rich Solar BRAVO 30 | 30 Amp MPPT Solar Charge Controller
Package Includes
1x Rich Solar BRAVO 30 | 30 Amp MPPT Solar Charge Controller
Includes the selected item based on the current package option.
Specifications
Selected variant SKU RS-MPPT30P
Maximum Solar Input Current 30A
Maximum Charging Current 30A
Recommended Solar Power 500W (12V) / 1000W (24V)
Nominal System Voltage 12V/24V Auto-Detect
Solar Input Voltage Range 8V-100V
MPPT Voltage Range 15V-72V
Maximum Conversion Efficiency 98%
Maximum MPPT Tracking Efficiency 99.5%
Battery Compatibility GEL, AGM, WET. CRYSTAL, CALCIUM, LiFePO., LTO, LCO, Custom
Connectivity Built-in Bluetooth (Optional Remote Meter & Temperature Sensor)
Protection Rating IP43 PCBA, IP22 Connection
Net Weight 1.8 lb
Dimensions (LxWxH) 7.0 x 5.5 x 2.9 in
📘
User Manual
Installation instructions, setup guidance, operation, and troubleshooting.
View PDF
📄
Specification Sheet
Product documentation and manufacturer terms.
View PDF

Frequently Asked Questions

Clear answers to common questions about this product, setup, compatibility, and use.

What size array can I pair with the BRAVO 30 on a 12V or 24V bank? RICH SOLAR recommends up to 500W of panels on a 12V bank or 1,000W on a 24V bank. Array approval still requires checking the exact series-parallel voltage and current against the controller's electrical limits; the wattage recommendation by itself does not prove that a proposed string is safe. Why does the BRAVO 30 list both an 8-100V solar-input range and a 15-72V MPPT range? The broader 8-100V figure describes the published solar-input limits, while 15-72V is the range in which the MPPT stage is specified to track the array. A panel layout should therefore be designed around the MPPT operating window while also remaining below the 100V input ceiling, rather than using either number in isolation. Is phone monitoring built into the BRAVO 30, and what accessories are still optional? Bluetooth is built into model RS-MPPT30PB for monitoring through the RICH SOLAR app. The remote meter and external battery-temperature sensor are listed as optional accessories, so do not assume either one is in the standard controller box unless the selected offer explicitly includes it. Can the BRAVO 30 be tuned for a battery that does not match a standard preset? Yes. In addition to GEL, AGM, flooded/WET, CRYSTAL, CALCIUM, LiFePO4, LTO, and LCO profiles, the BRAVO 30 lists a Custom battery option with customizable charge parameters. Use the battery manufacturer's exact voltage and charging guidance rather than selecting a chemistry only because its name appears similar. Does a 30A BRAVO controller always deliver its full rated current? No. Both solar-input current and maximum charging current are rated at 30A, but real output changes with panel power, irradiance, array voltage, battery voltage, battery acceptance, temperature, wiring loss, and active loads. Treat 30A as a ceiling for system design, not a constant charging promise. Is the UL-certified BRAVO 30 also sealed against rain and spray? No. UL 1741 certification and weather sealing are separate issues. RICH SOLAR lists IP43 protection for the internal circuit-board area and IP22 at the connections, so the controller and especially its terminals still need a sheltered, dry mounting location with adequate ventilation.
