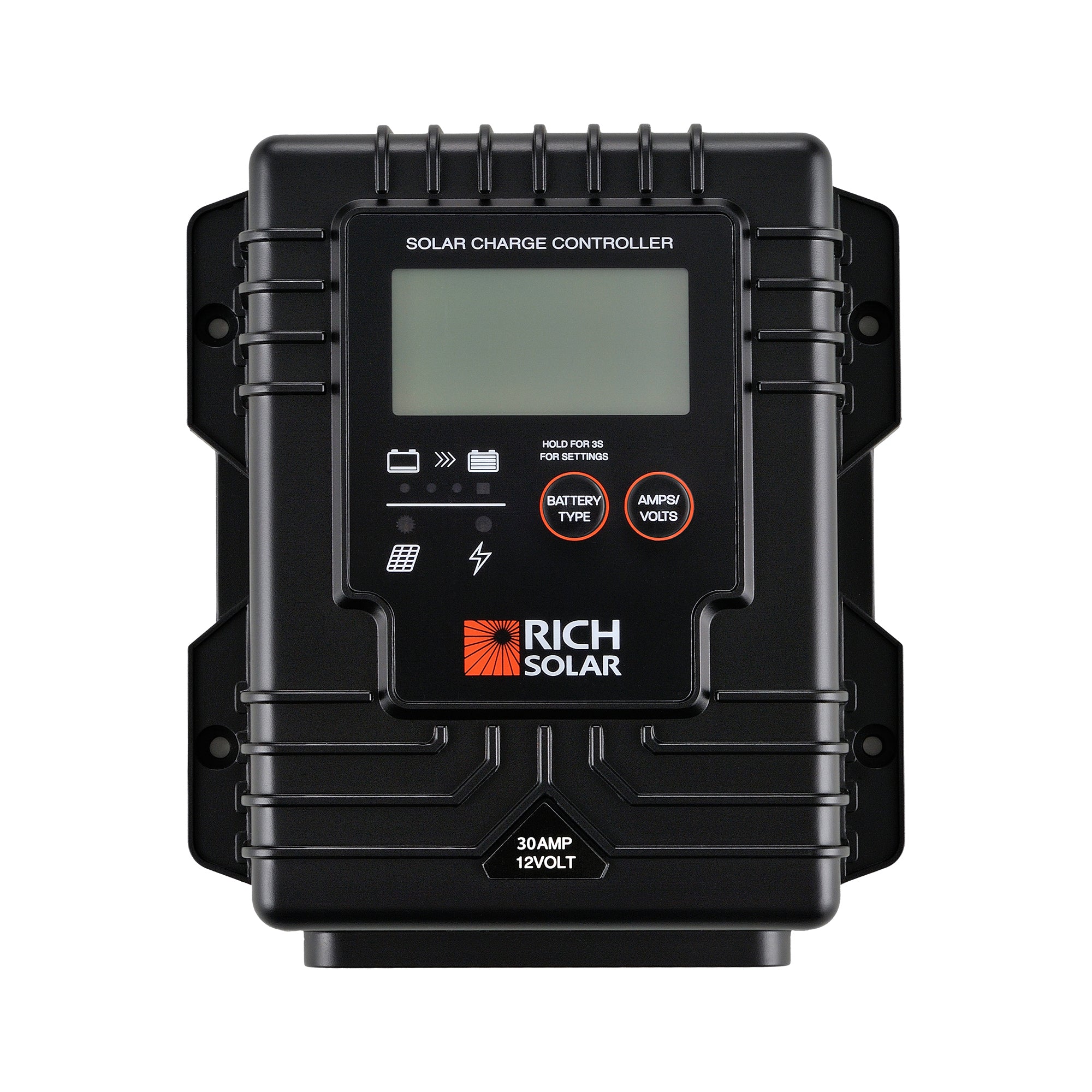

Rich Solar BRAVO Waterproof 30 | 30 Amp Waterproof PWM Solar Charge Controller | Waterproof 30A 12V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid Rich Solar BRAVO Waterproof 30 | 30 Amp Waterproof PWM Solar Charge Controller | Waterproof 30A 12V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid
SKU: RS-PWM30WP
- Minimum battery start charging voltage 3VDC
- Soft start charging voltage 3-10±0.2VDC
- Soft start charging current (50% PWM duty) Up to 15AMP
Add what you need.
Start with your product. Choose the extras that suit your setup.
BRAVO Waterproof 30 — 30 Amp PWM Waterproof Solar Charge Controller
The BRAVO Waterproof 30 is a fully waterproof 12V PWM charge controller rated for 30 amps of solar input, built for off-grid systems where moisture exposure rules out a standard indoor-only controller. With an IP65 rating, conformal-coated internal board, solid-duty cables, corrosion-resistant terminals, and DIP-switch battery type selection across Flooded, AGM, GEL, and Lithium (LiFePO4) chemistries, it handles meaningfully more panel wattage than the smaller BRAVO 8 while keeping the same exposed-installation durability.
30A Capacity, Built for Larger Single-Panel Arrays
Steps up from the BRAVO 8's small single-panel scale to handle meaningfully larger 12V arrays, with M5 terminals accepting up to #10AWG wire and a soft-start charging current of up to 15A to handle the higher current load without stressing the connected battery.

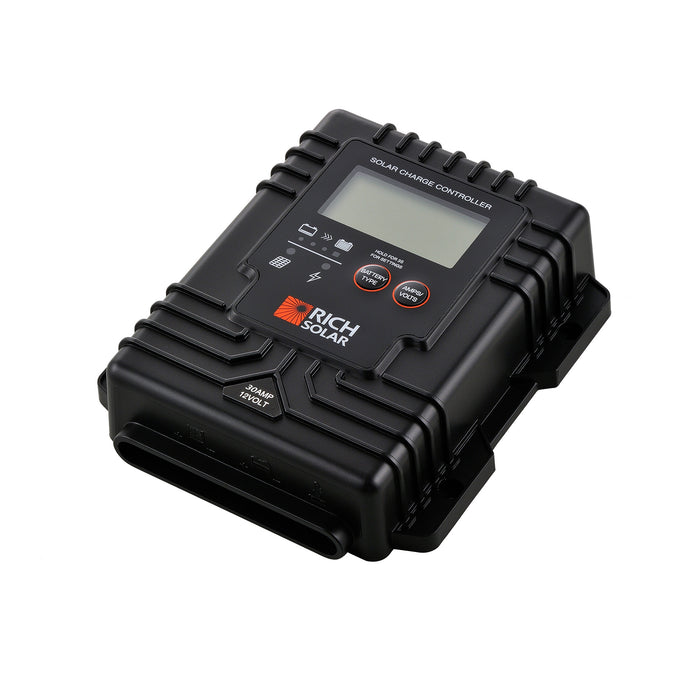

IP65 Waterproof, Solid-Duty Cables
Conformal coating protects the internal board against moisture, corrosion-resistant terminals hold up in damp environments, and solid-duty cables are built for the higher current this controller handles — all rated IP65 for genuinely exposed mounting locations.

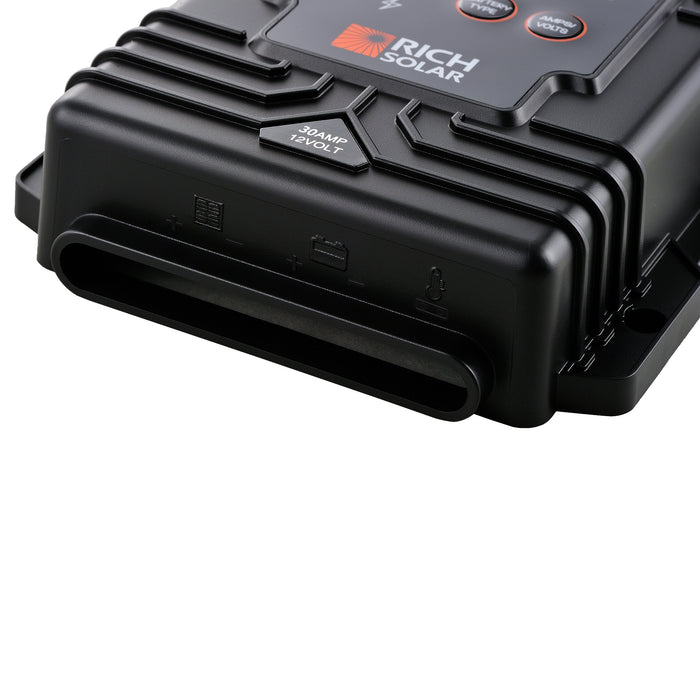

Optional External Battery Temperature Sensor Port
Unlike the smaller BRAVO 8, this controller includes a port for an optional external Battery Temperature Sensor (BTS) — adding the sensor lets the controller adjust charging voltage based on the battery's actual temperature rather than ambient conditions near the controller itself.
Product Overview
The BRAVO Waterproof 30 is a 12V PWM charge controller rated for 30 amps of solar input — the larger sibling to Rich Solar's BRAVO Waterproof 8, built around the same waterproof construction philosophy but scaled up for a meaningfully bigger single-panel or small multi-panel 12V array. Conformal coating on the internal board, corrosion-resistant terminals and connectors, and solid-duty cables combine for an IP65 rating, supporting genuinely exposed mounting on boats, RVs, and other mobile installations where a standard indoor-only controller wouldn't hold up.
Battery type — Flooded (WET), AGM, GEL, or Lithium (LiFePO4) — is set via a physical DIP switch, the same straightforward configuration approach used across Rich Solar's BRAVO line. The controller includes smart charging control, charging time management, and an equalization stage at 15.5V±0.2VDC with a 2-hour timeout. One feature that distinguishes the BRAVO 30 from the smaller BRAVO 8: a port for an optional external Battery Temperature Sensor (BTS), which, when added, gives the controller a direct read on the battery's actual temperature rather than relying solely on the onboard sensor near the controller — a more accurate basis for temperature-compensated charging, particularly when the battery is mounted some distance from the controller.

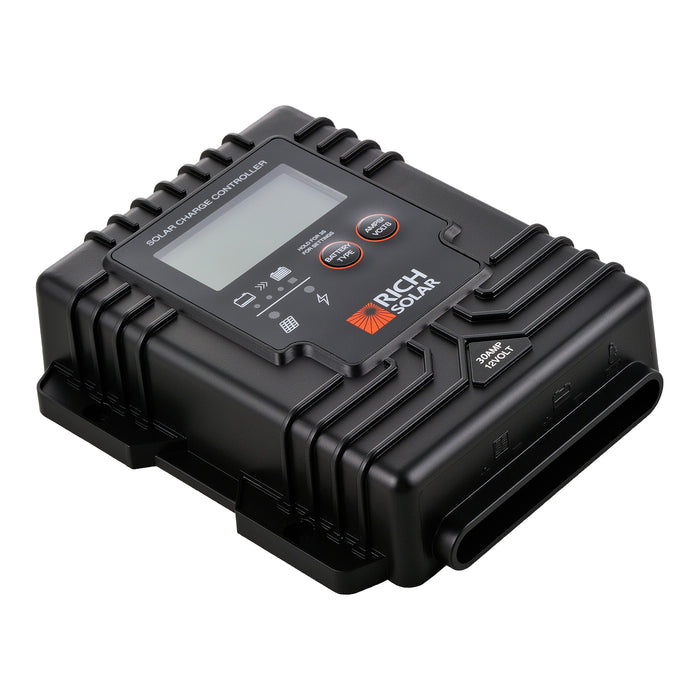

Protection circuitry covers overvoltage, short circuit, reverse polarity, and thermal conditions (engaging at 149°F), with a no-spark design relevant to fuel-adjacent installations like boat engine compartments. The controller mounts vertically using three included plastic spacers and self-tapping screws, accepts up to #10AWG stranded wire at its M5 terminals with a specified torque of up to 17 in-lb, and weighs approximately 0.66 lb.
Built to Handle Real Moisture Exposure at Higher Current
- IP65 Waterproof Rating: Protected against dust ingress and water jets, suitable for mounting in exposed locations rather than requiring a sealed enclosure.
- Conformal-Coated Internal Board: Protective coating applied directly to the circuit board guards against moisture-related corrosion and short circuits internally.
- Solid-Duty Cables: Built for the higher current this 30A controller handles, a step up from the lighter-duty wiring suited to the smaller BRAVO 8.
- Corrosion-Resistant Terminals and Connectors: Maintains reliable electrical connections even in damp or salt-air environments over time.
- No Sparks Design: A meaningful safety feature for installations near fuel sources, such as boat engine compartments or generator areas.
More Accurate Charging With an Optional Remote Sensor
- DIP Switch Battery Selection: Configure for Flooded (WET), AGM, GEL, or Lithium (LiFePO4) batteries with a simple physical switch.
- External BTS Port (Optional): Connect an optional external Battery Temperature Sensor for direct battery temperature readings rather than relying on the controller's onboard ambient sensing alone.
- Battery Temperature Compensation: Adjusts charging voltage by -24mV/°C across a -4°F to 122°F range — more accurate when paired with the optional BTS, especially if the battery is mounted away from the controller.
- Equalization Charging: 15.5V±0.2VDC (25°C) stage with a 2-hour timeout for periodic deep maintenance charging on flooded lead-acid batteries.
- 15A Soft-Start Charging Current: Handles the initial charging ramp-up at up to 15A (50% PWM duty) before reaching full charging current.
Protected Operation, Heavier-Duty Terminals
- Overvoltage, Short Circuit & Reverse Polarity Protection: Covers the most common fault conditions for a PWM controller in field use.
- Thermal Protection During Charging: Engages at 149°F to protect the controller and connected battery.

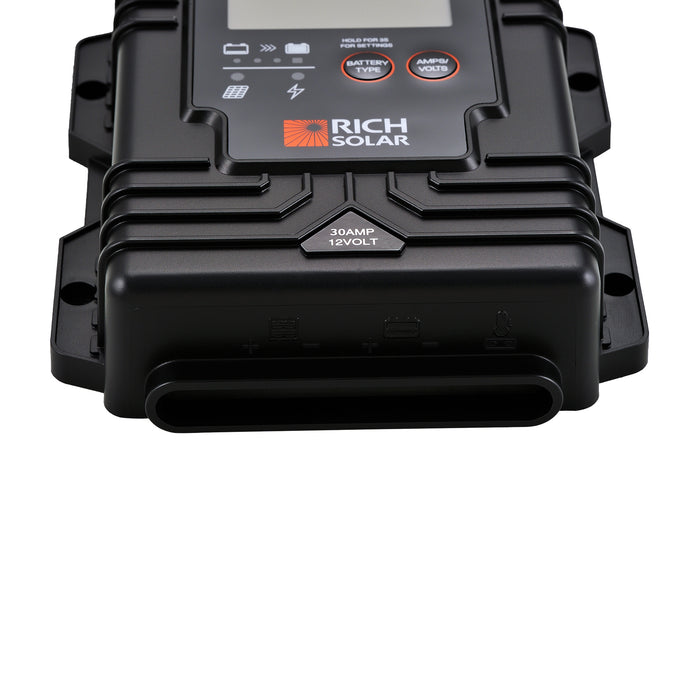

- M5 Terminals, Up to #10AWG Wire: Heavier-gauge terminal capacity than the BRAVO 8's M4/#12AWG terminals, matched to this controller's higher current rating.
- Specified Terminal Torque: Up to 17 in-lb (1.92 N·m) — follow this spec when wiring to ensure a secure, properly torqued connection.
- Vertical Wall Mounting: Mounts using three included plastic spacers and self-tapping screws — no additional mounting hardware needed.
Full Specifications
| SKU | RS-PWM30WP |
| Rated Solar Panel Current | 30A Max |
| Normal Input Array Voltage | 15–22VDC |
| Max Array Voltage (No Load) | 25VDC |
| Lowest Operating Voltage | 8VDC |
| Standby Draw (Night) | 5mA |
| Max Voltage Drop (Panel to Battery) | 0.25VDC |
| Soft-Start Current (50% PWM Duty) | Up to 15A |
| Equalization Voltage (25°C) | 15.5V ±0.2VDC |
| Equalization Timeout | 2 Hours |
| Temp Compensation | -24mV/°C, -4°F to 122°F range |
| Over-Temp Protection | 149°F |
| Terminal Type | M5, up to #10AWG |
| Terminal Torque | Up to 17 in-lb (1.92 N·m) |
| Housing Material | Standard ABS Plastic |
| IP Rating | IP65 |
| Weight | 0.66 lb (0.3kg) |
| Operating Temperature | -13°F to 122°F |
| Storage Temperature | -40°F to 185°F |
Best Uses
- Exposed marine and boat solar installations with larger arrays
- RV, trailer, and camper installations without a protected electrical bay
- Multi-panel 12V systems in humid or coastal climates
- Cabin and off-grid setups stepping up from a single small panel
- Installations wanting optional remote battery temperature sensing
- Setups requiring no-spark safety near fuel sources
Key Benefits
- IP65 waterproof with conformal-coated board and solid-duty cables
- 30A PWM charging with DIP switch battery type selection
- Optional external BTS port for more accurate temperature compensation
- Compatible with Flooded, AGM, GEL, and Lithium batteries
- Overvoltage, short circuit, reverse polarity, thermal protection
- Mounting hardware included; CE, EMC, FCC compliant
Size the charging system
Use our solar charge controller sizing guide to compare controller current and voltage limits. The MPPT versus PWM guide explains how MPPT and PWM designs differ.
Compare before you choose
Compare charge current, cold-corrected PV voltage and array-current limits against the battery system.
See the Rich Solar 30 Amp PWM Solar Charge Controller | 12V 30A PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated for another RICH SOLAR charge controller option.
| Specifications | |
| Selected variant SKU | RS-PWM30WP |
|---|---|
| Electrical Parameters | |
| Rated solar panel amps | Max. 30AMP |
| Normal input Solar cell array voltage | 15-22VDC |
| Max. solar cell array voltage (output has no load) | 25VDC |
| The controller's lowest operating voltage (at solar or battery side) | 8VDC |
| Standby current consumption at night | 5mA |
| Maximum voltage drop-Solar panel to battery | 0.25VDC |
| Charging Characteristics | |
| Minimum battery start charging voltage | 3VDC |
| Soft start charging voltage | 3-10±0.2VDC |
| Soft start charging current (50% PWM duty) | Up to 15AMP |
| Equalization charging voltage at 25 ℃ | 15.5±0.2VDC |
| Equalization charging timer timed out | 2 Hours |
| Battery temperature compensation coefficient | -24mV/°C |
| Temperature compensation range | -20~+50°C (-4°F to 122°F) |
| Protection | |
| Over temperature protection during charging | 65°C (149℉) |
| Electrical Parts | |
| Input-output terminal | M5 terminals |
| Physical Parameters | |
| Controller material | Plastic, Standard ABS |
| Power terminal maximum stranded wire size | #10AWG stranded-5mm² |
| Power Terminal Torque | Up to 17 in-lb (1.92N·m) |
| Mounting | Vertical wall mounting |
| IP grade | IP65 |
| Net weight | Approx. 0.3kg/0.66lb |
| Environmental Characteristics | |
| Operating temperature | -25~50°C(-13～122℉) |
| Storage temperature | -40~85°C(-40～185℉) |
| Operating Humidity range | 100% no condensation |
| Automatic BMS Activation | Reactivates protected lithium batteries automatically. |
| 12V Battery System | Designed for 12V battery systems. |
| Supports Multiple Battery Types | Compatible with Flooded (WET), AGM, GEL, Calcium, and lithium batteries. |
| 25V Max Solar Input Voltage | Supports solar panel configurations with up to 25V PV input. |
| Common Positive Grounding | Compatible with common positive grounding systems. |
| Grounding | Positive Ground |
| Package Dimensions | 7 × 6 × 3 in |
| Gross Weight | 1 lb |
