Rich Solar BRAVO Waterproof 10 | 10 Amp Waterproof PWM Solar Charge Controller Rich Solar BRAVO Waterproof 10 | 10 Amp Waterproof PWM Solar Charge Controller
SKU: RS-PWM10WP
- Minimum battery start charging voltage 3VDC
- Soft start charging voltage 3-10±0.2VDC
- Soft start charging current (50% PWM duty) Up to 5AMP
Add what you need.
Start with your product. Choose the extras that suit your setup.
BRAVO Waterproof 10 — 10 Amp PWM Waterproof Solar Charge Controller
The BRAVO Waterproof 10 is a 12V PWM charge controller rated for 10 amps of solar input, built with the same IP65-rated, conformal-coated, no-spark waterproof construction used across Rich Solar's BRAVO lineup. It includes an optional external Battery Temperature Sensor (BTS) port for more accurate temperature-compensated charging, and DIP-switch battery selection across Flooded, AGM, GEL, and Lithium (LiFePO4) chemistries — a solid step up from the entry-level BRAVO 8 for slightly larger single or dual-panel 12V systems.
10A Capacity, a Step Up From Single-Panel Scale
M5 terminals accepting up to #10AWG wire and a 5A soft-start charging current give this controller more headroom than the entry-level BRAVO 8 — a comfortable fit for a single larger panel or a small two-panel 12V array.

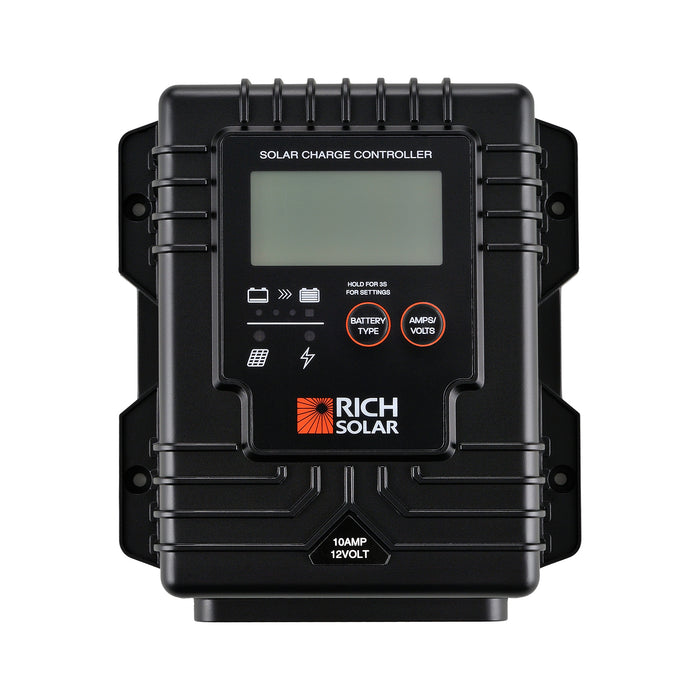

IP65 Waterproof, Solid-Duty Cables
Conformal coating protects the internal board against moisture, corrosion-resistant terminals hold up in damp environments, and solid-duty cables handle this controller's current load — all rated IP65 for genuinely exposed mounting.

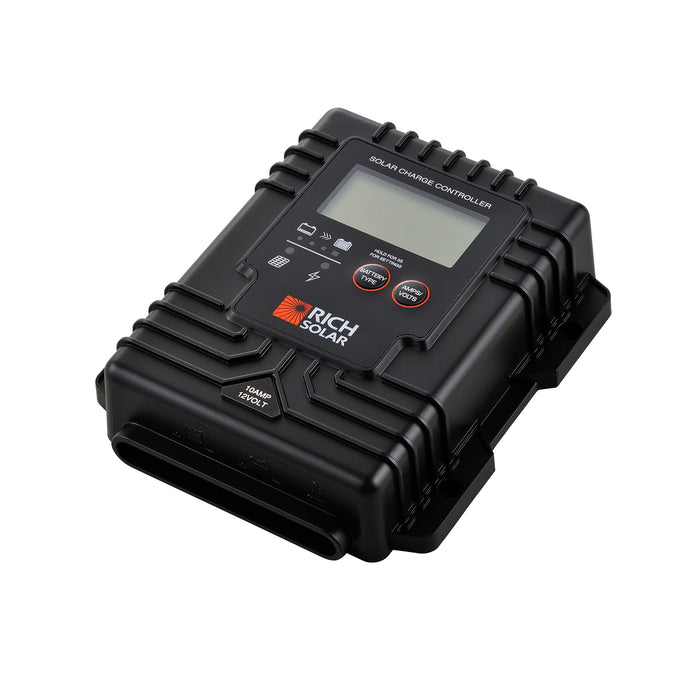

Optional External Battery Temperature Sensor Port
Includes a port for an optional external Battery Temperature Sensor (BTS) — adding the sensor gives the controller a direct read on the battery's actual temperature, rather than relying solely on onboard ambient sensing near the controller.
Product Overview
The BRAVO Waterproof 10 is a 12V PWM charge controller rated for 10 amps of solar input, sharing the same core waterproof construction found across Rich Solar's BRAVO line: conformal coating on the internal board, corrosion-resistant terminals and connectors, solid-duty cables, and an overall IP65 rating suited to genuinely exposed mounting on boats, RVs, and other mobile installations rather than requiring a sealed indoor enclosure.
Battery type — Flooded (WET), AGM, GEL, or Lithium (LiFePO4) — is set via a physical DIP switch. The controller includes a port for an optional external Battery Temperature Sensor (BTS), giving it a direct read on the battery's actual temperature when the sensor is added, rather than relying solely on ambient sensing near the controller itself. Smart charging control, charging time management, and an equalization stage at 15.5V±0.2VDC with a 2-hour timeout round out the charging features, alongside battery temperature compensation of -24mV/°C across a -4°F to 122°F range.
Physically, the BRAVO 10 uses the same M5 terminals and #10AWG wire capacity as the BRAVO 20 and BRAVO 30, rather than the smaller BRAVO 8's M4/#12AWG terminals — a meaningful upgrade in wiring headroom even at this lower current rating. The controller weighs approximately 0.66 lb, mounts vertically using three included plastic spacers and self-tapping screws, and includes protection against overvoltage, short circuit, reverse polarity, and thermal conditions (engaging at 149°F).
Built to Handle Real Moisture Exposure
- IP65 Waterproof Rating: Protected against dust ingress and water jets, suitable for mounting in exposed locations rather than requiring a sealed enclosure.
- Conformal-Coated Internal Board: Protective coating applied directly to the circuit board guards against moisture-related corrosion and short circuits internally.
- Solid-Duty Cables: Built for this controller's current load, matched to the wiring approach used across the BRAVO 20 and 30.
- Corrosion-Resistant Terminals and Connectors: Maintains reliable electrical connections even in damp or salt-air environments over time.
- No Sparks Design: A meaningful safety feature for installations near fuel sources, such as boat engine compartments or generator areas.
Configurable Charging With Optional Remote Sensing
- DIP Switch Battery Selection: Configure for Flooded (WET), AGM, GEL, or Lithium (LiFePO4) batteries with a simple physical switch.
- External BTS Port (Optional): Connect an optional external Battery Temperature Sensor for direct battery temperature readings rather than relying on the controller's onboard ambient sensing alone.
- Battery Temperature Compensation: Adjusts charging voltage by -24mV/°C across a -4°F to 122°F range.
- Equalization Charging: 15.5V±0.2VDC (25°C) stage with a 2-hour timeout for periodic deep maintenance charging on flooded lead-acid batteries.
- 5A Soft-Start Charging Current: Handles the initial charging ramp-up at up to 5A (50% PWM duty) before reaching full charging current.
Protected Operation, Upgraded Terminal Sizing
- Overvoltage, Short Circuit & Reverse Polarity Protection: Covers the most common fault conditions for a PWM controller in field use.
- Thermal Protection During Charging: Engages at 149°F to protect the controller and connected battery.

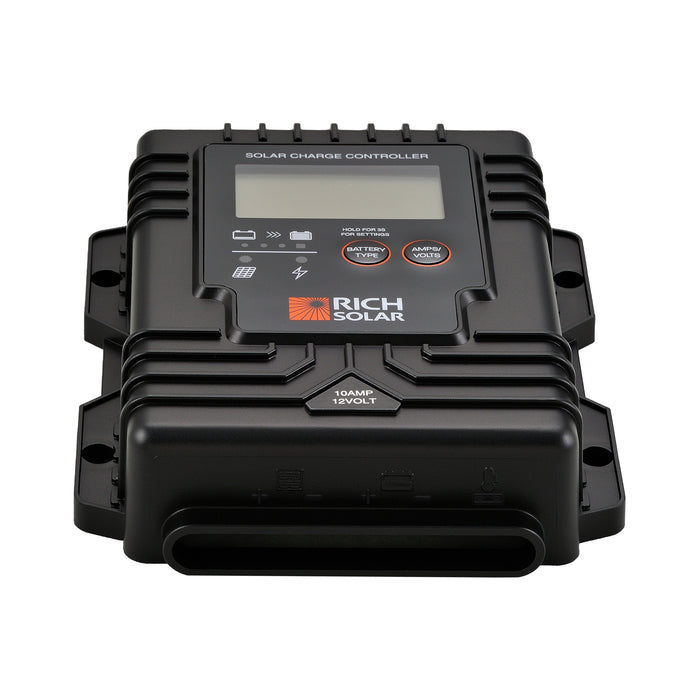

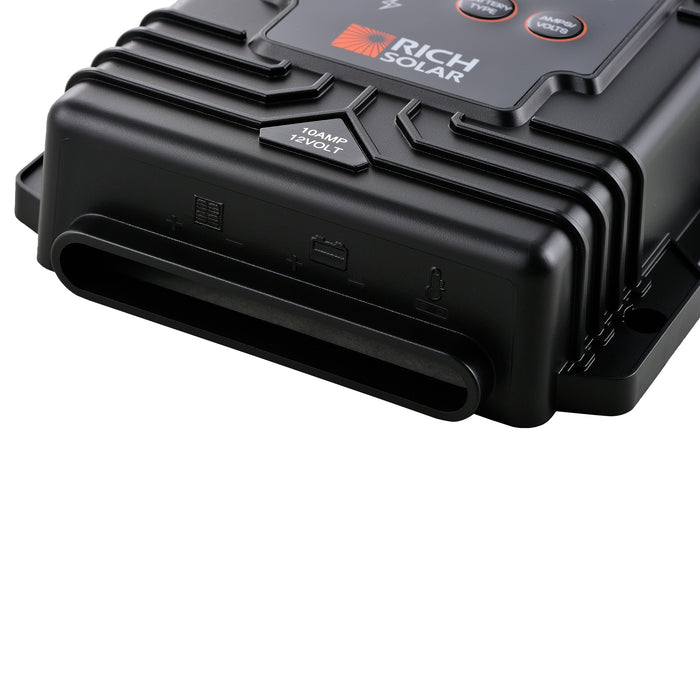

- M5 Terminals, Up to #10AWG Wire: A step up from the smaller BRAVO 8's M4/#12AWG terminals, matching the wiring capacity of the larger BRAVO 20 and 30.

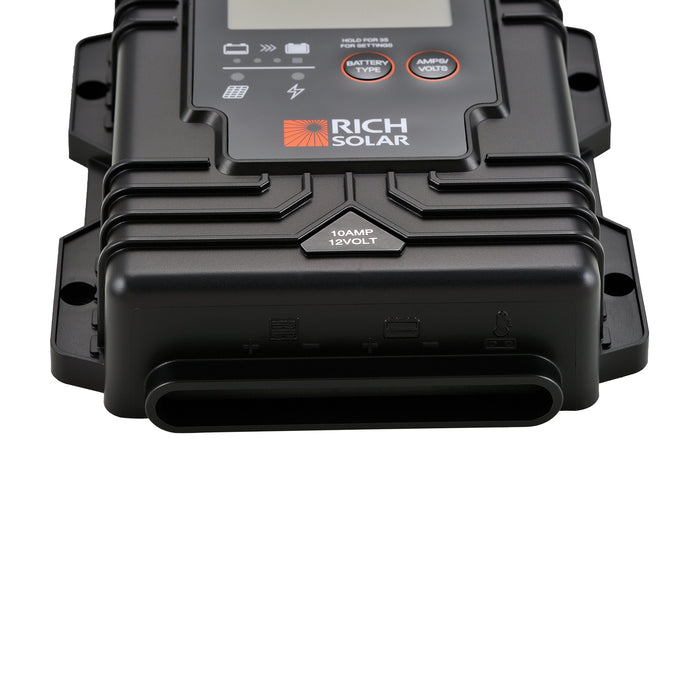

- Vertical Wall Mounting: Mounts using three included plastic spacers and self-tapping screws — no additional mounting hardware needed.
- Wide Environmental Range: Operating temperature of -13°F to 122°F and storage temperature of -40°F to 185°F.
Full Specifications
| SKU | RS-PWM10WP |
| Rated Solar Panel Current | 10A Max |
| Normal Input Array Voltage | 15–22VDC |
| Max Array Voltage (No Load) | 25VDC |
| Lowest Operating Voltage | 8VDC |
| Standby Draw (Night) | 5mA |
| Max Voltage Drop (Panel to Battery) | 0.25VDC |
| Soft-Start Current (50% PWM Duty) | Up to 5A |
| Equalization Voltage (25°C) | 15.5V ±0.2VDC |
| Equalization Timeout | 2 Hours |
| Temp Compensation | -24mV/°C, -4°F to 122°F range |
| Over-Temp Protection | 149°F |
| Terminal Type | M5, up to #10AWG |
| Housing Material | Standard ABS Plastic |
| IP Rating | IP65 |
| Weight | 0.66 lb (0.3kg) |
| Operating Temperature | -13°F to 122°F |
| Storage Temperature | -40°F to 185°F |
Best Uses
- Exposed marine and boat solar installations with single or dual panels
- RV, trailer, and camper installations without a protected electrical bay
- Small van builds stepping up from a single small panel system
- Off-grid cabin setups with a moderate-size 12V array
- Installations wanting optional remote battery temperature sensing
- Setups requiring no-spark safety near fuel sources
Key Benefits
- IP65 waterproof with conformal-coated board and solid-duty cables
- 10A PWM charging with DIP switch battery type selection
- Optional external BTS port for more accurate temperature compensation
- Compatible with Flooded, AGM, GEL, and Lithium batteries
- M5 terminals and #10AWG wire capacity, a step up from the BRAVO 8
- Mounting hardware included; CE, EMC, FCC compliant
Size the charging system
Use our solar charge controller sizing guide to compare controller current and voltage limits. The MPPT versus PWM guide explains how MPPT and PWM designs differ.
Compare before you choose
Compare charge current, cold-corrected PV voltage and array-current limits against the battery system.
See the Rich Solar BRAVO Waterproof 8 | 8 Amp Waterproof PWM Solar Charge Controller | Waterproof 8A 12V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid for another RICH SOLAR charge controller option.
| Specifications | |
| Selected variant SKU | RS-PWM10WP |
|---|---|
| Electrical Parameters | |
| Rated solar panel amps | Max. 10AMP |
| Normal input Solar cell array voltage | 15-22VDC |
| Max. solar cell array voltage (output has no load) | 25VDC |
| The controller's lowest operating voltage (at solar or battery side) | 8VDC |
| Standby current consumption at night | 5mA |
| Maximum voltage drop-Solar panel to battery | 0.25VDC |
| Charging Characters | |
| Minimum battery start charging voltage | 3VDC |
| Soft start charging voltage | 3-10±0.2VDC |
| Soft start charging current (50% PWM duty) | Up to 5AMP |
| Equalization charging voltage at 25 ℃ | 15.5±0.2VDC |
| Equalization charging timer timed out | 2 Hours |
| Battery temperature compensation coefficient | -24mV/°C |
| Temperature compensation range | -20~+50°C (-4°F to 122°F) |
| Protection | |
| Over temperature protection during charging | 65°C (149℉) |
| Electrical Parts | |
| Input-output terminal | M5 terminals |
| Physical Parameters | |
| Controller material | Plastic, Standard ABS |
| Power terminal maximum stranded wire size | #10AWG stranded-5mm² |
| Mounting | Vertical wall mounting |
| IP grade | IP65 |
| Net weight | Approx. 0.3kg/0.66lb |
| Environmental Characteristics | |
| Operating temperature | -25~50°C(-13～122℉) |
| Storage temperature | -40~85°C(-40～185℉) |
| Operating Humidity range | 100% no condensation |
| Automatic BMS Activation | Reactivates protected lithium batteries automatically. |
| 12V Battery System | Designed for 12V battery systems. |
| Supports Multiple Battery Types | Compatible with Flooded (WET), AGM, GEL, Calcium, and lithium batteries. |
| 25V Max Solar Input Voltage | Supports solar panel configurations with up to 25V PV input. |
| Common Positive Grounding | Compatible with common positive grounding systems. |
| Grounding | Positive Ground |
