Jackery HomePower 2000 Plus v2 + 2 SolarSaga 200W Panels Jackery HomePower 2000 Plus v2 + 2 SolarSaga 200W Panels
SKU: 60-200020-US00480
- Station capacity 2,048Wh
- AC output 2,400W total rated
- Panel set 2 × SolarSaga 200W (400W combined nameplate)

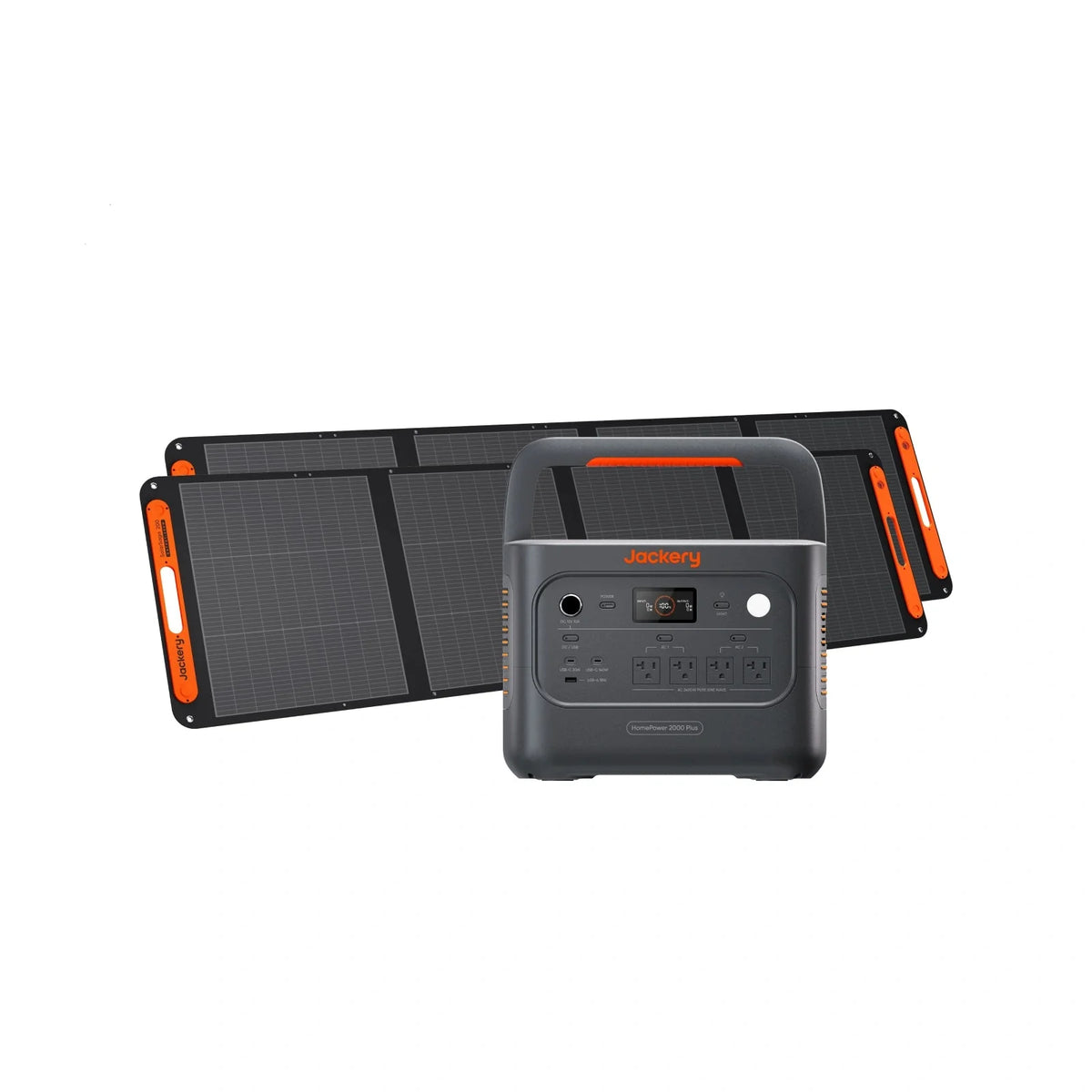

This Jackery solar bundle pairs one HomePower 2000 Plus v2 power station with two SolarSaga 200W panels. The panels provide 400W combined nameplate solar power under test conditions; the station stores 2,048Wh and supplies up to 2,400W total rated AC output. Solar wattage and AC output describe different parts of the system.
What’s in the box
- 1 × HomePower 2000 Plus v2 power station
- 2 × SolarSaga 200W solar panels
- 1 × AC charging cable
Power station and panel details
The LiFePO4 station has four 120V AC outlets, a 12V DC port, USB-A, and 30W and 140W USB-C outputs. Jackery rates total AC output at 2,400W, with a 4,800W surge peak. Each SolarSaga 200W panel is rated at 200W ±5% under standard test conditions, weighs about 14.33 lb, and folds to 23.62 × 23.50 × 1.57 inches. Solar charge time varies with sunlight, panel angle and temperature; 400W is the combined panel rating, not a guaranteed charging rate.
Choosing this configuration
This SKU includes two panels and no expansion battery. For extra stored energy, choose a separately sold, verified compatible Battery Pack 2000 Plus v2. Compare the station-only option and the 500W panel bundle.
Manufacturer manuals and connection guides
At a glance
- Battery chemistry: LiFePO4
- Expansion: Battery Pack 2000 Plus v2 sold separately
Plan the two-panel setup
Two included SolarSaga 200W panels provide a 400W combined nameplate rating. Our solar-panel count guide helps you plan how much energy that could replace in your conditions. For connector and electrical-limit checks, read how to check panel compatibility with a portable power station. Browse the Jackery collection for other configurations.
| Specifications | |
| Selected variant SKU | 60-200020-US00480 |
|---|---|
| Power Station Capacity | 2048Wh / 40Ah, 51.2V DC |
| Power Station Cell Chemistry | LiFePO4 |
| Power Station Cycle Life | 6000 cycles to 70%+ capacity |
| Power Station Weight | About 41.45 lb / 18.8 kg |
| Power Station Dimensions | 14.4 × 10.0 × 10.7 in / 36.6 × 25.5 × 27.2 cm |
| Charge Temperature | -10°C to 45°C / 14°F to 113°F |
| Discharge Temperature | -10°C to 45°C / 14°F to 113°F |
| Power Station Warranty | 3+2 Years |
| AC Output | 4 × AC outlets, 120V, 60Hz, 20A Max, 2400W Rated |
| AC Total Output | 2400W Total / 4800W Surge Peak |
| DC Output | 12V DC port, 12V, 10A Max |
| USB-C 30W Output | 30W Max, 5V 3A / 9V 3A / 12V 2.5A / 15V 2A / 20V 1.5A |
| USB-C 140W Output | 140W Max, 5V 3A / 9V 3A / 12V 3A / 15V 3A / 20V 5A / 28V 5A |
| USB-A Output | 18W Max, 5–6V 3A / 6–9V 2A / 9–12V 1.5A |
| DC Expansion Port | 36.8V to 57.6V, 55A Max |
| Charge Mode AC Input | 100V to 120V, 60Hz, 15A Max |
| Bypass Mode AC Input / Output | 100V to 120V, 60Hz, 15A Max |
| DC Input | 16V to 60V, 12A Max / double to 21A, 800W Max |
| Low Voltage DC Input | 11V to 16V, 8A Max / double to 8A Max |
| Bundle contents | 1 × HomePower 2000 Plus v2; 2 × SolarSaga 200W; 1 × AC charging cable |
| Panel model | SolarSaga 200W |
| Panel quantity | 2 |
| Combined panel nameplate | 400W under standard test conditions |
| Panel peak power (each) | 200W ±5% |
| Panel open-circuit voltage (each) | 22V ±5% |
| Panel short-circuit current (each) | 12.5A ±5% |
| Panel operating voltage at peak power (each) | 18V ±5% |
| Panel operating current at peak power (each) | 11.5A ±5% |
| Panel weight (each) | 14.33 lb ±0.66 lb / 6.5 kg ±0.3 kg |
| Panel folded dimensions (each) | 23.62 × 23.50 × 1.57 in |
| Panel unfolded dimensions (each) | 89.76 × 23.50 × 0.98 in |
| Panel waterproof rating | IP68 |
| Power station | 1 × HomePower 2000 Plus v2 |
|---|---|
| Solar panels | 2 × SolarSaga 200W |
| AC charging cable | 1 |
